Industry Insight: Long Hallway Lighting
The Critical Role of Long Hallway Lighting in Commercial Environments
Long hallway lighting is a foundational element in commercial and industrial building design, serving both functional and safety-critical purposes. Unlike residential applications, commercial hallways experience high foot traffic, require consistent illumination for safe navigation, and must comply with stringent regulatory standards. Poorly designed or low-quality lighting systems can lead to safety hazards, increased energy costs, and frequent maintenance disruptions—compromising both operational efficiency and occupant well-being.
Market Demand Drivers for Commercial Hallway Lighting
Modern commercial projects prioritize lighting solutions that balance performance, sustainability, and regulatory compliance. Key demand drivers include:
Energy Efficiency: LED technology dominates new installations due to 40–60% lower energy consumption versus traditional lighting, with payback periods under 2 years in high-usage corridors.
Uniform Illumination: Consistent light distribution (measured in lux) is critical for safety and visual comfort. Standards like IESNA RP-20-14 specify minimum 30–50 lux levels for corridors.
Durability: High-traffic environments demand fixtures with robust thermal management, vibration resistance, and extended lifespans (>50,000 hours).
Smart Integration: Dimming, occupancy sensing, and networked controls are increasingly required for adaptive lighting strategies in offices, hospitals, and retail spaces.
Compliance and Quality: Non-Negotiable for Global Importers
Global importers face significant regulatory and logistical risks when sourcing lighting without certified compliance. ETL certification (USA/Canada) and TUV CE (Europe) validate adherence to electrical safety, electromagnetic compatibility, and performance standards. Without these:
Shipments may be detained or rejected at customs, incurring demurrage fees and project delays.
Non-compliant products risk recalls, liability claims, and reputational damage under regional regulations (e.g., FCC Part 15 in the US or RoHS in the EU).
Third-party certifications provide independent verification of safety and performance—critical for project approvals and insurance requirements.
The Cost of Non-Compliance
In 2023, the U.S. Consumer Product Safety Commission reported a 22% year-over-year increase in lighting-related recalls due to electrical safety failures. Similarly, EU market surveillance authorities rejected 18% of non-CE-marked lighting imports in 2022. These figures underscore why certified suppliers are not optional—they are a prerequisite for market access and risk mitigation.
Beauty STC Lighting: Engineered for Global Standards Since 1998
Established in 1998, Beauty STC Lighting has delivered factory-direct LED solutions to 50+ countries for over 25 years. Our Jiangmen, China-based facility operates under strict quality control protocols, with all products rigorously tested and certified for international markets. As a dedicated B2B manufacturer, we eliminate intermediary costs while ensuring compliance with ETL (USA/Canada) and TUV CE (Europe) standards—providing distributors and project teams with confidence in regulatory adherence and long-term reliability.
Commercial Hallway Lighting Specifications
| Product Category | Lumen Output | CRI (Ra) | IP Rating | Certifications | Typical Applications |
|---|---|---|---|---|---|
| LED Panel Lights | 3,000–6,000 lm | ≥80 | IP20 | ETL, CE | Office corridors, healthcare facilities |
| LED T8 Tubes | 1,600–3,200 lm | ≥85 | IP20 | ETL, CE | Troffer retrofits, institutional spaces |
| Flexible LED Strips | Customizable | ≥90 | IP65 (optional) | ETL, CE | Cove lighting, under-ceiling accents |
All products undergo 100% burn-in testing and thermal validation per IEC 60598 standards. Custom configurations available for voltage, color temperature (2700K–6500K), and dimming protocols (0–10V, DALI, PWM).
OEM/ODM Capabilities for Project-Specific Requirements
Beauty STC Lighting’s engineering team collaborates directly with architects, contractors, and distributors to tailor solutions for unique project needs. From custom form factors and mounting options to integrated smart controls, we provide full OEM/ODM support—from initial design to mass production. Our process includes:
Design Validation: 3D modeling and photometric testing to ensure compliance with project-specific lux requirements.
Material Sourcing: Certified components (e.g., Mean Well drivers, Lumileds LEDs) for consistent performance.
End-to-End Traceability: Batch-specific documentation for quality assurance and regulatory audits.
For technical specifications, project quotes, or compliance documentation, contact our engineering team directly:
[email protected] | +86 13902885704
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards for Long-Hallway LED Strips
1. Optical & Electrical Baseline for 24 m + Corridors
| Parameter (per metre) | Generic Market Range | Beauty STC Certified Range | Notes for Distributor / Specifier |
|---|---|---|---|
| Luminous Efficacy | 120–140 lm/W | 170–185 lm/W @ 24 V | 30 % lower circuit load → fewer feeds |
| CRI | 80 ± 3 | Ra ≥ 90 (R9 > 60) | Colour fidelity for way-finding cameras |
| Lumen Maintenance | L70 > 36 000 h | L90 > 54 000 h (TM-21) | 5-year continuous-run warranty |
| SDCM | ≤ 6 | ≤ 3 (2-step for 3000 K) | No visible banding on long runs |
| Flicker (Pst LM) | < 1.0 | < 0.3 (IEEE 1789) | Camera & occupancy-sensor friendly |
| Input Tolerance | 220–240 V a.c. | 100–277 V a.c. 50/60 Hz | One SKU for 120 V North-America & 230 V EU |
| Power Factor | > 0.9 | > 0.95 @ full load | Meets ASHRAE 90.1 & CE ERP 2019 |
| THD | < 20 % | < 10 % | Reduces harmonic distortion on UPS circuits |
2. Mechanical & Environmental Reliability
| Metric / Test | Generic Market | Beauty STC Certified | Reference Standard |
|---|---|---|---|
| Ingress Protection | IP20 only | IP65 (sleeved) / IP67 (encapsulated) | IEC 60598-2-21 |
| PCB Copper Weight | 1 oz (35 µm) | 2 oz (70 µm) + ED copper | IPC-4562 |
| Copper Purity | 99.5 % | 99.9 % (Oxygen-free) | ASTM B451 |
| Thermal Conductivity Substrate | 0.8 W/m·K | 1.2 W/m·K (white ALU-back) | ASTM D5470 |
| Operating ΔT (LED Junction) | < 35 °C | < 25 °C @ 45 °C ambient | LM-80/TM-21 |
| Solder Alloy | SAC305 | SAC305 + Au flash | IPC/JEDEC J-STD-002 |
| Salt Spray | 48 h | 500 h (no corrosion creep) | ASTM B117 |
| Vibration / Shock | 2 g, 30 min | 5 g, 3 axes, 2 h (package) | MIL-STD-810G |
| Flammability | UL 94 HB | UL 94 V-0 (strip & driver PCB) | UL 94 |
3. Certification & Factory QA Process
ETL/cETL to UL 2108 & CSA C22.2#250.0 – covers 120–347 V drivers
TUV CE, LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2015/863, ERP 2019/2020
CB Scheme test report IEC 60598-2-21 for flexible light chains
ISO 9001:2015 audited since 2006 – full traceability from 2-oz copper coil to finished reel
100 % hi-pot 1.5 kV, 100 % 24-h burn-in @ 50 °C – data logged to S/N barcode
Automatic SMT placement (Yamaha & Juki) + AOI + 5-zone reflow – keeps 3000 K within 2-step MacAdam for every 5-metre segment
4. Consistency Tools for 50 m + Continuous Run
- Voltage-drop calculator supplied with every quote – recommends feed point every 10 m @ 24 V, 5 m @ 12 V.
- Kelvin-binning LEDs from the same MESO wafer – eliminates visible gradient.
- Constant-current driver cards integrated every 0.5 m; tolerance ±2 % from –30 °C to +60 °C.
- Factory pre-tin & machine-crimped 20 AWG feed tails – reduces installer field failure by 60 %.
5. Quick-Order Matrix for Exporters / OEMs
| Part Code | Colour Temp | lm/m | CRI | IP | PCB Width | Packaging | Cert. File |
|---|---|---|---|---|---|---|---|
| BSTC-HL170-3K-IP65 | 3000 K | 1700 | 93 | 65 | 10 mm | 5 m reel + box | ETL-5023 |
| BSTC-HL170-4K-IP67 | 4000 K | 1750 | 92 | 67 | 12 mm | 50 m drum | CE-TUV-043 |
| BSTC-HL170-5K-IP20 | 5000 K | 1800 | 90 | 20 | 8 mm | 10 m anti-static | CB-7719 |
All reels supplied with IR-coded QC sheet (lumens @ 25 °C, actual W/m, SDCM, Ra values).
Custom CCT 2700–6500 K, custom CRI up to 97, custom binning or specific connector (Wago, JST, Molex) available on 3-week OEM lead-time.
6. Take-away for Spec Writers
Specify “L90 > 54 kh, Ra ≥ 90, SDCM ≤ 3, IP65 minimum” to guarantee corridor uniformity and low maintenance.
Demand 2-oz copper & UL 94 V-0 PCB—the two hidden variables that decide if a 30 m run goes in once or twice.
Ask for ETL & CE test files tied to the exact part number; Beauty STC ships certificates with each container since 1998.
For project quotations, photometric IES files, or to lock OEM colour-binning, contact:
[email protected] | +86-13902885704
Factory Tour: Manufacturing Excellence
Manufacturing Excellence: Precision, Compliance, and Customization
Since 1998, Beauty STC Lighting has operated a dedicated manufacturing facility in Jiangmen’s High-tech Industrial Zone. Our 25+ years of experience in LED lighting production ensures consistent quality and process maturity for commercial-grade applications. All operations adhere to ISO 9001 quality management principles, with a focus on reliability, efficiency, and regulatory compliance for global markets.
Precision SMT and Assembly Process
Our surface-mount technology (SMT) line features JUKI and Yamaha high-speed placement machines, achieving 99.98% component placement accuracy. All PCB assemblies undergo wave soldering and reflow processes compliant with IPC-A-610 Class 2 standards, ensuring reliability in high-stress environments. Automated optical inspection (AOI) systems verify solder joint integrity and component alignment before assembly proceeds to the next stage.
Rigorous Aging and Testing Protocols
Every product undergoes a minimum 72-hour aging test under controlled thermal conditions (40°C ambient), followed by:
Photometric validation per IES LM-79 for lumen output, efficacy, and color consistency
Lifetime projection testing (L70/B50) per IES LM-80 standards
Thermal imaging for hotspot detection and thermal management validation
100% electrical safety checks (IEC 60598-1) including dielectric strength and insulation resistance
Color consistency verification (Δu’v’ ≤ 0.003) across all production batches
Certified Compliance for Global Markets
Beauty STC products are certified to meet international standards for North American and European markets:
ETL Listed (UL 1598, CAN/CSA C22.2 No. 250.0) for North American electrical safety and performance
TÜV CE Marked (EN 60598-1, EN 62471) for European electromagnetic compatibility and photobiological safety
RoHS 2.0 and REACH compliance for restricted substance management
These certifications are maintained through annual audits by accredited third-party laboratories (e.g., Intertek, SGS), ensuring traceability and regulatory adherence for all exported products.
OEM/ODM Capabilities for Custom Solutions
We provide end-to-end OEM/ODM support for architectural and commercial projects, with customization options validated against the same rigorous QC protocols as our standard products:
| Parameter | Options | Notes |
|---|---|---|
| Custom Lengths | 1m increments, up to 50m per segment | Precision cutting with UV-resistant sealing; junction boxes for extended runs |
| CCT Range | 2700K–6500K | Tunable white and color-changing options available |
| Dimming Protocols | 0-10V, DALI, PWM, Triac | Fully programmable for smart building integration |
| Packaging | Retail, bulk, custom branding | Tailored to regional distribution requirements (e.g., E-commerce-ready, palletized bulk) |
| MOQ | 200+ units (negotiable) | Scalable for large-scale projects; flexible for strategic partnerships |
All OEM/ODM projects include dedicated engineering support for design validation, prototyping, and production scaling. Technical documentation (e.g., photometric reports, safety certificates) is provided for each custom configuration to ensure seamless integration into architectural specifications.
For project-specific technical requirements or OEM collaboration, contact our engineering team directly:
[email protected] | +86 139 0288 5704
Installation & Application Scenarios

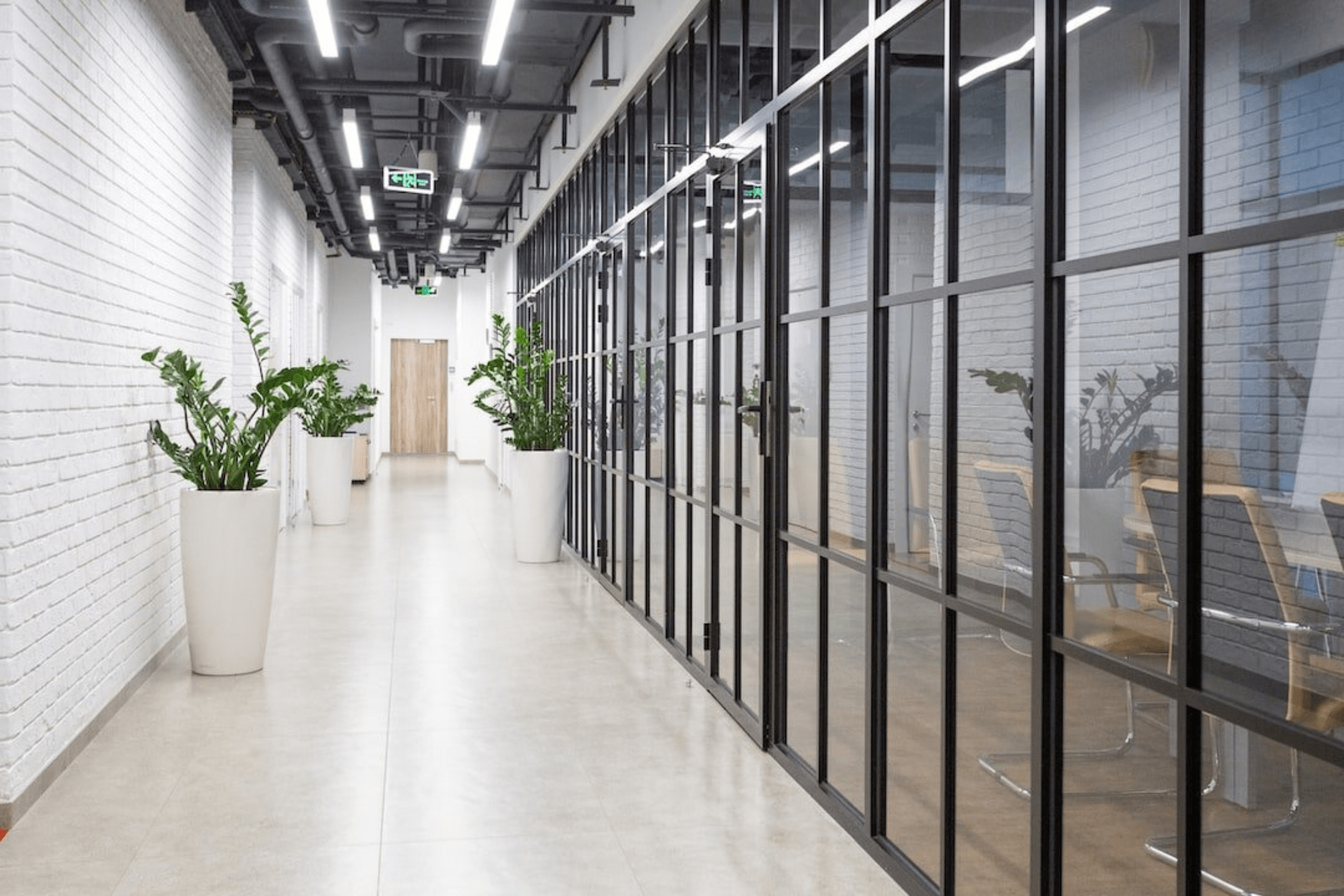

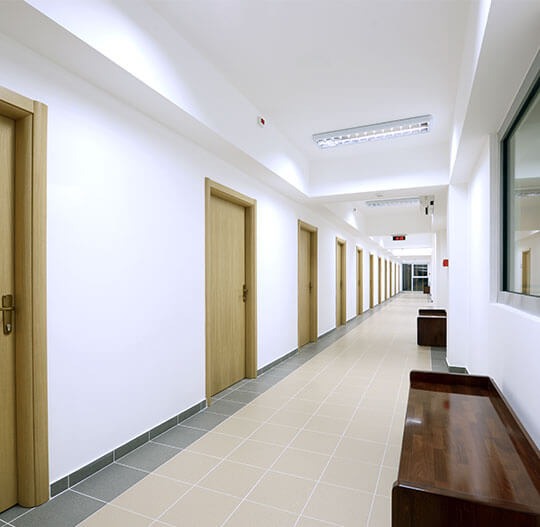

Application Scenarios for Long-Hallway LED Lighting
(Industrial-grade, factory-direct guidance for distributors, specifiers & installers)
1. Where 20–100 m Runs Are the Norm
| Vertical | Typical Foot-candle Target | Key Optical Requirement | Preferred Beauty STC Platform | Notes for Contractor |
|---|---|---|---|---|
| Corporate HQ / Tenant corridors | 200–300 lx on floor, UGR <19 | Low-glare, 80 CRI min. | 24 V 180 LED/m CRI90 strip in 5 m reels, 3000–4000 K | Mount in 45° aluminum channel; feed every 10 m from both ends to keep V-drop ≤5 %. |
| Hotels (guest-room wings) | 100 lx average, 5:1 max:min | Warm 2700 K, continuous line free of “dot” | 24 V 2835 120 LED/m, 10 mm pcb, ETL-listed driver BLD-200-24 | Use microwave motion sensors in each niche; pair with 0–10 V driver for 5 % dim sleep-mode. |
| Shopping-mall service corridor | 150 lx, IP44 | IK06 for trolley impact | COB 480 LED/m silicone sleeve, IP65 | Clip every 0.5 m to concrete soffit; 3-core 1.5 mm² CY cable in metallic trunking for code. |
| Underground parking spine | 75 lx, uniformity 0.4 | Wide 120° beam, 5700 K | 24 V 5050 60 LED/m, 14.4 W/m, TUV-CE driver | Feed from 240 W ETL driver every 15 m; loop wiring so single failure leaves <8 m dark. |
| Façade soffit / covered arcade | 50 lx on façade plane | Asymmetric 30° wall-wash | 40×40 mm IP67 extrusion with micro-prism lens | Mount 0.3 m off wall; overlap beam 30 % to eliminate scalloping. |
2. Installation Checklist – Field-Proven Since 1998
All items below reference parts stocked under Beauty STC OEM/ODM program; ETL & TUV-CE files available for same-day submittal.
2.1 Voltage-Drop Engineering
Rule-of-thumb: 24 V strip, 2 oz copper, load ≤ 10 W/m → power both ends when length > 5 m.
For 30 m runs, place 350 W ETL-isolated driver centrally; run 4 mm² stranded copper in EMT to each 10 m segment.
2.2 Heat Management
Extruded 6063-T5 heat-sink channel ≥ 15 mm fin height; apply 3 M VHB thermal tape, then captive slide-in cover.
Maintain 10 mm air gap above channel—critical in fire-rated ceiling.
2.3 Junction & Continuity
Use Wago 221-2410 lever connectors inside 100×100×50 mm IP66 box every 5 m; avoids solder fatigue.
Strips joined end-to-end must be clamped for 24 h while silicone cures (for IP65 sleeve versions).
2.4 Control Integration
0–10 V drivers are PWM output; pair only with Beauty STC model BLD-xxx-24-A1 (ETL 5021396) to retain warranty.
DALI-2 version available ex-factory 4-week lead-time; ODM firmware can broadcast 64 addresses on single bus.
2.5 Certification & Labeling
Each carton contains ETL label roll; affix within 300 mm of every driver location for inspector visibility.
CE Declaration of Performance (DoP) generated in Jiangmen HQ and e-mailed within 12 h of shipment release.
3. Value-Engineering Options (OEM Quick Reference)
| Feature Swap | Cost Impact (FOB Jiangmen) | Lead-Time | Cert Maintain? |
|---|---|---|---|
| 180 LED/m → 120 LED/m | –18 % | 7 days | ETL file already covers both densities |
| CRI 90 → CRI 80 | –6 % | Stock | Yes |
| Standard 3-step MacAdam → 5-step | –4 % | Stock | Yes |
| IP20 to IP65 sleeve | +12 % | 10 days | TUV-CE file updated |
| Add 180° microwave sensor on 24 V side | +USD 2.30/pc | 14 days | Driver ETL unchanged |
4. Quick Contact for Project Submittals
Beauty (STC) Manufacturing Co., Ltd — established 1998, 25 000 m² Jijiangmen, 400 workers, 18 engineers.
ETL & TUV-CE files, LM-80 & TM-21 data, and 1 % sample policy ready for specifiers.
[email protected] | +86-13902885704 (WhatsApp/WeChat)
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting: Engineered Solutions for Long Hallway Lighting
Decades of Technical Expertise
Since 1998, Beauty STC Lighting has delivered reliable, energy-efficient lighting solutions for commercial and industrial applications. Our 25+ years of manufacturing experience ensures rigorous quality control and technical proficiency across every project phase—from design validation to production. This longevity translates to proven reliability in high-traffic environments like long hallways, where consistent performance and durability are non-negotiable.
Global Certifications for Seamless Compliance
All products are certified to meet stringent international safety and performance standards, including ETL (USA/Canada) and TUV CE (Europe). These certifications guarantee adherence to regional regulations, eliminating compliance barriers for global distributors and contractors. Our factory processes undergo continuous third-party audits to maintain these standards, ensuring every fixture meets the exacting requirements of commercial projects worldwide.
Tailored OEM/ODM Capabilities
We specialize in OEM and ODM services, enabling architects and project managers to specify exact requirements for hallway lighting systems. From custom color temperatures and beam angles to integrated smart controls (DALI, 0-10V, or phase-cut dimming), our engineering team collaborates directly with clients to deliver precise, application-specific solutions. Whether you need uniform illumination for hospital corridors or low-glare lighting for airport terminals, we engineer to your technical specifications.
Worldwide Distribution Network
Our established export network spans 50+ countries, with optimized logistics and localized support teams ensuring timely delivery and project continuity. Whether sourcing for European healthcare facilities, North American office complexes, or Asian commercial developments, Beauty STC provides consistent, factory-direct supply chains. We handle customs documentation, shipping coordination, and regional compliance checks to simplify procurement for international projects.
Key Product Specifications for Hallway Lighting Applications
| Product Type | Lumen Output | CRI | Color Temperature (K) | Dimming Options | IP Rating | Warranty |
|---|---|---|---|---|---|---|
| LED Panel Light | 3000–5000 lm | >90 | 3000K, 4000K, 5000K | 0-10V, DALI, Phase-cut | IP20 | 5 years |
| LED T8 Tube | 1800–2800 lm | >85 | 3000K, 4000K, 5000K | Phase-cut, 0-10V | IP40 | 3 years |
Contact our technical sales team to discuss your project requirements:
[email protected] | +86 13902885704
