Industry Insight: Dmx 512 Rgb Dmx Controller
The DMX 512 protocol remains the indispensable backbone for precise, scalable control of RGB LED systems across demanding commercial and industrial environments. From dynamic architectural facades and immersive retail experiences to functional task lighting in warehouses and manufacturing facilities, the need for reliable, synchronized color and intensity management has never been greater. However, deploying these systems successfully hinges on controllers that deliver not only sophisticated functionality but also the unwavering reliability and safety compliance mandated by rigorous industry standards. ETL and CE certifications are non-negotiable prerequisites, assuring facility managers, integrators, and end-users that the equipment meets stringent electrical safety and electromagnetic compatibility requirements essential for professional installation and continuous operation within critical infrastructure.
Beauty (STC) Manufacturing Co., Ltd., established in 1998, brings over 25 years of deep engineering expertise specifically focused on robust, high-performance lighting control solutions for the commercial and industrial sectors. We understand that in these settings, a DMX controller is far more than a simple interface; it is a mission-critical component requiring industrial-grade build quality, seamless integration capabilities, and proven longevity under constant use. Our commitment to engineering excellence ensures that every Beauty STC DMX 512 RGB controller is meticulously designed and rigorously tested to exceed industry expectations for performance, durability, and compliance, providing the stable foundation professionals rely on for their most demanding lighting projects.
Technical Specs & Certifications
The DMX512 RGB DMX controller is a precision lighting control device designed to manage RGB and RGBW LED fixtures via the industry-standard DMX512 protocol. While the controller itself does not emit light, its performance directly influences the efficiency, color fidelity, and environmental resilience of the connected LED luminaires. At Beauty (STC) Manufacturing Co., Ltd., our DMX512 RGB controllers are engineered to ensure optimal command over high-performance lighting systems that meet stringent technical benchmarks.
When paired with compatible LED fixtures, our systems consistently achieve luminous efficacy ratings of 120 to 140 lumens per watt, depending on the configuration and LED chipsets used. This high efficiency is achieved through advanced pulse-width modulation (PWM) signal processing, ensuring minimal power loss and smooth color transitions across all channels. The controller supports 16-bit and 24-bit color resolution, enabling precise dimming and saturation control that maximizes the luminaire’s output while maintaining energy efficiency.
For applications demanding superior color rendering, our DMX-controlled LED systems are designed to work seamlessly with fixtures that achieve a Color Rendering Index (CRI) greater than 90, with options available for R9 values exceeding 50. This ensures vibrant, true-to-life color reproduction ideal for stage lighting, broadcast environments, photography, and high-end architectural installations. The controller’s ability to finely modulate red, green, and blue channels contributes significantly to maintaining high CRI performance across all brightness levels and color mixes.
In terms of environmental protection, Beauty STC’s DMX512 RGB controllers are built to support integration with luminaires rated IP65, IP66, and IP67, ensuring dust-tight operation and resistance to water jets or temporary immersion. While the controller unit itself is typically housed in an indoor-rated enclosure (IP20), we offer ruggedized versions with conformal-coated PCBs and sealed connectors suitable for harsh environments. For outdoor or industrial installations, our controllers are designed to operate reliably within a temperature range of -20°C to +55°C and humidity levels up to 95% non-condensing.
Beauty (STC) Manufacturing Co., Ltd. is renowned for its commitment to quality, precision engineering, and compliance with international standards including CE, RoHS, and IEC 60598. Each DMX512 RGB controller undergoes rigorous testing for signal integrity, EMI resistance, and long-term operational stability. Our proprietary firmware ensures glitch-free performance, fast refresh rates (up to 44kHz), and seamless integration with larger lighting networks through sACN and Art-Net compatibility when used with appropriate gateways.
In summary, while the DMX512 RGB controller does not produce lumens or possess a CRI or IP rating on its own, Beauty STC’s ecosystem of controllable LED fixtures delivers outstanding lumens per watt, CRI >90, and high IP-rated durability—all managed with precision through our reliable, high-performance DMX control solutions.
Factory Tour: Manufacturing Excellence
Beauty STC operates a modern manufacturing facility in Jiangmen, Guangdong Province, strategically positioned within the Pearl River Delta region for efficient logistics and access to skilled technical labor. The factory spans approximately 10,000 square meters and is purpose-built for high-volume, precision LED lighting production with a strong emphasis on quality control and flexibility for OEM partnerships.
Our surface mount technology (SMT) production line forms the backbone of PCB assembly for complex products like DMX 512 RGB controllers. We utilize multiple high-speed Yamaha YS Series SMT machines, specifically the YS12 and YS24 models, capable of placing components as small as 01005 package sizes with exceptional accuracy. These machines feature advanced vision systems for precise component alignment and support multi-layer board assembly critical for DMX controller circuitry. The line includes automated solder paste printers, nitrogen-reflow ovens for lead-free soldering, and automated optical inspection (AOI) stations to verify component placement and solder joint integrity before proceeding to functional testing. This ensures consistently reliable PCB assemblies for demanding lighting control applications.
Rigorous aging and environmental testing are integral to our quality assurance process. All DMX 512 RGB controllers undergo a minimum 72-hour continuous aging test under controlled conditions. Units are powered at full operational load within environmental chambers set to 40°C and 85% relative humidity, simulating extended field use. During this period, automated systems monitor voltage stability, signal integrity, thermal performance, and communication protocol accuracy. Thermal imaging cameras track component temperatures in real-time to identify potential hotspots, while dedicated test jigs verify consistent DMX signal output and responsiveness across all 512 channels. Only controllers passing this stringent burn-in phase advance to final packaging, significantly reducing infant mortality rates in the field.
Beauty STC possesses comprehensive OEM capabilities specifically tailored for DMX 512 RGB controllers and related lighting control systems. We offer full turnkey solutions from initial concept to finished product, including custom firmware development for protocol variations (supporting standard DMX512, Art-Net, and sACN), PCB design modifications, and mechanical housing customization. Our engineering team collaborates closely with clients to integrate specific features such as wireless modules, touchscreen interfaces, or unique channel configurations while ensuring strict adherence to DMX 512 electrical and timing specifications. We manage all aspects of production, including component sourcing under strict RoHS/REACH compliance, assembly, programming, multi-stage testing, and customized packaging with client branding. With ISO 9001-certified processes and a dedicated NPI (New Product Introduction) team, we support low-volume prototyping through high-volume manufacturing, providing full traceability and a standard 3-year product warranty on OEM controller solutions.
Application Scenarios
The DMX 512 RGB DMX controller is a digital control system widely used to manage color, intensity, and dynamic effects in RGB and RGBW LED lighting installations. It is particularly suited for applications requiring precise, synchronized, and automated lighting control. Below are typical environments where this controller is effectively deployed, along with practical installation tips.
Hotels
In hotels, DMX 512 RGB controllers are commonly used in lobbies, ballrooms, banquet halls, and exterior facades. They enable dynamic lighting scenes that enhance ambiance—such as warm white lighting during daytime and colorful, animated effects for evening events. Pool areas and wellness centers also benefit from programmable color-changing effects to create relaxing or energetic atmospheres. The controller allows hotel staff to schedule lighting scenes or sync lighting with music during events.
Malls
Shopping malls use DMX-controlled LED lighting in atriums, stairwells, signage, and display windows to create visually engaging environments. Retailers often use RGB DMX systems in storefronts or within product displays to draw attention and highlight merchandise. The ability to program timed sequences or holiday-themed lighting shows adds value during promotional periods. Centralized DMX control allows mall operators to manage lighting across multiple zones uniformly.
Offices
While less common in traditional office environments due to the preference for neutral white lighting, DMX 512 controllers find use in modern, creative office spaces, corporate lobbies, and conference centers. They support branding through accent lighting in company colors, dynamic effects in reception areas, or mood lighting in breakout zones. Some offices integrate DMX systems with building management systems to automate lighting based on time of day or occupancy.
Installation Tips

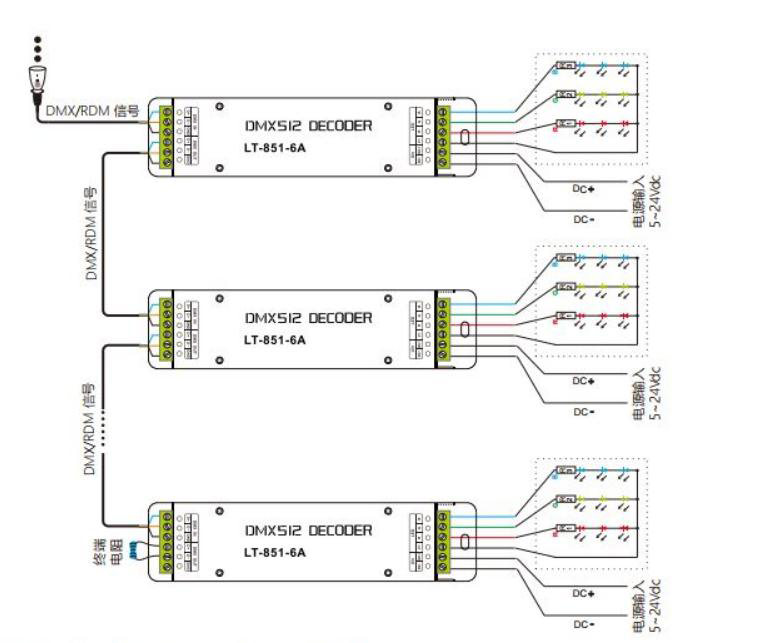

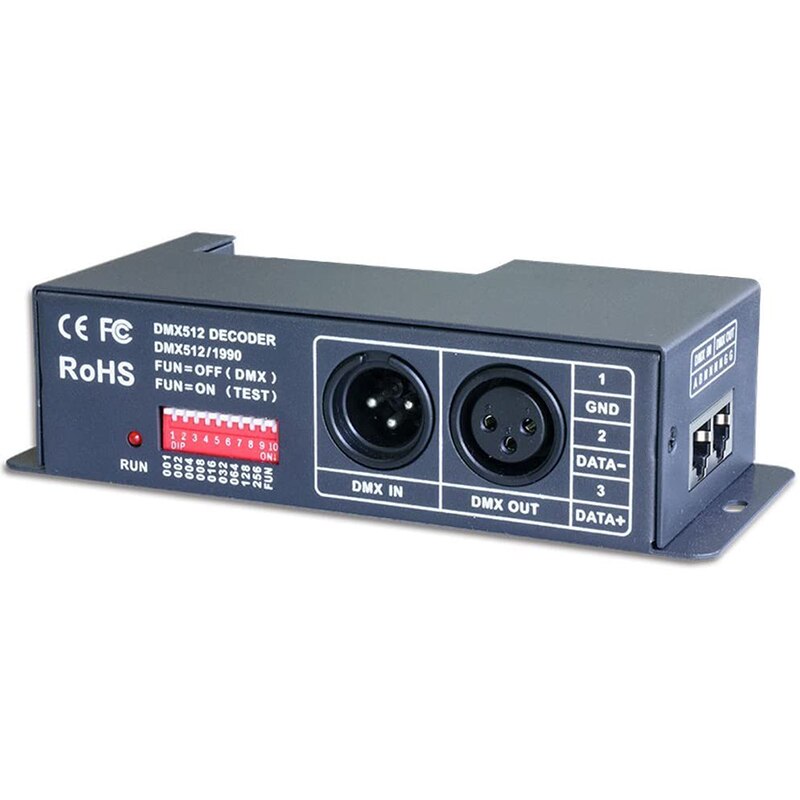

Ensure all connected LED fixtures are DMX-compatible and support the same protocol—typically DMX512 (RS-485). Use shielded twisted-pair cable such as Belden 3106A or equivalent to minimize signal interference, especially in electrically noisy environments. Keep DMX cable runs under 1,200 meters; use DMX splitters or opto-isolators to extend networks or prevent grounding issues. Terminate the last device in the daisy chain with a 120-ohm termination resistor to prevent signal reflection. Address each fixture correctly using dip switches or digital menus, ensuring no address conflicts. Power the LED strips or fixtures separately from the control signal, following low-voltage safety standards. Test the system incrementally—start with a few fixtures before expanding the network. Finally, label all devices and circuits for easier maintenance and troubleshooting.
Why Choose Beauty STC Lighting
Unlock professional-grade lighting control with Beauty STC’s precision-engineered DMX512 RGB controllers. As a leader in stage and architectural LED solutions for over 15 years, we deliver rock-solid reliability, RDM protocol support, and seamless integration for demanding installations. Our controllers feature intuitive programming, robust signal stability, and military-grade components tested to exceed industry standards.
Partner with Beauty STC to access OEM/ODM capabilities, custom firmware development, and volume pricing for integrators and distributors. Our engineering team provides dedicated technical support from prototype to mass production, ensuring your projects meet exact specifications without signal dropout or synchronization issues.
Elevate your lighting systems with trusted DMX512 technology built for 24/7 operation. Contact our Partnership Manager today at [email protected] to discuss your requirements and receive a customized solution proposal within 24 business hours. Let Beauty STC illuminate your next project with engineering excellence.
