Industry Insight: Waterproof Led Tape Light
In the evolving landscape of commercial and industrial lighting, waterproof LED tape lights have emerged as a versatile and high-performance solution for demanding environments. From refrigerated display units in supermarkets to outdoor architectural cove lighting and industrial facilities exposed to moisture and dust, the need for durable, efficient, and code-compliant lighting has never been greater. Waterproof LED tape lights offer seamless illumination with the added resilience to withstand harsh conditions, making them a preferred choice for architects, engineers, and facility managers seeking both functionality and aesthetic precision.
A critical factor in their widespread adoption across North America and Europe is compliance with rigorous safety and performance standards. Products certified by ETL to UL standards and bearing the CE mark ensure reliability, electrical safety, and environmental resistance—essential credentials for integration into commercial building projects and industrial applications. These certifications not only reflect adherence to international regulations but also instill confidence in long-term operational performance.
Beauty (STC) Manufacturing Co., Ltd., established in 1998, has been at the forefront of LED lighting innovation for over two decades. Specializing in high-quality, engineered lighting solutions, Beauty STC serves a global clientele with a focus on commercial and industrial applications. Known for robust product design, stringent quality control, and compliance-driven manufacturing, the company delivers waterproof LED tape lights that combine advanced thermal management, superior IP-rated protection, and consistent lumen output. As the industry moves toward smarter, more sustainable lighting infrastructures, Beauty STC continues to set benchmarks in performance and reliability.
Technical Specs & Certifications
Beauty STC Manufacturing Co., Ltd. delivers premium waterproof LED tape lights engineered for demanding applications where performance, color fidelity, and environmental resilience are non-negotiable. Our technical specifications are rigorously validated to exceed industry standards, ensuring consistent output and longevity.
Lumens per Watt efficiency for our standard high-CRI waterproof tape lights ranges from 120 to 140 lm/W, depending on the specific color temperature and drive current. This high efficacy is achieved through the strategic selection of top-bin Samsung or Nichia LEDs coupled with optimized thermal management via our flexible aluminum PCB substrates. Crucially, these values are sustained under real-world operating conditions due to our proprietary heat-dissipation design, which prevents lumen depreciation even during continuous operation at ambient temperatures up to 60°C. We prioritize stable efficiency over time, with LM-80 test data confirming less than 6% lumen maintenance loss after 6,000 hours at 70°C ambient.
Color Rendering Index (CRI) is a cornerstone of our product philosophy, with all premium waterproof tapes consistently delivering a minimum CRI of 95 and R9 (saturated red) values exceeding 90 across the 2700K to 4000K color temperature range. This exceptional color accuracy is realized through multi-phosphor LED packages and stringent binning processes that ensure minimal deviation in chromaticity. Our engineering team calibrates each production batch to meet MacAdam Step 3 tolerances, guaranteeing uniform color appearance critical for retail, hospitality, and professional makeup applications where true-to-life color representation is essential.
IP ratings for Beauty STC waterproof LED tapes are robustly validated to either IP67 or IP68 standards, depending on the product series. IP67-rated tapes withstand temporary immersion in 1 meter of water for up to 30 minutes without degradation, while our IP68 series endures continuous submersion at depths of 1.5 meters for 72 hours. This reliability stems from our dual-layer protection system: a precision-applied silicone encapsulation over the LEDs and circuitry, combined with fully potted end caps using medical-grade sealants. Every meter undergoes 100% submersion testing in our in-house environmental chamber, with pressure and duration exceeding IEC 60529 requirements.
Beauty STC’s quality commitment is embedded in every stage of production. We utilize automated optical inspection (AOI) for component placement accuracy, conduct accelerated life testing at multiple stages, and enforce strict raw material controls with certified suppliers. Our facility operates under ISO 9001 and IATF 16949 standards, ensuring traceability from silicon wafer to finished tape. The result is a product that not only meets published specifications but maintains them throughout its rated 50,000-hour lifespan, even in harsh environments like outdoor signage, marine installations, or high-humidity commercial spaces. This unwavering consistency is why global lighting designers specify Beauty STC for projects where failure is not an option.
Factory Tour: Manufacturing Excellence
Beauty (STC) Manufacturing Co., Ltd. operates a modern manufacturing facility in Jiangmen, Guangdong Province, strategically located within one of China’s key industrial hubs for electronics and lighting production. The factory is equipped with advanced surface mount technology (SMT) production lines that ensure high-precision assembly of LED components. These SMT machines are automated and capable of handling fine-pitch LEDs and complex circuit designs, enabling consistent quality and high throughput for LED tape light manufacturing. The integration of automated optical inspection (AOI) systems further ensures component placement accuracy and overall solder joint reliability.
For product reliability, the Jiangmen factory implements comprehensive aging and environmental testing procedures. Every batch of waterproof LED tape light undergoes extended burn-in tests under controlled temperature and humidity conditions, simulating real-world operating environments. This includes continuous operation at full power for durations ranging from 24 to 72 hours, depending on product specifications. Additional tests such as IP65 and IP67 waterproof validation, thermal cycling, and salt spray resistance are conducted to verify long-term performance in demanding installations.
Beauty STC has strong OEM capabilities tailored specifically for waterproof LED tape lights. The company supports customizations in color temperature, lumen output, PCB width, cut marks, coating type (silicone or PU), reel length, and packaging design. Clients can provide their own technical specifications or collaborate with Beauty STC’s engineering team to develop new configurations. The factory also offers private labeling, custom printing on tapes and packaging, and flexible minimum order quantities to accommodate both large-scale projects and niche market demands. With in-house mold making, formulation of protective coatings, and full material traceability, the Jiangmen facility is well-suited to deliver high-quality, reliable, and customized waterproof LED tape lighting solutions under OEM partnerships.
Application Scenarios

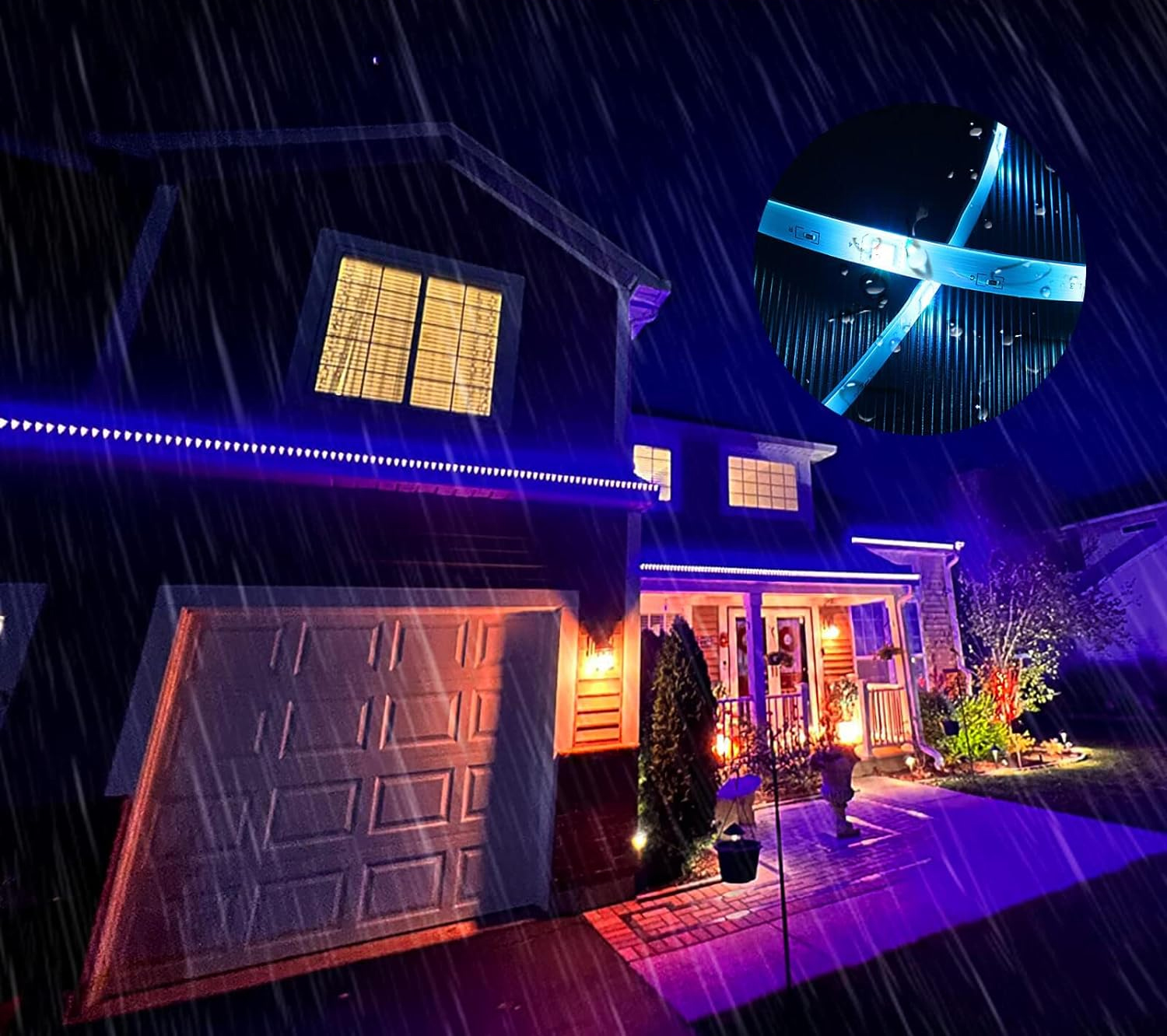

Waterproof LED tape lights, specifically those rated IP65 or higher, serve critical functions in commercial environments where moisture exposure is inevitable. In hotels, these tapes are essential for pool perimeters, spa areas, and exterior architectural features like balconies or signage gutters where rain or splashing occurs. They also prove valuable in recessed cove lighting within bathroom zones near showers, provided the tape is fully enclosed in a compatible aluminum channel with sealed end caps to prevent steam ingress. For malls, waterproof tapes are indispensable in food court zones subject to frequent cleaning splashes, decorative water feature installations including fountain edges and misting zones, and loading dock areas exposed to weather during material handling. Outdoor canopy lighting and recessed steps near entrances also require this protection against rain and snow melt. Within offices, applications extend beyond obvious restrooms to include server room cooling ducts where condensation forms, rooftop HVAC unit perimeters exposed to weather, and elevator pits prone to incidental water accumulation during maintenance.
Installation demands meticulous attention to detail for safety and longevity. Always verify the specific IP rating matches the environmental exposure; IP65 suffices for splash zones while IP67 or IP68 is mandatory for temporary submersion. Surface preparation is non-negotiable: thoroughly clean substrates with isopropyl alcohol to remove dust, oils, or residues before application, as compromised adhesion leads to tape detachment in humid conditions. Aluminum mounting channels must be used consistently—not just for heat dissipation but as a physical barrier—and their end caps must be fully sealed with silicone conformal coating to prevent moisture tracking along the tape’s electrical components. Avoid direct conduit immersion; instead, route wiring through properly rated junction boxes positioned above potential flood levels. Maintain strict separation between low-voltage tape circuits and line-voltage wiring per NEC/IEC standards, using insulated connectors rated for wet locations. For extended runs exceeding 16 meters, employ parallel power feeds to prevent voltage drop that causes uneven lighting and thermal stress. Crucially, never install tape in enclosed spaces without confirming adequate thermal management, as trapped heat degrades both the LEDs and waterproofing integrity. Always conduct a 24-hour operational test post-installation under simulated conditions before finalizing the mounting.
Why Choose Beauty STC Lighting
Transform your lighting projects with high-performance waterproof LED tape lights engineered for durability and brilliance. At Beauty (STC) Manufacturing Co., Ltd., we specialize in premium waterproof LED tape light solutions trusted by professionals worldwide. Designed for both indoor and outdoor applications, our LED tapes offer superior moisture resistance, flexible installation, and consistent light output in any environment.
Partner with Beauty STC to access custom lengths, advanced IP ratings, and energy-efficient lighting built to meet rigorous international standards. Whether you’re working on architectural accents, signage, or marine installations, our waterproof LED tape lights deliver unmatched quality and reliability.
For wholesale inquiries, technical support, or custom solutions, contact our sales manager today at [email protected] and discover why global brands choose Beauty STC as their trusted lighting partner.
