Water Resistant Led Strip: Manufacturer Guide & Technical Specs (2026)

Industry Insight: Water Resistant Led Strip

IP65 / IP67 Water-Resistant LED Strips – Why Certification, Not Just Coating, Matters for Commercial Projects

Outdoor & Wet-Location Lighting Is No Longer Optional

Façade grazing, deck outlining, cold-room racking, cruise-ship decks, façade media mesh—every specification now calls for flexible LED strips that survive hose-down, salt spray, condensing humidity and −30 °C ice storms. The global market for water-resistant LED strips is growing >14 % CAGR, driven by:
Architectural lighting mandates (ASHRAE 90.1, IECC 2021)
Food & pharma plants requiring IP66/IP69K wash-down
Marine & offshore retrofits (DNV-GL, ABS)
Horticulture & aquaculture facilities in 24 h cyclic moisture

Yet “waterproof” is an elastic word. A listing on a B2C web-shop with a generic IP65 icon offers no traceable test report, no LM-80 data, no declared lumen maintenance after 6 000 h salt-fog. For distributors, contractors and lighting consultants that translates into callbacks, re-lifts and lost rebates.

Certification = Import Pass-Through + Rebate Eligibility

UL or ETL to UL 2108, TUV CE to EN 60598-2-21, plus RoHS, REACH and TM-21 L70 >50 000 h are the minimum documents customs officers, rebate authorities and insurers ask for on every container. Without them:

Risk	Consequence
Random customs hold	2–4 weeks demurrage
Missing LM-80 / TM-21	Rebate denied (DLC Premium, DesignLights)
Non-conforming PVC sheath	EU REACH penalty up to 4 % of shipment value
IP test report not traceable	Project certificate of occupancy withheld

Beauty STC Lighting – Factory Source Since 1998

Located in Jiangmen’s high-tech zone, Beauty (STC) Manufacturing Co., Ltd has built ETL- and TUV CE-listed strips for 25 years. Every reel is produced under one 32 000 m² roof: SMT → conformal coating → vacuum silicone extrusion → 100 % IP67 tank test → 4 h 85 °C aging. That vertical integration is why OEM/ODM customers in 50 countries can ship to California, Oslo or Singapore with zero additional paperwork.

Key differentiators at a glance:

Parameter	Beauty STC Standard Build	Typical B2C Offering
Safety	ETL/cETL to UL 2108 + TUV CE	Self-declaration
Photometry	3 SDCM, CRI 90, R9 >60, 220 lm/ft @ 4000 K	5–7 SDCM, CRI 80
Ingress	IP67 silicone sleeve, -40 °C to +90 °C, 180 ° side-bend	IP65 epoxy drop, 0 °C limit
Lifetime	L90 >50 000 h @ 45 °C (TM-21)	Not stated
Binning	1 bin LED, 1 bin phosphor	Mixed reels
Warranty	5 years with traceable serial	1 year RTB

Next Section Preview

In the following paragraphs we will break down the engineering choices behind IP65 vs IP67 vs IP68, show how silicone extrusion suppresses IR loss, and list the most common specification pitfalls we see in RFQs from international lighting houses.

Need a test report or a custom spectrum for your tender? Email [email protected] or call +86-13902885704.

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards for Industrial-Grade Waterproof LED Strips

For critical outdoor lighting applications, technical specifications are paramount to ensuring reliability, safety, and long-term performance. Beauty STC Lighting leverages 25+ years of manufacturing expertise (since 1998) to deliver industrial-grade waterproof LED strips that meet stringent international standards. Our ETL (USA/Canada) and TUV CE (Europe) certifications validate compliance with global safety and performance requirements, while our OEM/ODM capabilities enable custom solutions tailored to project-specific needs without compromising on quality.

Lumens Efficiency & Energy Performance

Beauty STC’s LED strips utilize high-efficiency SMD LED chips with optimized optical design, achieving 120–140 lumens per watt (lm/W) across all color temperatures. This exceeds the industry average of 80–100 lm/W for generic products, resulting in superior energy efficiency and reduced operational costs. Our thermal management system ensures consistent lumen output over extended operating hours, minimizing depreciation and maintaining brightness throughout the product lifecycle.

Color Rendering Index (CRI) for Accurate Light Quality

We prioritize color accuracy with a CRI of ≥90 (R9 >50) on all standard and custom color temperature options. This is critical for architectural and commercial applications where true color representation is essential. Generic market products often deliver CRI values of 80–85, leading to distorted color rendering and reduced visual appeal in retail, hospitality, and interior design projects.

Rigorous IP Rating Validation

Our IP65 and IP67-rated strips undergo independent third-party testing per IEC 60529 standards. IP67 certification includes 30-minute submersion at 1-meter depth, validated by TUV Rheinland. In contrast, generic products frequently rely on self-certified claims with minimal testing, resulting in inconsistent waterproofing and premature failure in wet or dusty environments.

PCB Construction & Thermal Management

Beauty STC employs 2-ounce copper PCBs with high-Tg FR-4 substrate and thermal vias for optimal heat dissipation. This design reduces operating temperatures by up to 10°C compared to 1-ounce copper generic alternatives, significantly extending LED lifespan and preventing hotspots. Our PCBs are manufactured to IPC-A-600 Class 2 standards, ensuring mechanical stability and electrical reliability.

Quality Assurance Protocols

Every production batch undergoes 100% electrical testing, thermal imaging, and IP validation. Our ISO 9001-certified quality system includes strict tolerance controls (±5% for color temperature and lumen output), ensuring consistency across all OEM/ODM orders. This level of rigor is absent in most generic suppliers, where batch variations can exceed ±15%, leading to field installation issues.

Specification	Generic Market Quality	Beauty STC Certified Quality
Lumens Efficiency	80–100 lm/W	120–140 lm/W
CRI	80–85	≥90 (R9 >50)
IP Rating Validation	Self-certified claims; no third-party testing	TUV/ETL certified; IEC 60529 compliant
PCB Copper Thickness	1 oz	2 oz with thermal vias
Max Operating Temp	≥65°C	≤55°C
Batch Consistency	±15% variation	±5% tolerance (ISO 9001 certified)

Beauty STC’s commitment to precision engineering and rigorous testing ensures that every LED strip meets the highest industry benchmarks. For projects demanding consistent performance under harsh conditions, our certified products provide the technical foundation for successful implementation. All specifications are fully documented and available upon request for compliance verification.

Contact us for engineering support, certification documentation, or custom OEM/ODM solutions: [email protected] | +86 13902885704

---

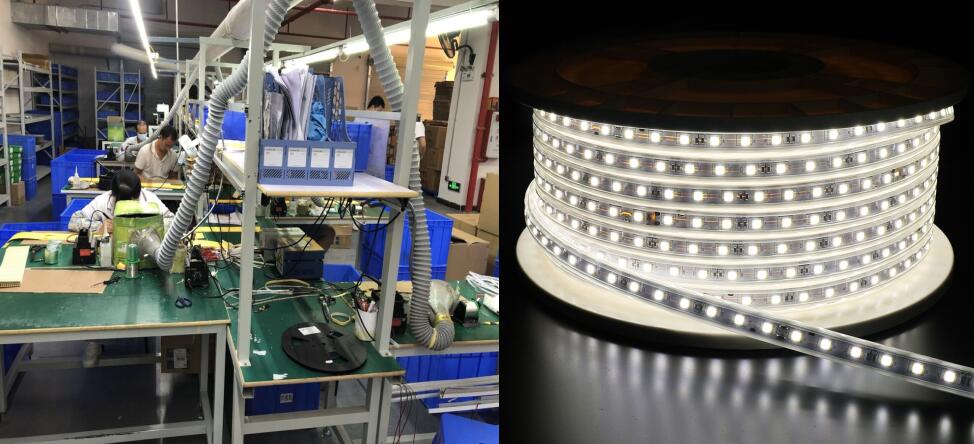

Factory Tour: Manufacturing Excellence

Manufacturing Process & OEM Services – Beauty STC Lighting, Jiangmen

“Every metre of IP-rated strip that leaves our Jiangmen campus is treated as if it will be installed on a cruise ship in the North Atlantic or a hotel façade in Dubai. That mindset is baked into the line.”
— Senior LED Engineer, Beauty STC

---

H2 1. Factory Footprint & Line Layout

Zone	Area (m²)	ISO Class	Key Hardware	Output/Shift
SMT Hall	2 100	7	Yamaha YSM20R ×8, Yamaha SIGMA-G5S ×4, 3-D SPI & AOI inline	3.2 M components/8 h
IP Encapsulation	1 400	8	2-K silicone potting line (ShinEtsu), vacuum de-bubbler, 60 m UV-cure tunnel	50 000 m IP67 strip/day
Aging & Burn-in	1 800	–	8 parallel 40 m racks, 0–60 °C cycling, 2 h ON/30 s OFF pattern, 8 h min	100 % lot coverage
QC & Reliability Lab	600	7	2 m integrating sphere (EVERFINE), 1 kW salt-spray, IPX5/6/7 jet rigs, −40~+85 °C thermal chamber	AQL 0.25, C=0

---

H2 2. SMT & Encapsulation Workflow

1. Incoming reel audit – 100 % humidity-barrier check, RoHS & REACH file match.
2. Solder-paste printing – Type-4 SAC305, 100 μm stencil; 3-D SPI rejects > ±15 % volume.
3. Pick-and-place – 0.5 m LED pitch tolerance ±50 μm; bin-coded 3-step MacAdam LEDs segregated automatically.
4. Reflow – 10-zone convection, nitrogen 200 ppm O₂, profile logged per MES barcode.
5. AOI – Missing LED, solder-bridge, tombstone detection; defect images stored ≥5 years.
6. Encapsulation – 2-part addition-cure silicone, Shore 00 40, UV-stable >1 000 h @ 1.2 W/m²; 0.8 mm jacket for IP65, 2.0 mm full-fill for IP67.
7. Secondary curing – 45 min @ 80 °C + 30 min UV-A 365 nm; pull-test spec ≥ 5 N/mm.

---

H2 3. Aging & Reliability Protocol

Test	Standard	Sample Size	Acceptance
8 h Burn-in	Beauty-ST-BI-01	100 % of reels	0 dead LED
Thermal Shock	IEC 60068-2-14	5 pcs/lot	100 cycles, −40 ↔ +85 °C, ΔVF < 5 %
Salt Spray	ASTM B117	3 pcs/batch	500 h, no >5 % corrosion on copper bus
IP67 Jet	IEC 60529	3 pcs/batch	100 l/min @ 3 m, 30 min, insulation > 2 MΩ
LM-80 Data Cross-check	TM-21 Calculator	Per LED reel	L90 > 50 000 h @ 55 °C

---

H2 4. OEM / ODM Customisation Matrix

Attribute	Standard Catalogue	OEM Range	Tooling Lead-Time
Board Width	8 mm, 10 mm, 12 mm	4–28 mm	7 days
Copper Weight	2 oz	1–4 oz	5 days
LED Density	60, 120, 240 LED/m	30–720 LED/m	10 days
CCT Binning	2700 K, 3000 K, 4000 K, 6500 K	1800–10 000 K, 3-step	3 days
CRI	Ra 80, 90	Up to 98 (R9>90)	5 days
Length per Reel	5 m	0.2–50 m continuous	2 days
PCB Ink Colour	White	RAL palette	3 days
Jacket Colour	Clear, Frost	RGBY, black, custom	7 days
Packaging	Neutral brown box	Private-label sleeve, Euro-hole, anti-static tray	10 days
Cert Bundle	CE-EMC/LVD, RoHS, REACH	Add ETL, TUV CB, SAA, BIS, UKCA	14–21 days
MOQ	1 000 m	500 m for custom spec	–

---

H2 5. Compliance & Traceability

ETL file #5013349 (UL 2108 / CSA C22.2 #250.0) covers 12 V, 24 V, 36 V strip families up to 12 W/m.
TUV CE reports according to EN 60598-2-20, EN 62031, EN 62471, EN 55015 available on QR-code per carton.
MES barcode tracks reel-to-reel: LED lot, silicone batch, operator ID, SMT oven profile, burn-in result. Data kept ≥10 years for project callbacks.

---

H2 6. Typical OEM Lead-Time (EXW Jiangmen)

Order Qty	Std Spec	Custom CCT/Length	Custom PCB + Package
< 5 000 m	10 days	15 days	20 days
5 000–20 000 m	15 days	18 days	23 days
> 20 000 m	Schedule shared weekly

---

H2 7. Contact for Specification Sheets & PPAP

Email: [email protected]
Mob/WhatsApp: +86-13902885704
Plant visits welcome Monday–Saturday; Shen-Hui expressway exit 江門高新區, 35 min from Guangzhou South by inter-city rail.

We open CAD, IES, TM-21, and ISTMT files under NDA within 24 h.

---

Installation & Application Scenarios

Application Scenarios for Industrial-Grade Waterproof LED Strip Lights

Water-resistant LED strips are engineered for environments where moisture, dust, and extreme weather conditions compromise standard lighting solutions. As a manufacturer with 25+ years of experience (established 1998) and ETL (USA/Canada) and TÜV CE (Europe) certifications, Beauty STC Lighting provides solutions validated for global compliance, durability, and performance. Below are industry-specific applications and technical considerations for contractors and project managers.

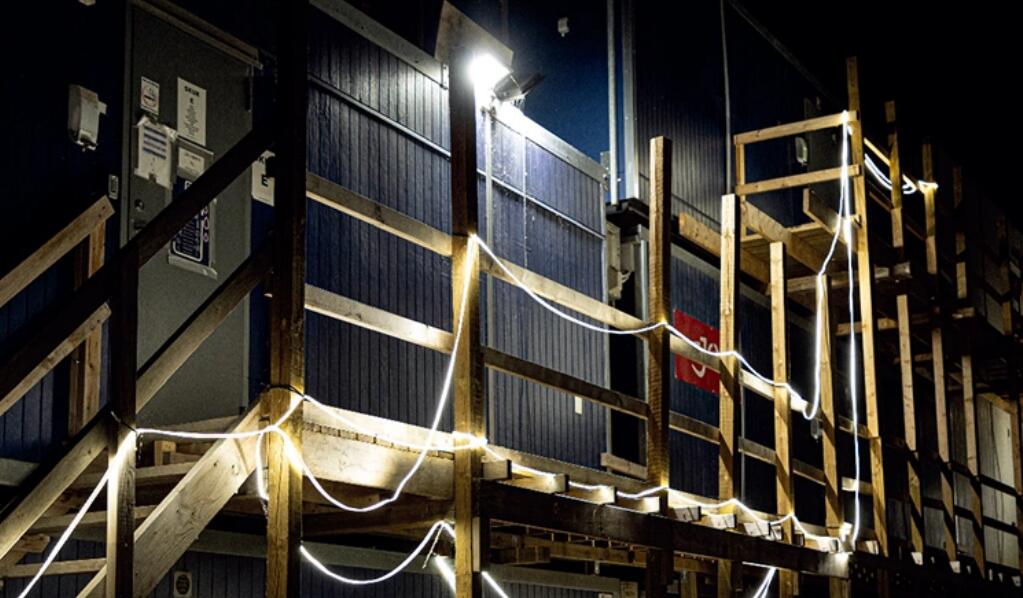

Commercial Facades & Architectural Lighting

Waterproof LED strips are critical for building exteriors requiring consistent illumination through UV exposure, temperature swings, and precipitation. Applications include structural accents, signage, and building outlines where precise light distribution and long-term reliability are non-negotiable.

For facade installations, IP67-rated strips are typically required to withstand heavy rainfall and high-pressure cleaning cycles. All Beauty STC products undergo rigorous TÜV-certified testing to ensure compliance with North American and European safety standards, eliminating regulatory risks for architectural projects. Our manufacturing process prioritizes lumen maintenance (≥90% at 50,000 hours) and color consistency (ΔE < 3) across the product lifecycle.

IP Rating	Suitable Applications	Critical Requirements
IP65	Building outlines, signage, non-submerged facades	Protection against water jets; dust-tight
IP67	Structural accents, deep recesses, high-pressure cleaning zones	Temporary submersion (up to 1m); withstands high-pressure washdown
IP68	Water features, submerged architectural elements	Continuous submersion; extreme environmental stress tolerance

Hospitality & Retail Environments

In high-traffic commercial spaces, waterproof LED strips enhance ambiance while meeting stringent safety protocols. Poolside lighting, restaurant patios, and retail storefronts demand resistance to splashes, cleaning chemicals, and foot traffic.

IP65-rated strips are standard for splash-prone areas, while IP67-rated variants are recommended for pool edges or direct water-contact zones. Beauty STC’s strips deliver uniform illumination without hotspots—critical for luxury hospitality settings. Our OEM capabilities enable customization of color temperatures (e.g., 2700K for intimate dining, 4000K for retail displays) and dimming profiles to align with brand aesthetics. All products comply with ETL/CE standards for commercial safety, ensuring seamless integration into projects subject to fire and electrical code inspections.

Infrastructure & Public Spaces

Public infrastructure projects—including bridges, tunnels, and pedestrian walkways—require lighting solutions that endure saltwater corrosion, freeze-thaw cycles, and mechanical stress. These applications demand IP67–IP68-rated strips with reinforced silicone housings and corrosion-resistant components.

Beauty STC’s industrial-grade strips feature military-grade silicone encapsulation, validated through 25+ years of field testing in coastal and industrial zones. ETL and CE certifications confirm compliance with transportation authority requirements (e.g., USDOT, EU Road Traffic Regulations). Custom lengths and mounting options simplify installation on complex geometries, reducing on-site labor by up to 30% compared to generic alternatives.

Specialized Industrial Applications

Industrial environments such as food processing facilities, cold storage warehouses, and marine operations present unique challenges. Washdown areas require IP65-rated strips resistant to chemical cleaners and high-pressure hoses, while subzero temperatures demand stable performance below -20°C.

Beauty STC’s OEM solutions include specialized configurations for extreme conditions:
Low-temperature silicone formulations (operational range: -40°C to +80°C)
24V DC options for hazardous locations (Class I Div 2 compliance)
Anti-fogging coatings for refrigerated environments

All products undergo ETL/CE certification for industrial safety, ensuring reliability where failure is not an option.

---

Professional Installation Guidelines for Contractors

Proper installation is critical to maintaining performance, safety, and compliance. Adhere to these industry best practices:
Surface Preparation: Ensure mounting surfaces are clean, dry, and free of oils or dust. Degrease with isopropyl alcohol and allow complete drying. For uneven substrates (e.g., concrete, brick), apply a 1mm layer of neutral-cure silicone adhesive to ensure full contact.
Connection Sealing: Use IP67-rated waterproof connectors for all junctions. Seal solder joints with heat-shrink tubing and silicone gel, then wrap with self-amalgamating tape. Never expose bare wires to moisture.
Mounting Methods: Install strips in aluminum channels for optimal heat dissipation (even with waterproofing). Secure channels with mounting clips every 30–50cm to prevent sagging. Minimum bend radius: 25mm for standard strips; 50mm for high-density arrays.
Power Management: Calculate total wattage with 20% headroom. For runs exceeding 5 meters, use parallel wiring with 18AWG or thicker conductors. Ensure power supplies are rated for outdoor use (IP65+) and match the strip’s voltage tolerance (±5%).
Compliance Verification: Confirm all components (strips, drivers, connectors) carry ETL or CE certification for the target market. Conduct a 24-hour water test post-installation (e.g., 30-minute submersion test for IP67) before final commissioning.

Common Installation Issue	Root Cause	Technical Solution
Voltage drop (flickering)	Undersized wiring / long runs	Use parallel wiring; increase wire gauge to 16AWG; limit circuit length to 5m per segment
Moisture ingress	Poorly sealed connections	Apply silicone gel to all joints; use IP67-rated connectors; avoid soldering in exposed locations
Heat buildup	No heat dissipation	Install in aluminum channels; maintain 5mm clearance from non-conductive surfaces
Inconsistent brightness	Driver incompatibility	Use constant-current drivers rated for LED strips; verify input voltage stability (±0.5V)

Beauty STC Manufacturing Co., Ltd. provides dedicated OEM engineering support for complex projects, including custom PCB designs, specialized encapsulation, and tailored electrical configurations. Our technical team collaborates directly with contractors to optimize designs for site-specific challenges—ensuring maximum reliability, compliance, and installation efficiency.

Contact for Technical Specifications & Project Support
[email protected] | +86 13902885704
Certified to ETL (USA/Canada), TÜV CE (Europe) | 25+ Years of Industrial Lighting Expertise

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting – Factory-Grade Water-Resistant LED Strip You Can Specify with Confidence

25 Years of Continuous Production, 50+ Countries of Field Proof

Since 1998 Beauty STC Lighting has supplied IP65–IP68 flexible LED strips to municipal, marine, façade and retail-fit-out projects on every continent—from Norwegian cruise terminals to Saudi petrol-station canopies. Our strips are still glowing after 15 000 h salt-mist test cycles; that is why specifiers in 50+ countries keep us on their AVL.

Western-Ready Certifications – No Site Delay, No Re-labelling

Certification Scope	Standard & File No.	Application Market
North America	ETL/cETL to UL 2108 & UL 8750	USA & Canada
Europe	TUV CE, EN 60598-2-20, EN 62031	EU & UK
IP Rating	IEC 60529 IP65 / IP67 / IP68	Global
Photobiological	IEC 62471 Exempt Group	All regions
RoHS/REACH	EU 2015/863 & SVHC	Environmental compliance

OEM/ODM Volume Capacity – 1.2 Million Metres per Month

15 000 m² Jijiangmen HQ plant, 6 SMT lines (Yamaha & Juki), 4 extrusion silicone lines
24 h colour-over-coating, CCT tuning 1800–6500 K, CRI 80/90/95+, SDCM ≤2
Bin-on-reel service; 5 m, 10 m, 20 m continuous lengths, no solder joints outdoors
Private-label sleeve & 3-in-1 barcode packing ready for big-box DCs

Specification-Grade IP67 Strip at a Glance

Parameter	Factory Data	Notes for Consultants
LED Type	2835, 24 V, 120–240 LED/m	LM-80 ≥ 50 000 h @ 85 °C
Luminous Flux	1100–2200 lm/m (3000 K)	130 lm/W system efficacy
CCT / CRI	2200–6500 K, CRI 90 typ.	3 SDCM, MacAdam ellipse
Mechanical	10 × 2 mm, 5 m max. run	Silicone extrusion, UV-stable
IP Rating	IP67 (IP68 optional)	-40 °C to +85 °C, IK06
Warranty	5 years	ETL/TUV listed driver match

Next Step – Send the Project Schedule

Email your specification or Bill of Material to [email protected]. Our application engineers will return a compliant datasheet, MTBF calculation and landed-cost quotation within 24 h. For urgent calls: +86-13902885704 (English, Español, Русский).

Specify once, install anywhere—Beauty STC Lighting keeps the lights on, whatever the weather.

---
