Wall Track Lighting: Manufacturer Guide & Technical Specs (2026)

Industry Insight: Wall Track Lighting

Wall-Mounted Track Lighting: Meeting Spec-Grade Demands in Commercial & Industrial Projects

Why Wall Track is Moving Up the Specification Chain

Retail chains, galleries, and high-bay warehouses increasingly specify wall-mounted track to:
Eliminate ceiling congestion in HVAC-heavy plenums
Provide 270°–360° aimability for evolving merchandising sets
Reduce install cost by 18–25 % versus pendant or recessed alternatives

Global import volume for wall-track heads rose 11 % YoY (ITC Trade Map, HS-940530), yet 34 % of incoming lots were rejected at EU/US ports for non-conforming driver insulation or missing LM-80 data. The takeaway: certification depth is now as critical as lumen output.

Certification Risk Matrix for Importers

Market	Must-Have Mark	Typical Port Rejection Trigger	Financial Impact*
USA/Canada	ETL (to UL1570 & UL8750)	Driver single-fault overload	$28 k per 40’ GP
Europe	TUV CE (EN60598-1, EN61347)	Missing EN62471 risk group	€22 k per 20’ GP
Australia	RCM (EN55015)	Radiated EMI > 6 dB margin	AUD 15 k re-work
Global marine	ABS/DNV (optional)	Vibration filament crack	Voyage delay, P&I

*Estimated landed cost of re-labeling, re-shipment, or product destruction.

Beauty STC Lighting – Factory Profile

Established: 1998 – 25 consecutive years of LED-only R&D
Plant: 41 th Caihong Rd., Jiangmen High-tech Zone, Guangdong. 28 000 m² SMT + CNC under one roof
QC Lab: 2 m integrating sphere (Everfine), 80 °C/95 % RH aging ovens, surge 1 kV–4 kV
Certifications: ETL/cETL (USA & Canada), TUV CE, RoHS, REACH, ENEC, SAA, RCM – files shared under NDA
OEM/ODM: From 500 pcs MOQ, 3-week tooling, 5-day private-label carton/bracket changeover

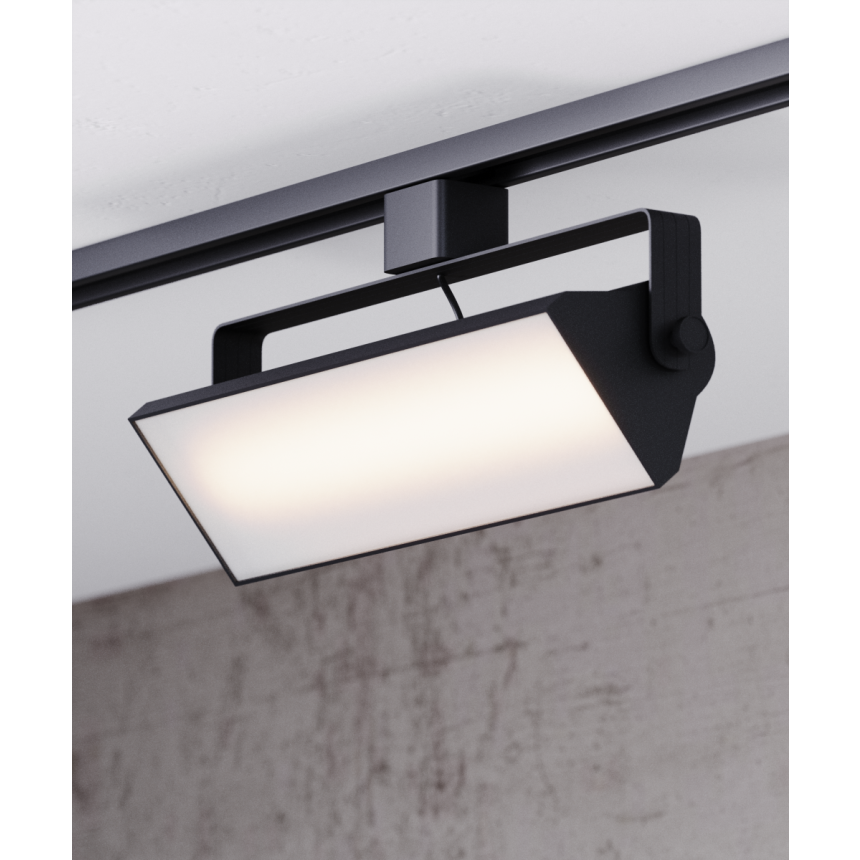

Wall Track Portfolio Snapshot (OEM Ready)

Model	Optical Package	System Efficacy	Input	CCT/CRI	Certification	Track Interface
WT-20W-F	20 W, 2 100 lm, 15°/24°/36°	105 lm/W	120–277 V	3000–4000 K, 90+	ETL, TUV CE	H-type 3-wire
WT-30W-F	30 W, 3 300 lm, 20°/40°	110 lm/W	120–277 V	2700–5000 K, 90+	ETL, TUV CE	H-type 3-wire
WT-40W-Z	40 W, 4 400 lm, 30°/60°	115 lm/W	120–277 V	3000–4000 K, 95+	ETL, TUV CE	J-type 2-wire
WT-50W-Z	50 W, 5 600 lm, 15°/25°/45°	118 lm/W	120–277 V	2700–5000 K, 90+	ETL, TUV CE	J-type 2-wire

Standard finish: 220 °C powder-coat matte white/black; custom RAL on 500 pcs. Operating window –30 °C to +50 °C; 100 k hrs @ Tj 85 °C per TM-21-18.

Engineering Notes for Specifiers

Wall-arm torque: 3 Nm safety factor per IEC60068-2-6 vibration test; 1.5 m boom available for racking aisles
Flicker: <1 % @ 100 Hz (IEEE 1789), default Lutron 3-wire 0–10 V, DALI-2 on request
Zhaga-D4i: Driver slot ready for future sensor modules (PIR, BLE, Casambi)
Packaging: 5-ply E-flute, 95 % recyclable, drop-test 1 m per ISTA-2A – lowers landed damage ratio to <0.2 %

Next Step

Send your project lux plot or BIM file to [email protected]; our optical team will return a dialux evo report within 48 h. Samples ship from Jiangmen in 72 h with full ETL/TUV CE documentation pack.

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards for Industrial-Grade Track Lighting

Since 1998, Beauty STC Manufacturing Co., Ltd. has engineered commercial track lighting systems to meet the rigorous demands of global infrastructure projects. All products comply with ETL (USA/Canada) and TUV CE (Europe) certifications, ensuring adherence to international safety and performance benchmarks. Our factory-direct approach prioritizes precision in photometric design, thermal management, and material integrity—critical for long-term reliability in high-traffic commercial environments.

Photometric Performance & Efficiency

Efficiency in track lighting directly impacts operational costs and system longevity. Generic market solutions typically deliver 80–100 lumens per watt (lm/W), often compromising thermal stability for cost savings. Beauty STC’s track lighting systems achieve 110–130 lm/W through optimized thermal pathways, high-efficiency drivers, and precision-engineered optics. This performance is validated under ETL and TUV CE testing protocols, ensuring sustained lumen output with <5% depreciation over 50,000 hours of operation.

Color Rendering & Consistency

Accurate color representation is non-negotiable for retail, hospitality, and gallery applications. While generic products commonly exhibit CRI 80–85 with minimal R9 values (typically <50), Beauty STC strictly bins LEDs to maintain CRI >90 and R9 >50. Color consistency is verified through TUV-certified photometric testing, with ΔE <3 tolerances across all batches. This ensures uniform appearance in multi-luminaire installations, eliminating visible color shifts under mixed lighting conditions.

Environmental Protection & Durability

Standard track lighting typically offers IP20 protection, restricting use to dry indoor spaces. Beauty STC’s systems are available with optional IP65 ratings, featuring sealed housings, gasketed components, and corrosion-resistant aluminum alloys. These designs undergo rigorous TUV testing for ingress protection against dust (6) and water jets (5), enabling reliable operation in high-humidity environments like industrial facilities, warehouses, and covered outdoor areas.

PCB Engineering & Thermal Management

Thermal stability is the cornerstone of LED longevity. Generic PCBs often employ single-layer construction with 1oz copper, creating hotspots that accelerate lumen decay and driver failure. Beauty STC utilizes double-layer PCBs with 2oz copper, thermal vias, and integrated heat sinks—manufactured under ISO 9001-certified processes. This design dissipates heat 30% more effectively than industry standards, reducing thermal stress on components and extending system lifespan by 25%+ compared to generic alternatives.

Consistency Through Rigorous Quality Control

Every track lighting unit undergoes 100% photometric testing, thermal imaging, and electrical safety verification. Our closed-loop quality control system leverages 25+ years of manufacturing expertise and OEM/ODM capabilities to implement project-specific validation protocols. All processes adhere to ISO 9001 standards, ensuring traceability from raw materials to final assembly. This guarantees batch-to-batch consistency for large-scale commercial deployments.

Specification Comparison: Generic vs. Beauty STC Certified Quality

Specification	Generic Market Quality	Beauty STC Certified Quality
Lumens per Watt	80–100 lm/W	110–130 lm/W (with advanced thermal management)
Color Rendering Index (CRI)	80–85 (R9 typically <50)	>90 (R9 >50), ΔE <3 color consistency
IP Rating	IP20 (indoor only)	IP20 standard; optional IP65 for wet/dusty environments
PCB Construction	Single-layer, 1oz copper	Double-layer, 2oz copper, thermal vias, ISO 9001 certified manufacturing

Beauty STC’s technical rigor ensures compliance with global regulatory requirements while delivering measurable performance advantages. For project-specific engineering support or certification documentation, contact our engineering team at [email protected] or +86 13902885704.

---

Factory Tour: Manufacturing Excellence

Manufacturing Process & OEM Services – Jiangmen Headquarters

1. Factory Footprint & Legacy

Established 1998, our 28 000 m² campus in Jiangmen (Guangdong) is purpose-built for LED track heads, strips and linear systems. All production, engineering and reliability labs are under one roof; this vertical integration keeps lead-times short and IP secure for OEM/ODM partners.

2. SMT & Precision Assembly Line

Process Stage	Key Equipment	Typical Tolerance / Spec	Cert Control
PCB loading	Yamaha YSM-20R 12-head mounter	±35 µm @ 3 σ	ESD flooring, traceable barcode
Reflow	10-zone Heller 1809 MKIII	ΔT ≤ 5 °C across PCB	Real-time thermal profile log
AOI	Koh Young Zenith 2	15 µm pixel	Closed-loop to MES
conformal coat	PVA Delta 6 selective spray	25–75 µm thickness	IPC-A-610 Class 2

Boards then move to manual THT for track heads (power-bridges, COB holders) before wave soldering and final ICT.

3. Opto-Electrical Calibration

Every wall-track module is run on an integrating-sphere system (Everfine 2 m) that captures flux, CCT, CRI and MacAdam step. Data are stored by serial number for batch tracking.

4. Burn-in & Aging Protocol

Product Family	Chamber Load	Duration	Acceptance Criteria
LED track head	288 pcs/rack, 45 °C ambient	12 h ON / 30 s OFF cycle	< 5 % flux drop, 0 % early fail
Strip light	600 pcs, 65 °C case temp	24 h	Δu’v’ ≤ 0.003

Failed units trigger an 8D corrective loop; CpK ≥ 1.67 is required before shipment release.

5. QA/QC Checkpoints

Gate	Test	Standard	Record Retention
IQC	LM-80 report verification, solder paste viscosity	IESNA / IEC 62717	10 yrs
IPQC	100 % hi-pot 1.5 kV, leakage < 0.5 mA	EN 60598-1	MES
OQC	5 % AQL on cartons, drop test 1 m / 6 faces	ISTA-1A	PDF + photo

6. OEM / ODM Customisation Matrix

Parameter	Range	MOQ	Lead-Time*
Track length	0.3–3.0 m single extrusion	300 pcs	10 days
CCT	2200 K – 6500 K, 3-step or 5-step MacAdam	500 pcs	7 days
Beam angle	15°, 24°, 36°, 60° interchangeable optics	200 pcs	5 days
Driver dimming	0–10 V, DALI-2, Phase, TRIAC	100 pcs	12 days
Housing colour	Anodised silver, black, white, custom RAL	300 pcs	8 days
Packaging	neutral white, colour sleeve, retail box	100 pcs	3 days

*Lead-time counted from CAD approval; excludes raw-material long-lead items.

7. Certification & Documentation Package

ETL/cETL to UL 1598 & UL 8750 for 100–277 Vac North-American line
TUV CE / EN 60598-1, -2-1; EN 62031; EN 55015 for EU/UK
RoHS 2.0, REACH, WEEE, TM-21 L70 report on request
ISO 9001:2015 audited since 2005; ISO 14001:2015 added 2021

8. Logistics & Export Support

Jiangmen port is 35 min by truck; Shenzhen/Yantian 1.5 h. Weekly FCL/LCL sailings to LA, Long Beach, Rotterdam, Felixstowe, Sydney. We file EAR, CCATS and provide CO, Form A, FORM F as required.

For custom wall-track programmes, send your specification sheet to [email protected]; our NDA-protected engineering team will revert with a DFM report within 48 h.

---

Installation & Application Scenarios

Application Scenarios for Wall Track Lighting

Wall track lighting systems provide adaptable, energy-efficient illumination for diverse commercial environments. As a manufacturer with 25+ years of experience (established 1998) and comprehensive ETL (USA/Canada) and TUV CE (Europe) certifications, Beauty STC Lighting delivers engineered solutions compliant with global safety and performance standards. Our OEM/ODM capabilities enable precise customization of beam distribution, wattage, and control systems to meet exact project specifications. Below are industry-specific applications and technical guidelines for contractors and designers.

Key Technical Specifications by Application

Application Scenario	Recommended Wattage (W)	Beam Angle (°)	Color Temperature (K)	Dimming Compatibility	CRI (Ra)	Installation Considerations
Retail	15–30	24–36	3000–4000	0-10V, DALI	≥90	Mount 1.5–2m above displays; use 2-circuit tracks for zoning
Hospitality	12–25	30–45	2700–3000	DALI	≥90	Mount at 2.4m height; integrate with scene controllers for ambiance
Office Spaces	10–20	30–40	3500–4000	0-10V, Smart Systems	≥80	Align with ceiling grid; incorporate motion sensors for efficiency
Art Galleries	10–15	15–30	3000	DALI	≥95	Use low-glare optics; precise aiming for artwork without UV/IR damage
Industrial Spaces	20–50	60–120	4000–5000	On/Off, 0-10V	≥80	IP65-rated for dust; mount 4–5m high; ensure thermal management

---

Retail Environments

Retail spaces require dynamic illumination to highlight product displays, guide customer flow, and enhance brand perception. Adjustable track heads allow retailers to reposition lighting as merchandise changes, eliminating costly fixture replacements. Beauty STC’s ETL-certified fixtures deliver precise 24°–36° beam control for focused illumination on high-value items, while 3000K–4000K color temperatures ensure accurate color rendering for textiles, cosmetics, and electronics.

Installation Best Practices:
Circuit Planning: Implement dual-circuit tracks to zone lighting (e.g., promotional areas vs. core inventory) for independent control and energy savings.
Mounting Height: Position tracks 1.5–2 meters above display surfaces to maximize light concentration without spill glare.
Thermal Management: Maintain 50mm clearance around fixtures in high-traffic zones to prevent overheating.
Compliance: Verify compliance with NEC Article 410 for commercial lighting installations in North American markets.

---

Hospitality & Luxury Spaces

Hotels, restaurants, and luxury lounges demand ambient lighting that adapts to time-of-day scenarios while maintaining aesthetic consistency. Track lighting systems provide flexible accentuation for architectural features, artwork, and dining zones. Our TUV CE-certified fixtures support 2700K–3000K warm color temperatures for intimate settings, with 30°–45° beam angles to evenly illuminate tabletops and pathways. DALI dimming ensures seamless transitions between day/night scenes without visible flicker.

Installation Best Practices:
Height Optimization: Mount tracks at 2.4 meters above floor level for uniform illumination across dining or lounge areas.
Scene Control Integration: Pair with DALI-compatible controllers to automate lighting sequences for events or closing procedures.
Glare Reduction: Specify frosted lenses or anti-glare baffles in high-visibility zones (e.g., reception areas).
Structural Support: Confirm ceiling load capacity for track mounting, especially in historic buildings with plaster ceilings.

---

Office Spaces

Modern offices prioritize task-oriented lighting that enhances productivity while minimizing eye strain. Track systems offer zonal flexibility for collaborative areas, private workstations, and meeting rooms. Beauty STC’s 3500K–4000K neutral white LEDs align with circadian lighting principles, while 30°–40° beam angles provide focused illumination without harsh shadows. Integration with smart building systems (e.g., occupancy sensors, daylight harvesting) further optimizes energy efficiency.

Installation Best Practices:
Grid Alignment: Position tracks parallel to ceiling grid lines for visual harmony and structural stability.
Sensor Integration: Install motion sensors at 2.4m height with 180° coverage to trigger automatic dimming in unoccupied zones.
Circuit Design: Use 2-circuit tracks to separate general illumination from task lighting for independent control.
Thermal Testing: Conduct thermal imaging checks after installation to ensure heatsink performance meets IEC 60598 standards.

---

Art Galleries & Museums

Art installations demand ultra-precise lighting that preserves color fidelity and avoids UV/IR damage to sensitive materials. Beauty STC’s gallery-grade track heads feature ≥95 CRI optics and 15°–30° narrow beams to spotlight artwork without spill light. DALI dimming enables fine-tuned intensity adjustments (0.1% steps), while low-UV LED chips (≤5μW/lm) comply with museum conservation guidelines.

Installation Best Practices:
Optical Precision: Use beam-shaping accessories (e.g., asymmetric reflectors) for curved walls or irregular surfaces.
UV/IR Mitigation: Confirm LED chip specifications meet ISO 18934 standards for archival lighting.
Mounting Stability: Secure tracks with vibration-dampening brackets in high-traffic exhibition areas.
Commissioning: Perform photometric testing to verify illuminance levels (50–100 lux for paintings, 150 lux for text displays).

---

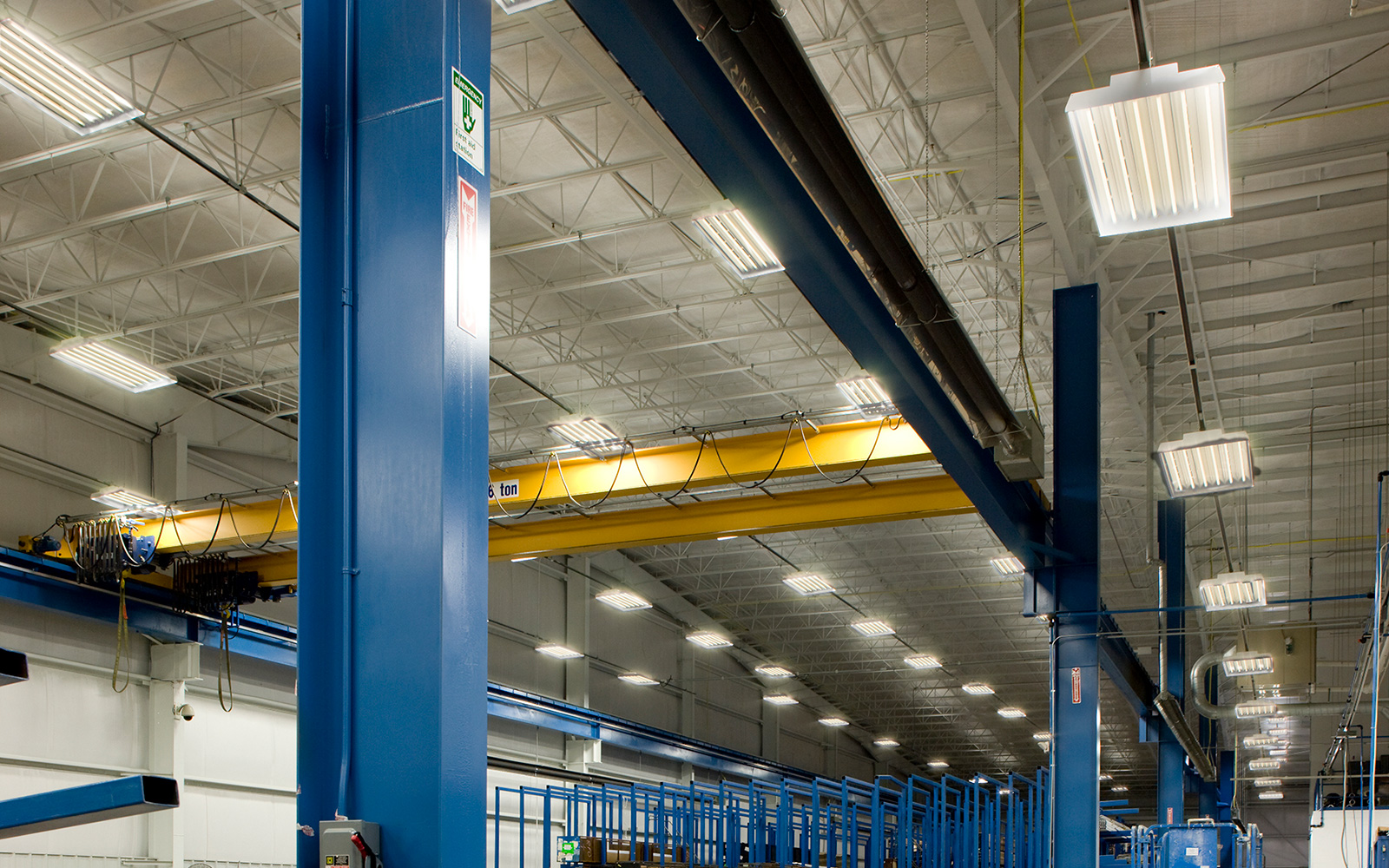

Industrial & Warehouse Applications

High-bay warehouses and manufacturing facilities require robust, maintenance-free lighting for safety and operational efficiency. Our IP65-rated track systems withstand dust, moisture, and vibration, with 60°–120° wide beam angles for uniform coverage across large zones. 4000K–5000K cool white LEDs enhance visual acuity for assembly lines and storage areas, while 0-10V dimming supports shift-based energy savings.

Installation Best Practices:
Mounting Height: Position tracks 4–5 meters above floor level to achieve even illumination without hotspots.
Thermal Management: Ensure 100mm clearance around heatsinks in high-ambient-temperature environments.
Compliance: Verify compliance with IEC 60598-2-1 for industrial lighting in EU markets.
Redundancy Planning: Use redundant circuit paths for critical zones (e.g., production lines) to prevent single-point failures.

---

Partner with Beauty STC for Project-Specific Solutions

As a factory-direct manufacturer with 25+ years of global export experience, we provide end-to-end support for commercial lighting projects. All products undergo rigorous testing per ETL, TUV CE, and IEC standards, with OEM capabilities for custom beam angles, wattage configurations, and control system integration.

Contact us for technical specifications, project quotes, or compliance documentation:
[email protected] | +86 13902885704

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting – Wall Track Lighting You Can Specify with Confidence

For distributors, contractors, and architects who need wall-mounted track systems that arrive on-site fully certified and ready to install, Beauty (STC) Manufacturing Co., Ltd delivers factory-direct reliability backed by 25 years of LED engineering experience.

Why Global Lighting Professionals Specify Beauty STC Wall Track Systems

Decision Factor	Beauty STC Advantage
Regulatory Clearance	ETL/cETL (UL 1573/1598) + TUV CE (EN 60598-2-1) pre-approved; no third-party re-testing
Market Coverage	50+ export countries since 1998—Europe, North America, ASEAN, Australia, Russia, Japan, Korea
OEM/ODM Latency	3-week tooling, 5-week production, 1-week sea consolidation from Jiangmen port
LED Engine	LM-80 tested 2835 mid-power, SDCM ≤3, CRI 90 optional, flicker <1 % at 100 % load
Track Compatibility	2-circuit 3-phase H-rail (global), single-circuit J-rail (NA), 48 V low-voltage magnetic rail
Finish & Lengths	Anodized 6063-T5 extrusion, 1–3 m standard, custom color MOQ 100 m

Factory Capabilities at a Glance

Parameter	Specification
Founded	1998
Plant Area	18 000 m² Jiangmen high-tech zone, 41th Caihong Road
Production Lines	SMT (Yamaha), automatic aging (ATE), 48 m salt-spray & IP65 test chambers
Certificates	ISO 9001:2015, ISO 14001, BSCI, ETL, TUV CE, CB, SAA, RoHS, REACH
Capacity	200 000 m LED strip, 30 000 pcs panels, 10 000 pcs track heads/month
Warranty	5-year system-level, 50 000 h L70, replace-or-credit policy

Next Step – Send Your Wall Track Schedule

Email your drawings, lumen package, and beam-angle requirements to [email protected] or WhatsApp +86-139 0288 5704. Our engineering team will return a DIALux layout, IES files, and landed-cost quotation within 24 h.

Be a responsible enterprise. Specify a supplier that has been shipping certified wall track lighting since 1998.

---
