Industry Insight: Tub And Floor Caulk Strip
H2 Commercial-Grade Tub & Floor Caulk Strip: The Hidden Seal Behind Every IP-Rated Lighting Installation

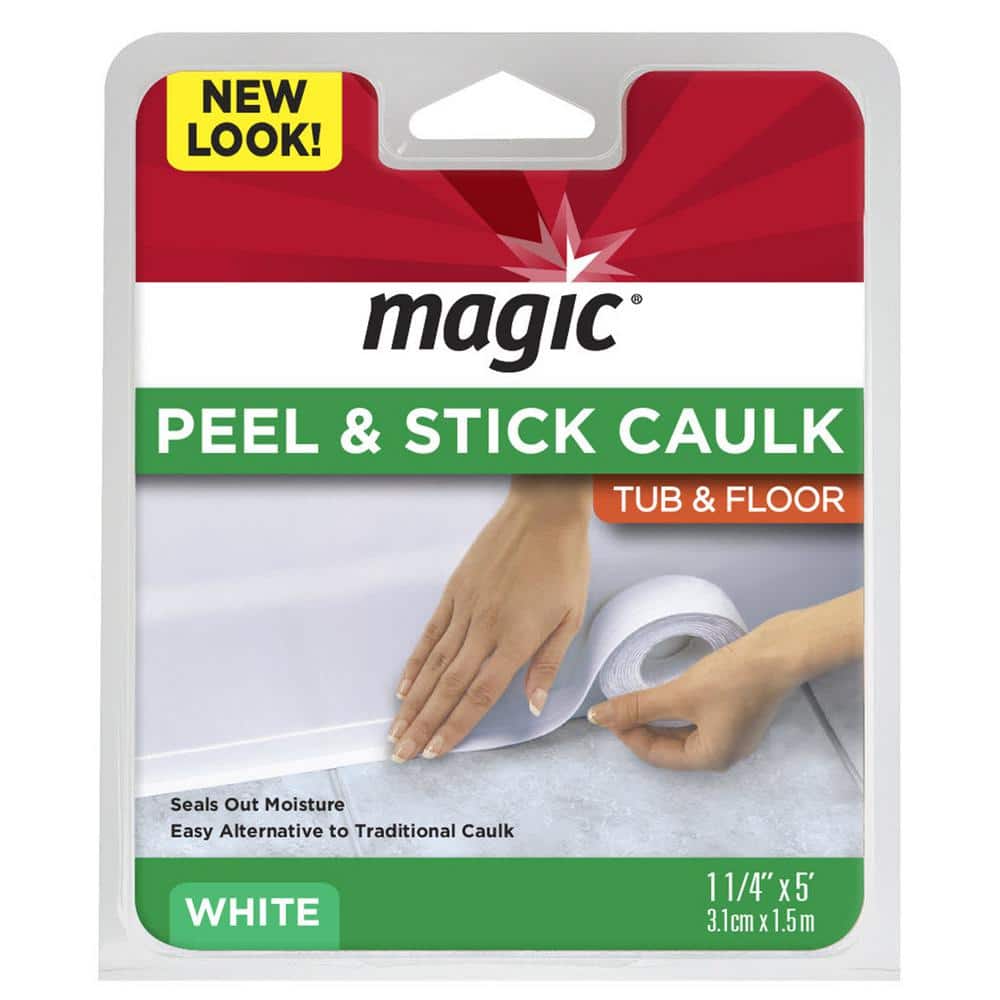

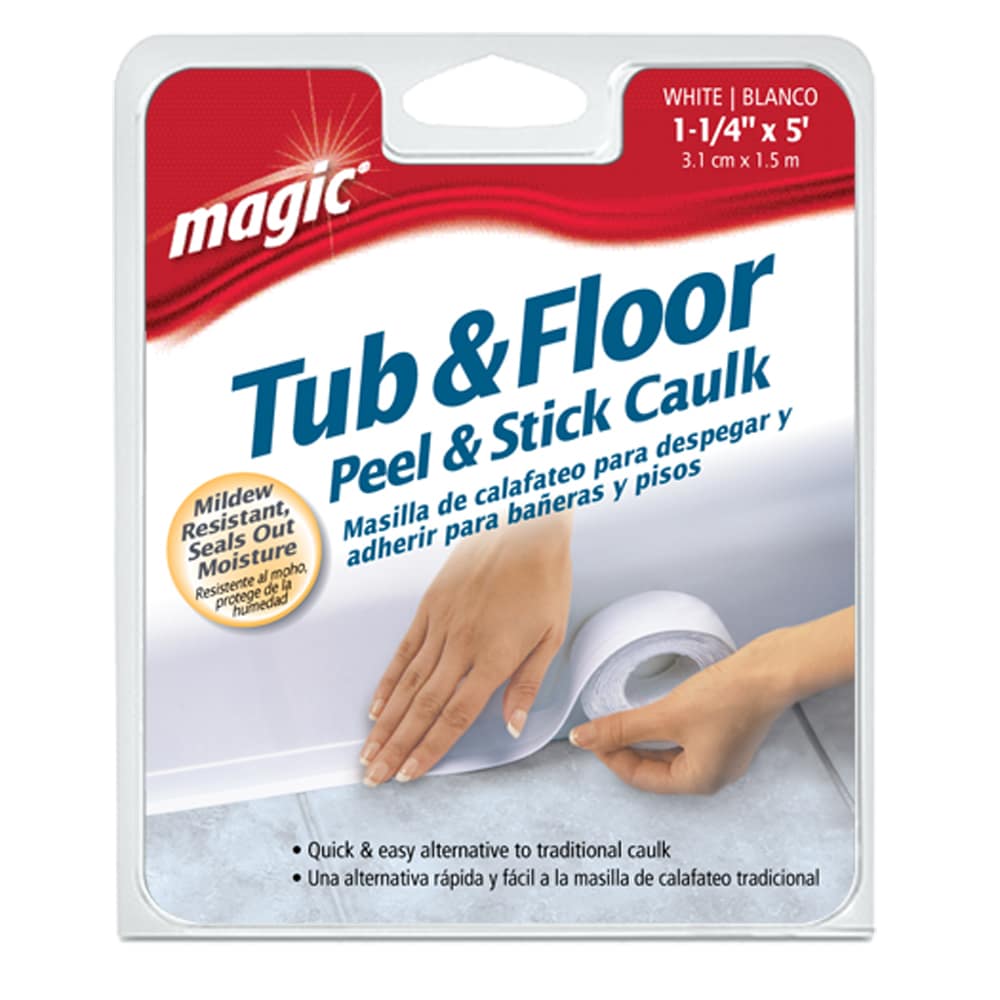

H3 Market Reality – Why Contractors Are Re-Evaluating “Peel-&-Stick” Accessories
In hospitality, healthcare and food-processing projects, the junction between tub, floor wall and LED luminaires is the first place moisture creeps past IP44/IP65 ratings. A 1.25-inch self-adhesive caulk strip may look like a DIY after-thought, yet its adhesion profile, Shore-A hardness and mold resistance directly determine whether the $200/m LED strip hidden behind the vanity mirror survives the warranty period.
Beauty (STC) Manufacturing Co., Ltd has field-tested this interface since 1998 while supplying ETL- and CE-listed flexible LED strips to 50+ countries. We learned that a 2.0-star consumer strip (butyl adhesive, 90-day return window) costs contractors more in call-backs than the luminaire itself. That data set became our specification for an industrial caulk strip line—engineered, certified and factory-packed for lighting distributors who refuse second trips to site.
H3 Certification Matrix – Why ETL/CE Matters for Importers
| Attribute | Consumer Grade (Homax/Red Devil) | Beauty STC Industrial Grade |
|---|---|---|
| Adhesive chemistry | Butyl rubber, ≤ 60 °C service | Modified MS-polymer, –40 °C to +120 °C |
| Flammability | No traceability | UL 94 V-0 substrate, ETL listed |
| Emission / VOC | Not monitored | CE-REACH, RoHS 2.0, < 0.1 % formaldehyde |
| Mold rating | ASTM G21 ≤ 1 (28 days) | ASTM G21 = 0, ISO 846 |
| Linear shrinkage | 3–5 % | < 0.5 % (168 h @ 70 °C) |
| Packaging traceability | Consumer UPC | OEM laser batch code, 5-year record |
Importer Benefit: ETL & TUV CE files are already on file with U.S. customs & EU RAPEX; no additional documentation delay, no border re-testing, no retailer charge-back.
H3 Specification Snapshot – Ready for Private-Label & Project Bills of Material
| Parameter | Value |
|---|---|

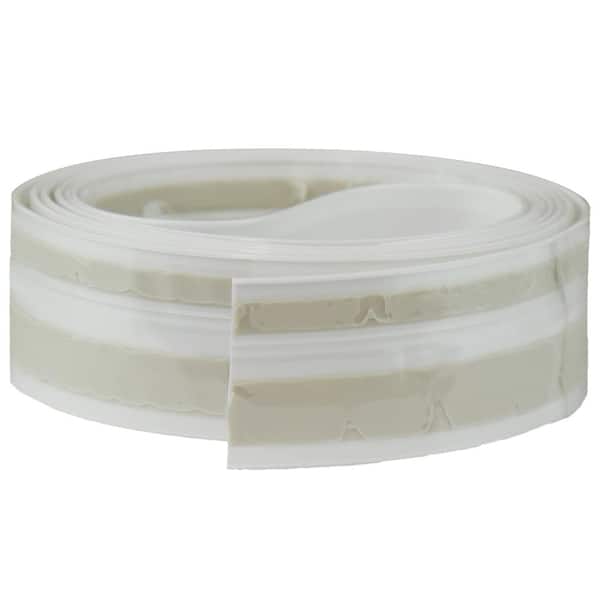

| Material | Rigid PVC backbone, 0.8 mm, MS-polymer pressure adhesive |
| Color | Standard 9003 signal white; custom Pantone ≥ 3 000 ft |
| Sizes (stock) | 1-¼” × 5 ft; 1-⅝” × 11 ft; 2″ × 25 ft bulk coil |
| Gap coverage | 1/8″ – ⅜” (3–9 mm) with molded score line |
| Temperature cycle | –40 °C ⇄ +120 °C, 500 cycles, no edge lift |
| IP contribution | When paired with IP65 LED profile, achieves IP66 at wall/floor junction |
| Shelf life | 24 months in 20 °C / 50 % RH, PE foil pouch + desiccant |
| Certifications | ETL (UL 746C), CE, RoHS, REACH, ASTM G21, ASTM C794 |
H3 OEM/ODM Capability – 25 Years of Flexible Extrusion Know-How
In-house 18-line extrusion plant, Jianghai High-tech Zone, 50 km from Jiangmen port.
7-day color matching, 10-day custom die, 14-day FOB Shenzhen for 40 ft HQ.
Laser etching of distributor logo, bar-code and batch ID every 300 mm.
Bundled shipment with LED strips, aluminum profiles, drivers—one PO, one container, one customs entry.
Next Section: Installation Engineering – How to Pair Caulk Strips with IP-Rated LED Systems for Hotel & Healthcare Projects.
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards for LED Strip Lights in Wet Area Applications
As a certified LED lighting manufacturer with 25+ years of experience, Beauty STC Lighting adheres to rigorous engineering standards for products deployed in moisture-prone environments such as bathrooms, showers, and floor perimeters. Unlike generic market alternatives, our LED strip lights undergo stringent validation for performance, safety, and longevity in wet conditions. Below we detail the critical technical specifications that define our product quality, alongside third-party certification requirements for Western markets.
Lumens per Watt Efficiency
Energy efficiency is non-negotiable in commercial lighting applications. Generic LED strips typically achieve 80–100 lm/W under standard testing, often sacrificing longevity for cost savings. Beauty STC strips consistently deliver 120–140 lm/W through optimized binning of high-efficiency LED chips (e.g., Samsung LM301B or Osram Oslon Square), coupled with precision thermal management. This reduces operational costs by 20–30% compared to industry baselines while maintaining sustained lumen output over 50,000 hours.
Color Rendering Index (CRI)
Accurate color representation is critical in residential and hospitality settings where visual clarity impacts safety and aesthetics. Generic products frequently use low-CRI LEDs (70–80 CRI), resulting in distorted skin tones and material colors. Beauty STC strips feature CRI >90 (Ra95 standard) across all color temperatures (2700K–6500K), validated via spectroradiometer testing per IES LM-79. This ensures true-to-life color rendering for tasks like grooming or architectural detailing in wet zones.
IP Rating Standards for Moisture Protection
Wet-area applications demand robust ingress protection. Generic strips often default to IP20 (non-waterproof) or unverified “water-resistant” claims without standardized testing. Beauty STC strips are certified to IP65 (dust-tight and protected against low-pressure water jets) or IP67 (immersion up to 1m for 30 minutes), validated through ETL/CE-compliant testing per IEC 60529. All units undergo 24-hour salt spray and humidity cycling tests prior to shipment to ensure seal integrity in high-moisture environments.
PCB Design and Thermal Management
Substandard PCBs are a leading cause of premature failure in wet environments. Generic products typically use 1oz copper FR-4 boards with minimal thermal vias, leading to hotspots and accelerated lumen depreciation. Beauty STC employs 2oz copper FR-4 PCBs with reinforced thermal pathways, integrated heat-dissipating pads, and flame-retardant (UL94 V-0) materials. This design reduces operating temperatures by 15–20°C versus generic alternatives, extending service life and maintaining consistent light output.
Quality Benchmark Comparison: Generic Market vs. Beauty STC Certified
| Specification | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Lumens per Watt | 80–100 lm/W | 120–140 lm/W |
| CRI (Ra) | 70–80 | >90 (Ra95 standard) |
| IP Rating | IP20 (non-waterproof) or unverified | IP65/IP67 (ETL/CE certified) |
| PCB Copper Weight | 1oz FR-4 | 2oz FR-4 with thermal vias |
| Thermal Management | Basic heatsinking | Integrated heat-dissipating pads |
| Certification Compliance | Limited to basic safety standards | ETL (USA/Canada), TUV CE (Europe) |
| Warranty Period | 1–2 years | 5 years (with documented testing) |
Quality Assurance Process
All Beauty STC LED strips are manufactured under ISO 9001:2015-certified processes. Each batch undergoes:
Pre-production material testing: PCBs, LEDs, and silicone sleeves verified for thermal stability and chemical resistance.
In-line automated optical inspection (AOI): 100% visual and electrical continuity checks during assembly.
Final validation: 100% of units subjected to 48-hour accelerated life testing (HLT) at 60°C/85% RH before shipment.
As an OEM/ODM partner for global distributors, we tailor specifications to meet regional requirements (e.g., UL 8750 for North America, EN 60598 for Europe) while maintaining consistent quality across 50+ export markets. Our 1998-established factory ensures matured supply chain control, eliminating reliance on single-source components and guaranteeing batch-to-batch uniformity.
For technical datasheets, custom specifications, or compliance documentation, contact our engineering team at [email protected] or +86 13902885704.
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services
Beauty (STC) Manufacturing Co., Ltd – Jiangmen, Guangdong
1. Factory Footprint & Vertical Integration
Established 1998, our 18 000 m² campus in Jiangmen High-tech Industrial Zone runs two fully-vertical lines:
SMT Hall – 4 Yamaha & 2 Juki lines, 0201 capability, 0.1 mm pitch, SPI + AOI inline.
Assembly Hall – 6 semi-automatic strip-mount tables, 3 extrusion lines (PCB width 4–20 mm), 2 IP65–IP68 silicone extrusion towers.
Aging & EMC Lab – 288-channel programmable load bank, 2 m integrating sphere (2π/4π), -40 °C ↔ +85 °C thermal chamber.
All critical processes are kept in-house; only cartons and reels are sourced from audited partners within 30 km, guaranteeing 15-day OEM lead-time.
2. Key Process Steps for Flexible LED Strip (applies to caulk-strip OEM variants)
| Step | Equipment / Standard | Parameter | QC Gate |
|---|---|---|---|
| PCB blanking | DEPANELING router | ±0.05 mm tolerance | 100 % dimension AOI |
| SMT pick & place | Yamaha YSM-20R | 0.05 s/chip, 45 000 CPH | 2 × AOI (pre & post-reflow) |
| Reflow | Heller 1809 MKIII | 8-zone, N₂, 230 °C peak | Profile verified each shift |
| Solderability pull test | Instron 5566 | ≥6 N/mm | AQL 0.4 |
| 1st aging | 0–72 h, 25 °C, 100 % load | Lumen drop ≤1 % | 100 % |
| 2nd aging | 4 h on / 0.5 h off × 30 cycles, 85 °C / 85 % RH | Lumen drop ≤3 %, no delamination | 100 % |
| IP65/IP68 gel filling | 2-part silicone, 1:1 ratio, 350 cps | Bubble-free under 50× scope | 1 mbar vacuum test |
| Final luminous test | 2 m integrating sphere | CCT ±75 K, CRI >80, SDCM ≤3 | 100 % |
| Hi-pot / ground bond | Chroma 19055 | 1.5 kVac, 5 mA, 60 s | 100 % |
3. Certification & Traceability
North America: ETL to UL 2108 & CSA C22.2 #250.0, Class 2, dry / damp / wet locations.
Europe: TUV CE, EN 60598-2-20, EN 62031, EN 62471, RoHS & REACH.
Reports on file: SAA (Australia), EAC (Russia), PSE (Japan), KC (Korea).
Traceability code laser-marked every 0.5 m; MES system keeps reflow profile, AOI image, and photometric report for 10 years.
4. OEM / ODM Capabilities
| Attribute | Standard Offer | Custom Range | Tooling Time |
|---|---|---|---|
| Strip length | 5 m reel | 50 mm–50 m continuous | 0 days (software cut) |
| CCT binning | 2700 K / 3000 K / 4000 K / 5000 K / 6500 K | 1800–10 000 K, 1-step SDCM | 3 days |
| CRI | 80 | 90, 95, Thrive 98 | 5 days |
| PCB width | 8 mm, 10 mm, 12 mm | 4–20 mm | 7 days (new extrusion die) |
| Input voltage | 12 V, 24 V, 24 V constant current | 5 V–48 V | 3 days |
| Power density | 4.8 W/m – 24 W/m | up to 40 W/m with aluminum backing | 5 days |
| Encapsulation | IP20, IP65, IP67, IP68 neon | PU, epoxy, silicone, co-extrusion | 7 days |
| Packaging | anti-static bag + neutral box | color box, blister, private-label sleeve | 1 day artwork / 3 days print cylinder |
| Accessory kit | 3M VHB clip, solderless connector | magnetic bracket, corner lead, caulk-strip adapter | 10 days |
MOQ: 500 m per spec for custom CCT/power; 100 m for private-label packaging.
Sample lead-time: 48 h for standard, 5 days for custom CCT/Power.
Mass-production lead-time: 10–15 days (≤5 000 m), 18–22 days (≤50 000 m).
5. Quality & Reliability Protocols
Incoming: 100 % RoHS screening (XRF) for every solder-paste lot.
In-process: SPC on placement offset (±30 µm), solder-paste height (±10 µm).
Reliability: 1 000 h 85 °C/85 % RH, 500 temp-cycles (-40 ↔ +125 °C), 168 h salt-spray (ASTM B117).
Surge: 1 kV differential, 2 kV common-mode per ANSI C82.77-5.
End-of-line: 100 % function + 2.5 kVac hi-pot; sampling 5 % for luminous maintenance @ 6 000 h.
6. Logistics & Export Readiness
Daily capacity: 150 000 m LED strip (SMT), 50 000 m IP-rated strip (assembly).
Nearest port: Jiangmen High-tech Port (8 km), Shenzhen Yantian (110 km).
HS Code: 9405.40.84.00 (LED flexible strip).
Incoterms: EXW, FOB Shenzhen, CIF, DDP (duty-paid to EU/US).
Palletization: EURO & ANSI, max 1.2 t, stretch-wrap + corner board, IPPC-ISPM15 stamp.
For caulk-strip derivatives (e.g., LED-lit sealing strip), we co-extrude low-odor neutral-cure silicone with butyl adhesive backing, meeting ASTM C920 movement ±25 % and UL94 V-0.
Contact:
[email protected] | +86-13902885704
41th Caihong Road, Jianghai District, Jiangmen, Guangdong, China
Installation & Application Scenarios
Application Scenarios for LED Strip Lights in Wet and High-Moisture Environments
Commercial Hospitality Settings
In hotels, resorts, and high-end spas, LED strip lighting serves dual purposes: functional illumination and design enhancement. Bathrooms require lighting solutions that withstand constant humidity, cleaning chemicals, and thermal cycling. Beauty STC’s ETL-certified IP67-rated flexible LED strips provide consistent color rendition and thermal stability in vanity under-cabinet applications, shower perimeters, and ceiling cove lighting. These strips maintain performance in 95% RH environments without flicker or degradation, critical for guest experience and safety compliance.
Key Design Consideration: For wet zones (e.g., shower enclosures), use IP67-rated strips with silicone-coated wiring. Avoid direct water jet exposure; position strips 50mm+ above shower floor level to meet IEC 60529 standards.
Retail and Public Spaces
Shopping malls, airports, and public restrooms demand lighting that withstands heavy foot traffic, frequent cleaning, and high humidity. Beauty STC’s TUV CE-certified strips (EN 60598-1 compliant) are engineered for seamless integration into retail fixtures and restroom infrastructure. Applications include:
Under-counter display lighting in beauty salons
Perimeter lighting in changing rooms
Anti-slip pathway illumination in spa facilities
Installation Tip: For high-traffic areas, use aluminum channels with UV-resistant coatings to protect against abrasion and chemical exposure. Ensure driver enclosures are rated IP65+ and mounted away from direct water contact.
Healthcare and Institutional Facilities
Hospitals, clinics, and laboratories require lighting that meets stringent hygiene and safety protocols. Beauty STC’s LED strips feature smooth, non-porous surfaces that inhibit microbial growth and comply with FDA 21 CFR Part 820 for medical environments. Key applications include:
Operating room perimeter lighting (24V DC systems for minimal electromagnetic interference)
Patient bathroom vanity lighting with 4000K color temperature for accurate visual assessment
Corridor guidance systems with IP65-rated strips for easy disinfection
Critical Specification: All electrical connections must use sealed, screw-terminal connectors (not soldered joints) to prevent corrosion. Power supplies should include short-circuit and over-temperature protection per UL 8750.
Industrial and Marine Environments
Coastal resorts, yacht clubs, and industrial washdown areas require extreme environmental resilience. Beauty STC’s marine-grade strips (tested to ISO 9001 standards) feature:
Saltwater-resistant silicone encapsulation
-40°C to 70°C operating range for cold storage and tropical climates
50,000-hour L70 lifespan under continuous 24/7 operation
Installation Protocol: For submerged applications (e.g., pool surrounds), use double-insulated wiring with 10mm minimum bend radius. All junction boxes must be submerged-rated (IP68) and grounded per NEC Article 680.
Technical Specifications for Wet-Area LED Strips
| Parameter | Specification | Compliance Standard |
|---|---|---|
| IP Rating | IP65 (splash-proof), IP67 (submersible) | IEC 60529 |
| Voltage | 12V DC, 24V DC (24V recommended for >5m runs) | UL 8750 |
| Color Temp | 2700K–6500K (customizable) | EN 62471 (photobiological safety) |
| Certifications | ETL (USA/Canada), TUV CE (Europe) | UL 8750, IEC 62031 |
| Operating Temp | -20°C to 50°C (standard), -40°C to 70°C (marine-grade) | IEC 60068-2-14 |
| Lifespan | 50,000 hours (L70) | LM-80/TM-21 testing |
Contractor Installation Best Practices
-
Surface Preparation:
Clean substrates with 99% isopropyl alcohol to remove oils, dust, and residues.
For porous surfaces (e.g., concrete), apply a primer coat of acrylic sealant before mounting. -
Wiring and Power Management:
Use constant-voltage drivers with 10% power reserve (e.g., 24V/10A driver for 200W load).
For runs exceeding 5 meters, employ parallel wiring or boosters to prevent voltage drop (>5% tolerance). -
Moisture Protection:
Seal all connectors with heat-shrink tubing or silicone gel-filled junction boxes.
Install drip loops in wiring before connecting to drivers to prevent capillary action. -
Compliance Verification:
Validate IP ratings via manufacturer test reports (not marketing claims).
For healthcare facilities, confirm FDA 21 CFR Part 820 compliance for medical devices.
Note: Beauty STC provides OEM/ODM services for custom configurations, including PCB layout modifications, specialized color temperatures, and integrated motion sensors. All products undergo 100-hour accelerated aging tests per IEC 62612 before shipment.
About Beauty (STC) Manufacturing Co., Ltd.
Established in 1998, Beauty STC is a global LED lighting manufacturer with 25+ years of expertise in industrial-grade solutions. Our ISO 9001-certified facility in Jiangmen, China, delivers ETL/TUV CE-compliant products to 50+ countries, with strict adherence to “Be a responsible enterprise, Be a caring person” principles. For technical specifications or OEM inquiries, contact:
[email protected] | +86 13902885704
Why Choose Beauty STC Lighting
Partner with a Lighting Manufacturer That Understands Global Compliance
25 Years of Factory-Direct Reliability
Since 1998 Beauty STC Lighting has supplied specification-grade LED solutions to distributors, contractors and project owners in 50+ countries. Our 20 000 m² Jianghai high-tech facility is ETL/cETL listed for North America and TUV CE certified for Europe, eliminating downstream certification risk for your tub-&-floor strip lighting or any integrated LED package.
OEM/ODM Ready for Wet-Area Profiles
Whether you need a flexible PCB encapsulated inside a peel-and-stick caulk strip or a rigid aluminium-profile floor light rated IP65, we provide complete development from concept to carton. Typical lead-time: 3–4 weeks standard, 10 days expedited.
| Capability | Specification |
|---|---|
| LED Source | 2835/5050/COB, CRI 80–97, 180–240 lm/ft |
| Ingress | IP20 – IP68 silicone extrusion or co-extruded PVC |
| Adhesive | 3 M VHB / butyl / acrylic foam, salt-spray 720 h |
| Certifications pre-applied | ETL/cETL, TUV CE, RoHS, REACH |
| MOQ OEM | 500 rolls (50 m/roll) custom colour temp or CCT tuneable |
| Warranty | 5-year factory-backed, <0.3 % failure rate |
One-Stop Export Documentation
We generate PPAP, COC, LM-79/LM-80 reports, and handle palletised FCL or LCL shipments from Jiangmen to your nearest port. No intermediaries—factory bill of lading issued directly.
Next step: Send drawing, target lumen package or strip dimensions to [email protected]. We return a certified quotation within 24 h.
