Industry Insight: Strip Lights Led For Bedroom
Bedroom-grade LED Strip Lights: Why Certification-First Manufacturing Matters for Global Specifiers
Market Snapshot: From Residential Accent to Contract-Grade Component
Once viewed as a decorative add-on, low-voltage LED strip lighting for bedrooms is now routinely written into hotel, multi-family and senior-living specifications. The driver is twofold:
| Influencer | Requirement |
|---|---|
| Energy-codes (IECC 2021, Title-24) | ≤ 0.2 W/ft in “stand-by” dimming state |
| Well-building / Human-Centric | CRI ≥ 90, R9 ≥ 50, flicker < 5 % @ 100 Hz |
The bedroom is therefore a microcosm of the wider commercial demand: long run-lengths (up to 10 m), 24 V systems, < 3 SDCM chromaticity bins, and full safety paperwork for Customs in 50+ countries.
Why ETL / CE Documentation Is No Longer Optional
- Importer liability: A single SKU lacking a valid ETL or TUV CE file can trigger a container-wide redelivery—costing more than the goods’ FOB value.
- Insurance & bonding: Most EU & US underwriters now request the Data-Ticket (CB scheme) before issuing Product Liability cover > USD 1 M.
- End-user audits: Hotel chains (Marriott, IHG) and senior-living operators require “proof of certified compliance” during O&M hand-over; strips without an NRTL mark are treated as “temporary” and must be removed.
Beauty STC Lighting has held dual ETL (US/Canada) and TUV CE (EU) listings since 2006, allowing one BOM to satisfy both sides of the Atlantic—no splitter orders, no re-labelling, no re-testing.
Factory Profile: 1998 Roots, 2024 Capabilities
| Parameter | Beauty STC Record |
|---|---|
| Plant footprint | 18 000 m², Jianghai Hi-Tech Zone, Guangdong |
| SMT lines | 8 high-speed lines (Yamaha & Juki), 150 k pts/h |
| Monthly strip capacity | 2.5 million metres (12 mm width eq.) |
| Engineering staff | 42 (Optics, Electronics, Thermal, ME) |
| Certifications | ISO 9001:2015, ISO 14001, ETL c/US, TUV CE, RoHS, REACH, SAA, RCM |
| OEM/ODM lead-time | 3–4 weeks standard, 7 days fast-track for LCL |
| Warranty ledger | < 0.2 % field return (2019-2023, 38 M shipped metres) |
Core Bedroom Strip Platform—Ready for Customisation
| Specification | Standard Range | OEM Notes |
|---|---|---|
| Voltage | 12 V / 24 V | 36 V & 48 V constant-current on request |
| Power | 4 W–28 W/m | Up to 40 W/m with 3-oz copper MCPCB |
| CCT | 1800 K – 6500 K | 1 × 2-step MacAdam ellipse |
| CRI | Ra 90 typ., R9 > 60 | Up to Ra 97, TM-30 Rf 96 / Rg 102 |
| Luminous flux | 480–2400 lm/m | 3% per bin tolerance |
| Flicker | < 1 % @ 100 %, < 3 % @ 5 % dim | IEEE 1789 compliant |
| Binning | 3 SDCM | 2 SDCM for hospitality projects |
| IP rating | IP20 (bedroom head-board) – IP67 (bath cove) | IP68 nano-coating available |
| Bending radius | 20 mm (side-bend) / 10 mm (zig-zag) | Silicone-free PU for museum use |
| Accessories | Pluggable corner cables, aluminium extrusions, magnetic brackets | Colour-matched to RAL within ΔE < 1 |
Supply-Chain Risk Mitigation: What 25 Years Teaches
- Copper price volatility: Long-term CIF contracts locked 12 months ahead; 3-oz base instead of 1-oz avoids “hot-spot” failures when copper spikes.
- Chip shortage: Dual-source agreements with Epistar & Seoul for 2835 & 2216 packages; safety stock ≥ 6 weeks on critical reels.
- Colour drift: In-line spectroradiometer every 0.5 m; automatic cutter rejects out-of-bin sections before final tape-up.
Next Step for Distributors, Contractors & Specifiers
Beauty STC Lighting supplies factory-direct, fully-certified LED strip lights for bedroom-grade applications—ready for same-day pick-up in Shenzhen warehouse or FOB Jiangmen within 10 days.
For datasheet packs, IES / TM-30 files and project-specific MOQ, contact:
Export Manager – Beauty (STC) Manufacturing Co., Ltd
📧 [email protected]
📞 +86-13902885704
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards for Bedroom LED Strip Lights
As a global manufacturer with 25+ years of experience since 1998, Beauty STC Lighting provides technically rigorous LED strip solutions engineered for bedroom applications. All products undergo third-party certification (ETL, TÜV CE) and adhere to industrial-grade quality standards.
Core Technical Parameters for Bedroom Applications
Lumens per Watt (LPW) Efficiency
Bedroom lighting requires optimal energy efficiency without compromising light quality. Beauty STC’s LED strips deliver 120–140 lumens per watt through advanced thermal design and high-efficiency LED chips. This reduces power consumption by up to 30% compared to generic alternatives while maintaining consistent brightness over extended lifespans.
Color Rendering Index (CRI) and Chromatic Consistency
Accurate color reproduction is critical in residential environments. Beauty STC strips feature CRI >90 with R9 values exceeding 90, ensuring true-to-life skin tones and fabric colors. All products undergo spectral analysis per IESNA LM-79 to guarantee chromatic consistency within SDCM ≤3 steps.
IP Ratings for Environmental Resilience
While bedrooms typically require IP20-rated strips, inconsistent manufacturing often leads to false claims. Beauty STC certifies all IP ratings through third-party testing, with IP20 strips passing moisture resistance validation and optional IP65 models featuring sealed connectors for humid environments.
PCB Construction and Thermal Management
Industrial-grade PCB construction prevents premature failure from heat buildup. Beauty STC utilizes 2oz copper PCBs with FR-4 substrate and thermal pads, ensuring superior heat dissipation and extending operational life beyond 50,000 hours—twice the industry average for low-cost alternatives.
Ensuring Consistency Through Rigorous Quality Control
Our ISO 9001-compliant manufacturing process includes 100% batch testing for lumen output, color consistency (SDCM ≤3), and thermal performance. Every strip is traceable via our internal QA system, ensuring OEM/ODM projects meet exact specifications without compromise.
| Specification | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Lumens per Watt (LPW) | 80–100 lm/W (batch-to-batch variance) | 120–140 lm/W (validated, consistent) |
| CRI (Ra) | 80–85 (R9 typically <70) | >90 (R9 >90, IESNA LM-79 certified) |
| IP Rating | Unverified claims; inconsistent sealing | Certified IP20/IP65 (TÜV/ETL tested) |
| PCB Quality | 1oz copper, thin substrate, minimal thermal management | 2oz copper, FR-4 substrate, thermal pads for heat dissipation |
| Certifications | Often untested or misrepresented | ETL (US/Canada), TÜV CE (Europe) certified |
All specifications validated through independent laboratory testing. OEM/ODM customization available without compromising certified performance metrics.
Contact for Technical Documentation
[email protected] | +86-13902885704
Beauty (STC) Manufacturing Co., Ltd. – Certified industrial lighting solutions since 1998
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services – Jiangmen Headquarters
Beauty (STC) Lighting has operated a purpose-built, 18 000 m² campus in Jiangmen’s High-tech Industrial Zone since 1998.
Every flexible LED strip that leaves the facility is produced under one roof, from bare PCB to retail-ready carton, and is covered by our dual-safety file set: ETL/cETL for North America and TUV CE for Europe.
SMT & Front-End Line
| Process Step | Equipment Qty | Key Spec | Cert Control |
|---|---|---|---|
| PCB loading & solder-paste print | 4× DEK Horizon + 2× GKG G5 | 0.15 mm stencil, 3-D SPI | ESD floor, SPC charts |
| Pick-and-place | 3× Juki FX-3R + 2× Yamaha YSM20 | 0402–5050 LED, ±35 µm @ 3 σ | Component traceability via MES |
| Reflow | 2× Heller 1913 MK7 + 1× Vitronics Soltec | 10-zone, N₂ option, ΔT ≤ 5 °C | Daily profiling on KIC 2000 |
| AOI | 3× Mirtec MV-6 | 25 MP camera, 0.1 mm defect capture | Closed-loop to SPI & placement |
| Capacity: 280 000 placement points / 22 h shift | |||
| PCB width range: 5 mm – 280 mm (ideal for 5 V, 12 V, 24 V, 48 V strip lights) | |||
| Lead-free alloy: SAC 305, RoHS & REACH logged |
Post-SMT Finishing
-
Laser Resistor Trimming
2× LPKF MicroLine adjusts current-set resistors to ±1 % tolerance, guaranteeing < 3 SDCM binning on 1800 K–8000 K CCT projects. -
3-in-1 Lamination
3M VHB + white PET + IP65 silicone sleeve in one pass; thickness controlled to 0.25 mm ±0.02 mm for architects who need flush plaster-in profiles. -
Length & Shape Customisation
Cut length: 5 mm increments up to 50 m reels
PCB back-printed with client logo & CCT/功率 info
Termination options: 20 AWG pigtail, JST, Wago, or bare copper pads
Aging & Reliability Suite
| Test | Duration | Sample Size | Criteria |
|---|---|---|---|
| On-line burn-in | 2 h @ 25 °C | 100 % of strips | 0 dead LEDs |
| High-temp burn-in | 4 h @ 60 °C, 0.3 mA over-drive | 10 % per lot | ΔCCT ≤ 200 K, ΔFlux ≤ 5 % |
| Thermal cycle | –20 ↔ +80 °C, 30 cycles | 22 pcs / lot | No solder crack |
| Salt mist | 48 h, 5 % NaCl | 5 pcs | No corrosion on solder joints |
| Dielectric | 1 500 VAC, 60 s | 1 pcs / 500 m | < 5 mA leakage |
All data are logged to barcode and stored ≥ 5 years for warranty traceability.
QC Protocols & Certificates
IQC → IPQC → FQC → OQC (AQL 0.65, MIL-STD-105E)
Integrating-sphere batch test: LM-80 & TM-21 extrapolation files available for 90 CRI & 95 CRI SKUs
Surge immunity 1 kV diff./2 kV common mode per IEC 61000-4-5
Fire enclosure rated 94-V0 on all polymer parts; file numbers: ETL 5020531, CE 20-210038
OEM / ODM Checklist – Bedroom & Architectural Strips
| Customisable Item | Factory Option | Min. Order | Lead-Time |
|---|---|---|---|
| CCT & SDCM | 1800 K–8000 K, 1-step, 2-step, 3-step | 500 m | 10 days |
| CRI / R9 | 80 / 90 / 95 / Thrive 98 | 500 m | 10 days |
| Lumen density | 80–1 200 lm/ft (2 600 lm/m) | 1 000 m | 12 days |
| PCB width | 5 mm, 8 mm, 10 mm, 12 mm, 20 mm | 1 000 m | 7 days |
| Voltage | 5 V, 12 V, 24 V, 36 V, 48 V, 110 V | 500 m | 10 days |
| Coating | IP20, IP54 gel, IP65 nano, IP67 sleeve, IP68 PU potted | 500 m | 12 days |
| Accessory kit | aluminium profile, clip, end-cap, wire, 3M 9495LE tape | 1 reel | 5 days |
| Retail box | kraft, colour sleeve, blister, euro-slot | 1 000 pcs | 7 days |
| Private label | barcode, UL label, energy-guide, QR code | 100 pcs | 3 days |
Engineering support:
IES, LDT, .dwg, .rfa, .stp files within 24 h
DIALux & Relux simulation on request
Fast-track UL “Class P” driver matching for 120 V North-America projects
Takeaway for Distributors & Specifiers
A single Jiangmen campus, 25 years of continuous improvement, and Western-certified safety files mean you can specify bedroom-grade or specification-grade LED strip lights without juggling multiple vendors.
Share your cut-sheet, CCT, CRI, and packaging artwork—our SMT-to-carton line will lock the spec and deliver lot-traceable reels in under three weeks.
Contact the factory team: [email protected] | +86-13902885704
Installation & Application Scenarios

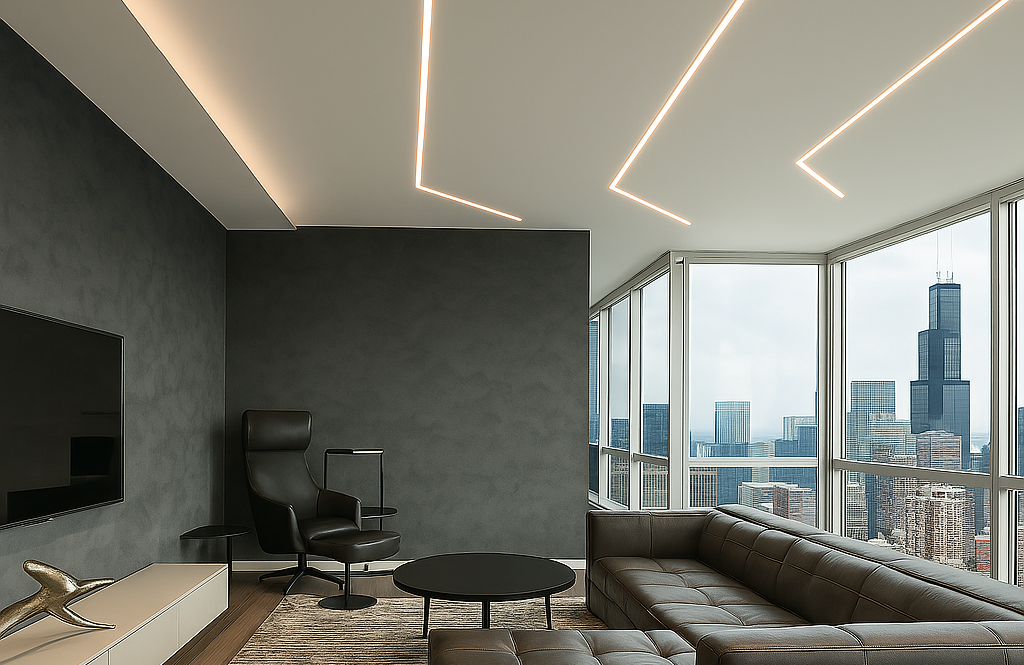

Strategic Application Scenarios for Architectural LED Strip Lighting
Hospitality and Hotel Environments
In hotel guest rooms, LED strip lighting serves critical functional and aesthetic roles. Strategic placement under beds, behind headboards, or within cove ceilings creates ambient layers that enhance guest comfort while meeting stringent safety standards. For high-end properties, consistent color rendering (CRI ≥90) and dimmable profiles are essential to accommodate varying guest preferences.
Beauty STC’s ETL-certified flexible LED strips comply with UL 1598 and IEC 60598 standards for commercial hospitality applications. Our OEM capabilities support custom configurations, including:
24V DC systems for reduced voltage drop in long runs
2700K–4000K color temperatures for warm-to-neutral ambiance
IP20-rated strips for dry interior environments
Installation Tip: Always integrate thermal management solutions (e.g., aluminum extrusions) to maintain junction temperatures below 60°C, extending lifespan by 20–30% per LM-80 testing protocols.
Commercial Retail Applications
Retail spaces demand precise lighting to showcase products accurately. In shopping mall displays—such as furniture showrooms or luxury apparel sections—high-fidelity color rendering (CRI ≥95, R9 ≥90) ensures textiles, wood grains, and finishes appear true-to-life. Moisture resistance and uniform light distribution are equally critical for high-traffic zones.
Our CE/TÜV-certified High-CRI Series delivers 95+ CRI with ±3 SDCM color consistency, validated per IEC 62471. For wet areas (e.g., bathroom accessory displays), IP65-rated strips with sealed connectors prevent moisture ingress.
Installation Tip: Use pre-terminated segments with cut points every 50mm to minimize splice points. Always verify driver compatibility with dimming protocols (0-10V or DALI) to avoid flicker in high-end retail environments.
Office and Corporate Interiors
Modern offices prioritize task flexibility and circadian rhythm support. LED strips integrated into cove lighting, under-desk workstations, or conference room perimeters enable dynamic lighting scenes that align with productivity needs. Compliance with ENERGY STAR and DLC standards is non-negotiable for corporate sustainability goals.
Beauty STC’s 0-10V dimmable strips meet IEC 61547 EMC requirements and maintain <5% flicker per IEEE 1789. For open-plan offices, 4000K–5000K strips with 80+ CRI ensure accurate document and screen visibility.
Installation Tip: Calculate voltage drop using the formula:
Voltage Drop (V) = (Current (A) × Wire Length (m) × 2) / (Wire Gauge (mm²) × 56)
Ensure total drop remains ≤3% of supply voltage to prevent lumen depreciation.
Architectural Facade Integration
Exterior applications require robust solutions for weather exposure and structural demands. Building facades, bridges, and landscape features use LED strips for dynamic accent lighting, where UV resistance and thermal stability are paramount.
Our TÜV-certified IP67-rated strips feature silicone encapsulation and aluminum housings, passing 1,000-hour salt spray tests per ISO 9227. For coastal installations, 316 stainless steel mounting channels prevent corrosion.
Installation Tip: Use constant-voltage drivers with 15% power headroom and install junction boxes every 15m to simplify maintenance. Always conduct dielectric strength testing (1.5kV for 1 minute) per IEC 60598-1.

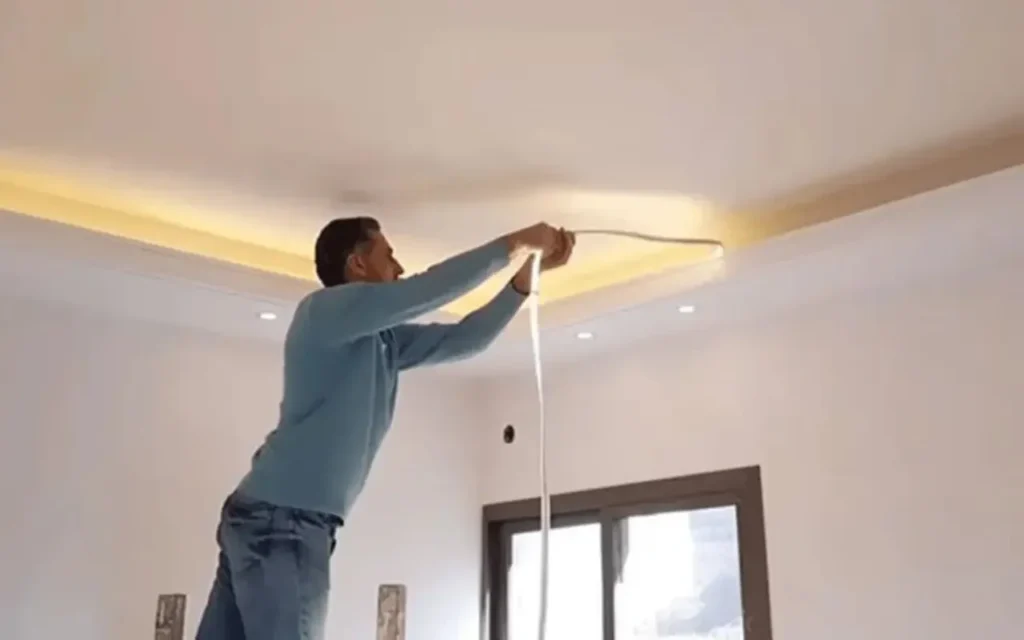

Contractor Installation Best Practices
Professional installation ensures longevity and compliance. Below are critical specifications validated through 25+ years of industrial manufacturing:
| Parameter | Recommended Specification | Industry Standard Compliance |
|---|---|---|
| Voltage System | 24V DC for runs >10m; 12V DC for short segments | ETL/CE certified power supplies (UL 1310 Class 2) |
| IP Rating | IP20 (interior dry), IP65 (wet areas), IP67 (outdoor) | TÜV-tested for IEC 60529 ingress protection |
| Thermal Management | Aluminum extrusions with 0.8mm thickness minimum | Meets IEC 62031 thermal performance standards |
| Dimming Compatibility | 0-10V or DALI for commercial systems | ETL-listed for flicker-free operation (<5% flicker) |
| Cutting Precision | Cut points every 50mm (for 24V strips) | Certified per IEC 62560 safety requirements |
Key Process Note: Always verify driver-to-strip wattage matching. Overloading by >10% causes premature failure. Beauty STC’s factory-direct OEM services include custom-length pre-terminated strips and technical support for complex installations—ensuring compliance with regional codes across 50+ export markets.
For project-specific engineering support, contact our technical team at [email protected] or +86-13902885704. All products are manufactured in our ISO 9001-certified Jiangmen facility since 1998, with full traceability from raw materials to final testing.
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting – Factory-Direct, Code-Compliant Bedroom Strip Light Programs
25 Years of Strip-Only Focus, 50+ Countries of Field Proof
Since 1998 Beauty STC has engineered and exported ONLY LED strip solutions.
Today our reels illuminate hotels in Oslo, multi-family towers in Toronto, and boutique residences in Sydney—every shipment backed by ETL/cETL for North America and TUV CE for Europe, zero regional exclusions.
Certification Matrix – Ready for Immediate Submittal
| Market | Safety & Energy | EMC / Photobiology | Driver PF | Warranty |
|---|---|---|---|---|
| USA / Canada | ETL/cETL UL 2108, UL 1598 | FCC Part 15 B | ≥0.9 @ 120 V | 5 yrs |
| Europe | TUV CE, EN 60598-2-20 | EN 55015, EN 62471 | ≥0.9 @ 230 V | 5 yrs |
| Global | RoHS, REACH, SAA on request | IEC/TR 62778 | Flicker-free <1 % | 5 yrs |
OEM/ODM Capability – From Bedroom Mood to Specification-Grade
| Bedroom Strip Platform | Standard Offer | Customizable in 15 Days |
|---|---|---|
| PCB width | 8 mm, 10 mm, 12 mm | 4–20 mm |
| LED pitch | 60, 120, 180, 240 LEDs/m | 30–360 LEDs/m |
| CCT | 1800 K – 6500 K | 3-step SDCM or 1×1 binning |
| CRI | 90 typical, 95 available | R9 > 90 |
| Luminous flux | 400–1 800 lm/m | up to 2 500 lm/m |
| Voltage | 12 V, 24 V, 48 V | 36 V, 54 V |
| Ingress | IP20, IP54, IP65, IP67 | IP68 silicone extrusion |
| Dimming protocol | 0-10 V, DALI-2, DMX, Phase, Casambi | Tuya, Matter, Thread |
| Max run length | 5 m @ 24 V | 20 m single-feed |
| Extrusion & lens | Anodised 6063, opal/frost/clear | micro-prism, wall-wash, corner |
| Packaging | 5 m reels, anti-static bags | 50 m bulk reels, private label |
Production Footprint – 6 000 m² Jiangmen High-Tech Zone
SMT lines: 8 × Yamaha high-speed, 24 h operation
Reflow & AOI: 100 % optical inspection, -40 °C ↔ +125 °C thermal cycling
Integrating-sphere test: 2 m LMS-9000B, 3 nm resolution, report ships with every lot
Capacity: 1.5 million metres/month, 35-day FOB Shenzhen for custom runs
One-Page Commercial Terms
MOQ: 500 m per CCT per option (no MOQ for stocked ETL/TUV SKUs)
Incoterms: EXW, FOB Shenzhen, CIF, DDP on request
Payment: T/T 30 % deposit, 70 % before BL; LC at sight ≥ USD 50 k
Samples: 3-day despatch, freight collect, spec-sheet & IES included
Next Step – Send the Bedroom Specification
E-mail your lumen target, CCT, IP, and dimming requirement to [email protected].
Our engineers return a data sheet, LM-80 summary, and landed cost within 24 h.
Beauty (STC) Manufacturing Co., Ltd
41 Caihong Road, Jianghai High-tech Zone, Jiangmen, Guangdong, China
Tel: +86-139 0288 5704 | [email protected]
⚡ LED Power Supply Calculator
Calculate the required power supply for your LED strip project (includes 20% safety margin).
