Below are our ETL Control number 5012309 LED panel Light, BL-BTB-50A 2X2
| Model number | BL-BTB-50A 2*2 |
|---|---|
| Rated Power | 40W |
| Replacement Power | 120W |
| Lamp Dimension | 603*603*30m (2*2' Feet) |
| Hole cutting | 595*595mm |
| Input Voltage | 100-277V |
| Frequency | 50/60Hz |
| Normal current | 300-350mA |
| LED Driver case | Auminum Junction box for North American market |
| Starting time | <0.5s |
| Power factor | >0.9 |
| Energy consumption | 40 Kwh/1000h |
| Dimming Type | 0-10V Dimming |
| Color temperature | 3000K, 4000K, 5000K / 3CCT |
| Lumen | >120LM/W |
| Beam angle | 120° |
| Color rendering index | >80 Ra |
| Color Consistency | < 5 SDCM |
| Suitable for accent lighting | Yes |
| Lifespan | >50,000 h |
| Swich cycles | 20000 |
| Energy efficiency class | A+ |
| IP Rate | IP30 |
| LED-Type | 2835SMD |
| Material | Aluminum |
| Lamp housing Color | White |
| Warranty | 5-6 years |
| temperature range | -15℃ ~ +50℃ |
| Certificates | ETL / DLC |
Feature:
- MADE OF HIGH QUALITY MATERIALS: a rigid frame will not allow the panel to bend over time, the lens is made of Special PMMA (transparent glass substitute) and will not yellow over time. Even in five years the fixture will look exactly the same as the day it was installed. This Edge lit panel measures only 1/2” thick making it one of the slimmest panels in the marketplace today. ETL LISTED AND DLC CERTIFIED. DLC certification makes the product eligible for energy saving rebates

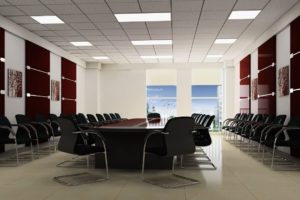

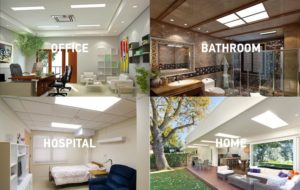

- WIDE APPLICATION: LED troffer panel lights can be used in just about any indoor space. Use them in schools, offices, retail spaces, hospitals, and many other places. They are aesthetically pleasing while still providing ample amounts of lighting. These LED troffers come in 1X4 2X2 and 2X4 sizes perfect for any space

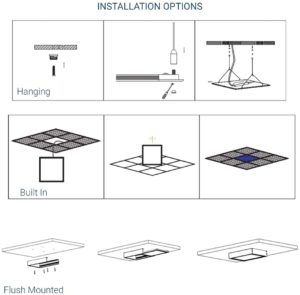

- EASY TO INSTALL; RECESSED AND SURFACE MOUNTED OPTIONS ARE AVAILABLE: Standard application is T-Grid, all accessories are included. Two alternative mounting options are available: surface and sheetrock flush mount. PLEASE NOTE: accessories for all mounting options excluding T-Grid recessed mounting should be bought separately

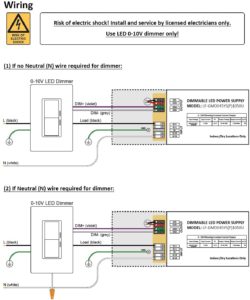

- DIMMABLE LED PANEL LIGHTS: These LED panels are dimmable. They have the standard 0–10V dimming capabilities. High quality driver provides smooth 5-100% dimming (opposed to step dimming suggested for lower quality drivers that allows only a few dimming options (e.g. 25%-50%-75%-100%). Please note: dimming is optional, if this feature is not required the dimming wires can simply be capped off and the light will function on/off
- WARRANTY AND TECHNICAL SPECIFICATIONS: 81,000 hour LED lifetime, 5-year manufacturer’s warranty, 3000K / 4000K / 5000K color temperature , 4677 lm luminous output (the amount of light produced), 40W (efficiency), 100-277V operational voltage range. Additional technical specs can be found in the table below
Q&A:
Q: Can a third-party inspection be arranged before delivery?
A: Yes.BEAUTY STC is quite confident with our products and has passed many international certifications .You can arrange an inspector in you side or we can assist you to do that.
Q: Why your product comes with a high cost performance?
A: Firstly, our product operated under ETL and CE standards and we test the products one by one to make sure each single unit workswell enough.
Q: Do you accept customize design?
A: Yes, we are offering OEM and ODM service as well .If you have any good idea, we can help you realize it.
Q: Are the products safe enough?
A: Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including USA ETL, UL and European TUV, SGS, CE and RoHS.
Q: Do you sell to individual customers directly?
A: No, we are manufacturer and only for wholesale. We have distributors in many countries, the end users can buy from them.
Q: How can I get the sample from you?
A: If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.
Q: How can I make the order?
A: You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.
Q: Are you a truly factory
A: Yes we are a factory has almost 16 years experience on producing. Welcome to visit us any time you want.
Quality Control:
Inspection Of Finish LED Light:
1. Load test(Electrical spec. test).
2. Aging test.
3. High-voltage test.
4. Grounding conduction test.
5. Install test.
6.Adhesion.
R&D:
1. We adopt the international three-dimensional design soft: SolidWorks, user-friendly interface,it can catch the design
idea of designer automatically and guide design, modify the staff organization chart.
2. We have 5 structure engineer and two electrical engineer.
3. Our company spent around spent around 30% profit to to research the new products every year.
Our Services：
1.Your inquiry will be promptly replied in 12 hours .
2.Well-trained and experienced staffs to answer your inquires in fluent English.
3.OEM&ODM available.
4.Protection of your sales area, ideas of design and all your private information.
5.Any defective products within warranty will get maintenance or replacement unconditionally .
