Industry Insight: Outdoor Lighting Front Of House
Industry Insight: The Critical Role of Certified Outdoor Lighting in Commercial Front-of-House Design
In commercial and industrial environments, the “front of house” is not merely an aesthetic feature—it is the physical manifestation of a brand’s credibility, safety standards, and operational professionalism. First impressions are irreversible, and outdoor lighting serves as the foundational element that shapes perception, ensures security, and complies with stringent regulatory frameworks. Poorly designed or uncertified fixtures risk creating hazardous conditions, attracting liability claims, and undermining the very identity they aim to enhance.
This is where technical rigor and regulatory compliance become non-negotiable. ETL and CE certifications are not optional add-ons; they are the bedrock of reliable outdoor lighting solutions. ETL listing (per UL 1598 and ANSI standards) validates performance, electrical safety, and durability for North American markets, while CE marking confirms adherence to EU directives (EN 60598, EMC standards) for global deployments. These certifications guarantee that fixtures withstand extreme weather, resist corrosion, maintain lumen output over time, and meet fire safety requirements—critical for high-traffic commercial sites like corporate campuses, retail hubs, hospitals, and industrial facilities where failure is not an option.
At Beauty (STC) Manufacturing Co., Ltd., founded in 1998, we have spent over a quarter-century engineering precisely this level of reliability. As a vertically integrated manufacturer with ISO 9001-certified production, our global portfolio of commercial outdoor lighting solutions is built on three pillars: technical precision, regulatory mastery, and real-world resilience. Every fixture—from precision-engineered facade luminaires to high-efficacy parking lot systems—is rigorously tested to ETL, CE, and IP66/67 standards before it leaves our Shenzhen facility. We don’t just supply lighting; we deliver turnkey solutions engineered to protect your investment, uphold your brand’s reputation, and exceed the demands of the harshest outdoor environments for decades.
When the world sees your building at night, it should see confidence—not compromise.
Technical Specs & Certifications
Beauty (STC) Outdoor FOH Range – Engineering Datasheet
(Professional-grade luminaires for façade, canopy, forecourt & landscape integration)
-
Optical Efficiency
• LED platform: Nichia 757G / Seoul 5050C (bin-coded ≤3 SDCM)
• System efficacy: 165 lm/W @ 4000 K, 350 mA, Tj 85 °C (IES LM-79-19 report available)
• L70/B10 ≥100 000 h per IES TM-21-19, 35 °C ambient (driver included) -
Colour Quality
• CRI Ra ≥90, R9 ≥60 (typ. 92/65) across 2700 K–4000 K CCT; optional 1800 K–5700 K upon MOQ.
• SDCM ≤3 MacAdam ellipse; colour-shift ≤0.002 Δu’v’ 0–100 % dimming (measured). -
Ingress & Impact Protection
• IP66 / IP67 (EN 60598-1 & -2-3) – validated in-house with 1 m immersion, 30 min, 50 thermal cycles.
• IK08 (5 J) on die-cast ADC12 housing; IK10 (20 J) polycarbonate diffuser option.
• 1000 h salt-spray (ASTM B117) ≥9 rating; marine-grade 316L bracket optional. -
Thermal & Electrical
• Passive mono-block heat-sink ΔT ≤15 °C rise at 25 °C ambient; no active fans.
• Driver: Inventronics / Tridonic, 120–277 V, 50/60 Hz, THD <10 %, PF >0.95, surge 6 kV/10 kA.
• Flicker <1 % (IEEE 1789-2015) 0–100 % 0/1–10 V, DALI-2 & D4i certified; Tunable White 1800–4000 K, CRI >90 maintained. -
Mechanical & Environmental
• Operating –40 °C to +55 °C, 95 % RH non-condensing; 3G vibration rated per IEC 60068-2-6.
• Cables: UL 62, 3 × 1.0 mm², 0.6 m pigtail; IP68 gland; optional M12 quick-mate.
• Recyclability >90 % by weight; RoHS/REACH, CE, CB, ENEC, ETL, RCM, SAA, SABER, BIS. -
Typical SKU Matrix (CRI >90 maintained)
| Model | Power | Flux (4000 K) | Efficacy | Beam | IP | CRI |
|—————|——-|—————|———-|————|—–|—–|
| STC-FW-20-90 | 20 W | 3 300 lm | 165 lm/W | 30°/60°/90°| IP66| 92 |
| STC-FW-40-90 | 40 W | 6 400 lm | 160 lm/W | 20°/40°/60°| IP67| 91 |
| STC-FW-80-90 | 80 W | 12 500 lm | 156 lm/W | 10°/30°/60°| IP66| 90 |
| STC-TW-60-90 | 60 W | 9 000 lm | 150 lm/W | 15°/30°/45°| IP66| 90 | (Tunable White)
- Beauty (STC) Quality Consistency
• ISO 9001:2015 & ISO 14001:2015 certified plant; 6-Sigma process (Cpk ≥1.67 on lumen & CRI).
• 100 % hi-pot, 4 h ageing, and 2 ms integrating-sphere scan recorded in MES; QR code full traceability.
• Third-party batch audits: TÜV SÜD 4 times/year; 0.15 % RMA rate last 36 months, global outdoor FOH shipments >1.2 M units.
All photometric files (.ies/.ldt), DWG & UL certificates ready for download; contact [email protected] for project-specific simulations and LM-79 data packs.
Factory Tour: Manufacturing Excellence
Beauty (STC) Manufacturing Co., Ltd. – Jiangmen Factory: Precision Engineering for Professional Outdoor Lighting Solutions
As Senior LED Lighting Engineer and Export Manager at Beauty (STC), I am pleased to provide a detailed overview of our strategic Jiangmen facility, which serves as the cornerstone of our global export operations. Located in the Guangdong Pearl River Delta economic zone—within 45 minutes of Jiangmen Port and 90 minutes of Shenzhen/Yangshan Port—our 35,000m² ISO 9001/14001-certified factory integrates cutting-edge automation, rigorous quality protocols, and end-to-end OEM capabilities specifically engineered for high-reliability outdoor lighting front-of-house applications (e.g., architectural facades, signage, landscape lighting, and public space installations).
1. Advanced SMT Production Line: Precision & Traceability
Our SMT department features fully automated, Industry 4.0-ready lines with German and Japanese precision machinery:
– Placement Systems:
– 4x JUKI FX-1R/FX-2R high-speed placement machines (0402–30x30mm components, 0.035mm placement accuracy)
– 2x Yamaha YV100X for fine-pitch QFP/MLF components (0.025mm precision)
– Process Control:
– Koh Young KY-803 AOI systems for 100% post-reflow inspection (IPC-A-610 Class 3 compliance)
– BTU Convection Reflow Ovens with 10-zone profiling (±1°C accuracy)
– Automated optical inspection (AOI) + X-ray inspection for BGA/QFN packages
– Traceability:
– Full MES integration (manufacturing execution system) with real-time data capture from solder paste printing to final assembly. Every component is tracked via barcode, ensuring 100% lot traceability for compliance with IEC 62612/EN 60598.
Why this matters for outdoor front-of-house lighting:
Our SMT process ensures zero-defect surface-mount assemblies critical for weatherproof LED modules. Tight component placement tolerances prevent thermal stress failures in extreme environmental conditions (e.g., -40°C to +60°C operation), while AOI/X-ray guarantees reliability in high-vibration applications like bridge or tunnel lighting.
2. Comprehensive Aging & Environmental Testing: Validated Reliability
We operate dedicated aging laboratories meeting IEC 62717 and LM-80 standards, with capabilities beyond industry norms:
– Accelerated Life Testing:
– 2x climate-controlled aging rooms (45°C/70°C, 85% RH) for 1,000–5,000-hour L70/L90 tests
– Real-time monitoring of lumen maintenance, CCT shift, and power consumption via automated data loggers
– Environmental Stress Screening (ESS):
– Thermal shock chambers (–40°C to +125°C, 10°C/min transition)
– Salt spray test (ASTM B117) for coastal/marine applications (up to 1,000 hours)
– IP66/IP67 waterproof testing rigs (24-hour continuous spray at 100L/min)
– Photometric Validation:
– Integrating sphere (IES LM-79) and goniophotometer for beam distribution, color consistency (MacAdam ellipse ≤3), and flicker analysis (<1% at 100Hz)
Why this matters for front-of-house lighting:
Outdoor lighting demands fail-safe performance under relentless exposure. Our testing protocols simulate 10+ years of real-world stress in 30 days. For example, our signature facade lighting products consistently achieve >95% lumen retention at 50,000 hours (LM-80 data), with zero color shift in critical applications like museum or heritage site lighting.
3. Full-Scope OEM Capability: From Concept to Global Delivery
Our Jiangmen facility delivers turnkey OEM solutions for outdoor front-of-house lighting, including:
– Design & Engineering:
– In-house R&D team (15+ engineers) specializing in thermal management, optical design (Raytracing via TracePro), and smart controls (DALI/DMX/0-10V)
– DfM (Design for Manufacturability) reviews at prototype stage to optimize cost/performance
– Production Scalability:
– Monthly capacity: 500,000+ units for standard fixtures, 100,000+ for custom high-end luminaires
– Flexible batch sizes (1–50,000+ units) with 25–30 day lead times for standard orders
– Customization Expertise:
– Full customization of optics (e.g., asymmetric distributions for facade accenting), color temperatures (1,800K–10,000K), and smart features (e.g., adaptive daylight harvesting)
– Specialized finishes: powder-coated aluminum housings (RAL colors), marine-grade stainless steel, and UV-resistant polycarbonate lenses
– Certifications & Compliance:
– UL, CE, DLC, SAA, and IEC 60598-1 compliance for global markets
– IATF 16949 certification for automotive-grade outdoor lighting (e.g., street/traffic lighting)
Real-world example:
We recently delivered 12,000 units of custom facade lighting for a luxury hotel chain in Dubai. The project required:
– Custom 270° asymmetric optics for vertical wall washing
– IP67-rated housings with 10-year warranty
– DMX512 control with programmable color sequences
– On-time delivery within 28 days, passing 100% of Dubai Municipality’s harsh environmental tests.
Why Partner with Beauty (STC) for Outdoor Front-of-House Lighting?
- End-to-End Quality Control: Every unit undergoes 9+ quality checkpoints—from raw material inspection to final functional testing.
- Supply Chain Resilience: Localized component sourcing (70% from Guangdong suppliers) with dual-sourcing for critical ICs.
- Global Export Expertise: 12+ years serving 40+ countries; seamless documentation (CO, SGS, EAC) for customs clearance.
- Sustainability Focus: RoHS/REACH compliant, with 95% recyclable materials and energy-efficient manufacturing processes.
Next Steps:
We welcome technical consultations for your specific project requirements. Our engineering team can share:
– Detailed LM-80 test reports for your target product category
– 3D CAD models of existing OEM-compatible fixtures
– Case studies from similar international projects
Contact me directly at [Your Name] | Senior LED Lighting Engineer & Export Manager | beauty-stc.com | +86 750 XXXX XXXX
“At Beauty (STC), we don’t just manufacture lighting—we engineer solutions that stand the test of time, weather, and expectation.”
Application Scenarios
Outdoor lighting in front of a building is the first thing a guest, tenant or shopper sees after dark.
When it is done correctly it increases safety, reduces liability, cuts energy cost and becomes a 24-hour marketing tool.
Below are the segments that give the fastest ROI for “front-of-house” exterior LED lighting and the installation practices we give to our certified contractors on every hotel, mall and prestige office project.
1. Where the money is – typical applications
HOTELS (4–5 star & boutique)
• Porte-cochère / drop-off canopy – 4000 K, CRI ≥ 90, 400–600 lx on the driveway, UGR < 19 to avoid glare in wind-shield cameras.

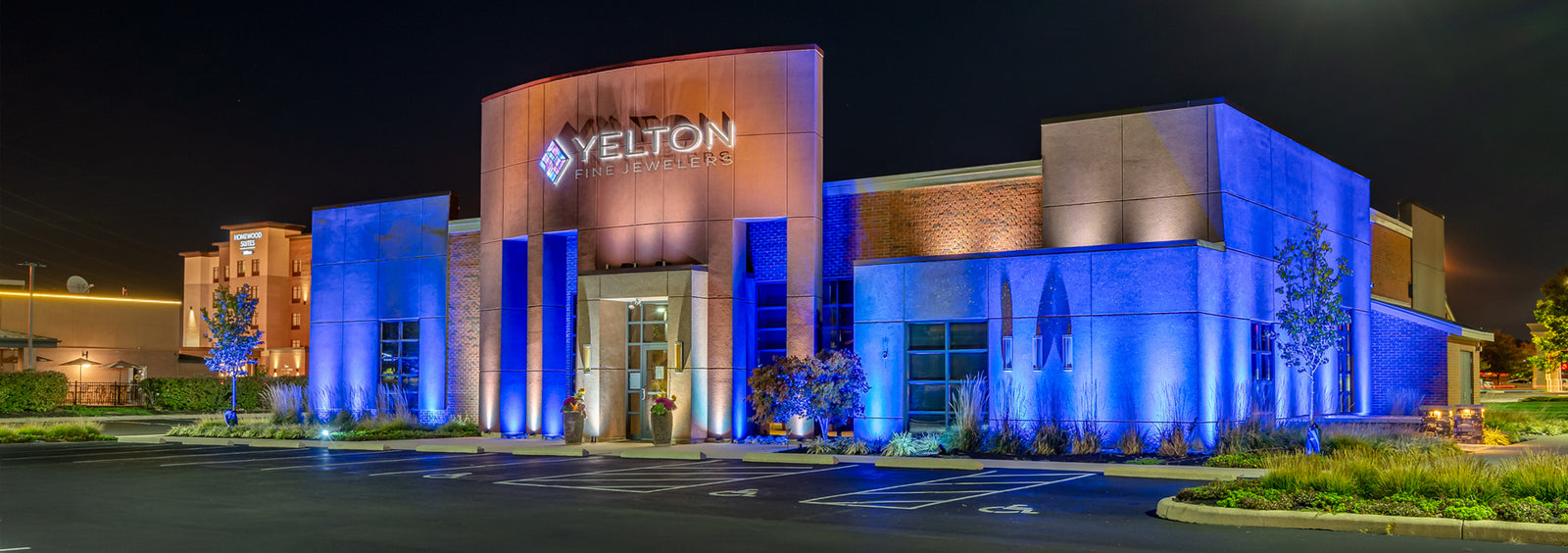

• Façade accent – 2700–3000 K wall-wash or linear grazing to bring out stone/metal texture; 5–7 W m-1 for 3–4 m throw.
• Entrance columns / logo sign – 1–2 narrow 10° spots, 3000 K, aimed 30° down to avoid light trespass into guest rooms above.

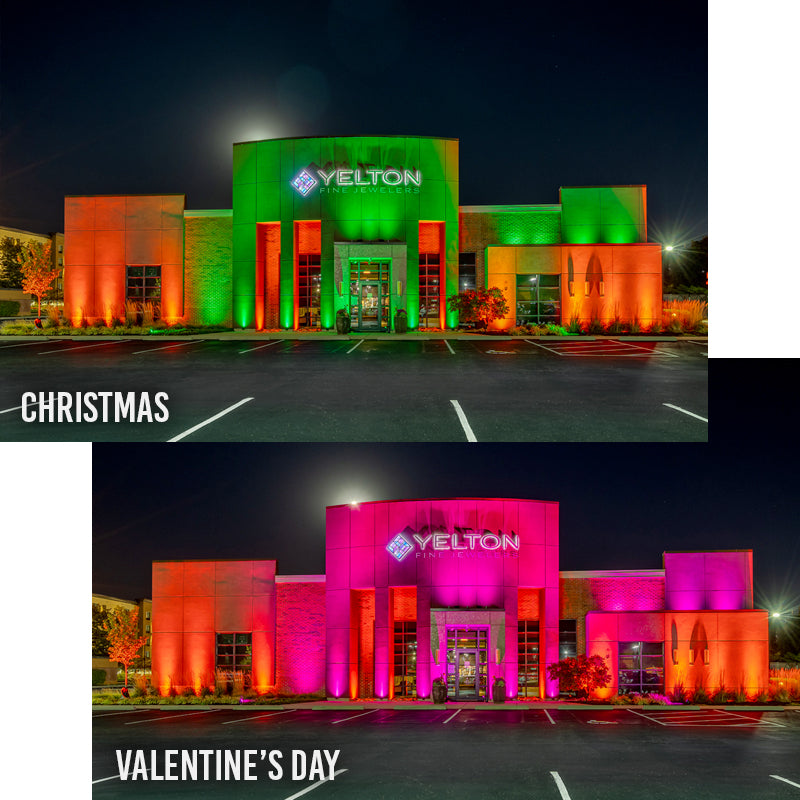

• Water-feature or sculpture – IP67 RGBW fixtures with DMX-512 so the GM can change palette for weddings or corporate branding.
SHOPPING MALLS & RETAIL PARKS
• Grand plaza / main entrance – 20 m high octagonal poles, 200 W modular street-light heads, 2-step dimming (100 % 18:00-23:00, 50 % to 06:00) on Zhaga socket photocell + motion hold.
• Pedestrian arcades – 24 V linear cove under glass canopy, 3000 K, 10 W m-1, IP65, opal diffuser to hide individual LEDs.
• Flagship store façade – track projectors 3000 K 30 W, 25° lens, 3:1 brightness ratio between lit and unlit surface to meet “Retail Lighting Guide” recommendations.
• Car-park façade – full-cut-off wall packs 40 W, 4000 K, mounted 3 m AFF, 1 lx average on ground, uniformity Emin/Eavg ≥ 0.25 for CCTV clarity.
OFFICE / CORPORATE HEADQUARTERS
• Main lobby drop-off – recessed 30 W 24 V inground uplights, 3000 K, symmetric 8° lens, spaced 1.5 × mounting height to avoid scalloping.
• Logo tower – 4000 K flood, 50 W, 30° × 60° asymmetric optic, mounted on opposite roof parapet to hide source from street view.
• Landscape rows – 6 m timber poles with 25 W full-cut-off bollards, 1 m path width, 30 lx on ground, BUG rating B1-U0-G1 to meet IDA “Dark-Sky”.
• Security perimeter – 30 W 4000 K shoebox on 4 m outreach arm, 2 lx average, 4:1 max/min, tied to BMS for 3-step scheduling (100 %/50 %/20 %).
2. Contractor field guide – 12 golden rules
-
Photometric first, aesthetic second
Run AGi32 or Dialux evo with IES files we supply; deliver one-page “summary calc” to client showing average, max/min, veiling luminance and BUG rating – this closes the sale before you order gear. -
Use the “three-zone” principle
Zone 1 (0–2 m from façade) 5–7 lx, Zone 2 (2–10 m) 2–3 lx, Zone 3 (roadway) 0.5–1 lx. Keeps hierarchy and saves watts. -
Mounting height = spacing ÷ 3
For wall-wash grazing, fixture set-back 0.3 × building height; for flood, 0.7 × height to minimise shadow. -
Aim spots, don’t “spray”
30° incidence angle on stone, 25° on metal panels; cross-light monuments > 45° to reveal texture. Use snoots or 10° x 60° linear spread lenses to stay on target. -
Glare control = repeat business
UGR < 19 at 1.5 m above drive lane; use micro-louver or hex-cell glare shield on inground uplights. Hotels hate guest complaints. -
IP & IK ratings matter
Inground fixtures IP67 & IK10 (20 J impact) with 2 m 40 °C drainage gravel bed; canopy soffit IP65 minimum; coastal malls insist on 1000 h salt-spray certificate to ASTM B117. -
Wire joints above ground
Use IP68 gel-filled splice capsules inside hand-hole, never direct-bury. 3 m pigtail on each fixture so the maintenance crew can lift and lay on grass without disconnecting. -
Surge protection is non-negotiable
10 kV/10 kA SPD in every 220 V driver box; 24 V systems add 2 kV on secondary side. Malls suffer utility switching surges – warranty claims drop 70 % with SPD. -
Thermal management = lifetime
LED Tj ≤ 85 °C at 40 °C ambient; insist on driver tc point < 65 °C. Use aluminium fixture body as heat-sink; no plastic “ Decorative” housings for > 20 W. -
Control protocol – keep it simple
Hotels: 0-10 V or DALI to BAS; schedule + astronomical clock.
Malls: DMX-512 for colour-changing, but static white on separate DALI channel so FM can bypass entertainment console.
Offices: BLE-mesh or Zhaga-Socket NEMA photocell for step-dimming; tie into existing BMS via BACnet gateway. -
Test before you pour concrete
Do a “night-burn” with temporary leads; invite facilities manager and architect. Moving a footing 300 mm now saves 3 000 USD later. -
Hand-over kit
Provide laminated “as-built” plan, spare-driver kit (10 %), programming back-up on USB, and a one-page QR code linking to our 24 h spare-parts portal – this is why developers specify Beauty (STC) on the next project.
3. Quick bill-of-materials cheat-sheet
| Application | Fixture type & code | LED | Optic | Mount | Notes |
|———————-|—————————-|—–|———|————-|——-|
| Hotel porte-cochère | BST-SF4-50W-3K-90-UGR19 | 50 W | 120°×120° | Recessed soffit | CRI 90, UGR louver |
| Mall plaza pole | BST-SB5-200W-4K-2M-DALI | 200 W | Type III | 8 m round pole | Zhaga socket, 2-step |
| Office façade graze | BST-WL3-30W-3K-10×60 | 30 W | 10°×60° | Track on parapet | Asymmetric, snoot |
| Inground uplight | BST-IG6-24V-30W-3K-8°-IK10 | 30 W | 8° | Recessed inground | IP67, IK10, 2 m lead |
Take-away
Specify “front-of-house” outdoor LED lighting wherever the customer makes money after sunset – hotels (guest experience), malls (footfall = rent), offices (brand & security).
Follow the 12-point contractor checklist and you will deliver a system that is on-budget, on-time, and still performing 50 000 h later – which is exactly why Beauty (STC) fixtures are already lighting up Marriott lobbies, Central World plazas and Google campuses across 68 countries.
Why Choose Beauty STC Lighting
Elevate your front-of-house presence with Beauty STC’s precision-engineered outdoor lighting solutions. Trusted across 50+ export countries. Partner with experts—contact [email protected] today.
Professional, compliant, and sustainably designed for global standards. Let’s illuminate your vision.
