Outdoor 12 Volt Led Lights: Manufacturer Guide & Technical Specs (2026)

Industry Insight: Outdoor 12 Volt Led Lights

Outdoor 12 V LED Lighting: Why Industrial-Grade Quality Becomes the Decisive Factor for Global Importers

Market Pull: Low-Voltage Outdoor LEDs Are No Longer a “Niche”

Across Europe, North America and fast-growing APAC infrastructure projects, landscape architects and M&E consultants are migrating from 120-230 V ac flood systems to SELV (Safety-Extra-Low-Voltage) 12 V networks.
Key drivers include:

Driver	Technical Impact on 12 V Design	Procurement Consequence
IEC 60598-2-4 / UL1838 low-voltage safety mandates	Mandatory ≤ 15 V on-load to earth	Distributors must source luminaires with certified SELV drivers
IEC 62262 IK08+ vandal resistance in public realm	Die-cast housings, tempered glass, potting compound	OEMs required to provide 5 J impact test reports
ERP / DOE energy codes 2024	≥ 130 lm W⁻¹ system efficacy at 25 °C	Component binning, thermal simulation proof requested at tender
EU Green Deal “right to repair”	Driver replacement ≤ 3 min, IP66 after re-assembly	Modular cable glands, plug-in LED cartridge demanded

The Cost of “Paper” Certifications vs. Tested Certifications

A 2023 EU RAPEX bulletin listed 38 low-voltage LED kits—mostly 12 V garden spikes and deck lights—withdrawn because the declared CE file could not be produced under market surveillance audit. Typical non-conformities:
Driver isolation transformer rated only 1.5 kV surge (2.5 kV required for outdoor)
Cable entry 0.25 mm thinner than EN 60529, leading to IP test failure after thermal cycling
LVD test report written for 24 V sample, while SKU shipped is 12 V (different current paths)

Result for importer: container detention, € 25,000 re-labelling cost, 8-week project delay.

Beauty (STC) Manufacturing Co., Ltd – Industrial Foundation Since 1998

Established 1998 in Jiangmen’s National High-Tech Zone, Beauty STC Lighting built its first UL 1598 wet-location line in 2004 and has run continuous ETL & TUV CE factory audits every year since. Current capability snapshot:

Parameter	Beauty STC Data	Industry Benchmark
In-house anechoic dark room (2 m sphere)	3 % photometric tolerance	Majority of mid-size OEMs outsource (5–7 %)
Surge test bay	1–10 kV combo wave IEC61000-4-5	Many 12 V suppliers test to 1 kV only
Salt-spray chamber	1,000 h NSS per ASTM B117	500 h typical
UL 1598 180-day adhesive tape adhesion	Pass	Often fails on powder-coated aluminium ≤ 60 µm

Core 12 V outdoor portfolio (all SKUs carry cETLus & CE LVD + EMC):
Flexible LED Strip, 4 mm–28 mm width, 2700–6500 K, up to 180 lm W⁻¹, IP67/IP68 wet-location rating, -40 °C to +60 °C, 6 mm pure-copper FPC for ≤ 0.8 V drop on 5 m runs
Mini Flood “Micro-Force” series, 3 W–30 W, 12 V ac/dc, CRI 70–90, 6 kV surge, 3G vibration, IK08, -40 °C start-up for Russia oil-field catwalks
In-grade “Well-UFO”, 6 W–24 W, 316 SS bezel, < 45 °C housing temperature at 25 °C ambient, tool-less driver cartridge replacement, cable exit via M20 double-seal gland
Low-bay “Strip-H”, 20 W–80 W, 12 V or 24 V, 150 lm W⁻¹, 0–10 V & DALI-2, TP(a) polycarbonate diffuser for food-processing canopy

OEM/ODM Engineering Workflow – From Concept to Container in 35 Days

1. Feasibility: optical & thermal simulation within 24 h; IES/LDT files supplied
2. Certification matrix: we pre-match driver IC, wire gauge, polymer grade to target market (ETL, CE, SAA, BIS, KC)
3. Tooling: in-house CNC & 600 t die-casting, < 15 days for aluminium extrusion dies
4. Pre-shipment audit: 100 % hi-pot 2.5 kV, 100 % photometry, batch surge 6 kV; full report shipped by email before container loading

Why Importers Pair with a 25-Year Factory Rather Than a “Trader-Brand”

Risk Category	25-Year Vertical Factory	Trader-Brand Supply Chain
Certificate continuity	ETL & TUV files renewed annually, same factory ID	Often switches sub-suppliers; file ID mismatch
Component traceability	LED bin code, IC lot, driver transformer varnish batch kept 10 years	Records kept < 2 years
Post-sale part supply	LED cartridge, gaskets, drivers stocked 7+ years	Discontinued after 2–3 seasons
Surge / THD support	6 kV, 10 % THD standard, test report on every PO	1 kV surge, 20 % THD, no per-lot proof

Next Step – Specification Package on Request

For lighting distributors, ESCOs and design-build contractors preparing 2024 outdoor tenders, Beauty STC Lighting releases a 12 V industrial lighting spec pack (IES files, STEP, UL data pages, BIS and SAA addenda).
Contact: [email protected] | +86-13902885704.

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards for Outdoor 12V LED Systems

Outdoor 12V LED lighting systems demand precise engineering to balance performance, durability, and regulatory compliance. As a manufacturer with over 25 years of experience (established 1998) and certified for North American and European markets, Beauty STC Lighting engineers these specifications to meet the rigorous demands of global infrastructure projects. Below we detail the technical benchmarks and quality controls that differentiate professional-grade solutions from commodity alternatives.

Lumen Efficacy and Energy Efficiency

Outdoor lighting systems require high lumen efficacy to minimize energy consumption while maintaining illumination levels. Beauty STC’s 12V LED products achieve 120–140 lumens per watt through optimized LED chip selection (e.g., Osram, Cree, or Samsung-bin-matched LEDs) and efficiency-focused driver design. This exceeds the industry average for generic products (typically 80–100 lm/W), resulting in 20–30% lower operational costs and reduced thermal stress during continuous operation.

Color Rendering Index (CRI) for Accurate Visual Clarity

Accurate color rendering is critical for outdoor applications where visual clarity impacts safety and aesthetics. Beauty STC maintains a minimum CRI (Ra) >90 across all products, verified through spectrometer testing per IEC 62717 standards. Generic alternatives often exhibit CRI values of 70–80, leading to distorted color perception in critical environments such as architectural facades, security lighting, or landscape accents.

IP Rating and Environmental Protection

Environmental resilience is non-negotiable for outdoor installations. Beauty STC’s 12V LED fixtures undergo independent testing to achieve IP67 certification (IEC 60529 standard), ensuring complete dust protection and submersion resistance up to 1 meter for 30 minutes. Generic products frequently advertise IP65 but lack consistent validation, resulting in premature failures in high-moisture or dusty conditions. All units undergo 24-hour salt spray testing and thermal cycling to simulate real-world extremes.

PCB Design and Thermal Management

The printed circuit board (PCB) is foundational to system longevity. Beauty STC utilizes 2-ounce copper PCBs with reinforced thermal traces, high-grade FR-4 substrate, and integrated thermal vias to dissipate heat. This design prevents trace degradation and thermal stress failures common in generic products that use 1-ounce copper with minimal thermal management, reducing lifespan by up to 40% in continuous operation. All PCBs are subjected to 100% automated optical inspection (AOI) and in-circuit testing (ICT).

Specification	Generic Market Quality	Beauty STC Certified Quality
Lumen Efficacy	80–100 lm/W	120–140 lm/W (validated per LM-79)
CRI (Ra)	70–80 (unverified binning)	>90 (spectrometer-tested per IEC 62717)
IP Rating	IP65 (variable, inconsistent testing)	IP67 (IEC 60529 certified, salt spray tested)
PCB Construction	1oz copper, standard traces	2oz copper, reinforced thermal traces
Thermal Management	Basic heatsinks, no thermal modeling	Advanced thermal simulation + airflow testing
Consistency Control	Batch-to-batch variations (no traceability)	ISO 9001:2015, full traceability from raw materials to finished goods

Quality Assurance Framework

Beauty STC Lighting maintains these specifications through a rigorous quality assurance framework rooted in 25+ years of manufacturing expertise and ETL/CE certifications for North American and European markets. Every production batch undergoes:
In-process testing: 100% electrical safety checks (dielectric withstand, insulation resistance) per IEC 60598.
Thermal validation: Thermal imaging during 1,000-hour accelerated life testing (ALTA).
OEM/ODM integration: Custom designs (e.g., voltage tolerance, beam angles, color temperatures) are validated against certified benchmarks without compromising compliance.

This commitment ensures consistent performance across 50+ global markets—from Australian coastal installations to Russian subzero environments—while meeting the exacting standards of architects, contractors, and project managers.

Beauty STC Lighting: Engineered for reliability. Certified for compliance. Built for the long term.
Contact: [email protected] | +86-13902885704
41st, Caihong Road, High-tech Industrial Zone, Jianghai District, Jiangmen City, Guangdong, China

---

Factory Tour: Manufacturing Excellence

Manufacturing Process & OEM Services – Jiangmen Headquarters

Beauty (STC) Manufacturing Co., Ltd. has operated a vertically-integrated, ISO-guided facility in Jiangmen’s High-tech Industrial Zone since 1998. The 12 V outdoor portfolio is engineered, assembled and fully aged on site, giving distributors and specifiers a single-point supply chain that is already pre-approved for North-American ETL and European TUV-CE markets.

1. Production Line Architecture

Zone	Key Equipment	Process Control	Output/Day*
SMT	JUKI 2080 & Yamaha YS24 pick-and-place, 8-zone Heller reflow	100 % SPI + AOI inline	1.2 M components
Conformal Coating	PVA selective-coat + UV tunnel	IP65/67 salt-fog validated	4 000 pcs strip
Soldering & Assembly	RoHS selective solder, automatic wire stripper, IP68 glue line	ESD-controlled floor, MES traceability	3 000 pcs flood
Aging	4-chamber 0-60 °C cycling, 2 h @ 12 VDC, 1 h @ 14 VDC surge	Data-logged to serial #	100 % lot
QC & Packaging	Integrating sphere (2 m), Hi-Pot, surge 1 kV, IPX7 tank	AQL 0.25 / ANSI Z1.4	Custom carton/ pallet

*Outdoor 12 V models (strip & flood) based on 8 h shift, 26 days/month.

2. Critical-to-Quality Protocols

ETL & TUV-CE Witness Testing: UL 1598 / UL 8750 and EN 60598-2-4 reports on file; samples from every third production lot are re-submitted for witness to maintain file validity.
Thermal Management: 2 oz double-layer PCB minimum; 12 V strips achieve ≤ 55 °C @ 25 °C ambient, 14 W/m, guaranteeing > 54 000 h L70 in IP67 silicone sleeve.
Salt-Spray & UV: 500 h ASTM B117 and 1 000 h Q-UVB certified for outdoor PU glue and ADC12 flood-light housings—standard, no MOO surcharge.
24 h Burn-In: Each 12 V unit is cycled at 0-100 % load; data automatically written to QR code on inner label for contractor traceability.

3. OEM / ODM Flexibility

Customisation Lever	Standard Range	OEM Option	Lead-Time
Length / Pixel Pitch	5 cm cutting increment (12 V)	Continuous 50 m reel, 2.5 cm cut	+3 days
CCT & SDCM	2 200 K – 6 500 K, 3- & 5-step MacAdam	BBL binning, 2-step, TM-30 Rf>95	+5 days
CRI	80 → 90 typical	95 CRI, 97 CRI horticultural	+1 week
PCB Colour	White, black	Custom logo silkscreen, copper weight 3 oz	+2 days
Cable & Connector	20 cm 22 AWG, IP20	IP68 quick-lock, 3 m 18 AWG, tinned copper	Stock
Packaging	Neutral kraft box	Retail colour box, euro-slot, barcode	+3 days
Driver Integration	External 12 V	On-board Buck, 10-30 V input, surge 4 kV	+1 week

Engineering package includes Gerber, LM-79 report, ISTMT and TM-21 calculator—supplied free of charge to registered OEM accounts.

4. Project Reference Capacity

Minimum Order: 500 m per CCT for 12 V strip; 100 pcs for 10-50 W 12 V flood.
Sample Policy: 3-day ship from stock; custom engineering samples 7-10 days, cost credited against first PO.
Logistics: 40 km to Shenzhen & Guangzhou port; weekly FCL/LCL consolidation to US, EU, AU with pre-cleared ETL/CE documentation.

For technical drawings, IES files or to schedule a live line audit via Teams/WeChat, contact:
[email protected] | +86-13902885704

---

Installation & Application Scenarios

Strategic Application Scenarios for 12V Outdoor LED Lighting Systems

12V LED lighting systems deliver critical safety and installation advantages for outdoor applications where compliance, flexibility, and durability are essential. As a certified manufacturer with over 25 years of industrial experience since 1998, Beauty STC Lighting provides engineered solutions that meet ETL (USA/Canada) and TUV CE (Europe) standards for global markets. Our OEM/ODM capabilities ensure seamless integration with project-specific requirements across hospitality, commercial, and architectural contexts.

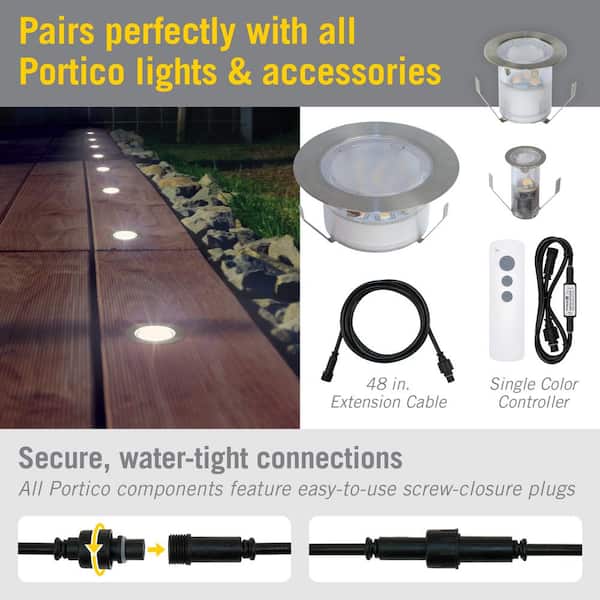

Landscape & Pathway Illumination

12V systems are ideal for garden pathways, pool decks, and residential landscaping due to enhanced safety in wet environments and simplified installation. Lower voltage reduces electrical hazards, eliminates conduit requirements, and allows flexible mounting without structural modifications. Our wet-location LED strips provide consistent illumination with minimal maintenance, making them suitable for high-moisture zones where traditional line-voltage systems pose risks.

Specification	Detail
Product Type	Wet Location LED Strip Light
Voltage	12V DC
IP Rating	IP67
Wattage	5W/m
Lumen Output	150–200 lm/m
Color Temperature	2700K–6500K (adjustable)
Certifications	ETL, TUV CE
Material	Silicone-encased PCB, UV-resistant
OEM Support	Custom lengths, connectors, color options

Architectural Facade Accentuation

12V LED strips provide precise, low-heat illumination for building outlines, cornices, and heritage structures. The low voltage operation ensures compatibility with sensitive materials while maintaining high CRI for accurate color rendering. This is critical for historic renovations or contemporary designs where thermal management and visual fidelity are non-negotiable.

Specification	Detail
Product Type	Architectural LED Strip Light
Voltage	12V DC
IP Rating	IP65
Wattage	4–8W/m
CRI	>90
Certifications	ETL, TUV CE
Material	Aluminum channel housing, tempered glass
OEM Support	Custom profiles, diffusers, dimming protocols

Hospitality & Resort Environments

Poolside, patio, and garden areas in resorts require lighting that meets strict safety standards while enhancing ambiance. 12V systems eliminate shock risks in wet zones and enable seamless integration with smart controls. Marine-grade components ensure longevity in saltwater or chlorinated environments, reducing lifecycle costs for high-traffic hospitality assets.

Specification	Detail
Product Type	Pool-Grade LED Strip Light
Voltage	12V DC
IP Rating	IP68
Wattage	6W/m
Lumen Output	180 lm/m
Certifications	ETL, TUV CE
Material	Marine-grade silicone, stainless steel connectors
OEM Support	Custom color temperatures, integrated sensors

Commercial Exterior Safety Zones

Parking lots, loading docks, and pedestrian walkways demand durable, high-visibility lighting. 12V solutions provide reliable illumination with reduced maintenance costs and compliance with OSHA safety regulations. Our die-cast aluminum floodlights deliver consistent lumen output in extreme weather, critical for industrial sites requiring 24/7 operational safety.

Specification	Detail
Product Type	Commercial Floodlight (12V)
Voltage	12V DC
IP Rating	IP66
Wattage	30W
Lumen Output	3000 lm
Certifications	ETL, TUV CE
Material	Die-cast aluminum, polycarbonate lens
OEM Support	Custom beam angles, mounting brackets

Critical Installation Best Practices for Contractors

Best Practice	Technical Requirement
Voltage Drop Management	Calculate using VD = (2 × L × I × R) / 1000. Maintain ≤3% drop with 12AWG wire for runs >15m.
Waterproofing Protocols	All connections must use IP68-rated junction boxes and silicone-sealed connectors. Avoid exposed splice points.
Transformer Sizing	Size transformers to handle 120% of total system load to prevent overheating under peak conditions.
Compliance Verification	Adhere to NEC Article 411 (North America) or IEC 60598 (Europe) for low-voltage outdoor installations.
Mounting Integrity	Secure fixtures with stainless steel hardware in corrosive environments. Ensure 50mm clearance for heat dissipation.

For engineering support and project-specific OEM solutions, contact our technical team at [email protected] or +86-13902885704. All products are manufactured at our Jiangmen facility under ISO 9001 quality protocols, with rigorous testing for thermal stability, UV resistance, and electrical safety per international standards.

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting – Factory-Direct Supply for Outdoor 12 V LED Systems

Established	1998
Production Area	12 000 m², Jianghai High-tech Zone, Jiangmen, CN
Export Footprint	50+ countries (EU, NA, AU, JP, KR, RU, SEA)
Western Certifications	ETL/cETL (US/CA), TUV CE, RoHS, REACH, SAA
Core 12 V Portfolio	Flexible strip, flood, well, bollard, path & deck luminaires

---

Why Global Contractors Specify Beauty STC

1. 25-Year Reliability Record
   Continuous operation since 1998 → same legal entity, same ISO-9001 line, zero major recall.

2. ETL & CE Test Reports on File
   We provide the full CB scheme test pack on request—no hidden “family” certification gaps.

3. OEM/ODM in 4–6 Weeks
   Mechanical tooling, PCBA re-layout, custom CCT/CRI, branded packaging—all under one roof.

4. 12 V DC Platform Ready
   | Input Range | 10–15 V DC |
   |————-|————|
   | Surge | 1 kV (2 kV optional) |
   | Efficacy | up to 135 lm/W @ 3000 K |
   | IP Grade | IP65–IP68, IK08 |
   | Operating Temp | –40 °C to +55 °C |

5. Dock-to-Dock Logistics
   Jiangmen port 45 min; weekly FCL/LCL consolidation to LA, Rotterdam, Sydney, Yokohama.

---

Next Step – Technical Pack & Quote

Send your luminaire schedule or bill of material to:
[email protected]
Mob/WhatsApp: +86-139 0288 5704

Typical response:
Specification cross-check within 12 h
Formal quotation with EXW/FOB/CIF tiers within 24 h
Compliance dossier (LM-79, ISTMT, TM-21, SDS) attached

Let our 25-year factory backbone shorten your specification cycle and de-risk your next outdoor 12 V LED rollout.

---
