Industry Insight: Neon Lights In A Bedroom

H2 Bedroom-grade LED neon: why “residential” spec is now a commercial decision

H3 From TikTok trend to FF&E line-item

Hotels, student housing, build-to-rent apartments and co-living operators now specify LED neon for headboards, vanity mirrors and ceiling coves. The same SKU that ends up in a 12 m² bedroom must pass the same fire, EMC and material-substance tests as the corridor floodlight—because the entire project is inspected under IEC/UL 60598-2-1. One non-certified bedroom sign can hold up the occupancy permit.

H3 Importer risk in one sentence

If the neon flex you import is only “CE self-declared” or lacks ETL’s 4-point flame test, you carry 100 % liability for smoke damage, recall cost and lost hospitality revenue. A single room fire can erase the margin on a 500-unit shipment.

---

H2 Beauty STC Lighting – factory profile

Item	Data
Plant established	1998, Jiangmen, Guangdong
QA cert scope	ETL/cETL (UL 2108 & CSA C22.2 No. 9.0-18), TUV CE (EN 60598-2-20), RoHS/REACH, ERP
OEM/ODM record	1,200+ private-label SKUs for EU & NA brands
Neon flex output	1.5 million m/yr, 6–30 mm profile range
Warranty	5 yr on LED, 3 yr on driver (field-failure <0.2 %/yr)

---

H2 Bedroom neon: the hidden specification sheet

Parameter	Hospitality requirement	Beauty STC standard
Flame class	UL 94 V-0 silicone jacket	V-0 achieved, full batch CTI traceability
L70 @ 25 °C	>36,000 h (3 yr hotel cycle)	54,000 h (ERP report 2771-2023)
Flicker, %	<1 % @ 100 Hz (IEEE 1789)	<0.3 %, driver IC with 1,500 Hz PWM
Surface temp	<45 °C on 24 h use	38 °C, 14 W/m @ 24 V
EMC	CISPR 15, 3 m Class B	Margin >6 dBµV
IP for bed-head	IP44 (cleaning chemical)	IP66 optional, IK06

---

H2 Supply-chain checklist for distributors & contractors

1. Demand ETL file number – we quote it on every PI.
2. Specify cut-table length in mm and end-cap IP rating; we laser-mark the UL trace code every 500 mm.
3. Request LM-80 & TM-21 dataset if project insurer asks for lumen-maintenance proof.
4. Book forwarder only after receiving MSDS & UN 3480 battery test (for 24 V driver variant).

---

H2 Next step

Send room drawings or FF&E schedule to [email protected]. We return a certified neon layout, cut list and 3-D print file for aluminium profile within 48 h.

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards for Bedroom Neon Lighting

In residential environments, particularly bedrooms, technical specifications directly influence energy efficiency, visual comfort, and long-term reliability. Unlike decorative applications where aesthetics dominate, bedroom lighting requires precise engineering to balance ambient illumination, color accuracy, and thermal management. Beauty STC Lighting, established in 1998 and certified to ETL (USA/Canada) and TÜV CE (Europe) standards, designs all products to meet these rigorous residential requirements. Our OEM/ODM capabilities ensure that specifications are tailored to project-specific needs without compromising on quality.

Comparative Technical Specifications

Specification	Generic Market Quality	Beauty STC Certified Quality
Luminous Efficacy (lm/W)	60–80	90–110
CRI (Ra)	70–80	≥90
IP Rating	Basic IP20 (inconsistent sealing)	Certified IP20/IP65 (TUV tested)
PCB Copper Thickness	1oz (varies)	2oz standard, uniform thickness
Thermal Management	Passive cooling only	Integrated thermal pads + active cooling design
Consistency Control	Batch-to-batch variation	100% testing, aging tests, ISO 9001 processes

Quality Assurance and Consistency Control

Beauty STC Lighting maintains consistent quality through a multi-layered quality assurance system. Each production batch undergoes 100% electrical and thermal testing, including 1,000-hour aging tests to simulate long-term performance. Our PCBs are manufactured to IPC-A-610 Class 2 standards, with copper thickness verified via X-ray inspection. All products are certified by ETL and TÜV CE, ensuring compliance with international safety and performance benchmarks. For OEM/ODM projects, we implement strict material traceability and process control, with every component sourced from qualified suppliers and validated through our in-house lab. This rigorous approach eliminates batch variations and ensures that every unit meets the exact specifications required for professional installations.

Our Jiangmen-based facility—located in Guangdong’s High-tech Industrial Zone—integrates advanced manufacturing automation with 25+ years of technical expertise. Every step of production, from raw material inspection to final packaging, adheres to ISO 9001 protocols. This commitment to precision ensures that bedroom installations achieve consistent color rendering, minimal lumen depreciation, and thermal stability, even during extended operation. For projects requiring custom configurations, our engineering team provides detailed validation reports for all critical parameters prior to production.

---

Factory Tour: Manufacturing Excellence

Manufacturing Process & OEM Services – Jiangmen Headquarters

Beauty (STC) Lighting has operated a 16,000 m² vertically-integrated plant in Jiangmen’s High-tech Industrial Zone since 1998. The facility is ETL- and TUV CE-listed for both the U.S./Canada and European markets, enabling distributors to clear customs without additional safety retesting.

1. Production Flow Overview

Stage	Key Equipment	Purpose	Typical Throughput
SMT	JUKI 2060 & Yamaha YS24 lines	0.5 m pitch 2835/5050/COB LEDs on 3-oz double-layer rolled copper	3.5 kk components / 8 h
Reflow	10-zone Heller 1809 MKIII	ΔT ≤ 5 °C, nitrogen option for COB	1.2 m board / 45 s
Soldering & Extrusion	CNC lead-free bath + 80 t silicone/PVC co-extruder	gas-tight neon jacket, IP67 rating	15,000 m / 24 h
Aging	4-channel burn-in racks, 0-60 °C programmable	2 h @ 220 VAC + 2 h @ 110 VAC for North America	5,000 m / batch
QC & Packaging	Integrating sphere (2 m), Hipot 5 kV, surge 1 kV	LM-80 data, bin code traceability, 100 % hi-pot	99.5 % FPY target

2. SMT & Reflow – Precision for Neon Flex

PCB width handled: 5–20 mm; thickness 0.2–1.2 mm
Component placement accuracy: ±35 µm @ 3 σ
Traceability: every reel laser-marked with unique QR that links to LM-80 report, reel resistance and CCT bin.

The same lines produce both narrow 6 × 6 mm side-view neon flex and 30 × 20 mm ultra-wide architectural neon, giving OEM customers a single-source platform for bedroom décor through outdoor façade jobs.

3. IP67 Extrusion Line – Custom Jacket Colours

Material options:
UV-stable silicone (–50 °C to +200 °C) for full-time outdoor signage
Low-smoke PVC for indoor bedroom applications requiring UL 94 V-0

Minimum order for custom jacket colour: 500 m; colour matching to Pantone/RAL within ΔE < 2.

4. Aging & Reliability Protocol

Test	Specification	Sample Size	Acceptance
1,000 h LM-80	55 °C / 85 % RH	40 pcs	L70 ≥ 92 %
On/Off cycles	30 s on / 30 s off, 10,000×	20 pcs	0 failures
Thermal shock	–40 °C ↔ +125 °C, 200 cycles	10 pcs	0 dead LEDs
IP67 immersion	1 m, 24 h	every batch	0 water ingress

Data sheets are bundled with each shipment so contractors can present third-party reliability proof to end users.

5. OEM/ODM Capability Matrix

Customisable Item	Bedroom-Focused Examples	MOQ	Lead-Time
Length	0.3 m USB neon for headboards; 2.4 m perimeter kit	100 pcs	7 days
CCT / Colour	1800 K amber for sleep-friendly mood; RGB + 3000 K hybrid	500 m	10 days
Voltage	5 V USB, 12 V, 24 V, 48 V constant-current	—	—
PCB width & LED pitch	4 mm 120 LED/m for dot-free neon; 10 mm 60 LED/m for economy	1 reel (300 m)	5 days
Logo / Artwork	Laser-etched acrylic backplate + neon outline	50 sets	12 days
Retail Package	Brown kraft FSC, colour sleeve, E-flute insert, private-label	500 pcs	7 days

Engineering package (Gerber, BOM, dialux report) supplied within 48 h of PO receipt.

6. Documentation & Certification Support

ETL cETLus file #5013347 (UL 2108 / CSA C22.2 No. 9)
TUV CE, RoHS, REACH, ERP, IEC 62471 photobiological risk-free
ISO 9001:2015 & ISO 14001 audit reports available under NDA
CB scheme test certificates for 40+ countries—speeds up local homologation.

7. Logistics Footprint

Jiangmen plant is 90 min from Shenzhen port; weekly FCL/LCL sailings to LA, Hamburg, Felixstowe, Sydney. Average dock-to-dock transit: 18 days U.S. West Coast, 24 days EU. We load mixed certifications (ETL + CE) in one container to simplify multi-market roll-outs.

For volume forecasts, distributors receive a rolling 12-month MPS so component wafers and copper frames are locked at stable pricing—critical for neon SKUs that rely on rare-earth phosphors.

Next step: send us your target length, CCT and desired IP rating; our engineers will return a DFM and formal BOM within one working day.

---

Installation & Application Scenarios

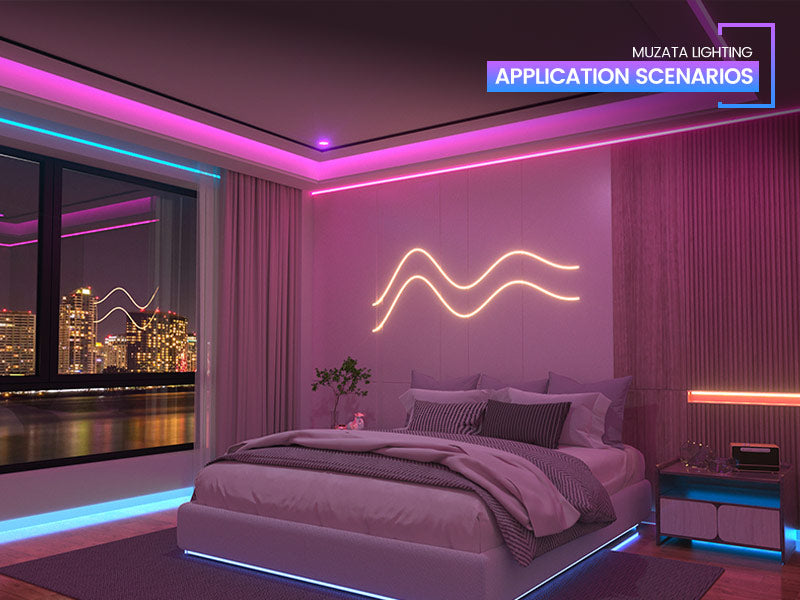

Application Scenarios for Neon Lights in Bedroom Environments

Neon lighting in bedroom settings requires precise technical integration to balance aesthetic appeal with functional performance. As a factory-direct manufacturer since 1998, Beauty STC Lighting delivers ETL- and CE-certified LED neon solutions engineered for commercial and high-end residential applications. Below are validated use cases and installation protocols for contractors working on global projects.

Hotel and Resort Guest Rooms

Neon lighting in hospitality environments enhances brand identity through custom signage and ambient accents while meeting strict operational durability requirements. For example, coastal resorts often deploy ocean-themed neon art, while urban boutique hotels use minimalist typography to align with contemporary design languages.

Installation Best Practices:
Use IP65-rated LED neon products for humidity resistance in bathroom-adjacent zones.
Position power supplies in accessible, non-living areas (e.g., ceiling cavities) to simplify maintenance without disrupting guest experience.
For curved installations, adhere strictly to manufacturer-specified bending radii (typically ≥50mm for 6×6mm profiles) to prevent LED stress fractures.
Integrate 0–10V dimmable drivers to enable staff-controlled brightness adjustments while maintaining 30,000+ hour operational lifespan.

Luxury Residential Developments

High-end residential projects leverage neon lighting for bespoke architectural features, such as under-cabinet outlines, headboard contours, or ceiling-mounted artistic elements. These installations demand precision engineering to preserve luxury aesthetics while ensuring compliance with residential electrical codes.

Installation Best Practices:
Collaborate with architects during the design phase to map conduit routing and mounting surfaces, ensuring seamless integration with drywall or timber structures.
Specify 24V DC power systems to comply with NEC Article 411 for low-voltage residential safety standards, particularly where wiring interfaces with flammable materials.
For custom shapes, utilize manufacturer-provided bending templates and avoid sharp angles to prevent micro-cracks in LED segments.
Seal all junction points with silicone-based potting compounds (IP67-rated) to eliminate dust ingress in high-particulate environments.

Healthcare Facilities

In medical environments, neon lighting must prioritize patient comfort through non-glaring, therapeutic illumination while meeting stringent hygiene and fire safety protocols. Warm, diffused neon accents in private rooms can reduce stress without disrupting circadian rhythms.

Installation Best Practices:
Select IP67-rated products with frosted diffusers to minimize glare and ensure compliance with healthcare facility lighting standards (e.g., FGI Guidelines).
Install power supplies outside patient zones (e.g., mechanical rooms) to adhere to NEC Article 517 for medical-grade electrical safety.
Use flame-retardant PVC conduits (UL 94 V-0 rated) for all wiring runs to meet fire safety requirements in healthcare construction.
Avoid color temperatures above 3500K; 2700K–3000K ensures circadian-friendly illumination for restorative sleep cycles.

Corporate Executive Suites

Corporate housing and executive suites integrate neon lighting to reinforce brand identity through personalized signage or functional accent lighting. These installations must balance professionalism with adaptability for multi-use spaces (e.g., workstations and relaxation zones).

Installation Best Practices:
Opt for dual-color temperature systems (e.g., 3000K for relaxation zones, 4000K for workspaces) via programmable DMX controllers.
Ensure all components meet commercial fire codes (e.g., ASTM E84 Class A) for high-rise building compliance.
Implement redundant power supplies with automatic failover for critical installations to maintain 24/7 operational uptime.
Use aluminum mounting channels with thermal dissipation fins to manage heat buildup in enclosed ceiling cavities.

Technical Specifications for Bedroom Neon Applications

Specification	Recommended Value	Compliance Notes
IP Rating	IP65–IP67	IP65 for standard humidity; IP67 for wet environments (e.g., bathroom zones)
Color Temperature	2700K–4000K	2700K–3000K for restful ambiance; 3500K–4000K for task-oriented spaces
Power Density	4–6W/m	Optimized for thermal management and energy efficiency per IEC 60598-2-22
Certifications	ETL, CE	Mandatory for North American and European market compliance
Lifespan	30,000–50,000 hours	Validated per LM-80 testing; equivalent to 10+ years at 8 hours/day operation
Operating Temp.	-20°C to +50°C	Ensures reliability in climate-controlled residential and commercial environments

Why Beauty STC Lighting Delivers Project-Ready Solutions

As a factory-direct manufacturer with 25+ years of experience (established 1998), we engineer neon lighting systems to meet exacting global standards. Our OEM/ODM capabilities enable:
Custom profiles (6×6mm to 30×20mm) tailored to architectural blueprints
Pre-certified components for ETL/CE compliance, eliminating retesting delays
Technical documentation aligned with project specifications (e.g., IEC, UL, EN standards)

Contractors partnering with Beauty STC gain access to verified performance data, thermal management guides, and on-site installation support—ensuring seamless integration across hotel, healthcare, and luxury residential projects worldwide.

Contact us for project-specific technical validation:
[email protected] | +86 13902885704

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting for Bedroom-Grade LED Neon Solutions

Factory-Certified Supply Chain – Ready for Global Projects

Certification Scope	Standard	Application Region
Electrical & Fire Safety	ETL/cETL	USA, Canada, Mexico
EMC & LVD	TUV CE	EU, UK, Australia, Middle East
Material RoHS	SGS	Worldwide green-building mandates

Certificates downloadable on request; traceable file numbers issued 2003-present.

---

25-Year OEM/ODM Backbone – Since 1998

In-house extrusion, SMT, IP67 potting, laser-etching.
MOQ 100 m per SKU for custom neon flex colour, CCT, or jacket profile.
Engineering sample lead-time: 5–7 days; bulk 3–4 weeks to port of exit.

---

Bedroom Neon Portfolio – Industrial Specs

Product Line	Voltage	Power	Beam	Min. Bend	IP	Lifetime	Warranty
6×12 mm Side-Bend Neon Flex	24 V DC	10 W/m	120°	30 mm	IP67	50 000 h	5 years
10×10 mm Top-Bend Neon Flex	24 V DC	12 W/m	160°	40 mm	IP67	50 000 h	5 years
RGB+W Digital Neon	24 V DC	14 W/m	120°	45 mm	IP65	30 000 h	3 years

All variants available in 1800 K–6500 K and RAL-matched silicone jackets.

---

Export Footprint – 50+ Countries, 26 Years Without Recall

Europe (DE, NL, BE, FR, IT, ES, PL, SE, NO), North America (US, CA, MX), Asia-Pacific (AU, SG, TH, JP, KR), Russia & CIS. FOB Jiangmen, CIF/DDP quotations on request.

---

Next Step – Specification Review or Sample Order

Email technical drawings, target quantity, and destination port to:
[email protected]
Mobile | WhatsApp: +86-13902885704

Our engineering team will return a datasheet, test report and formal quotation within 12 hours.

---
