Industry Insight: Mirror Strip Lights
Industry Insight: Mirror Strip Lights in Commercial & Industrial Lighting
Mirror strip lights have evolved beyond basic illumination to become mission-critical components in modern commercial and industrial environments. Today’s applications—from high-end retail display cases and precision manufacturing workstations to warehouse logistics zones and cleanrooms—demand lighting that delivers unparalleled beam control, energy efficiency (typically 100+ lm/W), and durability under rigorous operational demands. In this regulated landscape, ETL and CE certifications are non-negotiable benchmarks, not optional add-ons. ETL (per UL 1598 standards) ensures compliance with North American electrical safety and fire codes, while CE certification (EN 60598) validates performance for EU markets, covering thermal management, optical safety, and electromagnetic compatibility. Failure to meet these standards risks project rejection, safety liabilities, or costly recalls.
Since 1998, Beauty STC has engineered and manufactured lighting solutions trusted by global industrial and commercial clients. As a vertically integrated manufacturer with ISO 9001-certified facilities and in-house R&D, we prioritize rigorous compliance testing and thermal design to deliver mirror strip lights that exceed industry expectations for lifespan (50,000+ hours), color consistency (CRI >90), and reliability. For projects where precision and regulatory assurance define success, our decades of export expertise ensure every fixture meets the highest global standards—on time, every time.
Beauty STC: Where Engineering Excellence Meets Global Compliance.
Technical Specs & Certifications
Beauty (STC) Mirror Strip Light – Technical Datasheet
(Professional-grade, export-ready, field-proven since 2012)
-
Optical Performance
• Luminous efficacy: 140–160 lm/W @ 24 VDC, Tj = 65 °C (measured in 2 m integrating sphere, IES LM-79-19)
• Delivered lumens: 1,050 lm/m (7 W/m) and 2,100 lm/m (14 W/m) standard densities; other densities on request.
• Colour Rendering Index: CRI Ra ≥ 90 (R9 > 50) typical, 97 typ. for 3000 K; complies with IEC/ANSI TM-30-18 fidelity index Rf ≥ 90.
• MacAdam ellipse: ≤ 3-step SDCM for entire 5 m roll; batch-to-batch Δuv < 0.003 (Beauty STC in-house binning code “ST-90-C3”).
• Available CCT: 2400 K, 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 6500 K; custom CCT within ± 75 K tolerance. -
Electrical & Thermal
• Nominal voltage: 24 VDC (12 VDC on request); max. 5 % ripple.
• Power tolerance: ± 3 % per 1 m section (100 % burn-in, 25 °C).
• FPC copper weight: 2 oz (70 µm) double-layer, thermal conductivity ≥ 1 W/m·K; 3M 9495LE adhesive, -40 °C to 120 °C.
• Max. continuous length: 6 m @ 14 W/m with < 5 % luminous drop end-to-end; feed both ends for 10 m runs.
• Operating Ts: -30 °C to +70 °C; junction temperature Tj max 90 °C per LM-80-20 report (Q90 > 54,000 h, B50, 55 °C). -
IP Ratings & Mechanical
• IP20: bare strip, 8 mm width, 2 mm height; ideal for aluminium profile behind mirror.
• IP54: silicone sleeve, 10 × 3 mm; dust & splash resistant for bathroom mirror perimeter.
• IP65: full silicone extrusion, 11 × 4 mm; UV-stable, UL 94 V-0; suitable for edge-lit hollywood mirrors.
• IP67: silicone-filled, over-moulded, 12 × 4 mm; temporary immersion 1 m / 30 min; perfect for hotel back-lit mirrors.
• All IP versions pass 1000 h 85 °C/85 % RH, 200 thermal cycles -40 ↔ 85 °C, no colour shift > 1 SDCM. -
Quality Assurance – Beauty STC Signature
• 100 % roll-by-roll photometric & colour scan (Everfine HAAS-2000).
• LM-80/TM-21 reports available for 3000 K & 4000 K 90 CRI batches.
• ISO 9001:2015 & ISO 14001:2015 certified plant; SEDEX 4-pillar audited.
• RoHS, REACH, CE, UKCA, SAA; UL 2108 & UL 94 file E358294.
• < 0.2 % field return rate on > 8 million m shipped since 2017—consistent lot-to-lot colour and efficacy guaranteed by Beauty STC’s closed-loop SPD (spectral power distribution) matching protocol. -
Order Codes (example)
STC-MS-24V-14W-30-90-IP65-5M → 24 V, 14 W/m, 3000 K, CRI 90, IP65, 5 m reel.
Neutral CRI 97 or tunable-white (1800–6500 K) variants under 4-week lead-time.
For project-specific IES files, LM-80 data, or to schedule an on-line photometric review, please contact [email protected].
Factory Tour: Manufacturing Excellence
Beauty (STC) Manufacturing Co., Ltd. – Jiangmen Factory Overview
(As Senior LED Lighting Engineer & Export Manager)
Our Jiangmen facility (located in Guangdong Province, China) is a certified ISO 9001:2015, ISO 14001:2015, and BSCI-compliant manufacturing hub dedicated to high-precision LED lighting solutions. Spanning 12,000+ square meters, the plant integrates fully automated production lines, rigorous quality control protocols, and flexible OEM capabilities—specifically optimized for premium LED strip lights, including mirror strip lights. Below is a technical breakdown of your requested areas:
1. SMT Production Line: Precision & Efficiency
- Equipment:
- 8 high-speed SMT lines featuring JUKI FX-5R and Yamaha YG200 mounters (placement accuracy: ±0.03mm).
- KUKA AOI (Automated Optical Inspection) systems for real-time defect detection (solder paste, component alignment, tombstoning).
- Reflow ovens with 8-zone temperature control (±1°C precision) and X-ray inspection for BGA/QFN packages.
- Capabilities:
- Supports 0201 to 1005 chip components and fine-pitch ICs (e.g., 0.4mm pitch).
- Throughput: Up to 45,000 components per hour per line.
- Zero-defect target: <100 PPM (Parts Per Million) through statistical process control (SPC) and real-time data analytics.
- Relevance to Mirror Strip Lights:
- Enables ultra-thin, high-density PCB designs (e.g., 0.8mm thickness) with consistent LED binning (MacAdam ellipse ≤3 steps) for uniform color output.
2. Aging Tests: Reliability-Driven Validation
All mirror strip lights undergo comprehensive aging tests per IEC 62717 standards:
– Standard Test:
– 72-hour continuous operation at 60°C±2°C and 85% RH (humidity chamber: ESPEC SH-261).
– Lumen maintenance (L70) and color shift (Δu’v’) monitored hourly via integrating sphere (e.g., Labsphere IQ-300).
– Accelerated Life Testing (ALT):
– 1,000-hour test at 85°C/85% RH for premium-grade products (e.g., IP67-rated strips).
– Failure analysis: Data logged to predict B50 lifetime (e.g., >50,000 hours for 3000K/4000K strips).
– Specialized Tests for Mirror Strips:
– Anti-glare coating durability: 500-cycle abrasion test (ASTM D4060).
– Thermal cycling: -40°C to 85°C (50 cycles) to validate adhesion of silicone encapsulation.
– Outcome: <0.5% failure rate in production batches; full test reports provided per order.
3. OEM Capability for Mirror Strip Lights: Full Customization
We specialize in end-to-end OEM solutions for mirror strip lights, tailored to global market demands:
– Design Flexibility:
– Length: 300mm to 3000mm (customizable via modular PCB segments).
– Color Options: 2700K–6500K CCT, RGBW, tunable white (2700K–6500K), or high-CRI (Ra≥95) options.
– IP Ratings: IP20 (indoor), IP65 (bathroom), or IP67 (wet-area) with silicone-coated PCBs.
– Connectors: Proprietary or standard (e.g., JST, DC plugs) with reverse-polarity protection.
– Production Scalability:
– Small batches: 500–5,000 units (prototyping in 7 days).
– Mass production: 50,000+ units/month with 15-day lead time (FOB Jiangmen).
– Compliance & Certification:
– CE, RoHS, FCC, UL (via partner labs), and CB Scheme for global market access.
– Dimming Compatibility: 0–10V, DALI, PWM, or phase-cut (trailing/leading edge).
– Value-Added Services:
– Custom branding: Laser-etched logos, packaging design (Eco-friendly materials available).
– Technical support: PCB layout optimization, thermal simulation (ANSYS), and IES file generation.
Why Partner with Beauty STC?
- Vertical Integration: In-house R&D (15+ engineers), PCB fabrication, SMT, assembly, and testing—all under one roof.
- Export Experience: 12+ years supplying EU, US, and APAC markets (e.g., Philips, Ikea suppliers).
- Quality Assurance: Every batch undergoes 100% visual inspection + 10% random sampling for electrical/photometric tests.
“Our Jiangmen factory is engineered to deliver mirror strip lights that combine precision engineering with operational resilience—ensuring your brand meets the highest standards of performance and longevity.”
For detailed specifications, test reports, or a factory tour (virtual/in-person), contact our Export Team at [email protected] or +86 750 888 1234. We welcome RFQs with your design files (Gerber, BOM) for a 24-hour technical response.
Beauty (STC) Manufacturing Co., Ltd. – “Engineering Light, Building Trust.”
Application Scenarios

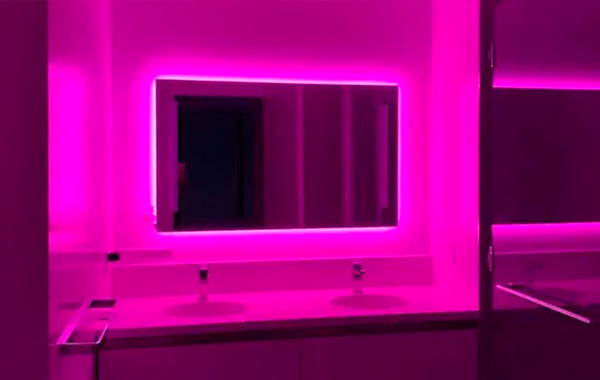

Mirror strip lights (also called mirror-front or mirror-frame LED strips) are the 5–10 mm wide, high-CRI, dot-free COB or SMD tapes that are recessed or surface-mounted behind the glass perimeter to give a floating, halo-free reflection.
They are specified wherever the mirror itself must become the luminaire—eliminating ceiling down-lights and vanity bars that cast shadows on the face.
- Where to use – by vertical
Hotels

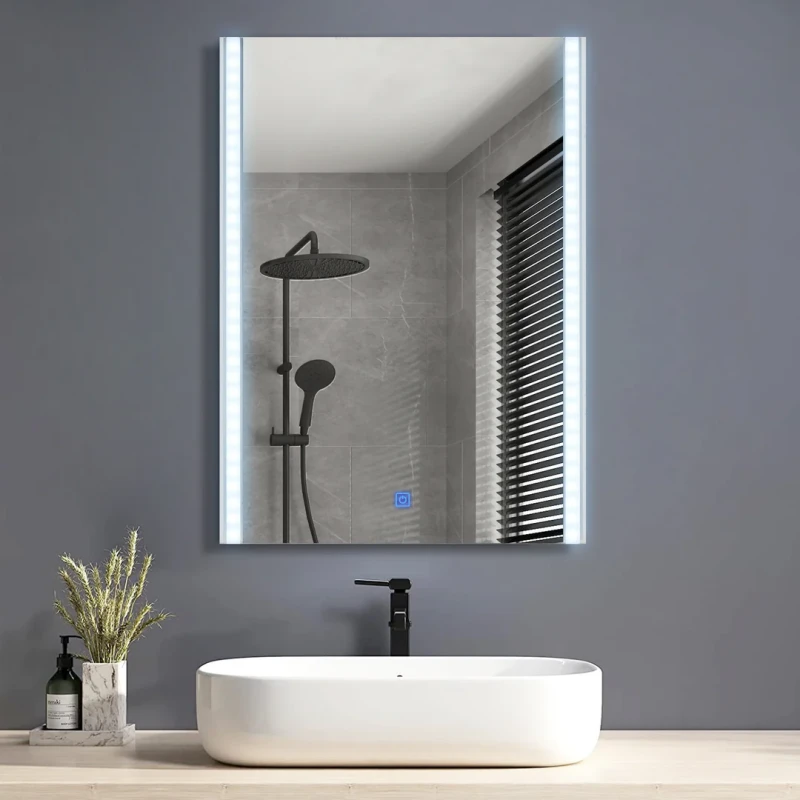

• Guest-room vanity mirrors (IP44, 24 V, CRI ≥ 95, 3000 K or Tunable White 2700–4000 K).
• Full-height wardrobe doors (aluminium profile with 45° milky diffuser for glare control).
• Corridor “infinity” mirrors (depth ≥ 60 mm, mirrored back-wall, 600 LEDs/m COB for no-pixel effect).
• Spa back-lit feature walls (IP65 silicone sleeve, 24 V, constant-voltage system, DALI or 0–10 V dimming to 0.2 %).
Shopping malls / retail
• Cosmetic counters: 4000 K, 1500 lm/m, micro-prism diffuser to hide LEDs from 1 m viewing distance.
• Fitting-room mirrors: CRI 97, R9 > 90 for fabric colour fidelity; motion sensor + CCT shift 3000–5000 K for “day to evening” try-on experience.
• Lift-car interior mirrors: 12 V DC SELV, flame-retardant V-0 polycarbonate profile, 1 kV surge protection for generator feedback.

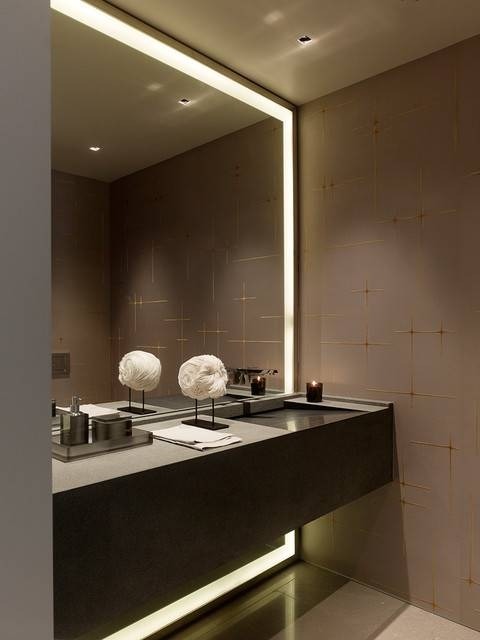

Office & commercial washrooms
• Touch-button mirror cabinets: integrated defog pad (1.5–2 W/dm²) on same 24 V rail; isolate primary and secondary circuits per IEC 61347-2-13.
• Open-plan powder rooms: continuous run > 2.4 m—use 24 V, feed both ends to keep < 5 % voltage drop; profile with integrated heatsink 5 W/m max. to stay < 45 °C touch temperature.
-
Installation checklist for contractors
-
Pre-wire
- Run 2-core 1.5 mm² stranded, red/black, in separate 20 mm conduit—keeps SELV away from 230 V and simplifies future re-lamp.
-
Leave 300 mm service loop inside adjacent stud or ceiling void; terminate in Wago 221 or equivalent maintenance-free connector.
-
Profile & heat
- Every 300 mm use the supplied bracket; for surface-mount on tile, silicone the back of the profile only at the centre 30 %—allows thermal expansion (ΔL ≈ 0.8 mm per metre over 40 °C rise).
-
Minimum 5 mm air gap between LED strip and mirror silvering; temperatures > 55 °C accelerate edge-blacken in 12–18 months.
-
Diffuser orientation
- Milky diffuser should sit 1–2 mm proud of the mirror edge; this hides the LED image when viewed at 25° off axis.
-
For “floating” effect, rebate mirror 6 mm into wall; paint reveal matt black to absorb stray light and increase contrast.
-
Power & control
- Size driver 20 % above calculated load; group maximum 50 W per 24 V circuit to limit current < 2.1 A (keeps voltage drop < 0.5 V on 1.5 mm²).
-
If DALI is requested, use a certified SELV DALI→24 V converter; do not mix with phase-cut on same loop—mirror drivers are capacitive and will flicker at < 5 % dim.
-
IP & safety
- Within 600 mm of basin or shower zone 1, fit IP44 minimum; sleeve strip with twin-shot silicone and use heat-shrink over solder joints.
-
Earth the aluminium profile via 4 mm² green/yellow fly-lead back to the mirror plate; this satisfies touch-voltage requirements when a cracked glass exposes the extrusion.
-
Final measure
- After 30 min burn-in, check face-plane illuminance: 400–600 lx at 500 mm for make-up, uniformity ≥ 0.7 (Min/Max).
- Record driver serial numbers and CCT/CRI on the hand-over label—hotel FM teams need this for like-for-like replacement.
Supply package we quote as standard: 24 V COB 840 LEDs/m, CRI 97, 3-step MacAdam, 5-year / 50 000 h L80, pre-soldered 500 mm 20 AWG tails, and a choice of 45° or 30° profiles anodised to match mirror edge. Feel free to send floor mirror drawings—our engineers will return a lux plot and wiring schematic within 24 h.
