Introduction: The Critical Role of Certified LED Solutions in Commercial Lighting

In commercial and industrial lighting applications, the term lysdioder—commonly used in Scandinavian markets to describe LED diodes—refers to the foundational technology enabling energy-efficient illumination. However, the true value of LED systems lies not in individual diodes but in the complete, certified fixtures that integrate reliability, safety, and performance. For global distributors, contractors, and project managers, compliance with regional standards is non-negotiable. Non-compliant products risk customs delays, regulatory penalties, and costly project rework. This section examines why quality certification is critical for commercial lighting procurement and how Beauty STC Manufacturing Co., Ltd. addresses these challenges through decades of engineering expertise.

Market Demand for Rigorous Quality Compliance

The global commercial lighting market has increasingly stringent regulatory requirements. European procurement guidelines (e.g., EU Public Procurement Directives) mandate verified metrics for lifetime, lumen efficacy, color rendering index (CRI), and electromagnetic compatibility (EMC). Similarly, North American standards such as UL 1598 and CSA C22.2 No. 250.0 require ETL certification for safety and performance validation. Key compliance priorities for importers include:
Lifetime Verification: Minimum 50,000 hours (L70) under IEC 62612 testing protocols.
Lumen Efficacy: ≥100 lm/W for general lighting applications (EN 62717).
Color Consistency: CRI >80 and chromaticity tolerance within MacAdam 3-step ellipse (ANSI C78.377).
Environmental Compliance: RoHS 2 and REACH adherence for EU market access.

Failure to meet these standards results in rejected shipments, liability exposure, and reputational damage. For example, a 2022 EU customs audit found 18% of non-CE-marked LED products were seized due to non-compliance with safety or EMC requirements. This underscores the necessity of working with manufacturers who embed compliance into their design and production processes from day one.

Beauty STC: 25+ Years of Engineering Excellence

Founded in 1998 and headquartered in Jiangmen’s High-Tech Industrial Zone, Guangdong, China, Beauty STC Manufacturing has delivered factory-direct LED solutions to 50+ countries worldwide. Our vertically integrated manufacturing process—spanning PCB design, SMT assembly, thermal management, and final testing—ensures consistent quality without third-party intermediaries. All products undergo 100% in-house compliance validation to meet global standards, eliminating the risks of inconsistent quality from fragmented supply chains.

Product Category	Key Specifications	Compliance Standards
Flexible LED Strip	2835 SMD; 0.2–0.6W per diode; 230 lm/W efficacy; IP20–IP67 ratings	ETL (UL 1598), CE (EN 60598, EN 62368)
LED Panel Lights	600x600mm; 40–120W; CRI >85; 140 lm/W efficacy; flicker-free operation	ETL (UL 1598), CE (EN 62471)
LED UFO High Bay	150W; 160 lm/W efficacy; IP65 rating; -40°C to +50°C operating range	ETL (UL 1598), CE (EN 60598, EN 62368)
T8/T5 LED Tubes	4ft; 18W; 140 lm/W efficacy; 50,000+ hour lifespan; ballast-compatible designs	ETL (UL 1598), CE (EN 62776)

Our OEM/ODM capabilities include full design-to-delivery support, from custom PCB layouts and thermal simulations to tailored packaging and branding. Technical documentation—including IEC test reports, RoHS declarations, and LM-80 lifetime data—is provided for all products to simplify regulatory submissions. With manufacturing facilities certified to ISO 9001 quality management standards and export experience across Europe, North America, and Asia-Pacific, Beauty STC ensures seamless integration of our solutions into your projects without compromise.

For technical specifications or project consultation, contact:
[email protected] | +86 139 0288 5704

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards for lysdioder LED

(Industrial-grade data for distributors, contractors, specifiers)

1. Key Photometric & Electrical Parameters

Parameter (typ. 24 VDC strip)	Beauty STC Certified Range	Notes – how we guarantee it
Luminous efficacy	220–240 lm/W @ 3000 K, 80 CRI	0.2 W 2835 SMD, bin-selected to 3 SDCM, LM-80 report available
CRI	Std ≥ 90 (Ra), optional ≥ 97 (R9>50)	Integrating-sphere batch test, 100 % lot traceability
Lumen maintenance	L90 > 54 000 h (Ta 45 °C)	Per TM-21-19, 6 000 h continuous in-house ageing
Power tolerance	±3 %	SMT line with closed-loop solder-joint AOI + burn-in 2 h @ full load
Flicker	<1 % @ 100 Hz	IEEE 1789-2015 compliant, driver datasheet on request
Ingress protection	IP20 – IP68	IP68 achieved with PU / silicone extrusion, validated with 14-day 1 m immersion

2. PCB & Mechanical Engineering

Copper weight: 2 oz (70 µm) minimum, ED copper purity ≥ 99.9 % → lowers ΔT by 5–7 °C versus 1 oz market average.
Thermal conductivity dielectric: 2 W/m·K on 0.2 mm aluminium-core strips; 1.5 W/m·K on double-layer FR-4 for 24 V neon-flex.
Dimensional stability: ≤ 0.05 % expansion after 288 °C solder-float 10 s (IPC-TM-650).
Colour-shift control: MacAdam 3-step ellipse for 2700–6500 K; every reel bar-coded to bin code for project consistency.

3. Certifications & Factory QA Flow

ETL/cETL to UL 1598 / UL 8750 (file No. 5039888) covers North-American 100–277 V fixtures.
TUV CB & CE to EN 60598-1, EN 62031, EN 55015, EN 61547 – EU/UKCA declaration valid until 2027.
RoHS 2.0, REACH 242, PFAS-free raw-material declaration available.
ISO 9001:2015 since 2005; 7-stage QA: IQC → SMT AOI → IPQC 100 % hi-pot 1.5 kV → 2 h burn-in → OQC photometry → package drop-test → shipping sample retention 12 months.

4. Side-by-Side Comparison

Attribute	Generic Market Quality (unbranded 2835)	Beauty STC Certified Quality
Efficacy @ 3000 K	170–190 lm/W	220–240 lm/W
CRI	80 (Ra); R9 unspecified	90–97 (Ra); R9 ≥ 50
L70 projection	25 000 h (Ta 45 °C)	54 000 h (L90)
PCB copper	1 oz (35 µm)	2 oz (70 µm)
SDCM tolerance	5–7 step	≤ 3 step
Ingress rating	IP20 only	IP20–IP68 options
Certifications	Self-declared CE	ETL/cETL + TUV CE + CB
Bin traceability	No	Full reel barcode
Warranty	2 years	5 years (extendable to 7)

5. Consistency Measures for OEM/ODM Customers

1. Single pick-and-place line for each CCT to avoid mixed reels.
2. Sphere-optic calibration against NIST-traceable standard daily.
3. Driver-to-LED matching – every constant-current source tested at min./max. load to guarantee < ±3 % current ripple.
4. Pre-shipment sample sent for customer sign-off; bulk production locked to approved golden sample.

For datasheets, IES files or project-specific LM-79 reports, contact:
[email protected] | +86-13902885704
Beauty (STC) Manufacturing Co., Ltd – factory-direct since 1998.

---

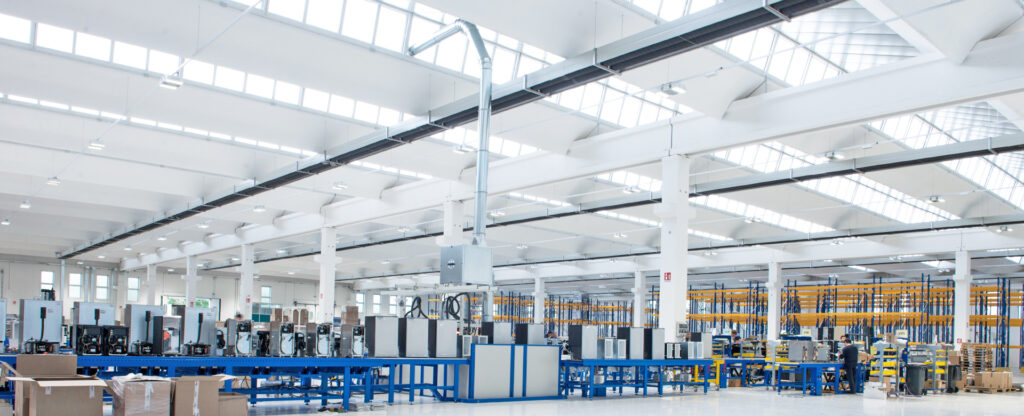

Factory Tour: Manufacturing Excellence

Manufacturing Process & OEM Services at Beauty STC Lighting

Advanced SMT Production Line

Our Jiangmen facility in Guangdong’s High-tech Industrial Zone features a fully automated Surface Mount Technology (SMT) production line, equipped with high-precision pick-and-place machines (±0.02mm placement accuracy) and multi-zone reflow ovens with real-time thermal profiling. This ensures consistent solder joint integrity for LED components, critical for long-term reliability in commercial and industrial applications. Since 1998, continuous investment in SMT technology has enabled us to scale production while maintaining tight tolerances for sensitive LED assemblies, supporting global demand without compromising quality.

Rigorous Quality Control Protocols

Quality is embedded at every production stage. Our multi-tiered QC process aligns with international standards to ensure compliance and longevity:

Test Type	Duration/Parameters	Standards	Pass Criteria
AOI Inspection	Real-time during SMT	IPC-A-610 Class 2	Zero defects
Continuous Aging	72 hours @ rated load	IEC 62560	<5% lumen depreciation
Thermal Cycling	100 cycles (-20°C to 60°C)	IEC 60068-2-14	No functional failure
LM-79 Photometric	Full spectrum analysis	IESNA LM-79	±5% tolerance on lumen output

All products undergo batch traceability via unique serial codes, enabling full supply chain transparency and rapid issue resolution.

Tailored OEM/ODM Capabilities

We deliver end-to-end custom solutions for global clients, with engineering validation at every step. All designs comply with ETL (USA/Canada) and TUV CE (Europe) certifications, ensuring seamless market access without additional testing delays.

Parameter	Customization Range	Standard Tolerance
LED Strip Lengths	1m–50m reels, cut-to-length	±1% per reel
CCT Range	2700K (Warm White) to 6500K (Daylight)	±100K
Packaging	Retail boxes, bulk rolls, OEM-branded	Client-specified
Certifications	ETL, TUV CE, RoHS compliant	Pre-certified

Key capabilities include:
Flexible LED strips: Custom cut points, adhesive backing, and waterproofing (IP20–IP68).
Precision CCT tuning: Match specific project requirements with 100K increments for consistent color rendering.
Global compliance: All custom products are engineered to meet regional regulatory standards (e.g., UL, CE, RoHS), eliminating compliance bottlenecks for distributors.

With 25+ years of experience serving 50+ countries, Beauty STC Lighting combines industrial-grade manufacturing rigor with flexible OEM/ODM support to deliver solutions that align with your project specifications—on time, every time.

Contact: [email protected] | +86-13902885704

---

Installation & Application Scenarios

Application Scenarios for Certified Lysdioder LED Systems

(Factory-direct, ETL/TUV CE listed, engineered since 1998)

---

1. Hospitality & Commercial Lodging

Typical spaces: reception lobbies, corridors, ballrooms, façade accents, landscape step lights.

Fixture family recommended	Key photometrics	Mounting note for contractors
24 V Flexible LED Strip, 2835 SMD, 240 LEDs/m, 24 W/m, 3-step MacAdam ellipse binning	230 lm/W @ 4000 K, CRI 90+, 50 000 h L70 @ 45 °C Ts	Route in aluminium profile with ≥ 5 mm thermal gap; feed both ends if run > 5 m to keep < 5 % voltage drop.
1200 × 300 mm Edge-lit Panel, 40 W, 0–10 V / DALI	125 lm/W, UGR < 19, T 300 mm suspension kit included	Suspend with aircraft cable; mount driver on service deck—no ceiling plenum exposure for easier maintenance & code compliance.

Certification leverage: ETL per UL1598/UL2108 for damp location simplifies inspector sign-off on hotel permits across North America; CE / ENEC 60598 covers EU chain projects.

---

2. Retail & Shopping Malls

Objective: high vertical illuminance, colour consistency, minimal glare.

Product	Optical package	Contractor tip
COB LED Track Spot, 30 W, 15°/24°/36° interchangeable reflector	3 SDCM, 3000–4000 K, 110 lm/W	Use 3-circuit track pre-feed every 12 m; aim 30° off merchandise to cut reflectance glare.
50 × 50 cm Back-lit Panel, 50 W, 6000 K	130 lm/W, uniformity 0.8 min/avg	Replace 2 × 36 W CFL troffers 1-for-1; integrate occupancy sensor via panel’s 1–10 V driver for extra 30 % energy rebate eligibility.

OEM note: Custom length strips (max 30 m) or CCT-shift panels (2700–6500 K Tunable White) available in 3-week lead-time—labelled with your brand & barcode.

---

3. Office & Institutional

Target: 500 lx on task plane, UGR ≤ 19, L80 > 50 000 h for 9 h/day operation.

Solution	Performance	Installation
1200 mm LED T8 Tube, 18 W, 2600 lm, 4000 K, single-end power	144 lm/W, PF > 0.95, THD < 10 %	Bypass ballast; use non-shunted G13 lampholders; maintain earth on fixture for safety.
595 × 595 mm Panel, 40 W, CRI 90, Flicker-free < 5 % @ 100 Hz	IC driver class, -20 °C to +50 °C Tc	Drop into 15/16″ T-grid; driver clips to grid, tool-free plug-terminals—cuts labour 30 %.

Standards reference: LM-79 & LM-80 reports archived under ETL file STC-LED-0001; ready for Design-Build submittals.

---

4. Exterior Façade & Amenity

Needs: IP65 minimum, -30 °C start, surge 4 kV (IEEE C62.41.2).

Fixture	Spec	Mounting
24 V RGBW Strip, 14.4 W/m, 120° lens, silicone sleeve	16 M colour, DMX512 decoding on board	Use stainless steel clip every 150 mm; apply Dow Corning 791 sealant at feed-cord glands to achieve IP67 joint.
100 W LED Floodlight, 5000 K, 130 lm/W, 90–305 V	4 kV surge, 10 kV ESD, -40 °C to +55 °C	Mount on 76 mm OD pole arm; torque M10 bolts to 35 Nm; aim 45° downward to limit obtrusive spill light (CIE-150).

Certification: ETL listed to UL8750 & UL1598 wet location; CE & RoHS for EU façade grants.

---

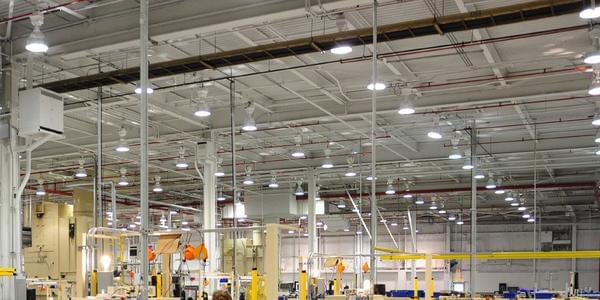

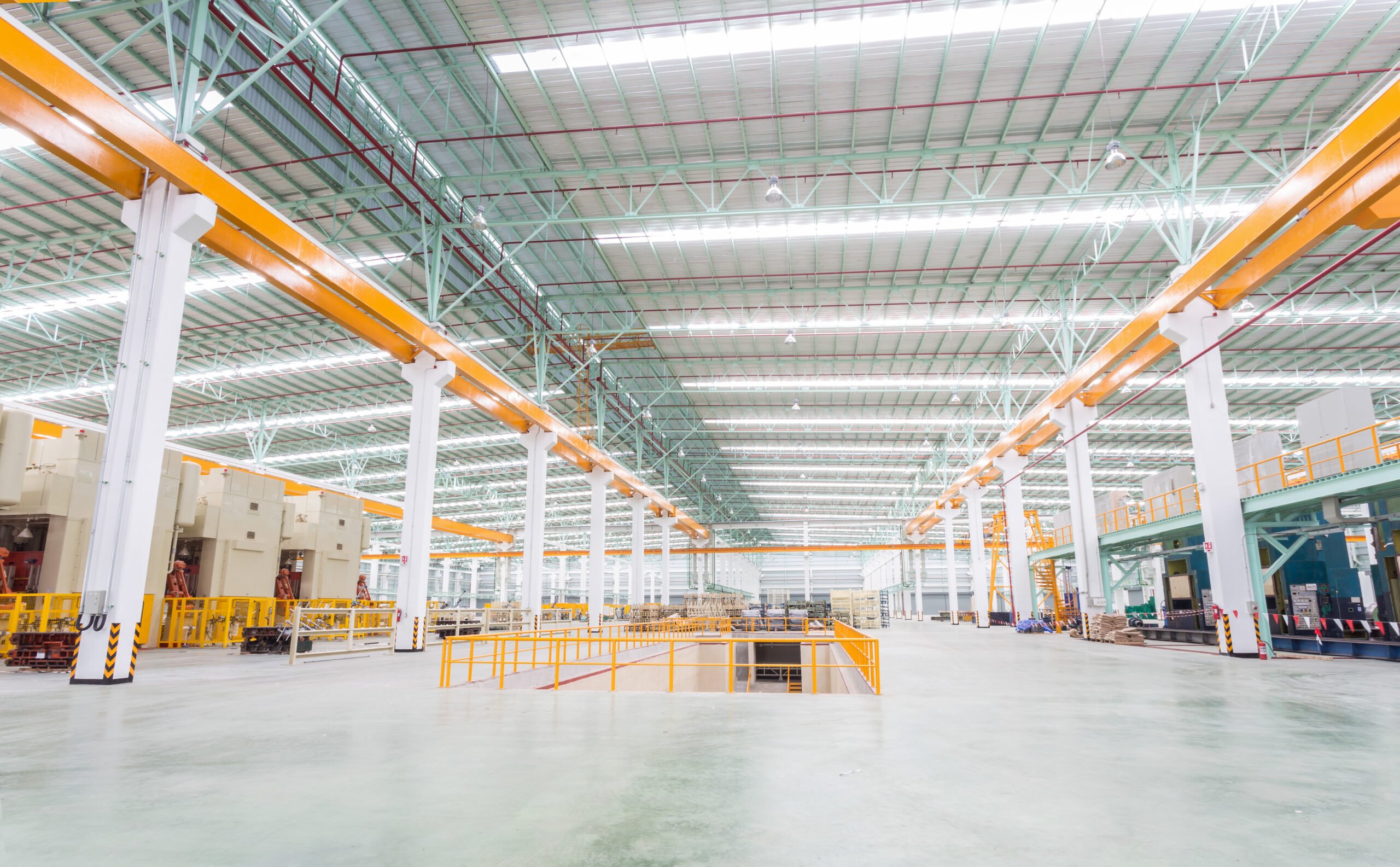

5. Industrial & High-Bay Retrofit

Space height: 6–15 m, target 300–750 lux, maintenance factor 0.8.

Product	Output	Control & wiring
150 W UFO High-Bay, 5000 K, 19 500 lm, 130 lm/W	60°/90°/120° PC optics, -40 °C to +55 °C	Hook mount with 6 mm safety cable; 0–10 V leads standard—pair with microwave sensor for 10–100 % dim corridor mode.
40 W LED T5 Tube, 5500 lm, 1.5 m	Isolated driver, 100–277 V, L70 > 50 000 h	Retrofit in existing T5 HO battens; remove starter, re-wire to single-end live & neutral only.

Energy note: Replace 400 W metal-halide 1-for-1; payback < 14 months @ 0.12 $/kWh, 24 h operation.

---

Universal Installer Checklist (Factory-Recommended)

1. Verify driver label matches local voltage (100–277 V or 347 V).
2. Allow 10 cm free-air clearance around driver for 40 °C max case temp—extends lifetime 15 %.
3. Use only copper conductors, 90 °C insulation; size for ≤ 3 % drop on 24 V DC circuits (refer to CEC table 4 or NEC 310.16).
4. For Class 2 strips, limit single feed to 60 W (24 V, 2.5 A) or install additional feed points.
5. Submit ETL & TUV CE certificates plus LM-79 photometry with permit set; speeds authority approvals.

Need project-specific IES files, dialux simulation, or private-label packaging? Email [email protected] or WhatsApp +86 139 0288 5704—engineering data sheets issued within 12 h.

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting – Your Trusted LED Manufacturing Partner

25+ Years of Proven Manufacturing Excellence

Since our establishment in 1998, Beauty STC Lighting has built a reputation for reliability and innovation in the global LED lighting market. Based in Jiangmen, China, we serve more than 50 countries across Europe, North America, Southeast Asia, Australia, Russia, Japan, and South Korea. Our factory-direct model ensures consistent quality and competitive pricing without intermediaries.

Global Compliance with ETL and TÜV CE Certifications

All products undergo rigorous third-party testing to meet international regulatory standards. Our certifications include:
ETL (USA/Canada): Compliance with UL/CSA safety standards for North American markets.
TÜV CE (Europe): Conformity with EU safety, electromagnetic compatibility (EMC), and RoHS directives.
These certifications guarantee seamless integration into projects requiring compliance with regional electrical and environmental regulations.

Custom OEM/ODM Solutions Tailored to Your Needs

We specialize in end-to-end customization, from product design to production. Our engineering team collaborates directly with clients to deliver solutions that align with technical specifications, aesthetic requirements, and project timelines.

Core Product Specifications

Product Type	Efficacy (lm/W)	Lifespan (hours)	Color Rendering (CRI)	Voltage Range	Certifications
Flexible LED Strip	120–160	50,000	80–95	12V/24V DC	ETL, TÜV CE
LED Panel Light	100–130	50,000	80–90	100–277V AC	ETL, TÜV CE
LED UFO High Bay	140–160	50,000	80–90	100–277V AC	ETL, TÜV CE
LED T8/T5 Tubes	110–140	50,000	80–90	100–277V AC	ETL, TÜV CE
LED Floodlight	130–150	50,000	80–90	100–277V AC	ETL, TÜV CE

All specifications are verified through ISO 9001-compliant quality control processes. Custom variants available upon request.

Why Partner with Beauty STC Lighting?

Decades of Industry Expertise: 25+ years of manufacturing experience ensures technical precision and supply chain reliability.
Western Market Compliance: ETL and TÜV CE certifications eliminate regulatory hurdles for North American and European projects.
Scalable Production: From prototype development to mass production, we support projects of all sizes with flexible lead times.
Global Logistics Network: Proven experience shipping to 50+ countries, including customs documentation and compliance support.

Ready to discuss your project requirements?
Contact our engineering and export team directly for technical specifications, sample requests, or OEM collaboration:
Email: [email protected]
Phone: +86 13902885704

---
