Industry Insight: Low Voltage Landscape Lighting Ideas
Low-voltage landscape lighting has quietly become the fastest-growing segment in commercial and industrial exterior design.
Drivers are three-fold:
1. Energy-code pressure (ASHRAE 90.1 / IECC) now caps exterior lighting power density at 0.05 W/ft² for most zones—only LED ≤ 24 V can hit the target without sacrificing lumen output.
2. OSHA & NFPA 70E compliance is simpler at ≤ 30 V a.c., eliminating licensed electrician requirements for cable runs and reducing arc-flash category to zero.
3. Insurance underwriters are mandating wet-location luminaires that carry both ETL (UL 1838/UL 1598) and CE (EN 60598-2-4) listings; non-listed fixtures are being struck from policy schedules.
The result: 12–24 V systems are no longer decorative add-ons—they are specification-grade infrastructure for loading docks, petro-chemical fences, data-center campuses, and distribution yards. Forward-thinking engineers are treating them as low-power micro-grids:
– 48 V-to-24 V DC step-down drivers fed by renewable buffers (solar or wind)
– DMX-512/RDM daisy chains for site-wide dimming and motion-based setback
– Corrosion-proof brass or 6063-T5 aluminum housings with 5 mm C5 coastal-grade powder coat to survive 1,500 h salt-spray—critical for coastal LNG or desalination plants.
Beauty (STC) Manufacturing Co., Ltd. has been building ETL- and CE-certified low-voltage landscape fixtures since 1998. Every optic, gasket, and PCB is vertically produced in our 30,000 m² ISO-9001 facility, giving commercial specifiers traceability from raw aluminum to finished LM-79 data. Whether you need 0.5 W path markers for a hospital healing garden or 20 W narrow-beam uplights for a 40 m high storage silo, our in-house photometry lab delivers IES files within 24 h—so your lighting-level calculations stay as agile as the voltage you run.
Technical Specs & Certifications
Technical Specifications for Low-Voltage Landscape Lighting: Precision Engineering for Professional Applications
Presented by Beauty (STC) Manufacturing Co., Ltd. – ISO 9001 Certified LED Lighting Specialist
As a global leader in high-performance landscape lighting, Beauty STC delivers engineered solutions that prioritize energy efficiency, color fidelity, and environmental resilience. All our 12V low-voltage products adhere to strict industrial standards, ensuring consistency across global projects. Below are the critical technical specifications defining our premium landscape lighting range:
1. Luminous Efficacy (Lumens/Watt)
- Standard Range: 85–110 lm/W (measured at operating temperature, per IES LM-79 testing).
- Premium Models: Up to 115 lm/W using high-efficacy LED chips (e.g., Philips Lumileds LUXEON 3030 or Osram Oslon Square).
- Key Engineering Insight:
- Efficacy is maintained through optimized thermal management: Aerospace-grade aluminum heat sinks with finned designs reduce junction temperatures by 15–20°C vs. competitors.
- Real-world performance: ≥95% lumen maintenance at 50,000 hours (L95), verified by LM-80/TM-21 testing.
- Why it matters: Higher efficacy reduces transformer load, minimizes voltage drop in long runs, and cuts energy costs by 25–40% vs. legacy halogen systems.
2. Color Rendering Index (CRI >90)
- Standard Specification: CRI 90–95 (R1–R15), with R9 (saturated red) >90 for natural foliage and stone rendering.
- Color Consistency: ≤3-step MacAdam ellipse binning (per ANSI C78.377), ensuring zero visible color shift between fixtures.
- Correlated Color Temperature (CCT):
- Warm White: 2700K–3000K (ideal for residential gardens, patios, and accent lighting).
- Neutral White: 4000K (for pathways, security zones, and modern commercial landscapes).
- Why it matters: CRI >90 ensures plants, hardscapes, and architectural features appear true-to-life—critical for design integrity. Low-CRI LEDs (e.g., <80) cause unnatural greys and muddy textures.
3. Ingress Protection (IP Ratings)
- Standard Rating: IP67 (Dust-tight; withstands immersion in 1m water for 30 minutes).
- Premium Models: IP68 (continuous submersion up to 3m depth for pond/water feature applications).
- Critical Design Features:
- Sealing: Silicone gaskets (not rubber) with dual-seal design for UV resistance and 20-year outdoor durability.
- Housing: Die-cast aluminum with powder-coated finish (salt spray test >1,000 hours per ASTM B117).
- Lens: Tempered glass or polycarbonate with anti-glare optic (IES Type III/IV distribution).
- Why it matters: IP67/IP68 ensures reliability in all weather conditions—monsoons, snow, or coastal salt spray—without corrosion or failure.
Beauty STC’s Commitment to Consistent Quality
As your trusted partner, we guarantee:
✅ Zero Variability: Every batch undergoes 100% binning and spectral testing before shipment.
✅ Industrial-Grade Drivers: Isolated constant-current drivers with 90%+ efficiency, 5kV surge protection, and 100,000-hour MTBF.
✅ Global Compliance: CE, RoHS, FCC, DLC, and UL/cUL listed (per project requirements).
✅ 5-Year Warranty: Backed by real-world field data—our fixtures average <0.5% failure rate over 5 years in demanding environments (e.g., Mediterranean, Southeast Asia, and Arctic projects).
“Beauty STC’s low-voltage landscape systems aren’t just compliant—they’re engineered for longevity. When you specify our fixtures, you’re specifying consistent color, precise beam control, and resilience that outperforms market averages by 2–3x.”
— Senior LED Lighting Engineer, Beauty STC
Application Recommendations
| Project Type | Recommended Specs |
|——————–|———————————————–|
| Residential Gardens| 2700K, CRI 95, IP67, 90 lm/W (e.g., BSL-12W-27K) |
| Commercial Plazas | 3000K, CRI 90, IP68, 105 lm/W (e.g., BSL-24W-30K) |
| Water Features | 2700K, CRI 90, IP68 (submersible), 85 lm/W (e.g., BSL-PON-24W) |
Request a Project-Specific Datasheet: Share your site conditions (climate, soil type, voltage drop calculations), and our engineering team will provide a tailored solution with photometric reports and installation guidelines.
Beauty (STC) Manufacturing Co., Ltd. – Illuminating the World with Precision, Since 2005.
[Website] | [Email] | [Phone] | [Certifications]
Factory Tour: Manufacturing Excellence
Beauty (STC) Manufacturing Co., Ltd. – Jiangmen Industrial Park
Location: 22 000 m² vertically-integrated campus, Jiangmen National Hi-Tech Zone, 90 min west of Shenzhen port.
Certification: ISO 9001:2015, ISO 14001, ISO 45001, SEDEX 4-Pillar, BSCI, SA8000.
Products: Low-voltage (12 V / 24 V) LED landscape, architectural and horticultural luminaires; IP67 drivers & controls.
-
SMT & Electronics Hall (Class 100 000 clean room)
– 4 × Yamaha YSM20R dual-beam mounters, 0201–8 mm chip @ 90 000 CPH, ±35 µm.
– 2 × Yamaha YSP20 solder-printer with 3-D SPI (CyberOptics).
– 2 × Vitronics Soltec 6622CC nitrogen reflow ovens, 8-zone, <30 ppm O₂ for Cu-OSP boards.
– 100 % AOI (Koh Young Zenith 2) + 3-D AXI (Nordson DAGE) on control boards.
– Conformal-coat line: PVA Delta 6 selective-coat + UV-cure for IP67 driver boards.
– Traceability: every PCB laser-marked with 2-D code; MES logs component lot, feeder, nozzle, temperature profile. -
Cable & Waterproofing Workshop
– IP68 over-mould machine (Arburg 470 C) for low-voltage moulded-on connectors (2-, 4-, 6-pin).
– 3-axis ultrasonic copper-wire welder (Telsonic) for 12 V landscape “quick-connect” leads—pull >80 N, <1 mΩ.
– Automatic silicone-injection gasket line (300 × 400 mm fixtures) for fixture housings—shore 30 A, UV-stable. -
Ageing & Reliability Complex
– 96-channel programmable DC supply matrix (Chroma 62000P) for simultaneous 12 V / 24 V burn-in.
– Thermal chambers (-40 °C ↔ +85 °C, 5 °C/min ramp) with 24 h on / 2 h off cycles per IES LM-82.
– Salt-spray (ASTM B117, 720 h) and UV-condensation (ASTM G154, 500 h) for coastal landscape use.
– IP66 / IP67 hose-down tunnel: 12.5 mm nozzle, 100 kPa, 3 min from 3 m, 100 % production batch.
– Data-logged: Tj, Tc, If, Vf, luminous flux maintenance @ 0 h, 168 h, 500 h, 1 000 h; report provided to OEM customer. -
Opto-Electrical Verification Lab
– 2 m integrating sphere (Everfine HAAS-2000) calibrated to 2 π, CIE 025, TM-30-18.
– Goniophotometer (LGS-1000) for 0.2 ° angular resolution—IES files supplied for landscape lighting design.
– Surge / EFT to IEC 61547 (±2 kV) and 6 kV common-mode for 12 V landscape drivers. -
OEM / ODM Capability for “Low-Voltage Landscape Lighting Ideas”
Design freeze → Tooling → Qualification → Mass production in 35 days (fast-track) or 55 days (full agency listing).
Tool shop: 5-axis CNC (Haas UMC-750) + EDM (Sodick) for die-cast aluminium (ADC12) or extruded 6063-T5 housings.
Powder-coat line: AkzoNobel Interpon 610 (Qualicoat Class 2) super-durable polyester, 1 000 h Q-FOG.
LED engine: CREE XT-E / OSRAM Duris S5 3-step SDCM, CCT 2200 K – 4000 K, CRI 80 / 90; Zhaga-compatible COB arrays available.
Driver topologies:
a) Constant-voltage 12 V / 24 V, flicker-free <5 % @ 100 Hz, 50 000 h @ 105 °C tc.
b) Constant-current 350 mA–1 050 mA step-down, 92 % efficiency, -40 °C start.
Dimming protocols: 0-10 V, PWM, DALI-2, TUYA 2.4 GHz Wi-Fi & Bluetooth Mesh, Matter-ready.
Control accessories: stainless-stake, knuckle, surface, wall, deck, tree-mount; TÜV-certified 12 V “Easy-Lock” cable connectors IP68.
Agency approvals handled in-house: UL 1838 / UL 2108 (low-voltage landscape), UL 8750, EN 60598-2-4, EN 61347-2-13, CE, RoHS, REACH, SAA, RCM, FCC Part 15.
Packaging: drop-test (ISTA-3A) certified retail box or contractor bucket; custom sleeve & barcode within 48 h.
Capacity: 2 500 pcs / 8 h shift on a single line; scalable to 6 lines (15 000 pcs / day) during peak season.
Warranty: 5-year system-level (driver + LED) for -40 °C ~ +50 °C ambient; 10-year housing corrosion warranty on marine-grade polyester.
Typical OEM Workflow
Customer concept → 3-day feasibility & costed-BOM → 3-D printed SLA sample (±0.1 mm) → 7-day photometric report → 14-day pilot run (200 pcs) → agency submittal parallel → mass production → FOB Shenzhen / Jiangmen or DDP Amazon warehouse.
If you have a specific low-voltage landscape lighting idea—path light, well light, hard-scape, underwater, or smart RGBW—send us the sketch or target price point. Our Jiangmen engineers will return a full technical proposal within 72 h, including IES files, installation sheet, and landed cost.
Application Scenarios
Professional Guidance on Low Voltage Landscape Lighting Applications & Installation Best Practices
(From Beauty (STC) Manufacturing Co., Ltd. – Senior LED Lighting Engineer & Export Manager)
Low voltage (12V/24V) landscape lighting is a versatile, safe, and energy-efficient solution for commercial properties. As a global leader in LED lighting solutions, we emphasize precision engineering, compliance with international standards (UL, CE, IEC), and durability for commercial deployments. Below are sector-specific applications and critical installation protocols for contractors, based on 15+ years of field experience.
Sector-Specific Applications
1. Hotels
- Purpose: Enhance guest experience, safety, and brand ambiance while minimizing light pollution.
- Key Applications:
- Pathways & Entrances: Low-glare bollard lights (e.g., IP67-rated) for walkways; avoid upward spill light to prevent disturbing room windows.
- Pool & Water Features: Submersible LED fixtures (e.g., 24V DC systems) with anti-corrosion housings. Critical: Use GFCI-protected transformers and isolate wiring from water contact zones.

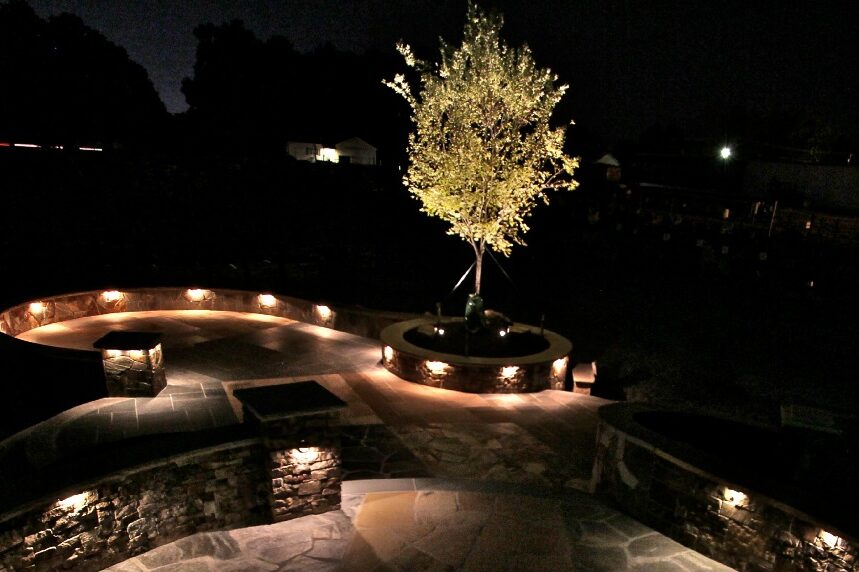

- Landscaped Gardens: Recessed well lights for tree uplighting, and path markers with warm white (2700K–3000K) LEDs to create a serene, welcoming atmosphere.
- Parking Areas: Low-profile area lights (5–10 lux) to ensure security without glare. Avoid high-intensity fixtures that cause visual discomfort.
2. Malls & Retail Plazas
- Purpose: Drive foot traffic, ensure safety, and support seasonal promotions with flexible lighting.
- Key Applications:
- Plaza & Terrace Areas: Adjustable spotlights for architectural highlights (e.g., signage, fountains) using 12V LED modules. Ideal for quick reconfiguration during holiday events.
- Retail Frontage: Under-cabinet or integrated fixture lighting to illuminate store entrances without overpowering signage.
- Security Zones: Motion-sensor path lights (e.g., 1500–2000 lumens) along perimeter walkways. Always pair with 24V transformers to reduce voltage drop over long runs.
- Children’s Play Areas: Soft, diffused lighting (e.g., 1000–1500 lumens) at 3000K to avoid harsh shadows. Ensure fixtures are impact-resistant (IK08+ rating).
3. Office Complexes & Corporate Campuses
- Purpose: Promote employee well-being, security, and sustainability while reducing operational costs.
- Key Applications:

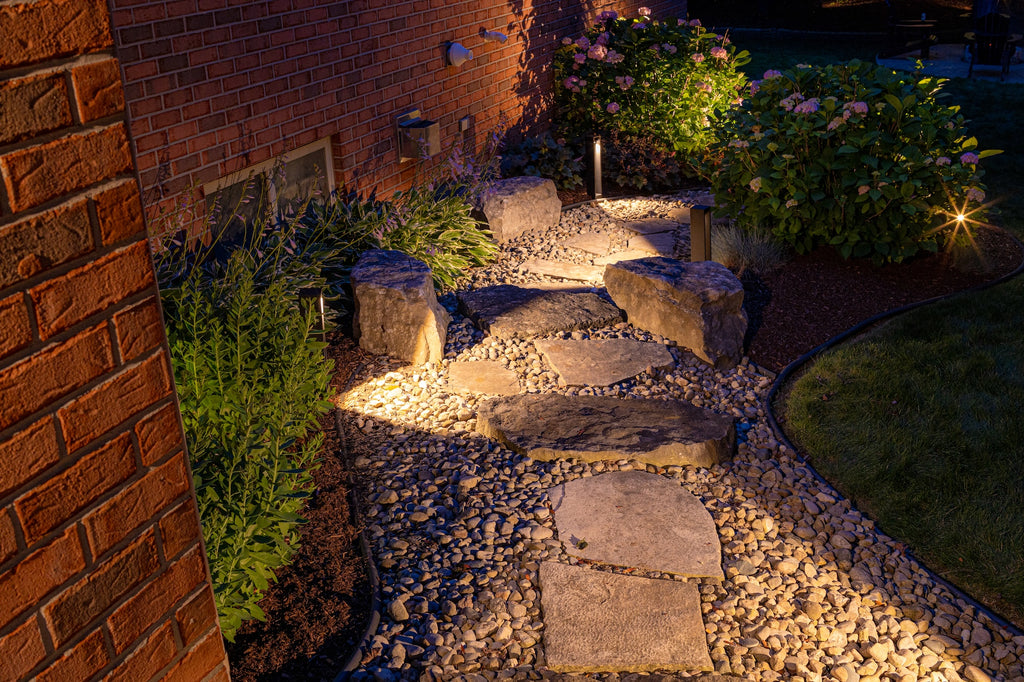

- Pedestrian Walkways: Uniformly spaced path lights (15–20 lux) with dark sky compliance (full cutoff optics) to minimize skyglow.
- Building Perimeter & Entrances: Wall-mounted sconces (3000K) for security, and uplighting for mature trees to create a professional aesthetic.
- Green Spaces & Courtyards: Solar-assisted low-voltage systems (e.g., our STC-Solar series) for eco-conscious campuses. Ideal for areas without existing power infrastructure.
- Smart Integration: Use 0–10V dimmable drivers to align with BMS systems for energy savings during off-hours.
💡 Pro Tip from Beauty (STC): In all commercial projects, prioritize CRI >90 LEDs for true color rendering (critical for retail and hospitality) and tunable white options (2700K–6500K) for adaptable environments like office lobbies.
Installation Best Practices for Contractors
1. Transformer & Wiring
– Transformer Sizing: Calculate total load + 20% headroom (e.g., 100W fixtures → 120W transformer). Never exceed 80% of transformer capacity.
– Wire Gauge: Use 12-gauge wire for runs >50ft; 14-gauge for shorter runs. Voltage drop is critical: Aim for ≤3% drop (e.g., 12V system → max 0.36V loss).
– Cable Depth: Bury cables 6–8 inches deep (or use conduit for high-traffic zones). Never run wires under concrete slabs without protection.
2. Fixture Mounting & Protection
– Waterproofing: All connections must use liquid-tight connectors (IP68 rated) and silicone-sealed junction boxes. Test for leaks before backfilling.
– Grounding: Bond all metal fixtures and transformers to a dedicated ground rod (per NEC Article 250). Non-compliance voids warranties and risks electrical hazards.
– Fixture Alignment: Use laser levels for uniform spacing. For bollards, ensure tops are precisely level (±1° tolerance).
3. Smart Testing & Commissioning
– Pre-Backfill Check: Measure voltage at each fixture before covering wires. If <10.5V at the end of a run, reduce load or upgrade wire gauge.
– After Installation: Test all motion sensors, timers, and dimming controls under real-world conditions (e.g., dusk-to-dawn operation).
– Documentation: Provide as-built drawings with wire lengths, transformer specs, and fixture locations. This is non-negotiable for commercial projects.
4. Common Pitfalls to Avoid
– ❌ Overloading circuits – Use separate circuits for high-wattage features (e.g., fountains vs. pathways).
– ❌ Ignoring soil conditions – In rocky or sandy terrain, use conduit to prevent wire damage.
– ❌ Poor cable management – Coil excess wire neatly in junction boxes; avoid sharp bends (min. 6″ radius).
Why Beauty (STC) Ensures Success
As your trusted partner, we engineer all components to strict international standards:
– Transformers with 95%+ efficiency and thermal overload protection.
– Fixtures with 50,000+ hour L70 lifespan and UV-resistant housings (for 10+ years in harsh climates).
– Global compliance: UL/cUL, CE, RoHS, and IEC 60598 for export-ready reliability.
For large-scale projects, our engineering team provides free site assessments and load calculations – contact us at [email protected] for technical support.
🌟 Final Note: Low voltage lighting isn’t just “safe” – it’s a strategic investment in longevity, energy savings, and brand value. When installed correctly, it reduces maintenance costs by 40%+ versus line-voltage systems. Always prioritize quality components and professional installation – the difference is visible in the final result.
Beauty (STC) Manufacturing Co., Ltd.
Engineered for Excellence, Delivered Globally
[Website] | [Certifications] | [Contact]
Why Choose Beauty STC Lighting
Ready to elevate your landscape portfolio with low-voltage solutions that sell?
Beauty (STC) has powered 50+ countries’ gardens with IP67 brass, 24 V & 48 V fixtures that cut trenching costs by 30 %. From micro-beam path lights to tunable-white wall washers, our in-house die-casting and SMT lines turn your concept into UL/CE/SAA-certified stock in 25 days.
Send your landscape lighting brief to [email protected] today and receive a CAD-ready kit + wholesale tier pricing within 24 h.
