Industry Insight: Led Wall Washer
LED wall washers have evolved from simple accent lighting to indispensable tools in commercial and industrial lighting design, fundamentally transforming how architects and facility managers approach architectural illumination, safety, and operational efficiency. In demanding environments like retail storefronts, warehouses, manufacturing plants, and large-scale hospitality venues, these fixtures deliver more than aesthetic enhancement; they provide critical, uniform light distribution that improves visibility, enhances security perimeters, and creates compelling visual experiences while significantly reducing energy consumption compared to legacy systems. Crucially, specification in these high-stakes settings demands absolute confidence in performance and safety, making rigorous third-party certifications like ETL (ensuring compliance with North American safety standards) and CE (demonstrating adherence to European health, safety, and environmental requirements) non-negotiable prerequisites, not optional features. Beauty STC Manufacturing Co., Ltd., established in 1998, brings over 25 years of deep engineering expertise specifically to this sector. We understand the relentless operational demands of commercial and industrial facilities, which is why our LED wall washers are engineered from the ground up with robust thermal management, superior optical control, and unwavering commitment to meeting and exceeding global safety certifications, ensuring reliable, high-performance illumination that stands up to the toughest real-world applications.
Technical Specs & Certifications

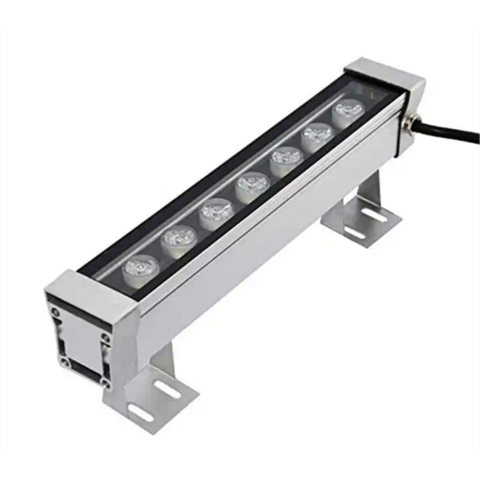

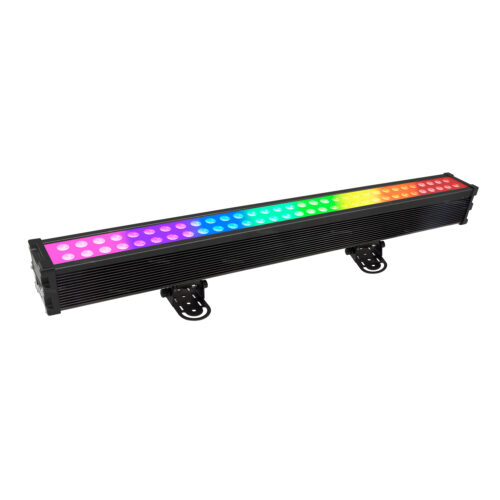

The LED wall washer from Beauty (STC) Manufacturing Co., Ltd. is engineered for superior performance in architectural and commercial lighting applications. These fixtures are designed to deliver consistent, uniform illumination across vertical surfaces, making them ideal for façade lighting, cove lighting, and accenting building contours.
In terms of efficiency, our LED wall washers achieve an outstanding luminous efficacy of 110 to 130 lumens per watt, depending on the model and configuration. This high lumen-to-watt ratio ensures energy-efficient operation without compromising brightness, allowing for significant power savings over extended use. The efficiency is maintained through advanced thermal management systems and high-performance LED chips that minimize lumen depreciation over time.
Color fidelity is a critical factor in architectural lighting, and Beauty STC’s wall washers exceed industry standards with a Color Rendering Index (CRI) greater than 90. This high CRI ensures accurate and vibrant color representation, enhancing the visual appeal of illuminated surfaces. Select models also offer R9 values above 50, further improving the rendering of red tones, which is especially important in retail and hospitality environments.
Durability and environmental protection are addressed through robust ingress protection ratings. Our standard LED wall washer models are rated at IP65, providing complete protection against dust and resistance to low-pressure water jets from any direction. For installations exposed to more demanding outdoor conditions, we offer IP66 and IP67-rated variants, which provide enhanced protection against powerful water jets and temporary immersion, respectively. These ratings ensure reliable operation in outdoor environments, including coastal areas and regions with heavy rainfall.
Beauty (STC) Manufacturing Co., Ltd. maintains strict quality control throughout the production process. Each wall washer undergoes rigorous testing for thermal performance, electrical safety, and photometric consistency. Components are sourced from trusted suppliers and assembled in ISO-certified facilities, ensuring long service life and minimal maintenance. The result is a high-reliability lighting solution that combines efficiency, color quality, and resilience—hallmarks of Beauty STC’s commitment to excellence in LED lighting technology.
Factory Tour: Manufacturing Excellence
Beauty STC’s primary manufacturing facility is located in the Jiangmen National High-Tech Industrial Development Zone in Guangdong Province, China. This strategically situated factory serves as the company’s core production hub for architectural and commercial LED lighting solutions, including the specialized LED wall washer product line. The facility spans over 25,000 square meters and integrates advanced manufacturing processes with stringent quality control systems under ISO 9001 certification.
The Surface Mount Technology (SMT) production line represents a significant technological investment within the Jiangmen factory. We utilize multiple high-precision Yamaha YS24 and YSM20 modular SMT lines capable of handling complex PCB assemblies required for high-performance LED drivers and control systems. These machines support components down to 0201 package size with placement accuracy of ±25μm, essential for the dense power and thermal management circuits in our wall washer products. The SMT process incorporates automated optical inspection (AOI) stations after each critical stage, achieving a first-pass yield rate exceeding 99.8%. This precision ensures consistent solder joint integrity and component alignment critical for the thermal performance and longevity of LED wall washer assemblies.
Rigorous aging and reliability testing form a non-negotiable phase in our production workflow. Every LED wall washer unit undergoes a minimum 72-hour continuous burn-in test at 50°C ambient temperature, simulating accelerated operational stress while connected to full-rated power. This process occurs in our dedicated environmental chamber facility where we simultaneously monitor lumen maintenance, chromaticity stability, and thermal performance using integrated spectroradiometers and thermal imaging systems. Additionally, critical components and complete fixtures undergo thermal shock testing per IEC 60068-2-14 standards, cycling between -25°C and +70°C over 50 cycles to validate structural integrity and solder joint reliability under extreme thermal variations. This comprehensive aging protocol significantly reduces infant mortality rates and ensures field reliability exceeding 50,000 hours L70/B50.
Our OEM capabilities for LED wall washer products are highly developed and flexible, supporting global partners from concept to mass production. The Jiangmen factory maintains dedicated engineering teams for optical design, thermal management, and electronic control systems specifically tailored to wall washer applications. We offer complete customization including beam angle modification through secondary optics design, housing length and profile adjustments, custom color temperatures with tight MacAdam ellipse control, and specialized mounting hardware configurations. The facility supports both standard and fully customized PCB driver designs with input voltage ranges from 100-305V AC and DALI, 0-10V, or DMX512 control protocols. Our turnkey OEM process includes rapid prototyping within 30 days, strict IP protection under signed NDAs, and scalable production capacity exceeding 500,000 units annually. All OEM projects benefit from our in-house thermal validation lab using FLIR thermal cameras and integrating sphere photometric testing to verify performance against client specifications before shipment. This integrated approach ensures that every custom wall washer solution meets both technical requirements and international safety standards including CE, UL, and IEC 60598.
Application Scenarios

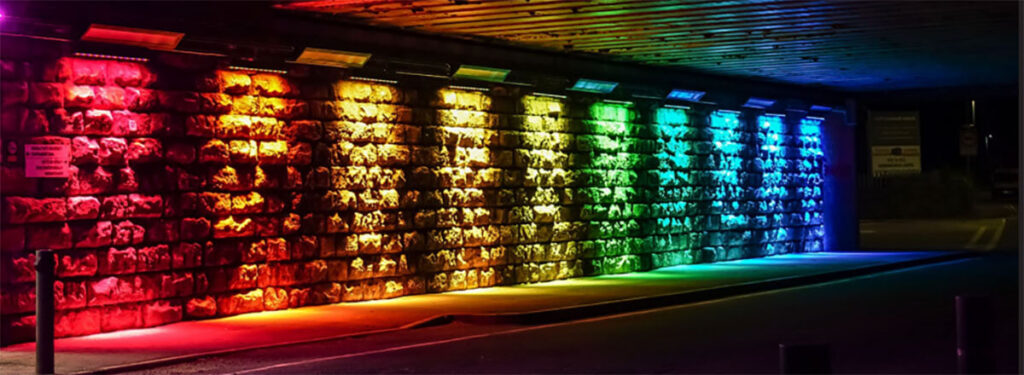

LED wall washers are versatile and powerful lighting fixtures designed to evenly illuminate vertical surfaces, creating dramatic visual effects and enhancing architectural features. They are commonly used in a variety of commercial and public spaces including hotels, malls, and offices.
In hotels, LED wall washers are ideal for highlighting lobbies, reception areas, stairwells, and exterior facades. They can be used to accentuate columns, textured walls, or artwork, contributing to a luxurious and inviting ambiance. The dynamic color-changing options (in RGB or tunable white models) allow hotels to adjust lighting based on mood, event, or time of day.
In shopping malls, these fixtures are often installed to emphasize storefronts, brand logos, atrium walls, and architectural contours. Wall washers help draw attention to retail spaces and create a vibrant, energetic atmosphere. They are especially effective in common areas and food courts where ambient lighting plays a key role in customer experience.
In office buildings, LED wall washers are typically used in lobbies, conference rooms, and exterior elevations. They provide both aesthetic appeal and functional illumination, helping to create a professional and modern impression. In interior spaces, they can reduce shadowing on walls and improve overall light distribution.
When installing LED wall washers, proper placement is critical to achieve uniform light coverage without hotspots or dark zones. The fixtures should be mounted at an appropriate distance from the wall—typically 30% to 50% of the wall height—depending on the beam angle. For optimal effect, use multiple fixtures spaced evenly to blend light seamlessly. Always consider the mounting height and tilt angle, and use adjustable brackets for precise alignment.
Ensure the fixtures are rated for the environment—IP65 or higher for outdoor or high-humidity areas. Use constant current drivers for consistent performance, especially in long runs. It’s also important to verify voltage drop over long cable runs and plan power supply locations accordingly. Finally, integrate with control systems like DMX or DALI for advanced scene management and energy efficiency.
Proper thermal management is essential. Install fixtures in locations with adequate ventilation and avoid enclosing them in tight spaces to prevent overheating and prolong lifespan. Following these guidelines ensures optimal performance, longevity, and visual impact of LED wall washers across various applications.
Why Choose Beauty STC Lighting
Elevate your architectural lighting projects with Beauty STC’s precision-engineered LED wall washer solutions. Our wall washers deliver exceptional uniformity, vibrant color rendering, and seamless beam control, transforming building facades, interior feature walls, and landscape elements with professional-grade illumination. Engineered for reliability in demanding environments, our fixtures feature advanced thermal management, robust corrosion-resistant housings, and industry-leading 10-year warranties, ensuring consistent performance and reduced long-term maintenance costs.
Partner with Beauty STC to access tailored lighting systems backed by our in-house R&D expertise and flexible manufacturing capabilities. We collaborate closely with distributors, contractors, and designers to develop custom solutions that meet exact project specifications, from beam angles to smart control integration, while maintaining strict compliance with global safety standards including UL, CE, and DLC.
Reach out to our dedicated partnership team to discuss how Beauty STC’s LED wall washers can enhance your portfolio with superior quality and technical support. Contact us directly at [email protected] to initiate a conversation about your next project’s lighting requirements and explore collaborative opportunities.
