Industry Insight: Led Under Cabinet Lighting Hardwired With Transformer
In the evolving landscape of commercial and industrial lighting, efficiency, reliability, and code compliance are paramount. LED under cabinet lighting hardwired with a transformer has emerged as a preferred solution in environments ranging from manufacturing facilities and commercial kitchens to control rooms and cleanrooms, where targeted illumination, space constraints, and long operational hours demand high-performance lighting. These systems offer a streamlined, permanent installation that eliminates the clutter of plug-in units while ensuring consistent power delivery through integrated transformers designed to step down voltage safely and efficiently. With growing emphasis on energy conservation and maintenance reduction, hardwired LED under cabinet lights deliver superior lumen output, extended lifespan, and reduced heat emission—critical factors in industrial applications.
Safety and regulatory compliance are non-negotiable in commercial installations, which is why certified products bearing ETL and CE marks are essential. These certifications confirm that lighting systems meet rigorous North American and international safety standards, ensuring suitability for use in demanding environments. Beauty (STC) Manufacturing Co., Ltd., established in 1998, has been at the forefront of innovation in commercial LED lighting for over two decades. Specializing in engineered lighting solutions for industrial and institutional applications, Beauty STC combines robust design, advanced thermal management, and comprehensive compliance to deliver reliable, code-compliant hardwired LED under cabinet systems trusted by contractors, facility managers, and electrical engineers worldwide.
Technical Specs & Certifications
Beauty STC Manufacturing Co., Ltd. designs and produces hardwired LED under cabinet lighting systems meeting stringent performance and reliability standards for demanding commercial and high-end residential applications. Our hardwired systems integrate a dedicated external transformer or driver, ensuring stable operation and compatibility with standard building electrical systems. Key technical specifications are rigorously controlled during manufacturing to exceed industry benchmarks.
Luminous efficacy for our standard hardwired under cabinet lines consistently achieves 110-120 lumens per watt at 3000K and 4000K color temperatures under real-world operating conditions. This high efficacy is realized through the use of premium Samsung LM301H or Epistar 2835 LED chips mounted on thermally optimized aluminum PCBs, coupled with our proprietary constant current drivers featuring 92-94% efficiency. System efficacy measurements strictly adhere to IES LM-79 testing protocols, accounting for all optical and driver losses, ensuring the published lumen output and wattage values reflect actual installed performance without inflated theoretical figures.
Color rendering is a critical focus for kitchen and task lighting applications. All hardwired under cabinet models targeting premium markets utilize LED bins specifically selected to guarantee a minimum CRI (Ra) of 92, with R9 values consistently exceeding 50. We further validate performance using TM-30-15 metrics, achieving Rf values of 92+ and Rg values near 100, ensuring accurate and vibrant representation of all colors, particularly critical for food preparation and presentation. This high-fidelity color rendering is maintained across the entire production batch through our rigorous in-line binning and post-assembly spectrophotometric verification process, eliminating batch-to-batch variation.
Regarding environmental protection, standard hardwired under cabinet lighting from Beauty STC carries an IP20 rating, suitable for dry indoor locations as per NEC Article 410. For installations requiring resistance to moisture splashes near sinks or in high-humidity environments, we offer specific models rated IP54. This rating signifies protection against dust ingress sufficient to prevent harmful deposits and resistance to water splashes from any direction, achieved through sealed driver compartments and gasketed lens joints. It is essential to note that IP54 is the practical maximum for under-cabinet applications; higher ratings like IP65 are generally unnecessary and can compromise optical clarity and thermal management in this specific fixture type. All IP ratings are validated through third-party testing to IEC 60529 standards.
Beauty STC’s commitment to quality is embedded in every aspect of these hardwired systems. We utilize 6063-T5 aluminum extrusions with a minimum wall thickness of 1.8mm for superior heat dissipation, directly contributing to the rated 50,000-hour L90 lifetime at 25°C ambient. Our custom-wound transformers employ high-temperature class H components and feature robust over-temperature, short-circuit, and open-load protection. Rigorous 100% in-circuit testing of drivers and 100% photometric and color verification of finished fixtures ensure compliance with specifications. All products undergo extended burn-in and thermal stress testing, carry UL/cUL Wet Location Listing for applicable models, and support smooth 0-10V dimming down to 1% without flicker. This comprehensive approach to engineering and quality control guarantees reliable, high-performance illumination that maintains its lumen output and color fidelity throughout its service life, distinguishing Beauty STC products in the professional lighting market.
Factory Tour: Manufacturing Excellence
Beauty (STC) Manufacturing Co., Ltd.’s factory in Jiangmen, China is a modern, well-equipped facility specializing in the production of high-quality LED lighting solutions. Strategically located in the Jiangmen industrial zone, the factory benefits from streamlined logistics and access to a skilled manufacturing workforce. The facility is designed to support efficient, high-volume production while maintaining strict quality control standards, making it well-suited for both domestic and international markets.
The factory is equipped with advanced Surface Mount Technology (SMT) production lines that ensure precision and consistency in assembling LED circuit boards. These SMT machines are capable of handling fine-pitch components and are integrated with automated optical inspection (AOI) systems to verify solder joint quality and component placement accuracy. This level of automation enhances product reliability and reduces human error, which is especially critical for compact lighting products such as under cabinet fixtures.
For quality assurance, the factory conducts comprehensive aging tests on finished LED products. Completed units are subjected to extended burn-in periods—typically 12 to 24 hours—under controlled thermal and electrical conditions to identify early failure risks. These tests are performed on sample batches as well as during full production runs, ensuring long-term performance and durability. Environmental stress testing, including thermal cycling and humidity exposure, may also be applied depending on product specifications and customer requirements.
Beauty STC has strong OEM capabilities and routinely supports custom manufacturing for clients seeking tailored LED lighting solutions. This includes the production of hardwired LED under cabinet lighting with integrated or external transformers. The company can customize aspects such as light output (lumens), color temperature (2700K to 6500K), CRI (up to 95+), dimensions, housing materials, and driver specifications. The factory can accommodate both low-voltage (12V/24V DC) systems with external drivers and line-voltage (120V/230V AC) solutions, depending on application needs. Engineering support is available for mechanical, electrical, and optical design modifications to meet specific project or branding requirements.
Overall, the Jiangmen factory combines advanced manufacturing technology, rigorous quality testing, and flexible OEM services to deliver reliable, code-compliant LED under cabinet lighting solutions for residential, commercial, and hospitality applications.
Application Scenarios
Hardwired LED under cabinet lighting with an integrated or remote transformer is a professional solution ideal for commercial environments demanding clean aesthetics, reliability, and permanent installation. Its primary applications within hotels, malls, and offices focus on task lighting and ambiance enhancement where visible cords are unacceptable and continuous operation is required.
In hotels, this lighting is essential within guest room minibar cabinets and under integrated work desks to provide focused, shadow-free illumination for tasks without disrupting the room’s upscale aesthetic. Back-of-house areas like staff break rooms, pantry preparation zones, and small office cabinets benefit significantly from the durable, hardwired setup, ensuring consistent task lighting for employees while meeting strict commercial electrical safety standards. The absence of power adapters or visible cords is critical for maintaining the polished appearance expected in guest-facing and operational areas.
Malls utilize this system extensively within retail store display cases, under checkout counters, and along jewelry or electronics showcases where precise, glare-free product highlighting is paramount. Food court vendor stations rely on hardwired under cabinet lighting above preparation surfaces and service counters, as it withstands frequent cleaning and high usage while providing necessary task illumination in a moisture-prone environment. Service desks and information kiosks also employ this lighting to create a professional, well-lit customer interaction space without the clutter of power bricks.
Within offices, hardwired under cabinet lighting is standard under workstation credenzas and storage units to illuminate work surfaces without causing screen glare, directly improving employee comfort and productivity. Pantry cabinets and under-counter areas in break rooms use this solution for safe, functional lighting during food preparation and cleanup. Executive offices and high-end conference rooms incorporate it beneath credenzas or built-in cabinets to achieve a seamless, premium look that aligns with sophisticated interior design standards, eliminating any visual distraction from power supplies.

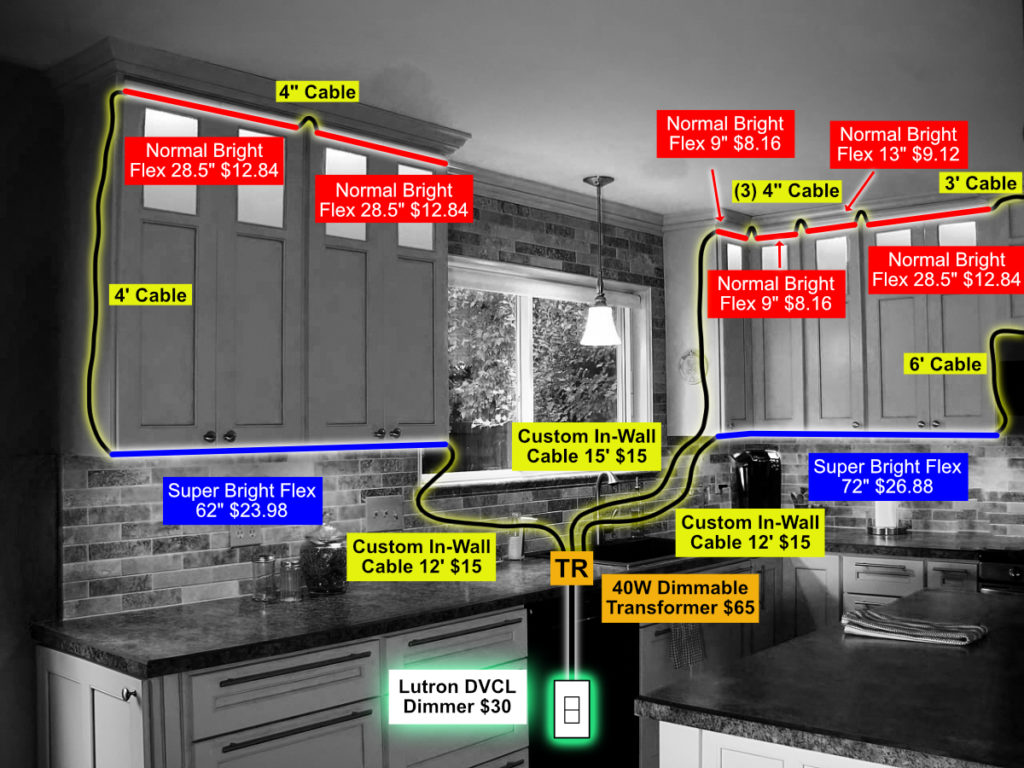

Installation requires strict adherence to safety and performance best practices. Always de-energize the circuit at the main panel and verify with a voltage tester before beginning work as the first critical step. Position the transformer in a permanently accessible location meeting local electrical codes, such as within a nearby ceiling plenum, junction box, or dedicated compartment, ensuring adequate ventilation to prevent overheating and avoiding direct contact with insulation materials. Maintain meticulous wire management by securing low-voltage wiring away from high-voltage lines to prevent interference and using appropriate strain relief where wires enter fixtures. Calculate voltage drop carefully for runs exceeding 15 feet, potentially requiring larger gauge wire or strategic transformer placement to maintain consistent light output along the entire run. In areas exposed to moisture like hotel kitchens or mall food courts, select fixtures and transformers rated for damp or wet locations and ensure all connections are sealed with dielectric grease or waterproof connectors. Conduct thorough operational testing before final mounting and securing of fixtures to verify correct function and alignment. Finally, clearly label all transformer locations and associated circuits to facilitate future maintenance and comply with electrical inspection requirements. Strict adherence to local electrical codes and manufacturer specifications is non-negotiable for safety and warranty validity.
Why Choose Beauty STC Lighting
Upgrade your lighting solutions by partnering with Beauty STC, a trusted leader in innovative LED lighting technology. We specialize in high-quality LED under cabinet lighting systems, including hardwired models with integrated transformers designed for seamless installation and reliable performance. Our products combine sleek design with superior efficiency, making them ideal for modern residential and commercial spaces.
Collaborate with us to access competitive pricing, custom engineering support, and consistent product quality backed by years of manufacturing expertise. Whether you’re a distributor, contractor, or brand looking for OEM/ODM solutions, Beauty STC is ready to support your needs.
For inquiries or to discuss a partnership, contact our sales manager at [email protected]. Let’s bring bright, energy-efficient lighting to your projects together.
