Industry Insight: Led Tape Light With Diffuser
The commercial and industrial lighting sector continues to demand solutions that seamlessly blend performance, aesthetics, and reliability, driving a significant shift towards advanced linear lighting systems. Among these, LED tape light with integrated diffuser technology has moved beyond niche applications to become a critical component for high-end architectural coves, under-cabinet task lighting in retail and hospitality, seamless signage illumination, and sophisticated industrial task lighting where visual comfort and uniformity are paramount. Unlike basic tape light, the diffuser effectively eliminates the distracting “dotting” effect and harsh glare inherent in exposed LEDs, delivering the smooth, homogeneous light output essential for professional environments. This is not merely an aesthetic upgrade; in workplaces and public spaces, it directly impacts occupant well-being, productivity, and the perceived quality of the space. Crucially, for any specification in these demanding settings, compliance with rigorous safety and performance standards like ETL and CE is non-negotiable, ensuring installations meet electrical safety codes and environmental regulations across North America and globally. Beauty STC Manufacturing Co., Ltd., established in 1998, has been at the forefront of this evolution. Leveraging over two and a half decades of specialized engineering expertise in flexible LED solutions, we understand the exacting requirements of commercial and industrial projects. Our focus has always been on developing robust, certified LED tape light systems with superior diffusion technology that deliver consistent, maintenance-friendly illumination while adhering strictly to the highest international safety benchmarks.
Technical Specs & Certifications
The LED tape light with diffuser offered by Beauty (STC) Manufacturing Co., Ltd. is engineered for high performance and reliability in both residential and commercial lighting applications. A key technical highlight is its exceptional luminous efficacy, typically delivering between 110 to 130 lumens per watt, depending on the specific bin and color temperature selected. This efficiency ensures optimal energy savings without compromising brightness, making it ideal for continuous or long-duration operation.
Color Rendering Index (CRI) is a critical performance metric where Beauty STC’s LED tape lights excel. These products consistently achieve a CRI greater than 90, with some variants reaching up to 95, ensuring accurate and vibrant color representation. This high CRI is especially beneficial in retail displays, hospitality environments, and architectural accent lighting, where true-to-life color rendition enhances visual appeal.
In terms of environmental protection, Beauty STC provides LED tape lights in multiple IP (Ingress Protection) ratings to suit diverse installation conditions. The standard non-encapsulated strip is rated IP20, suitable for dry indoor environments. For damp or outdoor applications, silicone-coated versions are available with IP65 rating, offering protection against dust and low-pressure water jets. Fully encapsulated tape lights with an IP67 rating are also offered, enabling safe use in wet locations and temporary submersion, such as in landscape lighting, cove lighting exposed to moisture, or under-counter kitchen installations.
Beauty STC maintains rigorous quality control throughout the manufacturing process, using high-grade SMD LEDs, precision-printed circuit boards, and durable phosphor coatings to ensure uniform light output and long-term reliability. The included diffuser—typically a high-transmission polycarbonate or PC cover—minimizes pixelation and creates a smooth, continuous glow, eliminating visible hotspots. All products undergo thermal and electrical stress testing to guarantee performance over extended lifespans, typically rated at L70 >50,000 hours. With adherence to international safety and environmental standards, Beauty STC’s LED tape lights reflect a commitment to quality, consistency, and innovation in modern LED lighting solutions.
Factory Tour: Manufacturing Excellence
Beauty STC’s Jiangmen factory serves as our primary manufacturing hub for advanced LED lighting products, including specialized solutions like LED tape lights with integrated diffusers. The facility is a modern, ISO 9001-certified operation designed for precision and scalability, featuring a controlled cleanroom environment essential for high-reliability electronics assembly.
Our SMT production lines are equipped with state-of-the-art Fuji NXT III and Yamaha YS series machines, enabling ultra-fine pitch component placement down to 0201 package sizes. These machines handle the critical assembly of flexible PCBs used in LED tape lights, with multiple placement heads ensuring high throughput while maintaining micron-level accuracy for consistent solder joint integrity. The process includes automated optical inspection (AOI) stations after solder paste application and post-reflow to detect defects before proceeding to downstream processes.
For LED tape lights with diffusers, aging tests are rigorously conducted under real-world operational conditions. Finished reels undergo 24 to 72 hours of continuous aging at elevated temperatures (typically 60°C to 85°C) while operating at rated voltage, simulating years of usage in accelerated time. This phase occurs both before and after diffuser application to verify thermal stability—ensuring the diffuser material does not degrade, discolor, or cause lumen depreciation due to heat buildup from the LEDs. Electrical parameters like forward voltage, current draw, and chromaticity are monitored throughout to eliminate early-failure units.
Our OEM capabilities for LED tape lights with diffusers are comprehensive and tailored to client specifications. We support full customization from initial design through to packaged goods, including thermal management optimization for high-density LED arrays, diffuser material selection (such as silicone or PVC with varying diffusion levels, CRI options from 80 to 98, and color temperatures from 2200K to 6500K), and mechanical form factor adjustments. Clients can specify cut lengths, connector types, adhesive backing, and reel packaging. The factory handles diffuser extrusion or lamination in-house, applying it via precision UV-curing or thermal bonding processes directly onto the LED tape to ensure uniform light distribution without hotspots. With dedicated R&D and engineering teams onsite, we provide prototyping, DFM feedback, and full documentation for seamless transition to mass production—capable of scaling to tens of thousands of meters daily while maintaining strict quality control per IEC 60598 standards.
Application Scenarios
LED tape light with diffuser is an excellent choice for architectural and ambient lighting in commercial environments such as hotels, malls, and offices due to its sleek appearance, uniform light distribution, and ability to blend seamlessly into various design elements. The diffuser helps eliminate visible dots from individual LEDs, providing a smooth, continuous glow that enhances aesthetics and comfort.

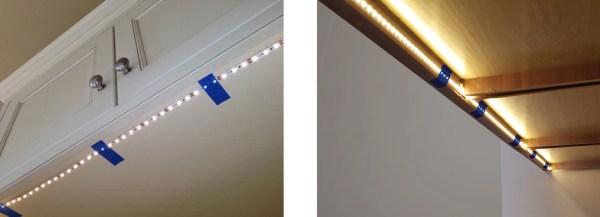

In hotels, LED tape lights with diffusers are commonly used in guest rooms to highlight headboards, under cabinets, or along cove ceilings for a soft, welcoming ambiance. They are also ideal for illuminating corridors, lobbies, and reception desks where a refined and modern lighting effect is desired. Backlighting mirrors in bathrooms or vanity areas adds both functionality and elegance.
In malls and retail spaces, these lights are frequently installed in coves, display shelves, product showcases, and signage to create visual interest and draw attention to key areas. The diffused light reduces glare and hotspots, making it perfect for accentuating merchandise without overwhelming shoppers. Concealed installations above suspended ceilings or along archways and columns contribute to a clean, upscale environment.
In office environments, LED tape lighting with diffusers supports both task and ambient lighting needs. It is often used under cabinets, in partition coves, or above drop ceilings to provide indirect illumination that reduces eye strain and creates an open, airy feel. Reception areas, meeting rooms, and executive offices benefit from the professional and contemporary look this lighting offers.

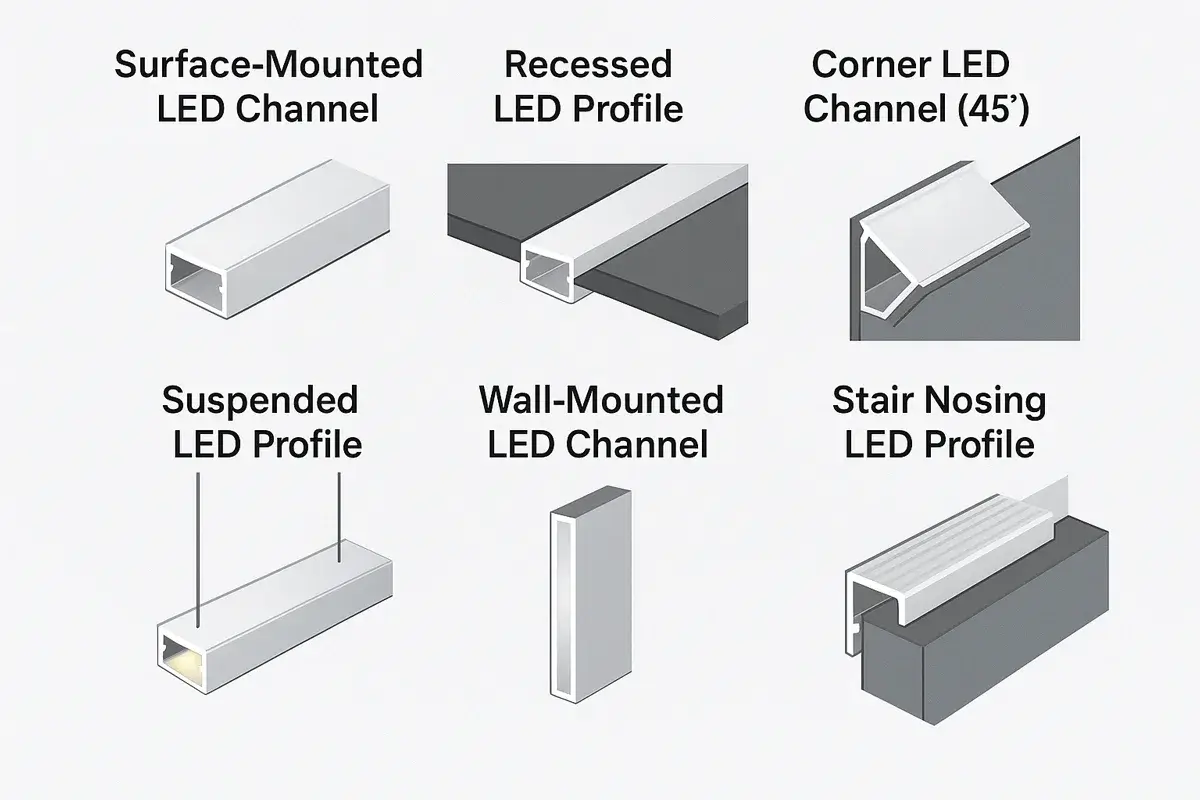

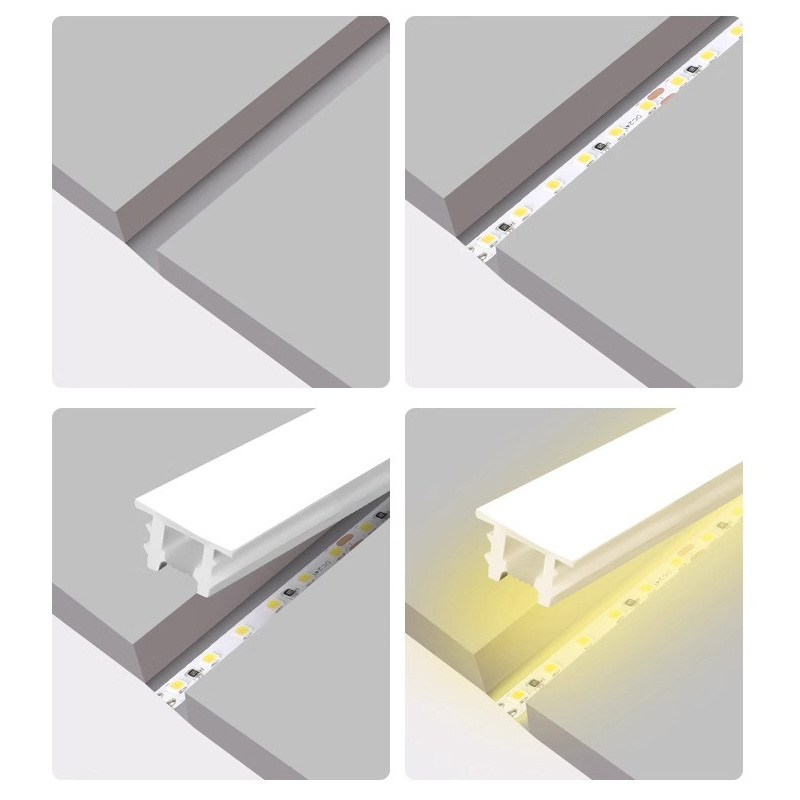

For successful installation, ensure the surface is clean, dry, and free of dust to promote strong adhesion of the tape light’s backing. Use aluminum channels whenever possible as they not only protect the tape but also improve heat dissipation, extending the lifespan of the LEDs. Align the diffuser carefully to avoid gaps or shadows, and choose the right color temperature—typically 3000K for warm, inviting spaces or 4000K for neutral, productive environments. Always follow manufacturer guidelines for maximum run lengths and power supply placement to prevent voltage drop. Finally, consider using dimmable drivers and controls to allow flexibility in lighting scenes and energy efficiency.
Why Choose Beauty STC Lighting
Elevate your lighting projects with Beauty STC’s premium LED tape light solutions, expertly engineered for seamless integration and superior optical performance. Our diffused LED tape lights eliminate visible hotspots and ensure uniform, glare-free illumination, making them ideal for architectural coves, cabinetry, signage, and high-end retail environments where precision matters. As a manufacturing partner, you gain access to rigorously tested products built with durable materials, flexible customization options, and consistent color rendering that meets global safety standards.
Partnering with Beauty STC means collaborating with a team that prioritizes reliability and innovation, backed by over two decades of specialized LED engineering expertise. We support your success through responsive technical guidance, scalable production capacity, and competitive pricing to strengthen your market position. Contact our dedicated partnership team today to discuss how our diffused LED tape lights can enhance your product offerings and client satisfaction. Reach out to Manager at [email protected] to initiate a conversation tailored to your business needs.
