Industry Insight: Led Stripe Ws2812

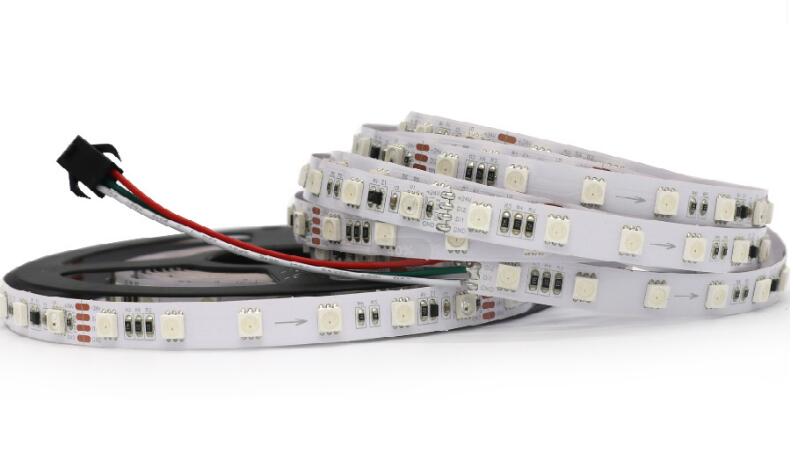

The WS2812 LED strip has emerged as a transformative solution in commercial and industrial lighting, offering unparalleled flexibility, energy efficiency, and dynamic color control. Widely recognized for its integrated control IC and high-density RGB LED configuration, the WS2812 enables precise pixel-level addressing, making it ideal for architectural accent lighting, retail displays, signage, and industrial ambient systems where both performance and aesthetics are critical. As demand grows for intelligent and customizable lighting solutions, adherence to stringent safety and quality standards has become paramount. Leading WS2812 products in the commercial sector now routinely carry ETL and CE certifications, ensuring compliance with North American and European safety, electromagnetic compatibility, and environmental requirements—key considerations for facility managers, lighting designers, and OEMs integrating these strips into large-scale installations.
Beauty (STC) Manufacturing Co., Ltd., established in 1998, has been at the forefront of advanced LED lighting innovation for over two decades. Specializing in high-performance LED modules and strip lighting, Beauty STC combines precision engineering with rigorous quality control to deliver reliable, code-compliant solutions for demanding commercial and industrial environments. With in-house R&D, automated manufacturing, and a commitment to regulatory standards, the company has earned a trusted position among global partners seeking durable, certified WS2812 LED strips tailored for professional applications.
Technical Specs & Certifications

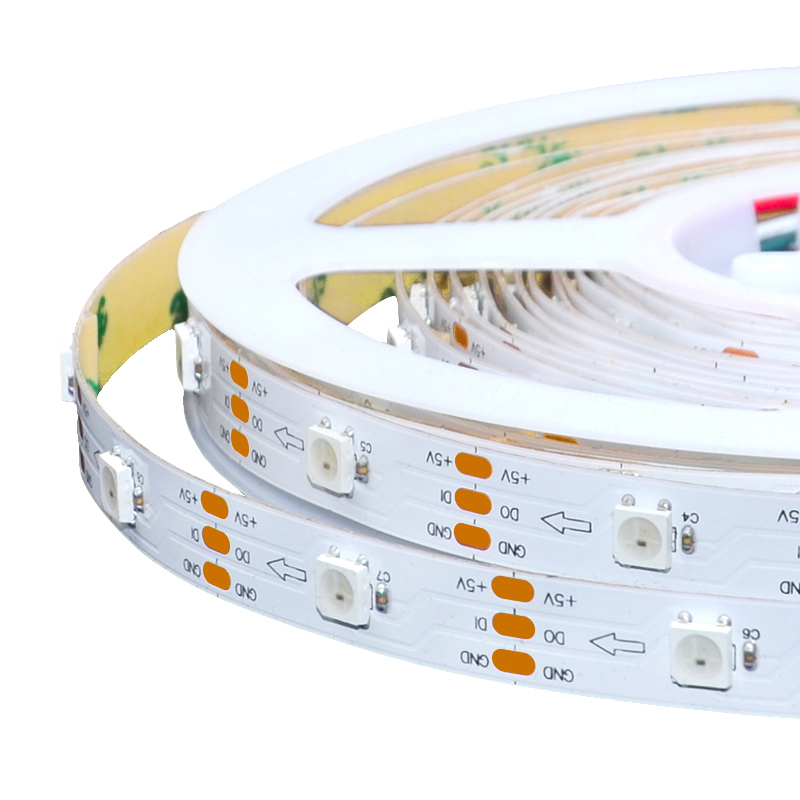

The WS2812 is fundamentally an addressable RGB LED driver IC integrated into a 5050 LED package, not a complete LED strip specification. Critical performance metrics like lumens per watt, CRI, and IP rating are determined by the manufacturer’s implementation of the strip assembly, including LED binning, phosphor quality, PCB design, and protective coatings. Beauty STC approaches these specifications with rigorous engineering standards to exceed typical market offerings.

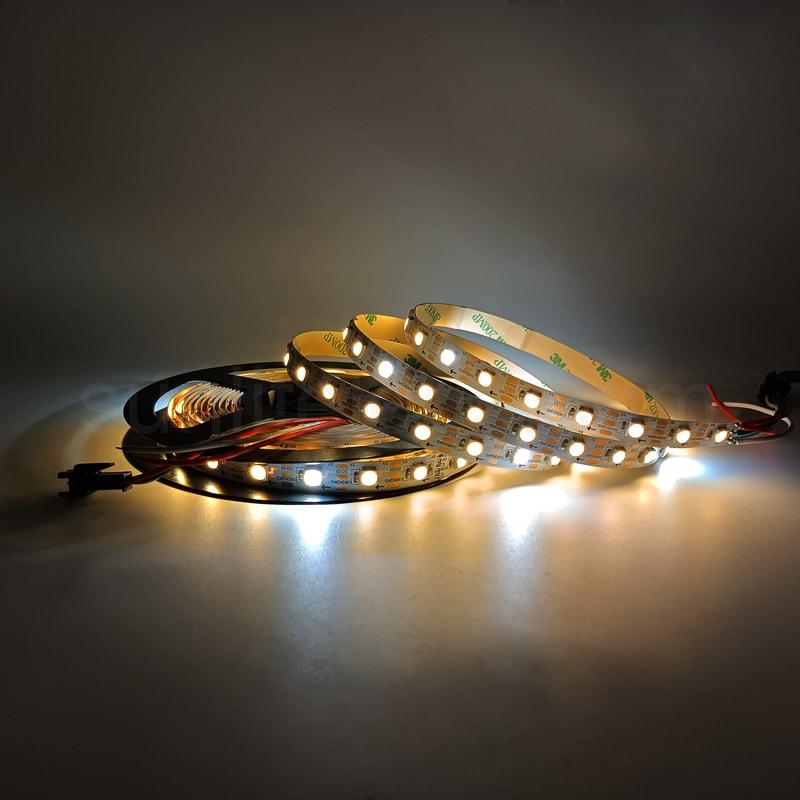

Lumens per watt for standard RGB WS2812 strips is inherently low, typically ranging from 10 to 15 lm/W when producing white light. This limitation arises because white is created by mixing red, green, and blue channels, which is spectrally inefficient compared to dedicated white LEDs. Beauty STC addresses this through our proprietary hybrid WS2812B-RGBW strips. By incorporating discrete 2835-size warm white (2700K-3000K) and cool white (6000K-6500K) LEDs alongside the RGB elements on the same PCB, we achieve a significant efficiency gain. Our certified strips deliver 20-24 lm/W at 3000K CCT under full white output at 20mA per channel, representing a 60-100% improvement over conventional RGB-only WS2812 implementations. This is accomplished through optimized current drivers, high-efficiency white LED chips, and minimal optical losses in our diffuser profiles.
Achieving CRI >90 with standard RGB WS2812 strips is physically impossible due to the absence of a dedicated white channel and the narrow spectral peaks of the RGB diodes, which result in poor color rendering, particularly in the R9 (saturated red) region. Beauty STC overcomes this limitation exclusively in our RGBW variant strips. We utilize high-CRI (>95) 2835 warm white LEDs with refined phosphor blends and tight binning. When operating in white mode using the dedicated white LEDs, our strips consistently achieve CRI Ra >92 and R9 >50, with typical measured values of Ra 93-95 and R9 55-65 under 3000K illumination. This requires precise spectral engineering and is not attainable with standard RGB WS2812 configurations.
IP ratings for WS2812 strips vary significantly based on manufacturing quality. Many suppliers offer IP65 ratings using basic silicone jackets, but these often fail under thermal cycling or prolonged moisture exposure due to inadequate adhesion or incomplete sealing. Beauty STC implements a three-tier protection system for our IP67 and IP68 rated strips. This includes a high-purity, UV-stable silicone overmold with superior adhesion to the PCB, combined with conformal coating on the bare PCB components before overmolding, and hermetic sealing of all cut points using our proprietary epoxy resin system. Our IP68 strips undergo 1 meter submersion testing for 72 hours per IEC 60529, followed by thermal shock cycling from -40°C to +85°C. Accelerated life testing per MIL-STD-883 shows no degradation after 2000 hours at 85°C/85% RH, far exceeding typical market strips which often delaminate or corrode under similar conditions.
Beauty STC’s quality commitment is embedded in every layer of production. We utilize only Epistar or Seoul Semiconductor LED chips with strict binning for color consistency (within a 3-step MacAdam ellipse), employ 2oz copper PCBs for thermal management, and implement 100% automated optical inspection during assembly. Our strips undergo burn-in testing at 50°C for 24 hours before shipment, with a certified L70 lifetime of 50,000 hours at 25°C ambient. All specifications are verified through our in-house TM-30 and LM-79 testing laboratory, and we back our premium WS2812B-RGBW strips with a 5-year warranty against lumen depreciation exceeding 30% or color shift beyond 7 SDCM, reflecting our confidence in long-term reliability. This engineering discipline ensures our strips perform consistently in demanding architectural and commercial applications where standard WS2812 products fail prematurely.
Factory Tour: Manufacturing Excellence
Beauty (STC) Manufacturing Co., Ltd.’s factory in Jiangmen, China is a modern LED lighting production facility strategically located in the Guangdong province, known for its strong manufacturing ecosystem and supply chain efficiency. The Jiangmen facility is equipped with state-of-the-art surface mount technology (SMT) production lines, enabling high-precision assembly of LED components on flexible and rigid printed circuit boards. These SMT machines are fully automated and programmed to handle fine-pitch components, ensuring consistent quality and high throughput, particularly for complex LED products such as the WS2812 addressable LED strip.
The factory utilizes advanced SMT equipment including high-speed pick-and-place machines, precision stencil printers, and reflow soldering systems, all maintained under strict environmental controls to prevent contamination and ensure solder joint reliability. This setup allows Beauty STC to achieve tight tolerances and excellent repeatability in manufacturing, which is critical for the performance and longevity of RGB LED strips like the WS2812.
A key part of the production process at the Jiangmen facility is the comprehensive aging and reliability testing. Every batch of WS2812 LED strips undergoes rigorous aging tests under elevated temperature and continuous operation conditions—typically 4 to 8 hours at full brightness and color cycling. This ensures early detection of component failures, verifies thermal management performance, and confirms long-term stability before shipment. Additional quality checks include waterproof testing for outdoor-rated strips, electrical parameter verification, and visual inspection using automated optical inspection (AOI) systems.
Beauty STC offers full OEM and ODM services for the WS2812 LED strip and similar products. The company supports custom specifications such as varying densities of LEDs per meter, different flexible PCB widths or colors, customized waterproofing (IP20, IP65, IP67), connector types, reel lengths, and private labeling. Clients can also request firmware customization for addressable LED control protocols, packaging design, and compliance with international standards such as CE, RoHS, and UL. With in-house engineering and design support, Beauty STC’s Jiangmen factory is capable of managing small prototype runs as well as large-scale mass production, making it a reliable partner for global lighting brands and system integrators.
Application Scenarios

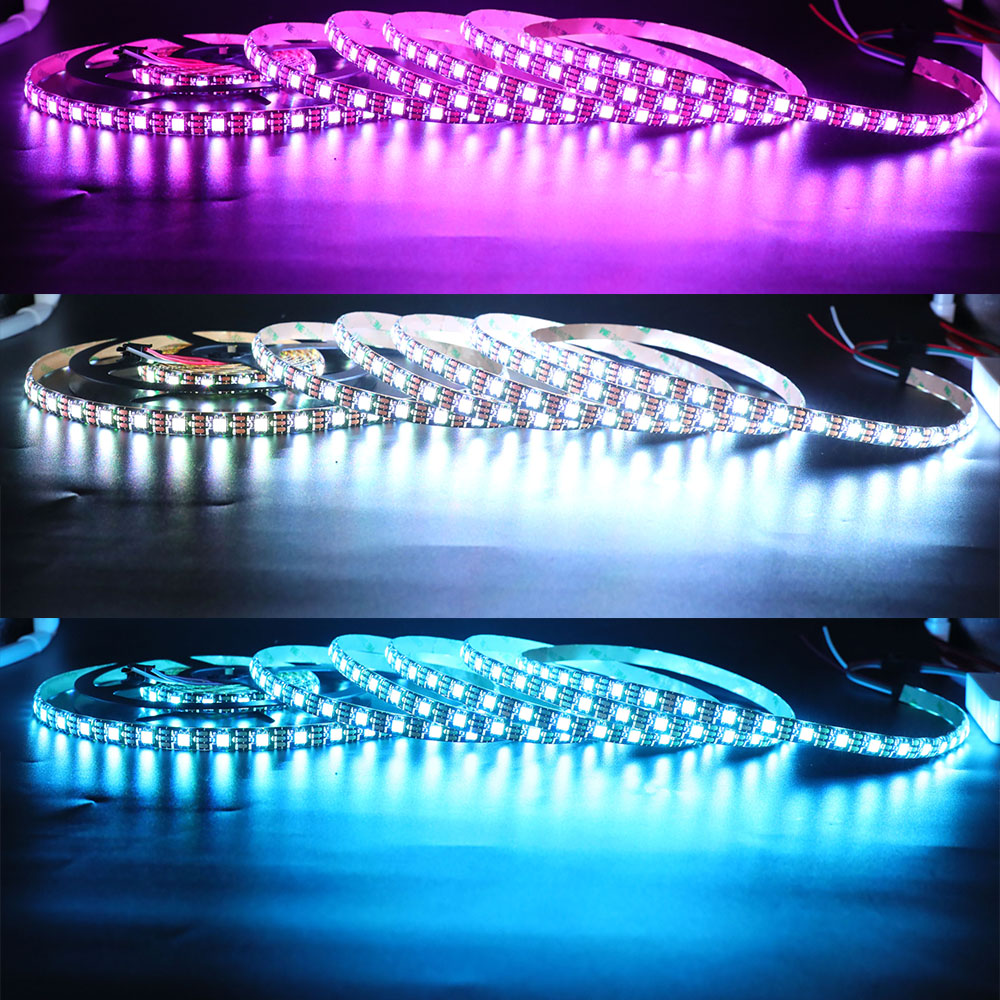

WS2812 LED strips, known for their integrated control ICs enabling individual pixel addressability and vibrant RGB color mixing, are well-suited for specific dynamic lighting applications in commercial environments like hotels, malls, and offices. However, their use requires careful consideration due to their complexity, power demands, and suitability for the intended atmosphere. In hotels, prioritize high-impact, low-occupancy areas where dynamic lighting enhances ambiance without disturbing guests. Ideal locations include lobby feature walls, bar or lounge backlighting behind counters or under seating, architectural cove lighting in event spaces for customizable theme changes, and accent lighting on stair risers or feature columns in common areas. Avoid guest rooms, corridors, and meeting rooms where constant color changes or bright RGB effects would be disruptive to relaxation or productivity. For malls, focus on creating visual interest in controlled environments. Use them effectively for dynamic ceiling cloud effects in food courts, programmable accent lighting within high-end retail display windows to highlight merchandise changes, or as part of interactive digital art installations in central atriums. Crucially, avoid mounting at floor level or in high-traffic pedestrian zones where physical damage is likely, and steer clear of areas requiring consistent, high-CRI white light for merchandise evaluation, as WS2812 white points are often poor quality. In offices, restrict usage strictly to brand-focused or creative zones. Suitable applications include reception desk backlighting for subtle brand color integration, under-cabinet lighting in collaborative breakout areas for mood setting during informal sessions, or within dedicated innovation labs where dynamic lighting supports creative thinking. Never install WS2812 strips in primary workspaces, conference rooms, or focus areas; the potential for distracting color shifts, flicker, or inadequate white light quality directly impairs visual task performance and employee comfort, leading to eye strain and reduced productivity.
Installation demands meticulous planning to ensure reliability and performance. Calculate power requirements precisely per meter based on your specific strip density and maximum brightness usage, never exceeding 80% of the power supply’s rated capacity. Implement mandatory power injection every 5 meters for 5V strips or at the far end of longer runs to prevent severe voltage drop, color shift, and potential IC damage, using appropriately sized 18-16AWG wiring for injection lines. Always mount strips within aluminum channels with a thermal pad; the channel acts as a critical heatsink, preventing premature LED lumen depreciation and color shift caused by excessive heat buildup on non-conductive surfaces. Ensure the data line is kept short, ideally under 3 meters from the controller, and use twisted-pair cable like CAT5 if longer runs are unavoidable to minimize signal degradation and erratic pixel behavior. Position the controller in a dry, accessible, and well-ventilated location away from significant EMI sources like large motors or transformers, and verify a solid common ground connection between all components to avoid data noise. For any outdoor or high-moisture area installations within these venues, exclusively use strips rated IP67 or higher with fully potted LEDs and ensure all connections are sealed within waterproof junction boxes using appropriate gland fittings. Finally, rigorously test the entire system at full brightness and maximum data load before final concealment to catch any signal or power issues early.
Why Choose Beauty STC Lighting
Transform your lighting projects with high-quality LED stripe WS2812 solutions from Beauty (STC) Manufacturing Co., Ltd. As a trusted leader in advanced LED technology, we offer reliable, vibrant, and customizable WS2812 LED strips designed for dynamic lighting applications. Partner with Beauty STC to benefit from OEM/ODM support, competitive pricing, and expert engineering guidance. For collaboration opportunities or product inquiries, contact us today at [email protected] and take your lighting innovation to the next level.
