Industry Insight: Led Stairs Strip Lights

H2 LED Stair Strip Lights: From After-Thought to Code-Critical Component

H3 Why the Railing is Now a Luminaire

In modern commercial builds the stairway is no longer lit by a ceiling troffer twenty steps away; it is the hand-rail, the nosing, or the stringer itself that is expected to deliver 50–100 lx on the tread while meeting IBC §1008, NFPA 101 and local 0–10 V emergency dimming protocols.
Architects want a 1–2 mm sight-line, contractors want a plug-and-play harness, and facility managers want a 50 000 h L70 that will not trigger a call-back.
That is why the LED stair strip has migrated from “decorative option” to “code-listed safety device” and why the importer’s first filter is no longer price-per-metre but “Does it carry the mark?”

H3 Certification ≠ Paperwork—It Is Your Risk Mitigation

A stair strip that is trodden on, bent around a 50 mm radius, and potted in polyurethane must still pass:
UL 2108 / CSA C22.2 #250.0 (low-voltage lighting systems)
IEC/EN 60598-2-20 (chain/rope lights)
IEC 61347-2-13 (LED control gear)
EN 62031:2014 + A1:2020 (LED modules)
60 °C, 75 °C, 90 °C conductor temperature limits

A reel that cannot produce the above on demand is automatically rejected by EU notified bodies and by North-American AHJs.
The cost of a single job-site red-tag (removed railing, re-inspection, crane re-hire) routinely exceeds the entire purchase price of the LED strip.
Conclusion: ETL / TUV CE is not marketing—it is insurance.

---

H2 Beauty (STC) Manufacturing—Industrial-Grade Strips Since 1998

Corporate Snapshot	Data
Plant founded	1998, Jiangmen, Guangdong
ISO status	ISO 9001:2015 & ISO 14001:2015
Certifications held	ETL/cETL (UL 2108), TUV CE, RoHS, REACH, SAA, RCM
Production lines	8 SMT lines (Yamaha & Juki), 3 silicone-extrusion lines, 2 PU vacuum-potting lines
Monthly capacity	1.2 million metres flexible strip, 60 000 pcs aluminium channels
Export footprint	50+ countries, >600 OEM SKUs in service

H3 What “Veteran” Means Technically

25 years of thermal data: we publish de-rating tables at 25 °C, 40 °C, 55 °C ambient—no extrapolation.
In-house spectroradiometer and 2 m integrating sphere; every batch LM-80 report available for 3000 K, 4000 K, 6500 K.
UL recognised insulation system (Class B, 130 °C) so the strip can be embedded in wood or metal without additional spacing.
Patent CN2135169U: strain-relief end-cap for 6 mm-thick stair profiles—eliminates solder-joint fatigue on vibrating steel staircases.

H3 OEM/ODM Capability—No MOQ on Engineered Versions

PCB width 4 mm – 25 mm, copper weight 1 – 4 oz, single-colour, CCT-tunable, DMX, DALI, CASAMBI.
Silicone colour matched to RAL within ΔE ≤ 1.0 for discrete railing integration.
Pre-terminated 18 AWG Teflon leads, IP67/IP68/IP69K on request.
Laser-etched part number & date code every 0.5 m for traceability in litigation-sensitive projects.

---

H2 Spec Summary – Standard Commercial Stair Strip (ETL File E510884)

Parameter	12 VDC	24 VDC
LED type	2835, 120 LED/m, 3-step MacAdam bin
Power / m	9.6 W	14.4 W
Nominal flux / m	1200 lm	1800 lm
Efficacy	125 lm/W @ 4000 K, Tj = 65 °C
CRI	Ra ≥ 90 optional, R9 > 50
Cuttable pitch	25 mm (every 3 LED)	50 mm (every 6 LED)
Min bend radius	30 mm (silicone sleeve)
Operating temp	–40 °C to +60 °C
Lifetime (L70, Ta = 45 °C)	54 000 h per TM-21
IP rating	IP65 as stock, IP67 with co-extruded gasket
Flame class	UL 94 V-0 silicone, IEC 60332-1-2 vertical burn
Cable	0.75 mm² (18 AWG) 300 V, 105 °C, VW-1
Compliance mark	ETL/cETL, CE, RoHS, REACH, SAA

---

H2 Take-away for Distributors, Contractors & Specifiers

1. Specify the mark first, lumens second—an un-listed strip invalidates the entire staircase inspection.
2. Ask for the UL/CCA file number and the TUV CE report annex—Beauty STC issues both within 2 h.
3. Use a supplier whose end-cap and strain-relief is tooled for stair loading, not living-room coves.
4. Lock in 24 V for runs > 4 m to keep conductor losses < 5 % without doubling copper weight.
5. Request LM-80 and TM-21 data at the actual case temperature (usually 55–60 °C inside an aluminium hand-rail in Dubai).

For project quotations, test samples or OEM drawings, contact:
[email protected] | +86-13902885704

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards for LED Stair Lighting Systems

As a manufacturer with over 25 years of experience in LED lighting solutions, Beauty STC Lighting adheres to stringent technical standards to ensure reliability and safety in commercial stair applications. Our products are engineered to meet the exacting demands of global distributors, contractors, and architects, with a focus on performance metrics that exceed industry benchmarks.

Core Performance Metrics for Commercial Applications

Luminous efficacy (lumens per watt), color rendering index (CRI), ingress protection (IP) ratings, and PCB construction are critical parameters for stair lighting systems. These factors directly impact installation longevity, energy efficiency, and compliance with international safety standards.
Lumens per Watt: Beauty STC stair lighting systems utilize high-efficiency LED chips and optimized thermal management to achieve 120–140 lumens per watt. This performance level significantly surpasses generic alternatives, which typically deliver 80–100 lm/W. Higher efficacy translates to reduced operational costs without compromising illumination quality.
Color Rendering Index (CRI): All products maintain CRI values exceeding 90 (typically Ra 95+), ensuring accurate color representation in stairwell environments. This is essential for safety and aesthetic applications, whereas generic solutions often employ LEDs with CRI values of 80–85, leading to distorted color perception and reduced visual clarity.
IP Ratings: Each system is certified to IP65 or higher per IEC 60529 standards, with rigorous testing for dust ingress and water resistance (10-minute spray test at 6.3L/min). Generic products frequently advertise unverified IP ratings or offer only IP20 for indoor use, resulting in premature failure in wet or dusty conditions.

PCB Design & Manufacturing Rigor

Beauty STC employs 1.0mm+ thick FR-4 PCBs with 2oz copper weight for superior thermal dissipation and mechanical stability. Every PCB undergoes automated optical inspection (AOI) and thermal imaging during production to ensure uniform soldering and minimal voltage drop across runs exceeding 10 meters. In contrast, generic manufacturers commonly use 0.5mm PCBs with 1oz copper, causing hotspots and inconsistent brightness over extended installations.

Certified Compliance for Global Markets

All LED stair lighting products are certified by ETL (USA/Canada) and TUV CE (Europe), complying with IEC 60598 and UL 1598 standards. This includes flame resistance testing (UL 94 V-0), electrical safety checks, and accelerated lifetime testing. Generic solutions often lack third-party certifications, creating compliance risks in Western markets and potential liability for end-users.

Consistency Through Rigorous Quality Control

Beauty STC’s vertically integrated manufacturing process ensures batch-to-batch consistency through:
100% L70 testing for lumen maintenance
Thermal profiling at 60°C ambient conditions
Automated binning of LED chips by color temperature (ΔE < 3)
ISO 9001-aligned quality management systems

This commitment to precision engineering allows us to deliver OEM/ODM solutions that meet exact project specifications without compromising certification standards.

Feature	Generic Market Quality	Beauty STC Certified Quality
Luminous Efficacy	80–100 lm/W	120–140 lm/W
CRI (Ra)	80–85	>90 (typically 95+)
IP Rating	IP20 (indoor) or uncertified IP65	IP65/IP67 certified (IEC 60529)
PCB Specifications	0.5mm FR-4, 1oz copper	1.0mm+ FR-4, 2oz copper
Safety Certifications	Often self-certified or missing	ETL Listed, TUV CE (EN 60598)

With a manufacturing heritage dating to 1998, Beauty STC Lighting provides global distributors and contractors with technically verified LED solutions that prioritize safety, efficiency, and long-term reliability. For project-specific technical documentation or OEM customization inquiries, contact us at [email protected] or +86 13902885704.

---

Factory Tour: Manufacturing Excellence

Manufacturing Process & OEM Services

Beauty (STC) Manufacturing Co., Ltd. – Jiangmen, Guangdong

1. Factory Footprint & Legacy

Item	Data
Plant location	41 Caihong Rd., Jianghai High-tech Zone, Jiangmen, CN
Built-up area	18 000 m² (two bonded warehouses + R&D annexe)
Since	1998 – 25 consecutive years ISO-9001 audited
Export markets served	50+ countries with ETL/cETL & TUV CE files on file

We retain in-house control of extrusion, SMT, silicone extrusion, and packaging under one roof—no subcontracting of critical steps.

2. SMT & LED Mounting Line

Line	Equipment Qty	Capability
Yamaha/ASM high-speed mounters	6 lines (12 heads each)	0805 LED to 0.5 mm pitch IC, 120 000 cph
Solder-jet printer	DEK Horizon 03iX	±12 µm repeatability
10-zone convection reflow	Heller 1912 MK7	240 °C peak, N₂ option for lead-free
SPI & AOI	Koh Young & Mirtec	3-D paste & component placement check

Every strip reel is 100 % AOI-scanned; defect data is logged by bar-code for traceability to die lot.

3. IP-Rated Encapsulation

Extruded PU / silicone co-extrusion line – 30 m oven, 4 MPa vacuum
Secondary IP68 over-moulding for stair tread kits (cable entry & end-cap)
UV-stable PU formulation passes 1 000 h Q-UVB ΔE < 3 (ASTM G154)

4. Aging & Reliability Protocol

Test	Specification	Duration	Pass Criteria
On-line burn-in	24 V rated, 45 °C ambient	8 h	0 % dead LED
Switch cycle	30 s on / 30 s off	1 000 cycles	L70 ≥ 90 %
Thermal shock	–40 °C↔+85 °C	100 cycles	No solder crack
Salt mist	5 % NaCl, 35 °C	48 h	No corrosion > 5 % area

ETL & CE witness-test reports are updated annually; files are available for distributor due-diligence packages.

5. QC Documentation Flow

Incoming IQC → SMT AOI → Encapsulation IPQC → 100 % hi-pot 1 500 V DC → FQC (lumen, CCT, CRI) → OQC (drop, carton burst).
All test records archived ≥ 10 years for project callbacks.

6. OEM / ODM Capability Matrix

Customisable Feature	Factory Option	MOQ	Lead-Time
Length per reel	100 mm – 50 m cut	500 m	10 days
CCT binning	1800 K – 6500 K, 2-step MacAdam	100 m	7 days
PCB width	5 mm – 28 mm, 1 – 4 oz Cu	300 m	8 days
LED pitch	5 mm – 100 mm	300 m	8 days
CRI	Ra 80 / 90 / 95	100 m	5 days
Operating voltage	12 V, 24 V, 36 V, 48 V constant-voltage	500 m	7 days
IP rating	IP20, IP54, IP65, IP67, IP68	200 m	10 days
Jacket colour	clear, frosted, black, silver, custom RAL	500 m	10 days
Cable exit	left, right, centre, flying leads, IP68 quick-fit	200 pcs	12 days
Packaging	anti-static reel, blister, colour sleeve, retail box	100 units	7 days
Laser logo & part-no.	every 0.5 m on FPC	300 m	5 days

Engineering support:
IES, LDT, .dwg, .rfa files within 24 h
DIALux & Relux stair-scene calculation on request
Patent-check (appearance + utility) before tooling

7. Typical Lead-Times (ex-works Jiangmen)

Order Size	Standard Spec	Custom Spec
< 1 000 m	5 days	10 days
1 – 5 km	10 days	15 days
> 5 km	15 days	20 days

Samples from existing ETL-listed configuration ship in 48 hours; custom prototypes 7 days.

For project quotations or technical files, contact:
[email protected] | +86-13902885704

---

Installation & Application Scenarios

Application Scenarios for LED Stair Strip Lights

LED stair strip lights are engineered for both functional safety and architectural integration across diverse commercial and public spaces. Their low-profile design, energy efficiency, and customizable configurations make them ideal for environments requiring precise illumination without visual disruption. This section outlines key application scenarios and installation best practices for professional contractors and project managers.

Technical Specifications Overview

Parameter	Specification	Notes
Power Density	8–12W/m	Configurable per project requirements
Luminous Flux	1000–1600 lm/m	Varies by color temperature
IP Rating	IP20 (Indoor), IP65 (Outdoor)	Custom options available
Color Temperature	2700K–6500K	Tunable white options
CRI (Ra)	≥90	Critical for accurate color rendering
Cutting Interval	100mm (12V), 200mm (24V)	Must cut at marked points
Certifications	ETL, TUV CE	Compliant with North American and European standards

Commercial Hospitality

In hotels and resorts, stair lighting must balance safety compliance with aesthetic integration. ETL-certified LED strips provide uniform illumination on treads and risers, reducing trip hazards while maintaining a low-profile appearance. IP65-rated options are essential for exterior applications such as poolside staircases, ensuring moisture resistance and long-term reliability. Custom color temperatures (e.g., 3000K for warm hospitality environments) can be tailored to match interior design schemes without compromising performance. Over 25 years of manufacturing expertise ensures consistent quality for high-traffic hospitality projects globally.

Retail & High-Traffic Environments

Shopping malls and airports demand durable, high-output lighting solutions that withstand constant foot traffic. LED stair strips with ≥90 CRI ensure accurate color rendering for retail displays and wayfinding signage. The 25+ years of manufacturing expertise behind these products guarantees consistent performance in high-cycle environments, with ETL and CE certifications verifying compliance with international safety standards for commercial installations. Adjustable power density (8–12W/m) allows for optimized brightness in high-ceiling retail spaces while minimizing energy consumption.

Office & Corporate Spaces

Corporate environments prioritize energy efficiency and minimal maintenance. LED stair strips with 4000K color temperature provide crisp, task-oriented lighting for office staircases, while low power density (8–10W/m) reduces operational costs. The IP20 rating suits indoor installations, and OEM capabilities allow for custom lengths to fit unique staircase geometries without visible joints. All products undergo rigorous testing per TUV CE and ETL standards to ensure compliance with NEC and IEC electrical codes for commercial office buildings.

Exterior & Architectural Facades

Building facades and public staircases require robust solutions for exposure to weather elements. UV-stabilized silicone encapsulation and IP65 ratings protect against rain, snow, and UV degradation. ETL-certified products meet North American electrical codes for outdoor use, while customizable mounting brackets and color options ensure seamless integration into architectural designs. Beauty STC Lighting’s factory-direct manufacturing process guarantees consistent material quality for international infrastructure projects, with certifications validated for compliance across 50+ export markets.

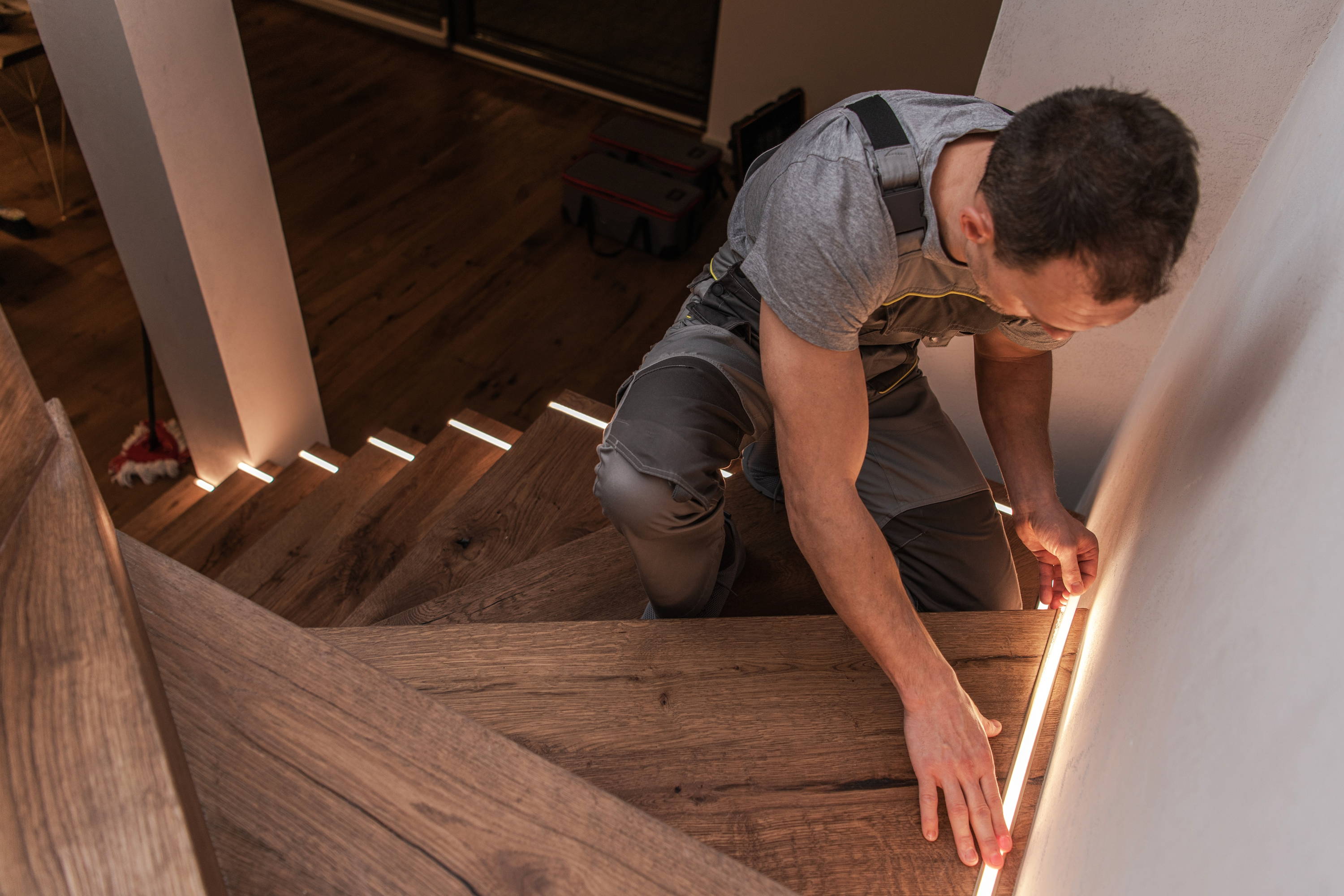

Installation Best Practices for Contractors

Mounting & Protection

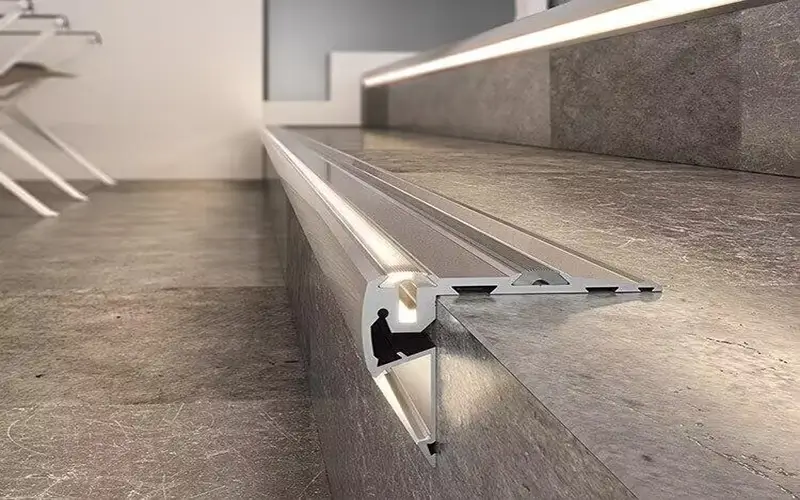

Aluminum channels are critical for heat dissipation and physical protection. For indoor installations, use 10mm or 15mm channels with diffusers to spread light evenly. Outdoor applications require IP68-rated channels with silicone gaskets to prevent water ingress. Always secure channels with mounting clips spaced every 300mm to prevent sagging. For stair treads, position strips flush with the surface using adhesive-backed channels to avoid trip hazards.

Electrical Considerations

Voltage drop is a common issue in longer runs. For 12V systems, limit runs to 5 meters; for 24V, up to 10 meters. Use a power supply rated at 1.2x the total load wattage to avoid overloading. Ensure all connections are soldered and insulated, with waterproof junction boxes for outdoor setups. Compliance with NEC Article 411 is mandatory for low-voltage lighting systems. Always verify local electrical codes prior to installation.

Customization & Compliance

Beauty STC Lighting’s OEM capabilities support project-specific requirements, including custom strip lengths, connector types, and color temperatures. All products undergo rigorous testing per ETL and TUV CE standards, ensuring compliance with regional regulations. Contractors are advised to specify exact project details during the quoting phase to leverage our manufacturing expertise for seamless integration. For international projects, request documentation confirming compliance with local standards (e.g., UL 1598 for US projects, EN 60598 for EU installations).

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting – Factory-Direct LED Stair Strip Solutions

25 Years of Industrial-Grade Manufacturing

Since 1998, Beauty (STC) Manufacturing Co., Ltd has operated a 32,000 m² vertically-integrated plant in Jiangmen, Guangdong, producing UL/TUV-listed LED components for rail, tread, and riser applications. Our ISO 9001-controlled SMT, extrusion, and burn-in lines deliver >1 million linear metres of certified strip every month to 50+ countries.

Factory Credentials	Detail
Established	1998
Production Floor	32,000 m²
SMT Lines	12 high-speed
Monthly Capacity	1.2 million linear metres
QA System	ISO 9001:2015, 100 % hi-pot & 24 h aging

Western-Market Certifications – Ready for Specification

Every stair strip is supplied with full test documentation for immediate submittal to AHJs, specifiers, and end-clients.

Certification	Scope	File Prefix
ETL/cETL	UL 2108 / CSA C22.2#9	STC-ETL-SS-
TUV CE	EN 60598-2-21, EN 62031	STC-CE-SS-
RoHS / REACH	EU 2015/863 & SVHC	STC-RH-SS-
SAA (pending)	IEC 60598-2-21	—

OEM/ODM Capability – From Concept to Container

1. Optical Engineering – CCT 2200–6500 K, CRI 80/90/95, dot-free optics < 5 mm pitch.
2. Mechanical – Anodised 6063-T5 stair channels, IP20-IP68, IK08 tempered covers.
3. Electrical – Constant-current or CV, 12 V / 24 V / 36 V / 48 V, 0-10 V, DALI, DMX, Tunable White.
4. Assembly – Pre-wired whip lengths, IP68 pigtails, plug-and-play distribution boxes.

Typical Stair Strip Build	Standard Option	Project-Specific
LED Type	2835, 120 LED/m	2216, 560 LED/m
Power	14.4 W/m	4–28 W/m
Voltage	24 VDC	12–48 VDC
IP Rating	IP65 silicone sleeve	IP68 PU extrusion
Color	3000 K, 80 CRI	1800–6500 K, 95 CRI
Length/Reel	5 m	10–50 m, field-cuttable

Global Logistics & Compliance Support

Incoterms: FOB Shenzhen, CIF, DDP (EU & US).
Lead Time: 3 weeks standard, 7 days fast-track for repeat OEM.
Export Docs: CO, Form A, ETL/TUV data sheets, LM-80/TM-21 reports.
Palletisation: 1.2 m Euro or 40″×48″ US, corner-board & stretch wrap, Max 1 t per pallet.

Next Step – Send Your Specification

E-mail the project schedule, section number, and target landed cost to our export team. We return a certified submittal package within 24 h.

Contact: [email protected]
Mobile/WhatsApp: +86-139-0288-5704
Factory: 41 Caihong Rd., Jianghai High-tech Zone, Jiangmen, Guangdong, CN

Beauty STC Lighting – Engineering LED stair illumination for 25 years, delivered responsibly to 50+ countries.

---
