Industry Insight: Led Light Rooms
LED Light Rooms: Why Certified, Factory-Direct Hardware Is Now a Specification—Not an Option
From “Ambient Feature” to Critical Infrastructure
“LED light rooms” are no longer decorative add-ons in hotels, hospitals, cleanrooms, or grow-facilities; they are revenue-critical environments where lux levels, spectral stability, and 24 h reliability translate directly into operational uptime, crop yield, or patient safety. Importers who treat the category as commodity strip kits are discovering that the real cost is in field failures, re-lamping lifts, and certificate re-testing once customs flags a non-compliant driver.
The Compliance Sieve: ETL vs. “CE-Self-Declaration”
North-American insurers and European LVD inspectors are tightening market surveillance. A product that lands without a traceable, file-numbered ETL or TUV CE report risks:
| Risk Vector | Typical Cost | Lead-Time Impact |
|---|---|---|
| Port detention & re-testing | US $8–12 k | 4–6 weeks |
| Re-labeling on site | US $1.5 k per pallet | 1 week |
| Insurance voidance | Full replacement value | Project delay fines |
Beauty STC Lighting has held ETL (UL 1598/8750) and TUV CE (EN 60598-2-2, EN 62031) files since 2006—each component strip, panel, or UFO high-bay is pre-listed under our factory ID, eliminating importer liability.
Factory Pedigree: 25 Years of Continuous Production
Established 1998, our 38 000 m² Jijiangmen campus runs six SMT lines, an in-house EMC chamber, and 16 h burn-in ovens. That timeline matters:
1998 – first DIP LED strip for European signage OEMs
2006 – ETL file opened; same year we supplied Amerlux-compatible panel troffers
2012 – EN 62471 photobiological safety added for horticulture channel
2020 – 1.2 mm² CRI 95 flex strip validated for museum “light rooms”
2023 – cumulative 28.4 M m of strip shipped, field failure <0.2 % per ANSI B1.1 sampling
OEM/ODM Architecture: Strip-to-System in 30 Days
Our vertical integration lets distributors configure a complete LED light room kit—strips, panels, drivers, DALI or 0-10 V modules—under one certificate tree. Typical program:
| Task | Beauty STC Lead-Time | Customer Input |
|---|---|---|
| Spectral & mechanical spec freeze | Day 0 | Lux target, CCT, IP grade |
| LM-79/TM-21 re-test (if CRI >90) | Day 7 | — |
| Tooling cut (extrusion or PCB) | Day 10 | Logo silk-screen |
| First article + ETL/TUV witness | Day 15 | On-site or livestream |
| Mass production + burn-in | Day 25 | Forwarder booking |
| Ship EXW Jiangmen | Day 30 | — |
Bottom Line
When the room itself is the product—cleanroom, tunable-white classroom, or UV-C disinfection chamber—certified hardware is the lowest total cost. Beauty STC Lighting delivers 25 years of uninterrupted, file-numbered compliance and factory-direct economics.
Next Section: Component Deep-Dive – Matching Flex Strips, Panels, and High-Bays to Room Metrics.
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards
Key Technical Metrics & Industry Benchmarks
Commercial lighting performance hinges on precise technical parameters. Generic market products often prioritize cost over consistency, leading to inconsistent real-world performance. Beauty STC Lighting’s specifications are engineered for reliability, validated by third-party certifications, and optimized for demanding commercial environments.
| Metric | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Lumens/Watt (Efficacy) | Typically 70–100 lm/W; inconsistent performance across batches | 120–145+ lm/W; LM-79 tested per IESNA standards for verified efficiency |
| CRI (Color Rendering Index) | Often CRI 80±5; limited color accuracy for critical applications | >90 CRI (Ra), binning to ±2 Δuv for consistent color temperature and fidelity |
| IP Rating Compliance | Variable; frequently mislabeled or unverified for harsh environments | Certified IP65/IP67 for outdoor use; rigorously tested to IEC 60529 standards |
| PCB Construction | 1oz copper, standard FR-4 (Tg 130°C); prone to thermal degradation | 2oz copper, high-Tg FR-4 (170°C+), UL 94 V-0 rated for fire safety and thermal stability |
Rigorous Quality Assurance for Global Compliance
Beauty STC Lighting’s 25+ years of manufacturing expertise (established 1998) underpins a quality system designed for global commercial projects. Every product undergoes:
Automated Optical Inspection (AOI) to detect soldering defects and component misalignment
Thermal cycling tests simulating -40°C to +85°C operational extremes
Batch traceability systems linking raw materials to finished goods via QR-coded serial numbers
Pre-shipment validation against ETL (USA/Canada) and TÜV CE (Europe) certification requirements
Our OEM/ODM capabilities maintain these standards for custom projects through standardized production protocols and real-time process monitoring. Certifications are not merely compliance checkboxes—they are embedded in our supply chain, from UL-listed PCB substrates to LED binning processes verified by independent labs. This ensures architectural and industrial projects receive consistent, code-compliant performance regardless of scale or geography.
For technical documentation, test reports, or custom specification reviews, contact our engineering team at [email protected] or +86-13902885704.
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services – Beauty STC Lighting, Jiangmen
Factory Footprint & Legacy
Established 1998, our 18 000 m² campus in Jiangmen High-tech Zone houses a vertically-integrated line from bare PCB to finished, labelled carton. All processes are ETL- and CE-certified under TUV witness, ensuring every batch meets the same spec shipped to 50+ countries for 25+ years.
Core Production Flow
| Stage | Equipment | Key Control Point | Cert. Reference |
|---|---|---|---|
| SMT | Yamaha & Juki 20 000 cph lines (lead-free) | 100 % SPI + AOI | ETL 5004871 |
| Reflow | 10-zone Heller 1809 EXL | ΔT ≤ 5 °C, profile logged | CE LVD report TUV-2023-2781 |
| Wave (when required) | Ersa Powerflow e N2 | 100 % post-wave ICT | IPC-A-610 Class II |
| IP67/IP68 sealing | Automatic PU glue line (XY-table ±0.1 mm) | 4 h 85 °C cure | EN 60598-1 |
| Aging | 4-burn-in rooms, 288 channels | 2 h on/off @ 220 Vac, 45 °C | IES LM-80 data on file |
| Integrating sphere | 2 m Everfine HAAS-2000 | 100 % luminous & chromaticity | SDCM ≤ 3 @ 3000 K |
| Hi-pot | Chroma 19056 | 1.5 kVac/5 mA/60 s | 100 % production |
| Packaging | Auto carton erector + OMRON check-weigher | Label vs. PO barcode scan | ISO 9001:2015 §8.5.2 |
QC Protocol Summary
Incoming: C=0 sampling on LEDs, ICs, capacitors.
In-process: SPC on solder-paste height, first-article sign-off every reel change.
Outgoing: AQL 0.65 level II on critical (safety, photometry), AQL 1.5 on major cosmetics.
Traceability: 2D laser code on PCB → data matrix on outer carton; 5-year retention.
OEM / ODM Capability Matrix
| Customisable Item | Range | MOQ | Lead-Time | Tooling |
|---|---|---|---|---|
| Strip length | 10 mm – 50 m continuous | 500 m | 10 days | None (programmable cutter) |
| CCT (2-step) | 1800 K – 6500 K | 100 m | 7 days | Bin-code lock |
| CRI | Ra 70 / 80 / 90 / 97 | 100 m | 7 days | Same bin |
| PCB width | 4 mm – 50 mm | 300 m | 10 days | New stencil |
| Copper weight | 1 oz – 4 oz | 300 m | 10 days | Extra plating run |
| IP rating | IP20 – IP68 | 300 m | 12 days | Over-mould tool |
| Jacket colour | RAL / Pantone | 500 m | 10 days | Colour masterbatch |
| Label & barcode | Multi-language | 100 pcs | 3 days | Digital print |
| Retail box | K=K export grade | 100 pcs | 5 days | Die-line supplied |
Engineering Support
LM-79 & TM-21 reports available within 48 h.
Dialux .ies & .ldt files generated on request.
Zhaga-book-7 linear modules on shared 24 V profile for quick scalability.
In-house RoHS & REACH lab (GC-MS) for customer due-diligence audits.
Logistics
FOB Shenzhen / CIF to 50+ ports; weekly consolidation to Hamburg, Los Angeles, and Dubai cuts landed cost by 8–12 %. Neutral white-label cartons or full-colour OEM artwork both included in MOQ.
For project-specific test data or factory virtual tour, contact:
[email protected] | +86-13902885704
Installation & Application Scenarios
Application Scenarios for Professional LED Lighting Solutions
As a manufacturer with over 25 years of experience since 1998, Beauty STC Lighting delivers certified, high-performance LED solutions engineered for diverse commercial and architectural applications. Our products comply with stringent ETL (USA/Canada) and TUV CE (Europe) standards, ensuring global safety and performance compliance. This section outlines technical specifications, installation best practices, and application-specific recommendations for contractors, architects, and project managers.
Hotel & Hospitality Environments
Hotels require lighting solutions that balance aesthetic appeal, energy efficiency, and durability across varied spaces. Guest rooms demand warm, dimmable illumination for comfort, while lobbies and corridors necessitate uniform, low-maintenance lighting. High-ceiling areas such as parking garages require robust, high-efficacy fixtures.
Key Product Recommendations
LED Panel Lights: For guest rooms, corridors, and lobbies.
Flexible LED Strips: For cove lighting, under-cabinet accents, and spa features.
UFO High Bay Fixtures: For parking garages and service areas.
Installation Best Practices
LED Panels: Maintain 1.2–1.5m spacing for uniform distribution; ensure 50mm air gap above suspended ceilings for thermal management.
Flexible Strips: Use aluminum channels with thermal adhesive for heat dissipation; seal all joints with IP65-rated connectors in wet zones (e.g., spas, pools).
UFO High Bays: Position at 6–8m height with 8–10m spacing; verify voltage compatibility and install in weatherproof conduit for outdoor areas.
Technical Specifications
| Product Type | Wattage | Lumen Output | Color Temp (K) | CRI | IP Rating | Dimming Support |
|---|---|---|---|---|---|---|
| LED Panel Light (300x1200mm) | 36W | 3,600lm | 2700K–4000K | >90 | IP20 | 0-10V, DALI |
| Flexible LED Strip (1200mm) | 14.4W/m | 1,440lm/m | 2700K–6500K | >90 | IP65 (with silicone sleeve) | PWM, 0-10V |
| UFO High Bay (150W) | 150W | 18,000lm | 4000K–5000K | >80 | IP65 | DALI, Phase-Cut |
| All products certified to ETL (USA/Canada) and TUV CE (Europe) standards for commercial hospitality applications. |
Commercial Retail Spaces
Retail environments prioritize high-visibility lighting to enhance product displays while maintaining energy efficiency. Atriums and high-ceiling areas require precise beam control, and storefronts need adaptable accent lighting to drive customer engagement.
Key Product Recommendations
LED Panel Lights: For general retail areas and checkout zones.
Architectural LED Strips: For signage, display cases, and facade accents.
UFO High Bay Fixtures: For atriums and warehouse storage areas.
Installation Best Practices
Retail Displays: Mount panels at 45° angles for glare-free product illumination; maintain 300–500 lux levels for high-visibility zones.
Architectural Strips: Apply adhesive backing on clean, dry surfaces; use constant-current drivers with over-voltage protection to eliminate flicker.
High-Bay Fixtures: Calculate beam angles to avoid light spill onto adjacent stores; ensure compliance with NEC Article 410 for commercial spaces.
Technical Specifications
| Product Type | Wattage | Lumen Output | Beam Angle | CRI | IP Rating | Dimming Support |
|---|---|---|---|---|---|---|
| LED Panel Light (600x600mm) | 30W | 3,000lm | 120° | >90 | IP20 | 0-10V, DALI |
| Architectural LED Strip | 14.4W/m | 1,440lm/m | 120° | >90 | IP67 | PWM, DALI |
| UFO High Bay (200W) | 200W | 24,000lm | 60° | >80 | IP65 | DALI, Smart Controls |
| Compliant with ETL and TUV CE standards for North American and European retail markets. |

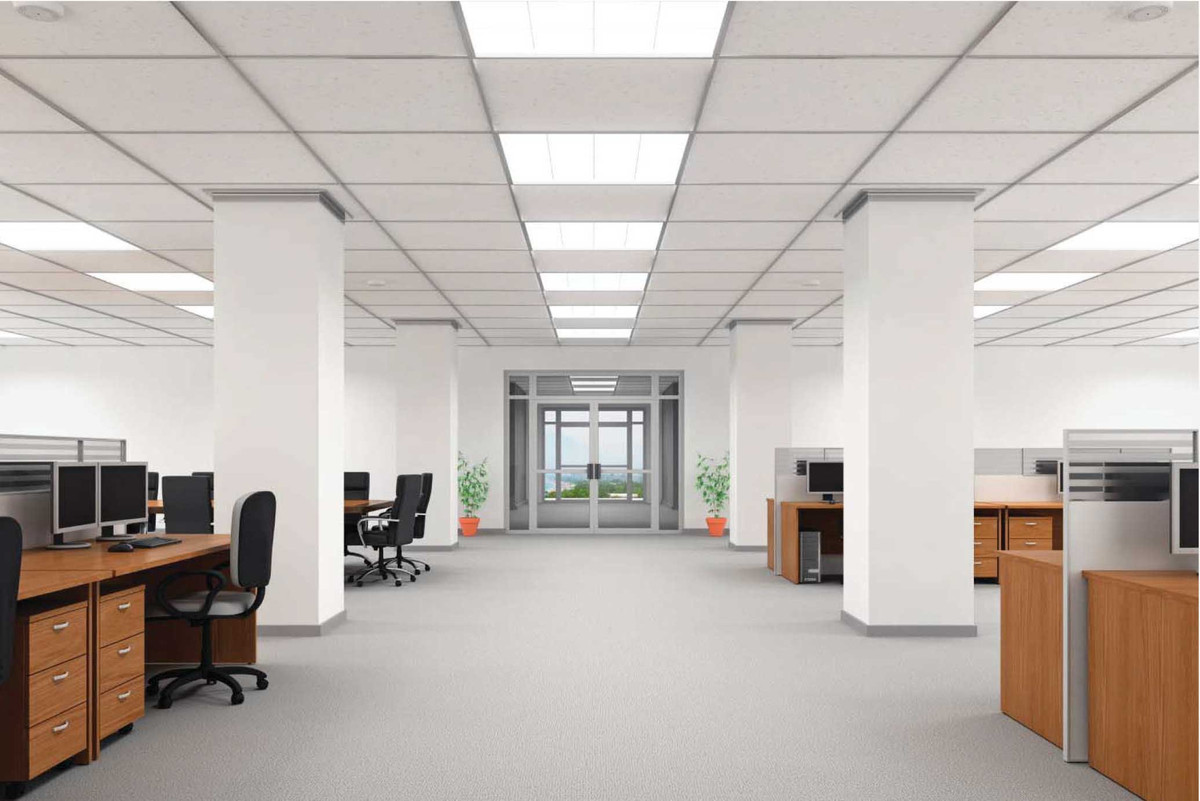

Office & Workspace Environments
Modern offices require ergonomic lighting that minimizes eye strain while supporting productivity. Open-plan spaces demand flicker-free uniformity, and task areas need high-CRI adjustable illumination for precision work.
Key Product Recommendations
T8 LED Tubes: For retrofitting existing troffers in cubicles and hallways.
LED Panel Lights: For open-plan offices and meeting rooms.
Linear LED Fixtures: For task lighting in workstations.
Installation Best Practices
T8 Tubes: Replace magnetic ballasts with electronic drivers; ensure grounding to prevent electromagnetic interference (EMI).
Panel Lights: Space fixtures at 1.5–2m intervals for uniform coverage; install anti-glare diffusers in high-focus work areas.
Smart Controls: Integrate DALI systems with daylight harvesting sensors to optimize energy savings by 30–40%.
Technical Specifications
| Product Type | Wattage | Lumen Output | Color Temp (K) | CRI | IP Rating | Dimming Support |
|---|---|---|---|---|---|---|
| T8 LED Tube (1200mm) | 18W | 1,800lm | 3000K–5000K | >80 | IP20 | 0-10V, DALI |
| LED Panel Light (600x600mm) | 30W | 3,000lm | 3000K–6500K | >90 | IP20 | DALI, Smart Controls |
| Linear LED Fixture | 48W | 4,800lm | 4000K | >90 | IP20 | DALI |
| Certified to ETL and TUV CE standards for commercial office environments. |
Architectural Facades & Exterior Applications
Building exteriors demand lighting that withstands weather extremes while highlighting architectural details. Facade applications require corrosion-resistant materials, precise beam control, and compliance with outdoor safety regulations.
Key Product Recommendations
LED Floodlights: For monument lighting, building outlines, and landscaping.
UFO High Bay Fixtures: For industrial exteriors and high-rise building facades.
Outdoor-Rated LED Strips: For edge lighting and decorative accents.
Installation Best Practices
Floodlights: Mount at 45° angles for even illumination; use stainless steel brackets to prevent rust in coastal climates.
Weatherproofing: Install junction boxes with IP67-rated seals; verify grounding per IEC 60598-1 for outdoor installations.
High-Bay Fixtures: Position at 8–12m height with 10–15m spacing for large-area coverage; use thermal management sleeves for high-heat environments.
Technical Specifications
| Product Type | Wattage | Lumen Output | Beam Angle | CRI | IP Rating | Dimming Support |
|---|---|---|---|---|---|---|
| LED Floodlight (100W) | 100W | 10,000lm | 60°–120° | >80 | IP65 | 0-10V, DALI |
| UFO High Bay (200W) | 200W | 24,000lm | 90° | >80 | IP65 | DALI |
| Outdoor LED Strip | 14.4W/m | 1,440lm/m | 120° | >90 | IP67 | PWM |
| All products meet ETL and TUV CE standards for international outdoor installations. |
Custom OEM Solutions for Global Projects
Beauty STC Lighting leverages 25+ years of manufacturing expertise to deliver tailored OEM/ODM solutions for complex global projects. Our engineering team supports custom specifications while ensuring compliance with regional certifications (ETL, CE) and project-specific requirements.
Key OEM Capabilities
Customized Optical Performance: Tailored lumen output, color temperatures (2700K–6500K), and CRI (>90) for specific applications.
Smart Integration: DALI, Bluetooth, or Zigbee control protocols for building automation systems.
Specialized Form Factors: Custom housing designs, mounting brackets, and waterproofing for unique architectural constraints.
Certification Support: Full compliance testing for target markets (North America, Europe, Asia-Pacific).
“With our factory-direct manufacturing and rigorous quality control, we eliminate supply chain risks while delivering project-specific solutions that meet global standards.”
Contact for Technical Specifications & Custom Solutions
[email protected] | +86 13902885704
41st, Caihong Road, High-tech Industrial Zone, Jianghai District, Jiangmen City, Guangdong, China
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting – Factory-Direct LED Solutions for Global Projects
25 Years of Industrial-Grade Production, 50+ Countries of Problem-Free Export
| Attribute | Beauty STC Record | Benefit to Your Specification |
|---|---|---|
| Year Established | 1998 | Same engineering team since inception—no learning curve on your bill-of-materials |
| Export Markets | 50+ countries (EU, NAFTA, CIS, ASEAN, Oceania) | Harmonized tariff codes and shipping docs pre-qualified; no customs delays |
| Certifications | ETL/cETL (US & Canada), TUV CE / CB / RoHS (EU) | One SKU covers both sides of the Atlantic—simplifies BOM and spare-part stock |
| Factory Footprint | 41 000 m² Jianghai High-tech Zone, Guangdong | Vertical integration: SMT ➔ Reflow ➔ IP69K testing on one campus—MOQ 500 pcs |
| OEM/ODM Latency | 3-day mechanical drawing, 7-day photometric mock-up | Architects get IES/LDT files before design-freeze; contractors get custom length on time |
Core Industrial Portfolio – All Lines Carry ETL & CE Dual Marks
| Product Family | Typical Efficacy | CCT/CRI Options | Stock Lengths / Powers | Remarks for Project Work |
|---|---|---|---|---|
| Flexible LED Strip | 160–220 lm/W | 2400–6500 K, CRI 80–97 | 5 m reels, 4–28 W/m | 3-step MacAdam binning, 48 V long-run design for hotel coves |
| LED Panel (Edge-Lit) | 130 lm/W | 3000–5000 K, CRI 80–90 | 1×1, 1×4, 2×2, 2×4 ft | 1–10 V, DALI-2, emergency pack drop-in |
| UFO High Bay | 150 lm/W | 4000–5700 K, CRI 70 | 100–300 W, 13 000–45 000 lm | Hook & ½-inch conduit entry, 5G vibration tested |
| Floodlight | 140 lm/W | 3000–6500 K, CRI 70 | 50–800 W, 6 000–112 000 lm | 10 KV surge, IK08, marine-grade 316L bracket option |
| T8/T5 Tube | 160 lm/W | 3000–6500 K, CRI 80 | 2 ft–8 ft, 8–40 W | Single or double-end, rotatable end-cap for 45° wall-wash |
OEM/ODM Engineering Gate – From Concept to Container in 4 Weeks
- Photometric Target Lock – Send us your lux plot or IES baseline; our gonio-lab returns optimized LED count and driver current within 24 h.
- Mechanical Fit Check – SolidWorks & Pro-E files exchanged via secure portal; we sign NDA under Guangdong IP Court jurisdiction.
- Regulatory Pre-Scan – ETL or TUV witness testing scheduled in-house; CB report issued parallel to production tooling.
- Pilot Run Sign-off – 50-unit pilot shipped by DHL for on-site mock-up; data logged to TM-21 & ISTMT for L90 > 50 000 h claim.
Responsible Enterprise, Caring Supply Chain
ISO 14001 since 2006 – solder paste waste 100 % recycled, solvent-free conformal coating line.
Social Compliance – SA8000 audited, Jiangmen Labor Bureau Grade A for 12 consecutive years.
5 % of annual profit to Jiangmen Vocational School LED curriculum—your long-term talent pipeline.
Next Step – Send the Specification
Email the project package (schedule, quantity, port of discharge) to [email protected] or WhatsApp +86-13902885704.
We return a landed-cost quotation with ETL & CE files attached within 12 hours.
⚡ LED Power Supply Calculator
Calculate the required power supply for your LED strip project (includes 20% safety margin).
