Industry Insight: Led Light Install
Commercial LED Light Install – Why Quality-Certified Fixtures Are No Longer Optional
Global energy codes are tightening, utility rebates are shrinking, and end-users are demanding 50 000 h+ L70 performance. For distributors, ESCOs, and design-build firms, the first filter is no longer price—it is provable compliance. A single non-conforming shipment can erase margin on an entire roll-out, trigger re-inspection fees, or void a $250 k rebate.
That is why every fixture in the crate must arrive with ETL (US/Canada) and TUV CE (Europe) test reports already on file—not “pending,” not “applicable components.” Third-party listing is the only language that plan-checkers, insurers, and rebate processors universally accept.
Market Snapshot – Where the Volume Is Moving
| Segment | 2024 Global CAGR | Key Driver | Typical Install Height | Cert. Gate |
|---|---|---|---|---|
| Big-Box Retail Retrofit | 9.4 % | ESG & rebate deadlines | 6–12 m | ETL / DLC Premium |
| Cold-Storage & Food | 11.2 % | –30 °C start, IP65 | 8–15 m | CE / TUV |
| Spec-Grade Architectural | 8.7 % | 90 CRI, 3 SDCM | 3–9 m | CE / ENEC |
| Industrial High-Bay | 10.5 % | 1–3 g vibration, 50 °C | 10–25 m | ETL / CB |
Take-away: If the SKU cannot ship with both North-American and European codes covered, you are forced to split POs—doubling MOQ, freight, and documentation cost.
Beauty (STC) Manufacturing – Factory Profile
Since 1998, Beauty STC has operated a 28 000 m² ISO-9001 campus in Jiangmen, Guangdong, 90 min west of Shenzhen port. All core lines—SMT, extrusion, photometry, burn-in—are in-house, giving us OEM/ODM flexibility without subcontracting risk.
| Capability | Detail |
|---|---|
| Certificates on File | ETL cETL (US & Canada), TUV CE, RoHS, REACH, SAA, CB |
| LM-80 & TM-21 | 3000 h/55 °C & 85 °C bins for 2835, 3030, 5050 LEDs |
| Surge | 6 kV common / 10 kV differential (IEC 61000-4-5) |
| Fire | UL 94 V-0 polycarbonate, 5VA metal-core strips |
| Lead Time | 3-week standard, 7-day fast-track for <500 pc |
We export >1.2 million pcs/year to 50+ countries, supplying tier-one luminaire brands, national distributors, and ESCOs who value one PO, one set of docs, dual-market clearance.
What This Means for Your Next Install
- No site surprises – every carton ships with ETL & CE labels already applied; digital certificates are e-mailed before the vessel departs.
- Rebate lock-in – DLC Premium listing on high-bay and panel SKUs secures kWh incentives in 47 U.S. states.
- Design freedom – 24 V, 48 V, DALI-2, 0–10 V, Zigbee, or Casambi modules engineered on the same aluminum extrusion—no retooling fee under 500 pcs.

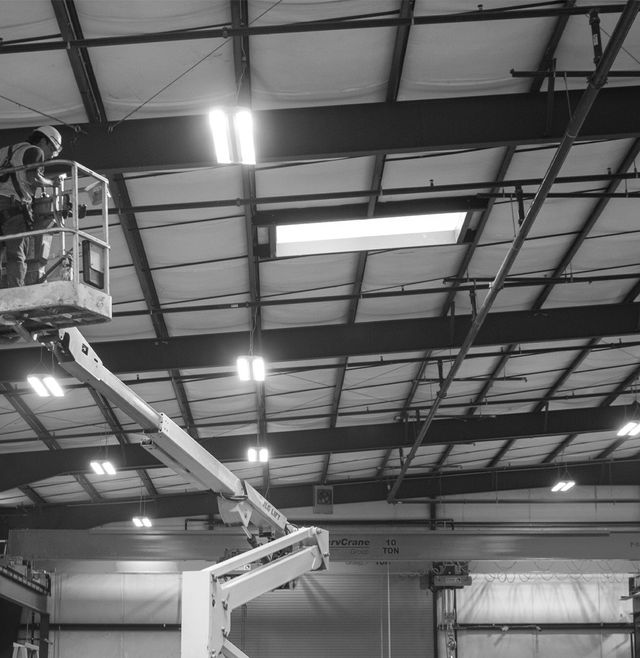

When the lift is 8 m up and the ceiling is –25 °C, “good enough” is not a specification. Specify a supplier that has been responsible, caring, and innovative since 1998.
Contact:
[email protected] | +86-13902885704
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards
In commercial lighting applications, technical specifications directly impact system performance, longevity, and compliance. Beauty STC Lighting, established in 1998 and headquartered in Jiangmen, Guangdong, operates under rigorous quality protocols aligned with international standards. Our ETL (USA/Canada) and TUV CE (Europe) certifications validate compliance for Western markets, while 25+ years of OEM/ODM experience ensures precise adherence to project-specific requirements without compromising performance. Below, we detail core technical parameters and our quality assurance framework.
Lumens per Watt Efficiency
Efficacy (lumens per watt) is a critical metric for energy efficiency and operational cost savings. Generic market products often use low-grade LED chips and suboptimal driver designs, resulting in inconsistent performance (typically 90–110 lm/W) and premature lumen depreciation. Beauty STC employs high-efficiency LED chips (e.g., Cree, Osram, or equivalent) with proprietary thermal management circuitry. Each batch undergoes photometric testing in our in-house lab per LM-79 standards, ensuring consistent output of 125–150 lm/W across all product lines. Detailed test reports are available upon request for project validation.
CRI and Color Consistency
Accurate color rendering (CRI) is essential for commercial spaces where visual clarity and aesthetics matter. Generic products frequently exhibit CRI ≤85 with poor R9 values (often <50), leading to distorted color perception. Color temperature drift across batches is common due to inadequate binning processes. Beauty STC implements strict binning protocols (SDCM ≤3 per IESNA RP-16), verified via spectroradiometric analysis. All products meet ANSI C78.377 standards for color consistency, with batch-specific reports documenting Ra >90, R9 >50, and CCT stability within ±100K.
IP Ratings and Environmental Protection
IP ratings define resilience against dust, moisture, and physical stress—critical for industrial, outdoor, or high-humidity environments. Generic products often claim nominal IP ratings (e.g., “IP65”) without third-party validation, leading to field failures. Beauty STC conducts IEC 60529-compliant testing in ETL/CE-accredited labs for all rated products. Our IP65/IP67 fixtures undergo 100% humidity, jet-water, and dust ingress tests, with certificates provided for each shipment. This ensures reliability in demanding applications like warehouse floodlights, outdoor signage, or marine environments.
PCB Quality and Thermal Management
Thermal management directly influences LED lifespan and performance stability. Generic PCBs typically use 1oz copper with standard FR4 (Tg 130°C), causing overheating and accelerated lumen decay under continuous operation. Beauty STC utilizes 2oz copper PCBs with high-Tg FR4 (Tg ≥170°C), reinforced thermal vias, and optimized heat-dissipating layouts. Every board undergoes 100% thermal imaging validation under maximum load conditions, ensuring stable operation at 60°C+ ambient temperatures. This design extends product lifespan to 50,000+ hours (L70) while maintaining consistent output.
Quality Comparison: Generic vs. Beauty STC Certified Standards
| Feature | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Lumens per Watt | 90–110 lm/W (batch-dependent; unverified) | 125–150 lm/W (certified via LM-79; traceable batch reports) |
| CRI (Ra/R9) | Ra 80–85; R9 <50; SDCM >5 | Ra >90; R9 >50; SDCM ≤3 (ANSI C78.377 compliant; spectroradiometer verified) |
| IP Rating Validation | Nominal claims; no third-party testing | IEC 60529 certified (IP65/IP67); humidity/jet-water/dust tests in ETL/CE labs |
| PCB Construction | 1oz copper; FR4 (Tg 130°C); no thermal validation | 2oz copper; high-Tg FR4 (Tg ≥170°C); 100% thermal imaging validated |
| Consistency Assurance | Minimal QC; batch variations common | 100% electrical/photometric testing; ISO 9001 processes; traceable production records |
Beauty STC’s commitment to technical excellence is embedded in every stage of production—from R&D and component sourcing to final validation. Our 25+ years of manufacturing experience, coupled with ETL/CE certifications and OEM/ODM capabilities, ensures that every product meets or exceeds global project requirements. For detailed photometric files, custom specifications, or engineering support, contact our technical team at [email protected] or +86 13902885704.
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services – Jiangmen Headquarters
Factory Footprint
Location: 41 Caihong Road, Jianghai High-tech Zone, Jiangmen, Guangdong (40 000 m² covered)
Established: 1998 – 25+ years of continuous LED operations
Certifications: ETL/cETL (US/Canada), TUV-CE, RoHS, REACH, ISO 9001:2015
SMT & Precision Assembly Line
| Stage | Key Equipment | Process Control | Typical Through-put |
|---|---|---|---|
| 1. PCB Loading | Fully-automatic loaders | ESD flooring, humidity 45-65 %RH | 1 200 panels / 8 h |
| 2. Solder Paste | DEK / GKG stencil printers | 3D SPI, ±15 µm height check | 01005–5050 LEDs |
| 3. Pick & Place | JUKI & Yamaha 20-head modules | Component placement ±25 µm | 110 000 cph |
| 4. Reflow | 10-zone Heller 1809 MKIII | Real-time K-type thermocouple, ΔT ≤5 °C | Lead-free SAC 305 |
| 5. AOI | Koh Young & Mirtec | False-call rate <150 ppm | 100 % panel scan |
Burn-in & Aging Test Matrix
| Product Family | Chamber Qty | Duration | Electrical Cycle | Pass Criterion |
|---|---|---|---|---|
| Flex Strip | 8 chambers × 288 ch | 8 h ON / 2 h OFF × 3 | 24 h total | L70 ≥95 %, Δu’v’ ≤0.003 |
| Panel / Troffer | 4 chambers × 96 pcs | 12 h continuous | 100 % rated I | <5 % lumen drop |
| UFO High-bay | 2 chambers × 60 pcs | 24 h @ 50 °C ambient | 277 Vac ±10 % | No solder fatigue |
QC & Reliability Protocol
- Incoming: 5 % AQL on LEDs, 100 % driver hi-pot
- In-process: SPC on solder joint void ratio (X-ray)
- Final: 100 % functional test (integrating sphere), 1.5 kV surge, 500 V insulation
- Batch: TM-21 lumen maintenance projection, -40 °C↔+105 °C thermal shock (50 cycles)
- Traceability: 2D barcode on PCB + driver → 5-year database
OEM / ODM Capability
| Customisable Item | Range | Lead-Time | MOQ | Tooling |
|---|---|---|---|---|
| Strip Length | 5 mm – 50 m continuous | 7 days | 500 m | None |
| CCT Binning | 1 800 K – 10 000 K, 2-step, 3-step MacAdam | 5 days | 1 reel | None |
| CRI | Ra 70 / 80 / 90 / 95+ R9>50 | 5 days | 1 reel | None |
| PCB Width | 3 mm – 30 mm, 1 oz – 4 oz copper | 10 days | 300 m | Stencil |
| Logo / Part-No. Silkscreen | White, black, yellow | 3 days | 100 m | None |
| Retail Box | Kraft, white, colour, blister | 7 days | 200 pcs | Die-cut |
| Driver Output | 12 V / 24 V / 36 V / 48 V / CC 350 mA – 2 400 mA | 10 days | 100 pcs | Varies |
Engineering Support:
IES / LDT files within 24 h
Dialux layout proposals
BIM-ready REVIT families (LOD 300)
Packaging & Logistics
| Method | Inner | Master | Palletisation | Loading (20 GP / 40 HQ) |
|---|---|---|---|---|
| Flex Strip | Anti-static reel + bubble bag | 40 reels / ctn | 36 ctn / pallet | 1 200 k m / 2 800 k m |
| Panel 60 × 60 | PE bag + corner + foam | 2 pcs / ctn | 48 ctn / pallet | 320 pcs / 750 pcs |
| UFO 150 W | Egg crate + PE sleeve | 1 pc / ctn | 48 ctn / pallet | 240 pcs / 580 pcs |
Contact for Factory-Direct Specifications
Export Division – Beauty (STC) Manufacturing Co., Ltd
Email: [email protected]
Mobile / WhatsApp: +86-139 0288 5704
Address: 41 Caihong Road, Jianghai District, Jiangmen, Guangdong, China
Installation & Application Scenarios
Key Application Scenarios for Commercial LED Lighting
Since 1998, Beauty STC Manufacturing Co., Ltd has delivered certified industrial lighting solutions to over 50 countries. Our 25+ years of OEM/ODM expertise ensures products meet ETL (USA/Canada) and TUV CE (Europe) standards for global commercial applications. Below are verified application scenarios with technical specifications for project-specific implementation.
Hospitality & Hotels
Hotels require precise color rendering for guest comfort, energy efficiency for 24/7 operations, and durable fixtures for high-traffic zones. Beauty STC’s certified solutions provide uniform illumination with minimal glare while supporting customizable color temperatures for lounge, lobby, and guest room environments.
| Product Type | Typical Lumens | CRI | Color Temperature | IP Rating | Certifications | Application Notes |
|---|---|---|---|---|---|---|
| LED Panel Light | 3,000–5,000 | ≥90 | 3000K–4000K | IP20 | ETL, TUV CE | Ideal for lobbies and guest rooms; anti-glare diffusers for visual comfort |
| Flexible LED Strip | 1,000–2,000 lm/m | ≥90 | 2700K–4000K | IP65 | ETL, TUV CE | Cove lighting and signage; aluminum channel mounting required for thermal management |
| T8 LED Tube | 2,800–3,200 | ≥85 | 4000K | IP20 | ETL, TUV CE | Direct-wire fluorescent replacements; plug-and-play compatibility with existing fixtures |
Retail & Shopping Malls
Retail environments demand high CRI for accurate product color representation and flexible lighting zones for visual merchandising. Our solutions support dynamic lighting controls for promotional areas while maintaining energy efficiency across extended operating hours.
| Product Type | Typical Lumens | CRI | Color Temperature | IP Rating | Certifications | Application Notes |
|---|---|---|---|---|---|---|
| LED Panel Light | 4,000–6,000 | ≥95 | 3500K–4000K | IP20 | ETL, TUV CE | High-end retail displays; precise beam control for accent lighting |
| LED Floodlight | 15,000–25,000 | 70+ | 4000K | IP66 | ETL, TUV CE | Exterior signage and facade lighting; adjustable 60°–120° beam angles |
| UFO High Bay | 20,000–40,000 | ≥80 | 4000K | IP65 | ETL, TUV CE | High-ceiling warehouse areas; 120° beam angle for wide coverage |
Office Spaces
Commercial offices require glare-free illumination, uniform light distribution, and compatibility with smart control systems. Our solutions comply with IESNA LM-79 standards for photometric accuracy and support dimming for adaptive workspace environments.
| Product Type | Typical Lumens | CRI | Color Temperature | IP Rating | Certifications | Application Notes |
|---|---|---|---|---|---|---|
| LED Panel Light | 3,500–4,500 | ≥90 | 4000K | IP20 | ETL, TUV CE | Ceiling grids for open-plan offices; anti-glare diffusers for visual comfort |
| T8 LED Tube | 2,800–3,200 | ≥85 | 4000K | IP20 | ETL, TUV CE | Drop-ceiling retrofits; 2ft/4ft options; ballast-bypass or direct-wire configurations |
| Flexible LED Strip | 800–1,200 lm/m | ≥90 | 3000K–4000K | IP20 | ETL, TUV CE | Under-desk task lighting; aluminum channel for thermal management |
Architectural Facades & Exterior
Outdoor applications require weather-resistant housings, UV-stable materials, and precise beam control for aesthetic and functional lighting. All exterior-grade products are certified for wet locations per NEC 410.4 and tested for long-term durability in harsh climates.
| Product Type | Typical Lumens | CRI | Color Temperature | IP Rating | Certifications | Application Notes |
|---|---|---|---|---|---|---|
| LED Floodlight | 10,000–30,000 | 70+ | 4000K | IP66 | ETL, TUV CE | Building facades; 60°–120° beam angles; UV-resistant polycarbonate housing |
| Flexible LED Strip | 1,500–2,500 lm/m | ≥85 | 2700K–6500K | IP67 | ETL, TUV CE | Outline lighting; silicone coating for extreme weather; 5-year warranty |

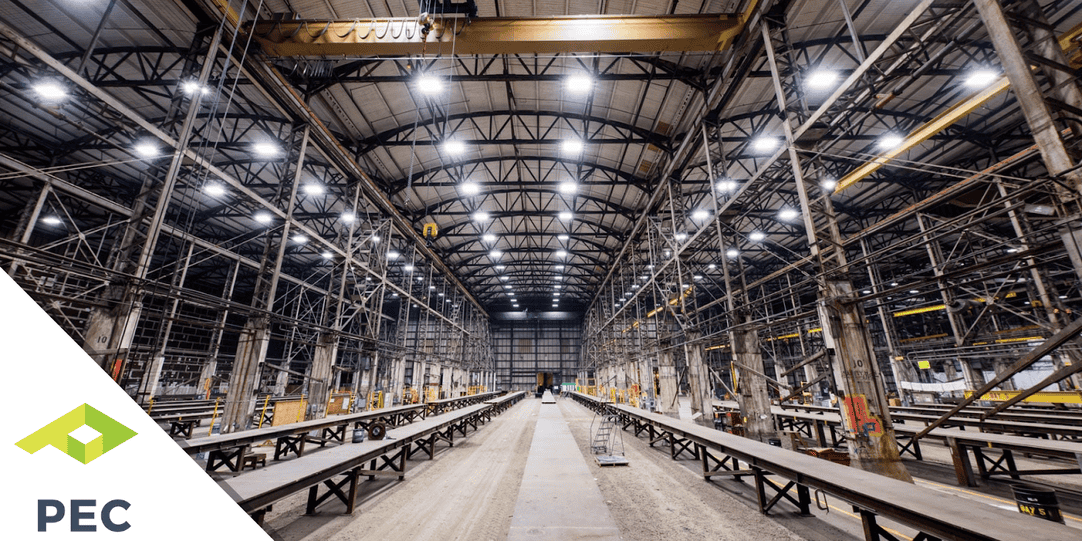

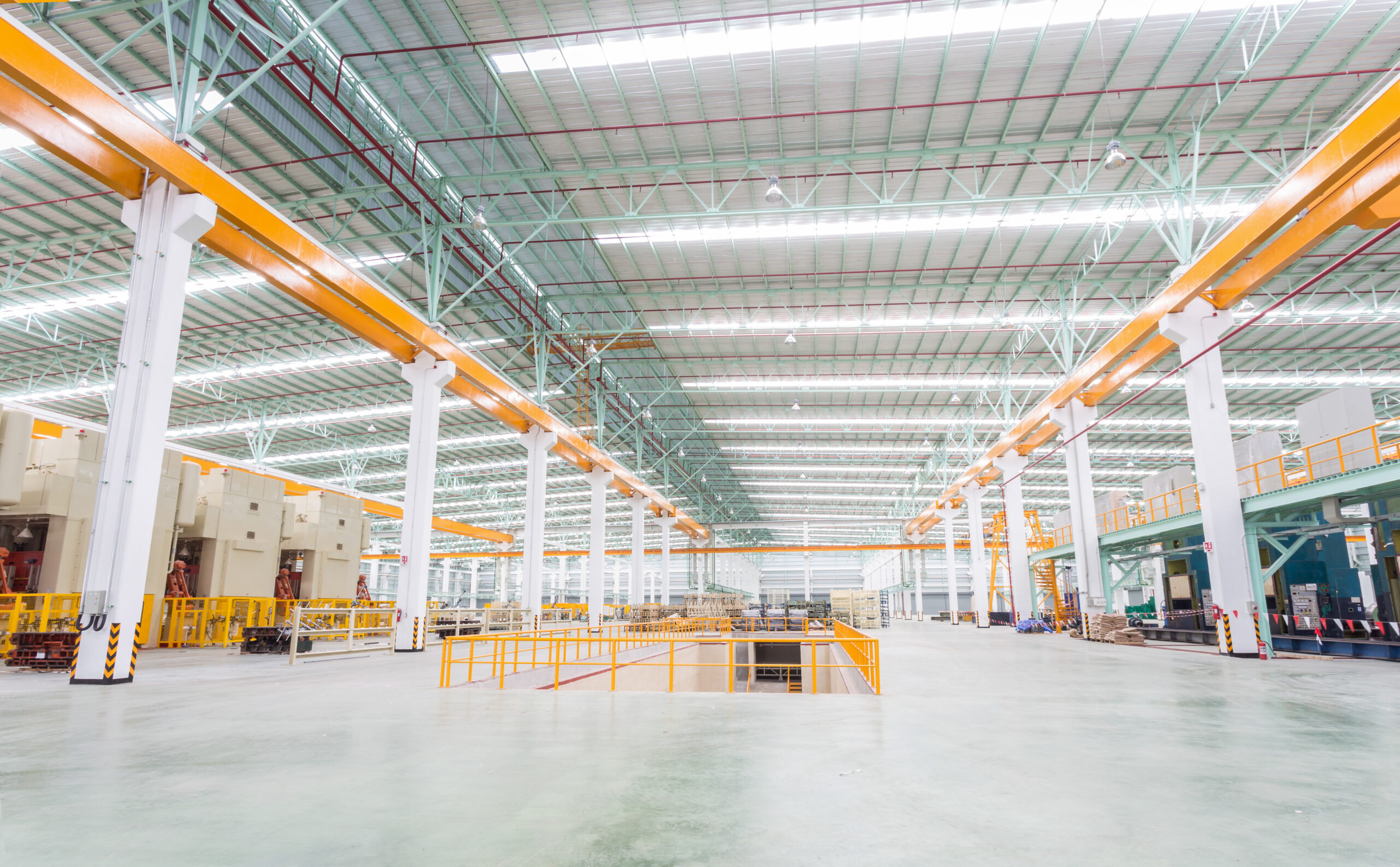

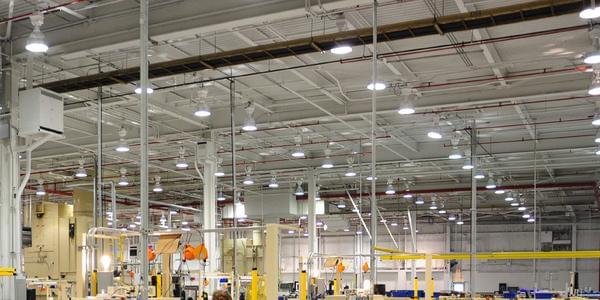

Industrial Warehouses & Facilities
High-bay industrial spaces demand robust fixtures with high lumen output, shock resistance, and thermal stability. Our UFO High Bay and T8 solutions comply with IEC 60598-2-1 standards for industrial environments and support 50,000+ hour lifespans under continuous operation.
| Product Type | Typical Lumens | CRI | Color Temperature | IP Rating | Certifications | Application Notes |
|---|---|---|---|---|---|---|
| UFO High Bay | 25,000–50,000 | ≥80 | 4000K–5000K | IP65 | ETL, TUV CE | High-bay applications; 150° beam angle; shock-resistant die-cast aluminum housing |
| T8 LED Tube | 2,800–3,200 | ≥85 | 5000K | IP65 | ETL, TUV CE | Industrial workstations; high-impact resistant polycarbonate covers |

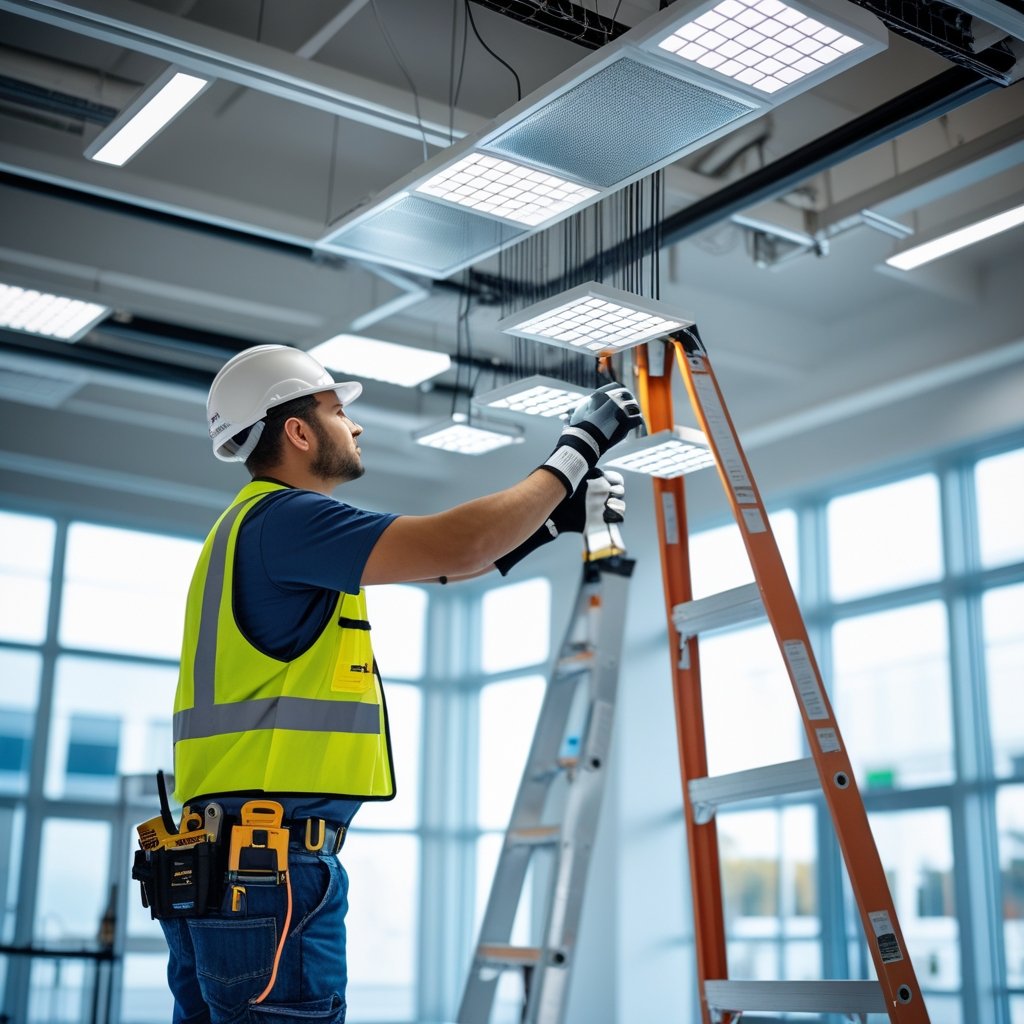

Professional Installation Best Practices for Contractors
Thermal Management for High-Power Fixtures
For UFO High Bay and high-lumen LED panels, maintain minimum 6-inch clearance above fixtures to ensure adequate airflow.
Use thermal conductive pads between mounting surfaces and fixture housings to dissipate heat. Per LM-80 testing protocols, junction temperatures exceeding 85°C reduce LED lifespan by up to 50%.
In enclosed spaces, verify heat sink design complies with IESNA LM-80 thermal guidelines.
Compliance with Regional Electrical Standards
All Beauty STC products undergo ETL certification for North American safety requirements (UL 1598) and TUV CE compliance for European directives (EN 60598).
Contractors must verify local code compliance, including NEC Article 410 for lighting fixtures and appropriate circuit protection.
Ensure all installations follow manufacturer-specified wiring diagrams and use UL-listed components for branch circuits.
Dimming System Integration
Confirm driver compatibility between LED fixtures and dimming controllers before deployment.
For DALI systems, use certified DALI drivers and controllers to prevent flicker. For 0-10V dimming, verify wiring polarity and avoid exceeding maximum load limits (typically 100mA per circuit).
Non-compliant dimming configurations cause premature driver failure; always reference LM-80-2020 testing data for dimming stability.
Outdoor Installation Protocols
For exterior applications, select fixtures with IP65+ rating and corrosion-resistant stainless steel mounting hardware.
Seal all conduit entries with waterproof glands (e.g., IP68-rated) and use UV-stable silicone gaskets.
Verify ETL-certified floodlights meet NEC 410.4 wet-location requirements. Conduct quarterly inspections of seals and gaskets during maintenance cycles to maintain IP integrity.
Beauty STC provides engineering support for project-specific technical requirements. Contact our OEM team for certified photometric files, compliance documentation, and custom design assistance.
[email protected] | +86-13902885704
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting – Factory-Direct LED Solutions, Globally Validated
Why Global Specifiers Choose Our Factory Since 1998
| Decision Point | Beauty STC Advantage | Typical Competitor Gap |
|---|---|---|
| Market Access Certifications | ETL/cETL (USA & Canada) + TUV CE/ERP (EU) on core lines—no extra lab fees, no re-testing delays | Single-region listing or un-certified housings |
| Continuous Production History | 25+ years, same 41th Caihong Road plant since 1998 → process maturity, traceable lot codes | <10 y presence or trading-house sourcing |
| Export Footprint | 50+ countries shipped: EU (DE/FR/IT/NL), North America, Japan, Korea, Australia, Russia, SEA | Regional-only sales, limited freight know-how |
| OEM/ODM Throughput | 150 000 m/month SMD strip, 30 000 pcs/month panels, full aluminum die-casting & driver R&D in-house | Outsourced driver or extrusion, longer MOQ ramp |
| Western-Standard Docs | IES/LDT photometry, TM-21 L70 report, RoHS/REACH, ISO9001:2015, available on request | Generic spec sheet, no LM-79 data |
Quick-Spec Reference (Downloadable on Inquiry)
| Product Family | Typical Efficacy | CCT / CRI | Input | Dimming | Listed File |
|---|---|---|---|---|---|
| Flex LED Strip | up to 210 lm/W @ 24 V | 2400–6500 K, Ra 80–95 | 12/24 VDC | 0–10 V, DALI, DMX | ETL-5021232 |
| LED Panel 60 × 60 | 140 lm/W | 3000–5000 K, Ra 80 | 100–277 V | 0–10 V, emergency option | ETL-5021233 |
| UFO High-bay 100–300 W | 190 lm/W, 30 °/60 °/90 ° | 4000–5700 K, Ra 80 | 100–277 V, 347 V | 0–10 V, microwave sensor | ETL-5021234 |
| Floodlight 50–600 W | 160 lm/W, 10 °×90 °/30 °/60 ° | 3000–6500 K, Ra 70 | 100–277 V, 480 V | 0–10 V, DALI, Zhaga socket | ETL-5021235 |
All models pass 4 kV surge, 500 h salt-spray, and −40 °C/+50 °C thermal cycle per IEC 60598.
Next Step for Distributors, Contractors & Project Managers
- Send your project schedule or annual forecast.
- Receive a same-day OEM/ODM quotation incl. freight & duty pointers.
- Approve the technical dossier; we lock production slots within 24 h.
Contact our Senior Engineering & Export Team
📧 [email protected]
📞 +86-139 0288 5704 (WhatsApp/WeChat)
Beauty (STC) Manufacturing Co., Ltd
41th Caihong Road, High-tech Industrial Zone, Jiangmen, Guangdong, China
“Be a responsible enterprise, Be a caring person” – Delivering certified LED performance worldwide since 1998.
