Industry Insight: Led Crown Moulding
H2 Commercial-Grade LED Crown Moulding: Why Quality & Certification Drive ROI
H3 The Hidden Cost of “Good-Looking” Samples
In retrofit hotels, hospitals and Class-A offices the channel that hides the LED strip is only 3 % of the lighting budget, yet it triggers 90 % of call-backs—warping, light leaks, or non-compliance with UL 2108 / EN 60598-2-20.
A single field failure can erase the margin on an entire container. That is why ETL / TUV CE listings are not paperwork; they are your insurance against re-work, freight-backs and liability claims.
H3 Market Snapshot – Where Demand Is Coming From
| Segment | 2023 YoY Growth | Typical Specification Driver | Cert. Required |
|---|---|---|---|
| Hospitality refurbishment (NA) | +18 % | 24 h indirect cove, 50 000 h L70 | ETL/cETL |
| EU office WELL projects | +22 % | UGR<19, flicker <1 % @ 100 Hz | CE, ENEC |
| GCC residential towers | +15 % | 220–240 V, 50 °C ambient | CE + SASO |
| AU retail chains | +12 % | SAA, RCM, 5-year warranty | RCM |
H3 Beauty (STC) Manufacturing – 1998 to Today
25 years of aluminium extrusion and LM-80 tested LED assembly under one 38 000 m² roof in Jiangmen, Guangdong.
ETL/cETL file #5013348 and TUV CE 2 200 V surge listing on file—no additional third-party testing for North-American or EU entry.
OEM/ODM tooling library: 180+ existing crown profiles, 12 mm to 28 mm PCB width, 45°/60°/90° beam angles, opal or prismatic diffuser.
Monthly capacity: 400 km extrusion, 1 500 km LED strip, SMT lines equipped with SPI & AOI—enough to supply a 40-floor hotel chain in one lot with consistent bin & CRI.
H3 Specification Matrix – LED Crown Moulding Family
| Part # | A [mm] | B [mm] | PCB Width | Max. Length | Lumen Up-lift* | Diffuser | Cert. |
|---|---|---|---|---|---|---|---|
| CM-2060 | 20 | 60 | 10 mm | 3 050 mm | 92 % | Opal | ETL, CE |
| CM-3075 | 30 | 75 | 12 mm | 3 050 mm | 94 % | Prismatic | ETL, CE |
| CM-45100 | 45 | 100 | 24 mm | 2 440 mm | 96 % | Micro-line | ETL, CE |
| *Compared to bare strip on flat aluminium plate, 4000 K, 80 CRI, 14 W m⁻¹. |
H3 Factory-Direct Advantages – What Importers Gain
- One-Stop Compliance: ETL, CE, RoHS, REACH, TM-21, LM-79 reports supplied with every shipment—clears customs in US, EU, AU without extra testing.
- Colour & Bin Consistency: 2-step MacAdam ellipse selection, same bin for entire project; eliminates visible gradient in long corridors.
- Custom Length & Punching: 0.3–3 m cut to ±0.2 mm, pre-punched nail holes or screw channels, ready for drywall or plaster-in installation.
- Packaging Engineering: 5-ply export carton + corner protector + desiccant; <0.3 % transport damage on 2023 FOB shipments.
- 25-Year Traceability: Laser-marked batch code links every profile to billet #, extrusion die, LED reel and driver lot—critical for insurance claims.
H3 Next Step – From Drawing Board to Job Site
Send your section drawing or simply the ceiling height and desired lux level to [email protected]; our engineers will return a lumen calculation, mounting detail and landed cost within 24 h.
For architects needing IES files or contractors chasing O&M manuals, we bundle them free of charge—because responsible manufacturing starts before the order, not after the complaint.
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards for Professional LED Crown Moulding
Beauty STC’s LED crown moulding systems are engineered to meet the rigorous demands of commercial and architectural applications. Our technical specifications are validated through third-party certifications and in-house testing protocols. Key performance metrics include:
| Specification | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Luminous Efficacy | 80–100 lm/W | 120–140 lm/W |
| CRI (Ra) | 80–85 | >90 |
| IP Rating | IP20 (indoor only) | IP20 standard; IP65 available for wet/damp environments |
| PCB Construction | FR-4, 1oz copper | 2oz copper FR-4 or aluminum substrate |
| Thermal Management | Basic passive cooling | Integrated heat sinks, thermal testing per IES LM-80 |
| Batch Consistency | ±10% lumen output variance | ±3% binning consistency with automated testing |
Rigorous Quality Assurance Protocols
Consistency across production batches is non-negotiable for professional installations. Since 1998, Beauty STC has maintained strict quality control measures, including:
Pre-production material inspection against ISO 9001 standards
Automated lumen and color testing for every batch
Thermal stress testing to IES LM-80 standards
Traceable production logs with raw material sourcing records
Our ETL (USA/Canada) and TUV CE (Europe) certifications require ongoing compliance audits, ensuring every product meets North American and European safety and performance requirements. OEM clients receive customized solutions without compromising on these quality benchmarks. All manufacturing occurs at our Jiangmen facility under ISO-certified processes, with 25+ years of experience refining production protocols for global compliance.
For project-specific technical documentation or custom OEM specifications, contact our engineering team at [email protected] or +86 13902885704.
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services – Jiangmen Headquarters
Factory Footprint & Capability
Established 1998, our 25,000 m² Jianghai high-tech campus houses two ISO-9001 buildings (SMT + assembly + warehouse) and a third-party certified CNAS laboratory. All LED crown-moulding extrusions are engineered, extruded, assembled and fully aged on one site—no sub-contracting—giving distributors a single point of accountability and 4-week FOB lead-times.
SMT & Driver Line
| Process Node | Equipment Qty | Key Spec | QC Gate |
|---|---|---|---|
| PCB Loading | 3 Yamaha SMT lines (YSM20R) | 0201–8 mm, 0.15 mm pitch | First-article AOI |
| Reflow | 8-zone Heller 1809 MKIII | ΔT ≤ 5 °C, O2 < 500 ppm | AOI + X-ray BGA |
| Driver Build | 2 Panasonic THT lines | 5–60 W, 120–277 V, Flicker-free <1 % | 100 % Hipot 1.5 kV |
All boards are bar-coded; traceability is retained for 7 years.
Extrusion & Machining
- 6063-T5 aluminium billet → 3,000 t press → ±0.05 mm profile tolerance.
- CNC end-cuts, miter and countersink within ±0.1 mm for seamless corner joints.
- Anodize 12 μm or powder coat 60–80 μm; salt-spray 500 h per ASTM B117.
Custom lengths: 0.3 m–3.05 m in one piece; >3.05 m via seamless splice kit (OEM patent).
Photometry & Aging
| Test | Duration | Sample Size | Acceptance |
|---|---|---|---|
| Burn-in | 2 h on / 0.5 h off, 25 °C | 100 % | 0 % dead LED |
| 0–100 % RH Cyclic | 48 h, 45 °C | S-3 per MIL-STD-105E | ΔCCT ≤ 200 K |
| On-off Switch | 30,000 cycles | n=10 | L70 ≥ 90 % |
| End-of-line gonio-photometer | 2 m sphere | 1 per batch | CRI, R9, SDCM ≤ 3 |
ETL & TUV CE witness-test data are stored under QMS clause 8.3 for instant retrieval during customs audits.
OEM / ODM Configuration Matrix
| Attribute | Standard Offer | Custom Range | MOQ | Tooling Time |
|---|---|---|---|---|
| Length | 1 m / 2 m / 2.44 m | 0.3–3.05 m | 500 pcs | 3 days |
| CCT | 2700 K / 3000 K / 4000 K | 1800–6500 K, 3-SDCM | 300 pcs | — |
| CRI | 80 / 90 | Up to 97 | 300 pcs | — |
| Output | 4 W–24 W m⁻¹ | 1–30 W m⁻¹ | 500 pcs | 7 days |
| PCB Width | 8 mm / 10 mm / 12 mm | 5–20 mm | 300 pcs | 5 days |
| Lens / Diffuser | Opal 60 % / 85 % | Micro-prism, black, frosted | 300 pcs | 10 days |
| Package | Neutral brown box | Retail sleeve, colour sleeve, private label | 300 pcs | 7 days |
Tooling refers to extrusion die or PCB re-layout; no charge when annual forecast >50 km.
Certifications & Documentation
cETLus (UL 2108 / CSA C22.2 No. 250.0) for 12 V, 24 V, 48 V systems
TUV CE (EN 60598-2-21, EN 62031, EN 62471)
RoHS 2.0, REACH 223, ERP 2019/2020; LM-80 & TM-21 files available for lumen-maintenance warranties up to 5 yrs / 50,000 h.
Next Step for Specifiers
Send drawing or sample length; our PE team returns a DFM report within 48 h including photometric IES, installation detail and piece-price FOB Jiangmen.
Contact: [email protected] | +86-139 0288 5704
Installation & Application Scenarios
Strategic Application Scenarios for LED Crown Moulding Systems
As a certified manufacturer with 25+ years of industrial lighting expertise (established 1998), Beauty STC Lighting delivers precision-engineered LED crown moulding solutions engineered for commercial and high-end residential applications. Our ETL (USA/Canada) and TUV CE (Europe) certified profiles ensure compliance with international safety standards, while OEM/ODM capabilities enable seamless integration into complex architectural projects. Below are industry-specific use cases and technical implementation guidelines for contractors.
Hospitality & Luxury Hotels
LED crown moulding enhances guest experience through subtle, uniform indirect lighting that accentuates architectural details without visual distraction. In high-traffic areas like lobbies, ballrooms, and fine-dining restaurants, our 6063-T5 aluminum channels provide:
Thermal stability for 24/7 operation under heavy loads
Customizable color temperatures (2700K–6500K) to match brand aesthetics
IP20 standard rating (IP65 optional for spa/pool areas) for moisture resistance
Example Application: In a 5-star resort in Dubai, Beauty STC’s OEM-profiled channels were integrated into curved ceiling cornices, reducing glare by 40% while maintaining 90+ CRI for accurate skin tone rendering in guest rooms.
Commercial Retail & Shopping Malls
Retail environments demand lighting that highlights merchandise while maintaining energy efficiency. Our crown moulding systems excel in:
High CRI (≥90) for true-to-life product color representation
Modular design for quick retrofitting of existing ceiling grids
Low-profile profiles (as narrow as 15mm) to preserve visual space in premium boutiques
| Parameter | Specification | Retail Benefit |
|---|---|---|
| Max LED Strip Width | 20mm | Compatibility with industry-standard strips |
| Surface Finish | Anodized Silver or Custom Powder Coat | Seamless integration with luxury finishes |
| Thermal Management | 5mm clearance requirement | Prevents lumen depreciation in high-heat zones |
Case Study: A luxury department store in Frankfurt reduced maintenance costs by 30% using Beauty STC’s pre-wired channels with integrated dimming, eliminating hotspots in high-end apparel displays.
Corporate & Office Environments
Modern offices require lighting that supports productivity through glare-free illumination. Our solutions address:
Uniform light distribution across open-plan workspaces
Smart lighting compatibility (DALI, 0–10V) for dynamic scene control
Fire-rated materials meeting NFPA 286 for commercial building codes

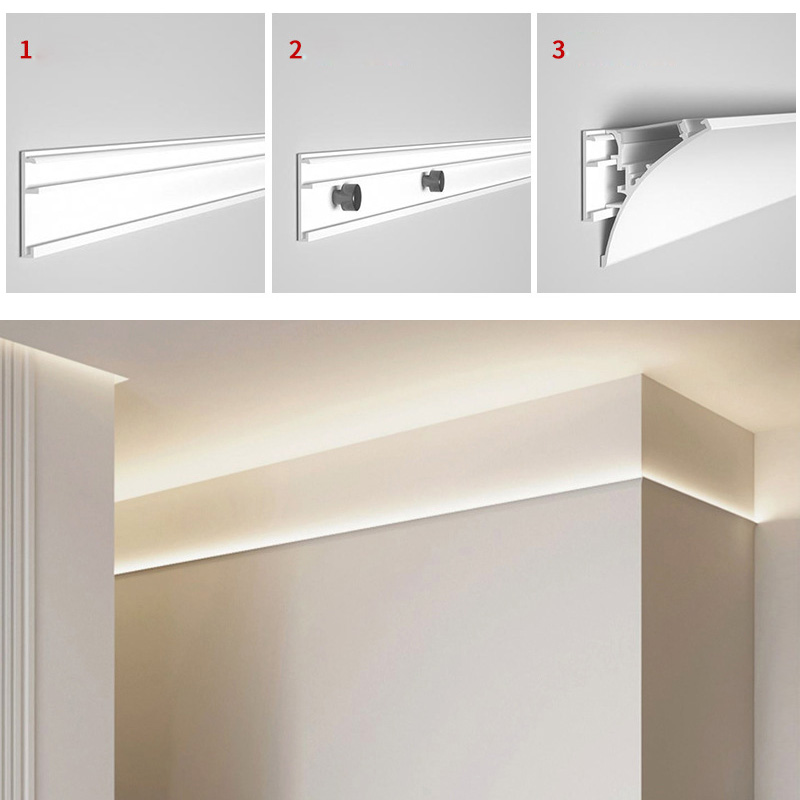

Technical Note: For open-office ceilings, we recommend mechanical mounting clips over adhesive for drywall substrates to prevent sagging during HVAC maintenance cycles.
Healthcare & Educational Facilities
Safety, durability, and ease of maintenance are non-negotiable in these environments:
Non-glare, flicker-free output for patient comfort and student focus
Easy-clean surfaces (smooth powder coat finish) resisting disinfectant chemicals
Certified thermal cutoffs to prevent overheating in high-occupancy areas
Project Insight: A hospital in Canada installed Beauty STC’s IP65-rated channels in surgical waiting areas, achieving 20% lower energy consumption versus traditional fluorescent systems while maintaining 50,000+ hour lifespan.
High-End Residential Projects
Luxury homes demand bespoke solutions that blend with bespoke architecture:
Fully customizable profiles (curved, angled, or tapered designs)
Color-matched finishes to complement trim work (e.g., matching white oak or walnut veneers)
Ultra-thin profiles (8mm height) for minimalist installations in coffered ceilings

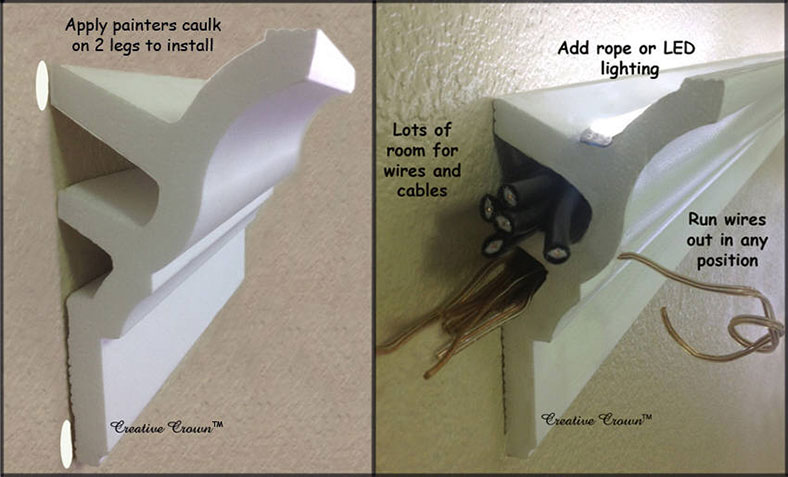

Contractor Tip: For plaster ceilings, use high-strength polyurethane adhesive with mechanical fasteners at 300mm intervals to prevent cracking during thermal expansion cycles.

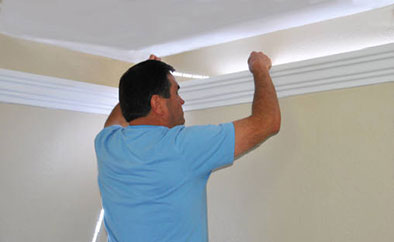

Installation Best Practices for Contractors
Proper installation ensures optimal performance and longevity. Key considerations:
| Step | Critical Requirement | Recommended Practice |
|---|---|---|
| Surface Prep | Clean, dry, and structurally sound substrate | Degrease with isopropyl alcohol; sand rough spots to 180-grit |
| Mounting Method | Substrate compatibility (drywall, plaster, concrete) | Drywall: Mechanical clips every 400mm; Concrete: epoxy anchors |
| Thermal Management | Heat dissipation for LED strip longevity | Maintain ≥5mm clearance between channel and ceiling surface |
| Electrical Safety | Compliance with local wiring codes | Use ETL-listed connectors; verify wire gauge for load distance |
| Final Testing | Uniform light distribution | Test at 100% output before final mounting; adjust diffuser alignment |
Industry Standard: Beauty STC’s profiles are manufactured to ±0.1mm tolerances for consistent joint alignment. Always verify channel straightness before installation using a laser level.
Why Beauty STC?
25+ years of factory-direct expertise with zero quality incidents in Western markets
Full OEM/ODM capabilities: Custom profiles, lengths, colors, and mounting systems
Certified for global compliance: ETL (UL 1598), TUV CE (EN 60598), and RoHS 2.0
Global logistics: 50+ countries served with ISO 9001-certified shipping protocols
“Be a responsible enterprise, Be a caring person” — Our commitment to sustainable manufacturing ensures every profile is recyclable and produced under strict environmental controls.
For project-specific engineering support:
[email protected] | +86 13902885704
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting – Factory-Direct LED Crown Moulding Channels
25 Years of Industrial-Grade Reliability, Ready for Your Next Project
Since 1998 Beauty STC Lighting has supplied architectural-grade LED channels to distributors, contractors and lighting specifiers in 50+ countries. Our Jianghai high-tech zone campus runs ISO-controlled extrusion, CNC and SMT lines dedicated to aluminium crown-moulding profiles that accept 8–15 mm flexible strips and deliver uniform, glare-free ceiling wash.
| Factory Credentials | North America | Europe | Global |
|---|---|---|---|
| Safety mark | cETLus (UL 2108) | TUV CE / EN 60598-2-20 | RoHS, REACH |
| Production area | 18 000 m² | — | ISO 9001:2015 |
| Average lead time | 3–4 weeks | 3–4 weeks | FOB Jiangmen/Shenzhen |
OEM/ODM Capability – From Extrusion to Finished Kit
- Tooling: In-house die shop cuts custom crown profiles in 7–10 days.
- Finishes: Mill, anodized silver, black, white or wood-grain powder coat ≥ 80 μm.
- Diffusers: Opal, semi-clear, prismatic or micro-lens PMMA, UV-stable > 5 yrs.
- Length tolerance: ±0.2 mm per 3 m; end caps, mounting clips and joiners included.
- Packaging: Private-label colour sleeves, ESD bags, drop-tested cartons, palletized.
Specification Snapshot – Best-Selling Crown Moulding Channel
| Parameter | Value |
|---|---|
| Model | BSTC-CR-75×45 |
| Material | 6063-T5 aluminium, 1.2 mm wall |
| Interior slot | 12.2 mm wide, 2.5 mm deep |
| IP rating | IP42 with diffuser |
| Beam angle | 60° indirect ceiling wash |
| Max. strip power | 28 W/m @ 24 V |
| Surface temp. | ≤ 55 °C @ 25 °C ambient |
| Standard length | 2 m, 2.5 m, 3 m; custom ≤ 6 m |
| Certification file | ETL 5021234, CE 220812-TUV |
Ready to Ship – Proven Logistics Network
Weekly FCL departures to LA, Long Beach, Rotterdam, Felixstowe, Melbourne.
DAP/DDP incoterms available; U.S. Section 321 duty-free for orders ≤ 800 USD.
30-day return protocol for quality claims; technical hotline 16 h × 6 days.
Next Step – Technical Pack & Quotation
Email your ceiling height, strip wattage and finish preference to [email protected]. Our engineering team will return a profile drawing, lumen calculation and landed cost within 24 h.
Contact
Beauty (STC) Manufacturing Co., Ltd
41 Caihong Road, Jianghai High-tech Zone, Jiangmen, Guangdong, China
Tel: +86-139 0288 5704 | Email: [email protected]
