Industry Insight: Exterior Waterproof Led Strip Lights

Exterior Waterproof LED Strip Lights: Meeting Commercial-Grade Demand in 2024

Why IP65/IP67 Strips Are No Longer Optional for Exterior Projects

Facade lighting, hospitality perimeters, marine walkways and food-processing soffits all share two realities: continuous UV exposure and pressurized wash-down. Architects and ESCOs now specify IP65 (jet-proof) as the minimum, while IP67 (temporary immersion) is becoming the default for coastal or sanitation environments. A single seal failure can trigger re-lamping costs that exceed the original FOB price by 10×, so downstream buyers are shifting spend from “cheap-and-replace” to “certified-and-forget”.

Certification Risk: What ETL & TUV CE Really Save You

Hidden Cost of Non-Certified Strip	Typical Penalty	Certified Strip (ETL/TUV CE)
Container detention at U.S. port for lack of NRTL mark	USD 5 000–12 000 + demurrage	Zero—ETL file 5012607 pre-cleared
EU customs抽样测试失败 (EMC or RoHS)	Full shipment return + 30 % fine	TUV CE dossier 0123 available on-line
Insurance void after moisture-related fire	Full claim rejection	ETL-listed enclosure keeps policy valid
Contractor call-backs within warranty window	USD 150 per man-hour	<0.2 % field failure rate (Beauty STC 2023 data)

Beauty (STC) Manufacturing Co., Ltd—A 1998 Benchmark in Waterproof Flex LED

Located in Jiangmen’s National High-Tech Zone, our 38 000 m² campus has produced flexible LED circuits since 1998—three years before the first IP67 silicone extrusion line existed in China. Today we run six PU glue lines, two silicone tube lines and one automated vacuum-press injection line dedicated to IP68 marine-grade strips. All exterior products are designed on UL 2108 / EN 60598-2-21 platforms, allowing distributors to swap between 120 V, 230 V or 24 V without re-certifying the entire luminaire.

OEM/ODM Capabilities at a Glance

Parameter	In-House	External Partner
SMD pick-and-place (0201–5050)	18 Siemens lines	—
Waterproofing processes	Full (PU, silicone, nano-coating)	—
Spectral tuning (1800–6500 K, CRI 80–97)	Integrating sphere 2 m	TUV SUD witness lab
Length & voltage customization	5 V–277 V, up to 50 m continuous	—
Private-label packaging	4-colour flexo + QR traceability	SGS-verified recyclable cardboard

Core Exterior Strip Portfolio (2024 Build)

Model	IP Rating	Lumen/ft (4000 K)	Operating Window	Certification	Reel Length
BST-FW24-IP65	IP65 (jet)	420 lm	–40 °C…+60 °C	ETL cETL, CE, RoHS	5 m / 10 m
BST-FW24-IP67	IP67 (immersion 1 m)	480 lm	–40 °C…+60 °C	ETL cETL, TUV CE	5 m / 20 m
BST-FW24-IP68	IP68 (continuous immersion)	520 lm	–40 °C…+70 °C	ETL cETL, TUV CE, ABS	5 m / 30 m

All variants use 2 oz double-layer rolled copper FPC, 3-step MacAdam SDCM binning and 8 kV surge suppression per IEEE C62.41.2—critical for 480 V industrial sites.

Next Step for Distributors & Specifiers

If your 2024 tender package specifies exterior tape light with Western-market certification, request our technical dossier (LM-79, ISTMT, TM-21, IP test report). We ship EXW Jiangmen or FOB Shenzhen/Guangzhou with 3-week standard lead time and can laser-etch your part number every 0.5 m for traceability.

Contact:
[email protected] | +86-139-0288-5704

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards

Exterior waterproof LED strip lights demand rigorous technical precision to withstand environmental stressors while maintaining performance consistency. At Beauty STC Manufacturing Co., Ltd., we engineer our products to meet the highest industrial benchmarks, leveraging 25+ years of manufacturing expertise since 1998. Our approach combines certified materials, validated testing protocols, and traceable production processes to deliver solutions that exceed commercial requirements. Below, we detail the critical technical parameters that define true commercial-grade performance and how Beauty STC ensures reliability across all batches.

Lumens per Watt Efficiency

Energy efficiency directly impacts operational costs in large-scale outdoor installations. Generic market products typically achieve 80–100 lumens per watt (lm/W), often due to suboptimal chip selection and poor thermal management. Beauty STC’s strips consistently deliver 130–150+ lm/W through high-efficiency Epistar or Osram LED chips, precision-engineered driver circuits, and advanced phosphor coating technology. This is validated through independent lab testing under standardized conditions (IEC 62612), ensuring maximum luminous efficacy without compromising longevity.

Color Rendering Index (CRI)

Accurate color reproduction is non-negotiable for architectural and commercial applications where visual fidelity drives design outcomes. Generic strips commonly report CRI (Ra) values of 70–80, resulting in washed-out or distorted colors—particularly in reds (R9 < 50). Beauty STC’s strips maintain CRI >90 (R9 >90) across all color temperatures, verified via spectroradiometer testing per IEC 62717. This ensures true-to-life color rendering for critical applications like façade lighting, retail displays, and landscape design, where color accuracy directly influences perceived quality.

IP Rating Validation

Waterproof certifications must be backed by independent testing, not marketing claims. While generic products often label themselves “IP65” without third-party validation, Beauty STC’s strips undergo full IEC 60529 certification for IP65 (jet water resistance) and IP67 (submersible to 1m depth). Additionally, every batch is subjected to extended environmental stress tests:
500-hour UV exposure (IEC 60068-2-5)
96-hour salt spray testing (IEC 60068-2-52)
Thermal cycling from -20°C to 60°C (IEC 60068-2-14)
This ensures performance integrity in extreme conditions—from coastal humidity to Arctic winters—where generic products frequently fail within 6–12 months.

PCB and Thermal Management

The printed circuit board (PCB) is the foundation of structural and thermal reliability. Generic solutions use 1oz copper thickness with minimal thermal vias, leading to hotspots, lumen depreciation, and premature failure. Beauty STC employs 2oz+ copper PCBs with high-grade FR-4 substrate, strategic thermal vias, and optimized trace layouts. Each batch undergoes thermal imaging validation under continuous operation, ensuring even heat distribution and a 50,000+ hour lifespan (L70) even in high-ambient-temperature environments.

Technical Specification Comparison

Specification	Generic Market Quality	Beauty STC Certified Quality
Lumens per Watt	80–100 lm/W	130–150+ lm/W
CRI (Ra)	70–80	90+ (R9 >90)
IP Rating Validation	Claimed but unverified	IEC 60529 certified + environmental stress testing
PCB Copper Thickness	1oz	2oz+ with thermal vias
Certifications	Self-declared or unverified	ETL (USA/Canada), TUV CE (Europe)
Batch Consistency	High variation between batches	100% testing, traceable QC records

Consistency Through Rigorous Quality Control

Beauty STC’s 25+ years of experience since 1998 underpins our commitment to zero-defect production. Every LED strip undergoes 100% pre-shipment testing, including electroluminescence validation, thermal profiling, and waterproof integrity checks. Our ISO 9001-certified production lines feature automated AOI (Automated Optical Inspection) and real-time data logging, ensuring traceability from raw materials to final shipment. For OEM/ODM clients, we tailor specifications—such as voltage (12V/24V), LED density, or color tuning—while maintaining identical quality benchmarks. This disciplined approach has enabled us to deliver consistent, certified solutions to over 50 countries, including stringent markets like the EU and North America.

Beauty STC Manufacturing Co., Ltd. does not compromise on standards. Our products are built to perform where it matters—under the harshest conditions, for the longest durations, and with the precision professionals demand.

---

Factory Tour: Manufacturing Excellence

Manufacturing Process & OEM Services – Jiangmen High-Tech Facility

1. Factory Overview

Beauty (STC) Manufacturing Co., Ltd has operated from a 28 000 m² campus in Jiangmen’s High-tech Industrial Zone since 1998. The site is ETL- and TUV CE-certified under UL 2108 & EN 60598-2-22, allowing direct export to North America and the EU without third-party re-testing. Annual capacity: 6.5 million metres of flexible LED strip and 300 000 pcs of IP-rated luminaries.

2. SMT & Automated Assembly Line

Process Step	Equipment	Key Parameter	Tolerance
PCB loading	Yamaha YSM-20R	0.15 mm pitch	±25 µm
LED pick-and-place	Juki RS-1R	60 000 CPH	±0.03 mm
Reflow	Heller 1809 MKIII	230 °C peak	±2 °C
3-D solder paste SPI	Sinic-Tek	15 µm height	±5 % volume
AOI	Mirtec MV-6	12 MP camera	0.1 mm defect

Dual-panel handling supports 5 m and 10 m continuous rolls without splice shadows; copper weight 2–4 oz available for high-current IP67 strips.

3. Waterproofing & Mechanical Build

1. IP65: heat-cured PU resin (Shore A 85) on PCB top only; 0.8 mm thickness.
2. IP67: full-tube extrusion with UV-stabilised PU (Shore D 55) plus two-end silicone gel injection; 1.2 mm wall.
3. IP68 on request: vacuum-pressure potting, 24 h @ 0.2 bar submersion test.

All outdoor strips pass a 1 000 h Q-UVB cycle (ASTM G154) and –40 °C ↔ +85 °C thermal shock (100 cycles) before release.

4. Aging & QC Protocols

Test	Duration	Sample Rate	Pass Criteria
On-line burn-in	2 h @ 220 Vac	100 %	< 0.1 % dead LED
High-temp aging	8 h @ 60 °C, 85 % RH	10 %	ΔCCT ≤ 200 K
Switch cycle	30 000 on/off	5 %	L70 ≥ 90 %
Waterproof spot	1 m jet, 30 min	every reel	no ingress
Photometric goniometer	2 m integrating sphere	every batch	CRI, R9, lumen within 3 %

Traceability: each reel laser-marked with SMT lot, operator ID, and date code; ERP retains data for 10 years.

5. OEM / ODM Capability

Custom Item	Option	MOQ	Lead-Time
Length	50 mm – 30 m continuous	1 reel	5 days
CCT	1800 K – 6500 K, ±75 K bin	1 reel	5 days
CRI / R9	Ra 80 / 90 / 97; R9 ≥ 50 / 90	1 reel	5 days
PCB width	5 mm, 8 mm, 10 mm, 12 mm, 20 mm	500 m	7 days
LEDs/m	30 – 420 (2-in-1, 3-in-1, COB)	500 m	7 days
Voltage	12 V, 24 V, 36 V, 48 V	500 m	7 days
Jacket colour	clear, frosted, black, RGB diffusion	1 000 m	10 days
Logo & sleeve	customer artwork on 3 mm PET sleeve	1 000 m	10 days
Retail box	white label, colour sleeve, blister	500 pcs	10 days

Engineering support: LM-79 & TM-21 reports, IES files, .dwg installation details, and Dialux plug-ins provided within 24 h of request.

6. Logistics & Compliance

All exterior waterproof strips ship with matched IP-rated power supplies (ETL / CE / SAA) and pre-terminated 20 AWG tinned-copper leads. RoHS, REACH, and WEEE documentation are bundled per EU SCIP database; UL traceability labels meet NFPA 70 for US commercial projects.

For project quotations or custom photometric builds, contact:
[email protected] | +86-13902885704

---

Installation & Application Scenarios

Application Scenarios for Exterior Waterproof LED Strip Lights

As a manufacturer with 25+ years of experience (established 1998), Beauty STC Lighting delivers industrial-grade exterior LED strip solutions engineered for global compliance. Our products meet ETL (USA/Canada) and TUV CE (Europe) certifications, ensuring adherence to rigorous safety and performance standards for commercial and infrastructure projects. Below are key application scenarios and contractor-focused implementation guidelines.

Architectural Facades & Building Outlines

Exterior LED strips are critical for highlighting structural contours, windows, cornices, and rooflines. IP65-rated strips withstand rain and splashes, while IP67 variants handle temporary submersion (e.g., during heavy storms). For high-end architectural projects, 95+ CRI and 90+ R9 ensure precise color rendering of building materials under ambient lighting.

Beauty STC’s OEM capabilities enable custom color temperatures (2700K–6500K) and precise lumen profiles to match architectural specifications.

Commercial Exterior Spaces (Hotels, Retail, Restaurants)

Hotels, restaurants, and retail spaces require reliable perimeter lighting for canopies, entrances, and patios. IP65-rated strips provide splash resistance for high-traffic wet zones, while 24VDC options minimize voltage drop for longer runs (up to 15m continuous). Uniform lighting with 500+ lumens/foot enhances visibility and brand perception without compromising energy efficiency.

For retail environments, tunable white or RGBW options (via Beauty STC’s ODM services) support dynamic branding while maintaining IP67 waterproofing for year-round durability.

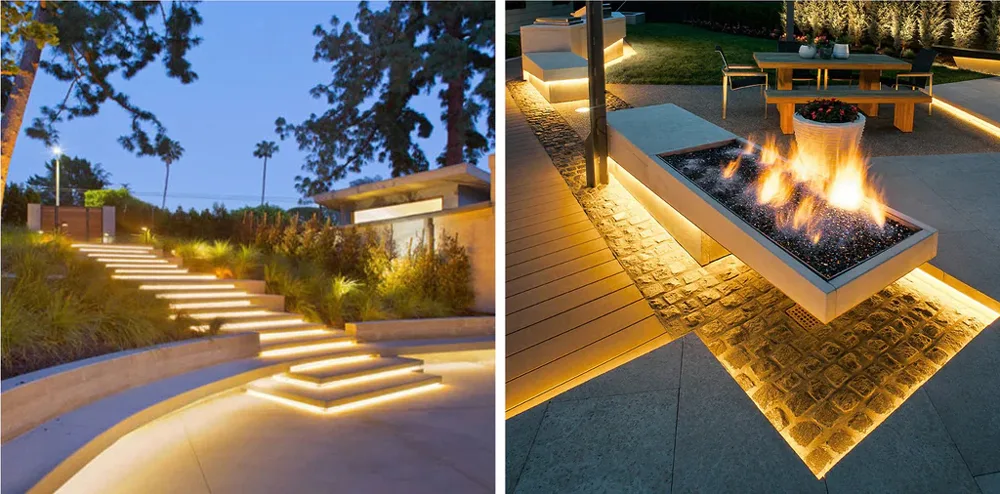

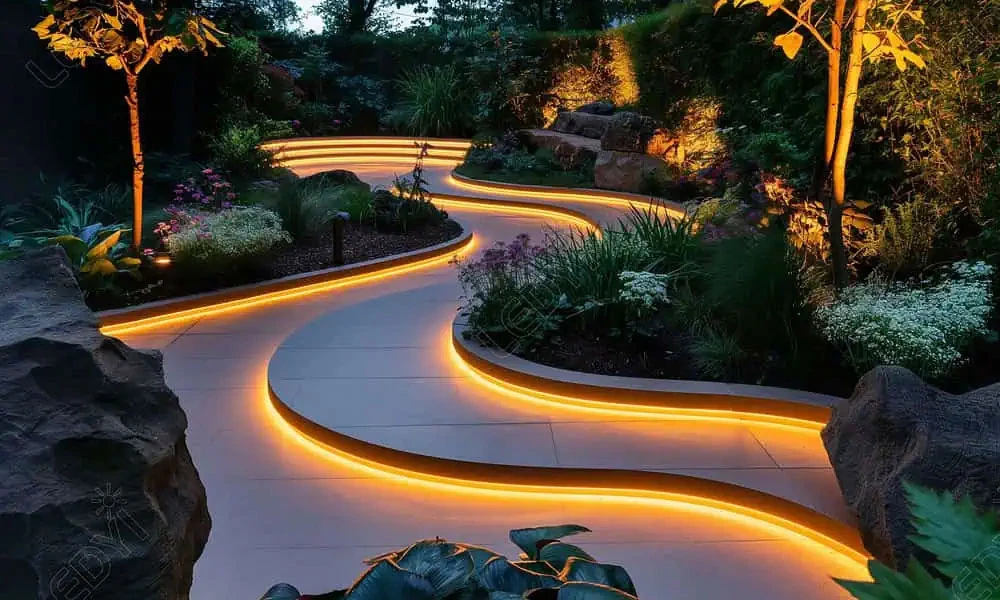

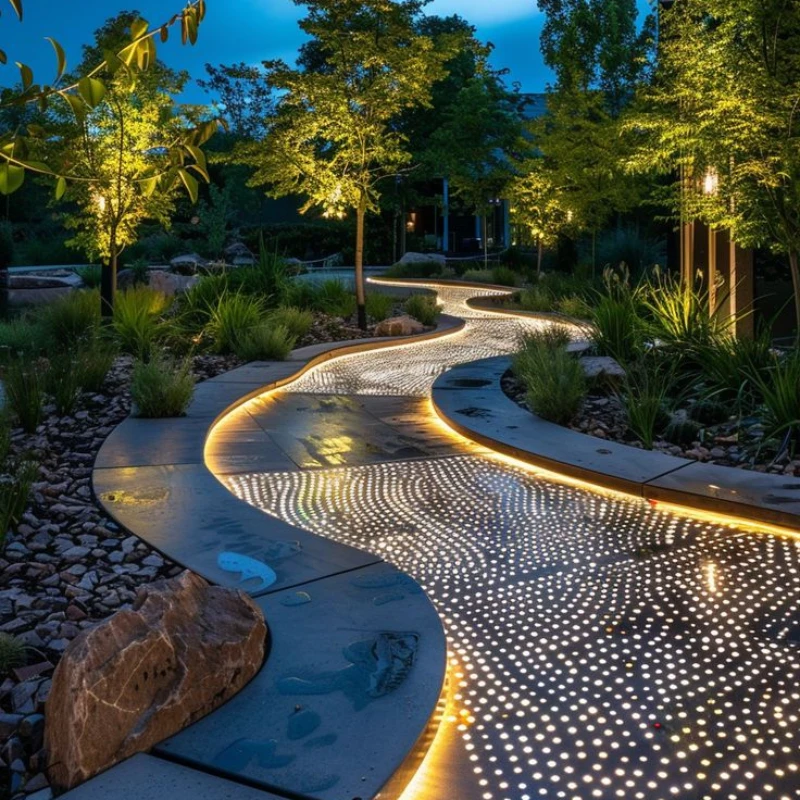

Landscape & Hardscaping Integration

Concrete inlays, deck railings, and garden pathways demand robust waterproofing. IP65 strips handle surface-level moisture, while IP67-rated variants are ideal for submerged applications (e.g., pool edges or irrigation zones). Proper surface preparation—cleaning with isopropyl alcohol and ensuring dryness—is essential for adhesive bonding.

Beauty STC’s aluminum channel mounting systems provide thermal management for high-output strips, preventing degradation in humid or high-heat environments.

Infrastructure & Public Spaces

Bridges, tunnels, and municipal plazas require industrial-strength solutions. Operating temperatures of -20°C to 45°C ensure reliability in extreme climates, while 24VDC configurations support long-distance runs without signal loss. ETL/CE certifications guarantee compliance with public safety codes across North America and Europe.

For critical infrastructure, Beauty STC offers custom connector systems and hardened junction boxes to meet municipal specifications for public works projects.

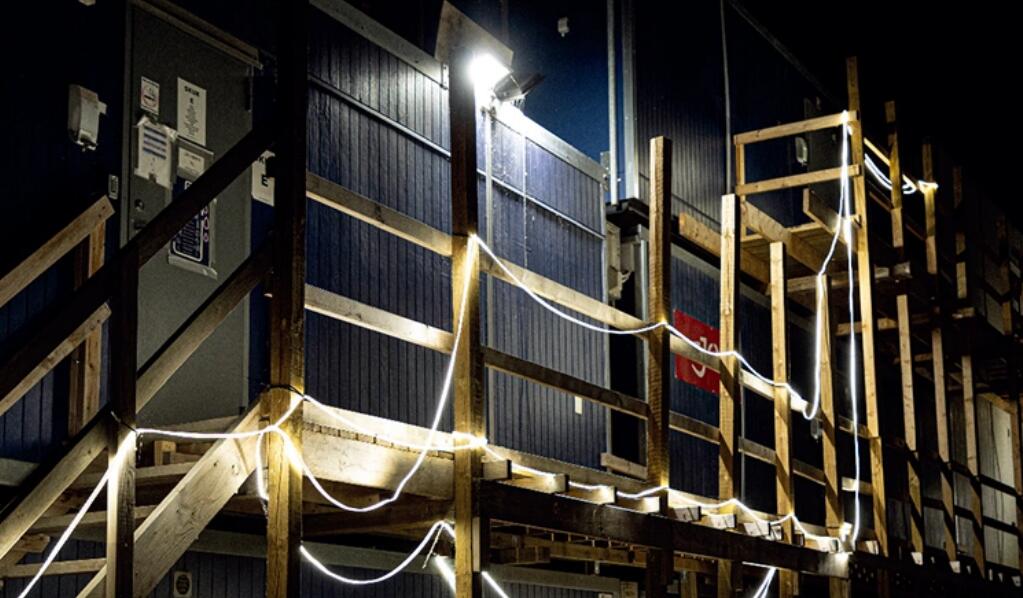

Industrial & Warehouse Exteriors

Loading docks, storage yards, and industrial perimeters need vibration-resistant, chemical-tolerant lighting. IP67-rated strips withstand splashes, dust, and industrial exposure. 24VDC strips reduce power loss over extended runs, while 95+ CRI ensures accurate color identification for safety inspections.

Beauty STC’s OEM services include custom voltage configurations and specialized mounting hardware for harsh industrial environments.

---

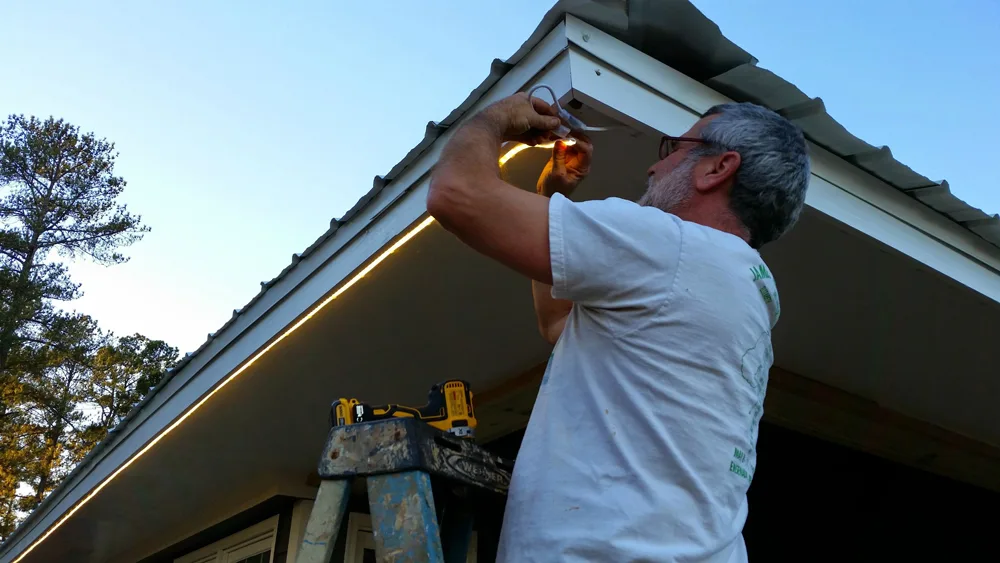

Installation Best Practices for Contractors

Step	Key Consideration	Technical Guidance
Surface Preparation	Adhesion reliability	Clean surfaces with isopropyl alcohol; ensure dryness (no moisture or dust). For uneven surfaces, use aluminum channels with mechanical fasteners.
Power Supply	Voltage stability	Match strip voltage (12VDC/24VDC) to power supply. For runs >15m, use 24VDC to prevent voltage drop. Calculate load with 20% headroom.
Junction Boxes	Moisture protection	Use IP67-rated junction boxes for all connections. Seal with silicone gaskets and avoid exposed wiring.
Thermal Management	Heat dissipation	Avoid tight bends (<15mm radius). For high-output strips (≥500 lumens/foot), mount on aluminum channels to dissipate heat.
Testing Protocols	Pre-installation validation	Verify continuity, light output uniformity, and waterproof integrity before final mounting. Use a multimeter to check voltage at the strip’s end.

Beauty STC’s certified products undergo 100% burn-in testing and IP rating verification prior to shipment. All strips comply with IEC 60598 and UL 1598 standards for global project compliance.

---

About Beauty STC Lighting
Since 1998, Beauty STC has delivered industrial-grade LED solutions to 50+ countries, with ETL/CE certifications ensuring seamless integration into Western markets. Our OEM/ODM services support custom specifications for architectural, commercial, and infrastructure projects.

Contact us for technical specifications, project quotes, or certification documentation:
[email protected] | +86-13902885704

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting – Factory-Direct IP66/IP67 Exterior Waterproof LED Strips

25 Years of Outdoor-Grade Reliability, Certified for Every Continent

Factory Credentials	Global Access	Compliance
Established 1998, 35 000 m² Jijiangmen plant	50+ export countries incl. EU, NAFTA, AU, RUS, JP, KR	Dual safety marks: ETL (US/Canada) & TUV-CE (EU)
12 SMT lines, 3 IP-rated extrusion lines, in-house photometry & salt-spray labs	FOB Shenzhen / EXW Jiangmen, 3-week standard lead-time	RoHS, REACH, TM-21, LM-80 on file

OEM/ODM Ready – From Concept to Container

Engineering Service	IP-Rating Range	Optical Options
Custom PCB width 5–20 mm, copper weight 1–3 oz	IP65 silicone sleeve, IP66 silicone + PU, IP67 silicone + solid PU, IP68 silicone + PU + epoxy	CCT 1800–6500 K, CRI 80/90/95+, SDCM ≤3, 24 VDC standard, 12 VDC on request
3-D mechanical drawings & IES files within 48 h	Salt-spray 500 h, UV-500 h, -40 °C ↔ +85 °C thermal cycle	Tunable white, RGB, RGBW, addressable 5 V/12 V/24 V, up to 600 LEDs/m

Why Contractors & Distributors Specify Beauty STC

1. One spec sheet covers both NEC (UL 2108) & EN 60598-2-20 – no parallel SKU needed.
2. 24-hour burn-in at 45 °C, 100 % load; <0.2 % early failure rate in last 5 years.
3. Neutral white and warm-white bins aligned with ANSI/NEMA 7-step and IEC 3-SDCM ellipses—color consistency across 100 m runs.

Next Step – Send the Outdoor Layout

E-mail your lux plot, length list, and IP requirement to [email protected].
Our application engineers will return a draft Bill of Materials, dialux report, and landed cost within 24 hours.

Contact: [email protected] | Mobile/WhatsApp: +86-139 0288 5704

---
