Industry Insight: Display Shelves With Led Shop Drawing
The integration of precision LED lighting into commercial display shelving represents a critical evolution in retail and industrial environment design, moving far beyond mere illumination to become a core component of visual merchandising, energy management, and operational efficiency. Today’s demanding commercial spaces require lighting solutions that are not only visually compelling to enhance product presentation but also engineered for reliability, seamless integration, and strict adherence to global safety and performance standards. This is where professionally executed LED shop drawings for display shelves become indispensable, transforming conceptual lighting plans into buildable, code-compliant realities. Ensuring these integrated systems meet rigorous certifications like ETL for North American markets and CE marking for Europe is non-negotiable, mitigating liability risks and guaranteeing the safety and performance retailers and industrial facilities depend on. Beauty STC Manufacturing Co., Ltd., established in 1998, stands at the forefront of this specialized field. For over 25 years, we have leveraged deep expertise in commercial and industrial LED lighting engineering to deliver not just luminaires, but complete, precision-engineered lighting solutions where the shop drawing is as vital as the fixture itself, ensuring flawless implementation from specification through to final installation.
Technical Specs & Certifications
Display shelves with integrated LED lighting require precise technical specifications to ensure optimal visual presentation, energy efficiency, and durability. At Beauty (STC) Manufacturing Co., Ltd., our LED lighting solutions for display shelves are engineered with a focus on high performance, reliability, and aesthetic precision.
Our standard LED modules designed for display shelving achieve a luminous efficacy of 110 to 130 lumens per watt, ensuring energy-efficient operation without compromising light output. This range allows for bright, uniform illumination across product surfaces while minimizing power consumption—ideal for retail environments where lighting runs for extended periods.
Color Rendering Index (CRI) is a critical factor in display lighting, as accurate color representation enhances product appeal. All our LED solutions for display applications maintain a CRI greater than 90, with options available up to CRI 95+. This high color fidelity ensures that textiles, cosmetics, food, and other merchandise appear vibrant and true to their natural tones under the lit environment.
In terms of environmental protection, our LED systems are rated at a minimum of IP20 for internal dry locations. For display shelves in more demanding environments—such as in kitchens, bathrooms, or refrigerated displays—we offer configurations with IP44 or IP54 ratings, providing protection against dust and moisture ingress. These higher-rated fixtures are sealed and constructed with robust materials to maintain long-term performance in variable conditions.
Beauty (STC) Manufacturing Co., Ltd. is recognized for its commitment to quality and precision engineering. Our LED lighting systems undergo rigorous testing for thermal management, electrical safety, and photometric consistency. We utilize high-grade LED chips from trusted suppliers, paired with precision-engineered heat sinks and drivers, ensuring extended lifespan (typically L70 > 50,000 hours) and stable light output. Each shop drawing provided includes detailed layout, circuiting, mounting dimensions, and photometric data to facilitate seamless integration into display shelf designs.
Our products comply with international standards including IEC, EN, and RoHS, and are supported by comprehensive technical documentation and certification. With Beauty STC, clients receive not only technically superior lighting but also reliable, scalable solutions tailored for high-end retail and commercial display applications.
Factory Tour: Manufacturing Excellence
Beauty STC Manufacturing Co., Ltd. operates a modern LED lighting manufacturing facility in Jiangmen, Guangdong Province, China. This factory serves as our primary production hub, integrating advanced electronics assembly with specialized lighting fixture manufacturing capabilities. The facility is designed to stringent international quality standards, holding ISO 9001 certification and adhering to BSCI social compliance protocols, ensuring both product reliability and ethical manufacturing practices. Its strategic location within the Pearl River Delta provides efficient access to component suppliers and major port logistics.
Our Surface Mount Technology (SMT) production line is centered around multiple high-precision Fuji NXT III modular placement machines. These systems feature dual-lane configuration for optimal throughput and handle components down to the demanding 0201 metric package size, essential for compact, high-density LED driver and control board assembly. The line includes automated solder paste inspection (SPI) before placement and 3D automated optical inspection (AOI) immediately after reflow soldering. This comprehensive inline quality control ensures exceptional first-pass yield rates exceeding 99.5% for critical lighting control electronics, directly impacting the long-term stability of our LED products.
Rigorous aging and burn-in testing is a non-negotiable phase for all our LED lighting products before shipment. Completed fixtures undergo a minimum 72-hour continuous operational test under controlled thermal conditions, typically at 45°C ambient temperature, significantly exceeding standard room temperature testing. This extended burn-in, conducted on dedicated aging racks with automated monitoring systems, identifies early-life failures related to component stress, thermal management, or assembly issues. The data collected during this phase informs continuous process improvements and is a key factor in achieving our industry-leading field failure rates below 0.5% annually for retail lighting solutions.

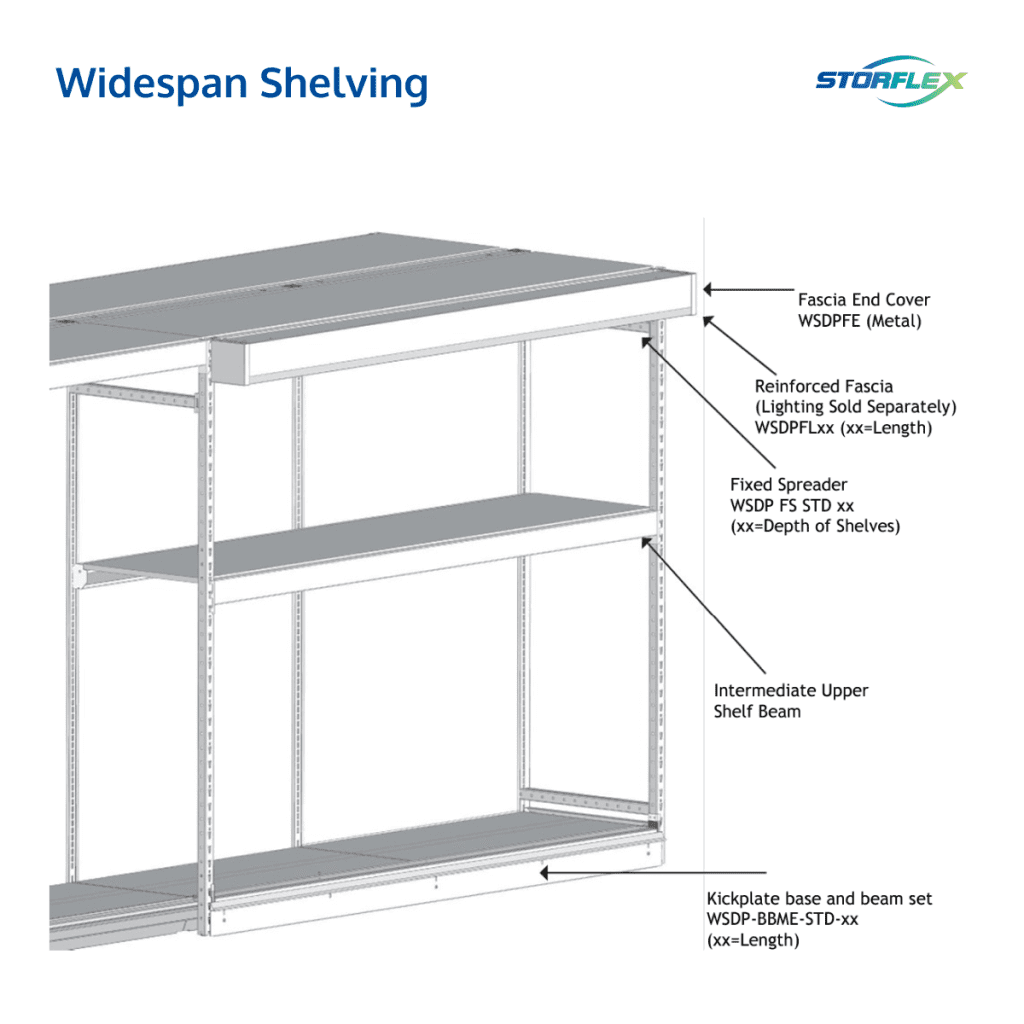

Regarding OEM capability for illuminated retail display fixtures, commonly referred to as display shelves with integrated LED shop lighting, Beauty STC possesses extensive turnkey expertise. We offer comprehensive OEM services starting from initial concept development and detailed CAD engineering, including precise optical simulations for beam control and uniformity, through to full-scale production. Our engineering team collaborates closely with clients to translate specific merchandising requirements – such as exact color temperature, high CRI (Ra>90), tailored beam angles, dimming protocols, and structural integration into acrylic, metal, or composite shelf systems – into manufacturable designs. We manage all aspects including custom LED module fabrication, driver integration, thermal management solutions, wiring harnesses, and final fixture assembly. Crucially, we provide full technical documentation, including detailed shop drawings, 3D models, wiring diagrams, and installation guides, ensuring seamless integration for the client’s retail environment. This capability extends to low-volume custom projects and high-volume production runs for major global retail chains.
Application Scenarios

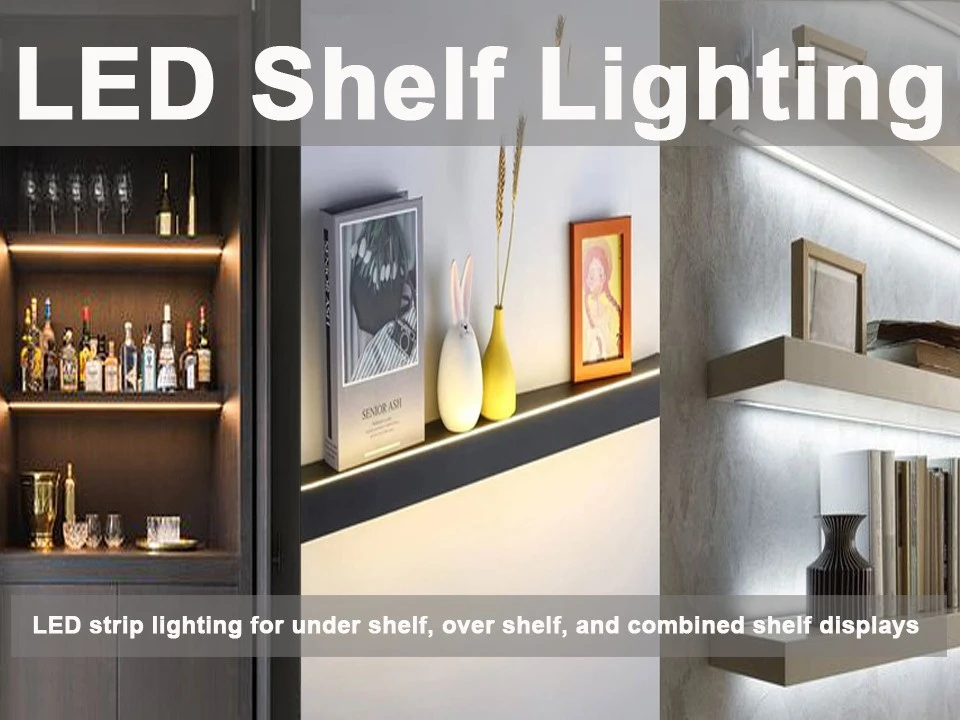

Display shelves with LED shop drawings are ideal for enhancing visual appeal and guiding customer attention in commercial and hospitality environments. They are commonly used in hotels, malls, and offices, each serving specific functional and aesthetic purposes.
In hotels, these illuminated display shelves are best utilized in lobbies, reception areas, executive lounges, and boutique hotel gift shops. They highlight premium amenities such as branded toiletries, luxury beverages, or curated local products. The integrated LED lighting draws attention to high-margin items and adds a sophisticated ambiance that enhances the guest experience. Warm white or tunable white LEDs are recommended to complement the hotel’s interior lighting and create a welcoming atmosphere.

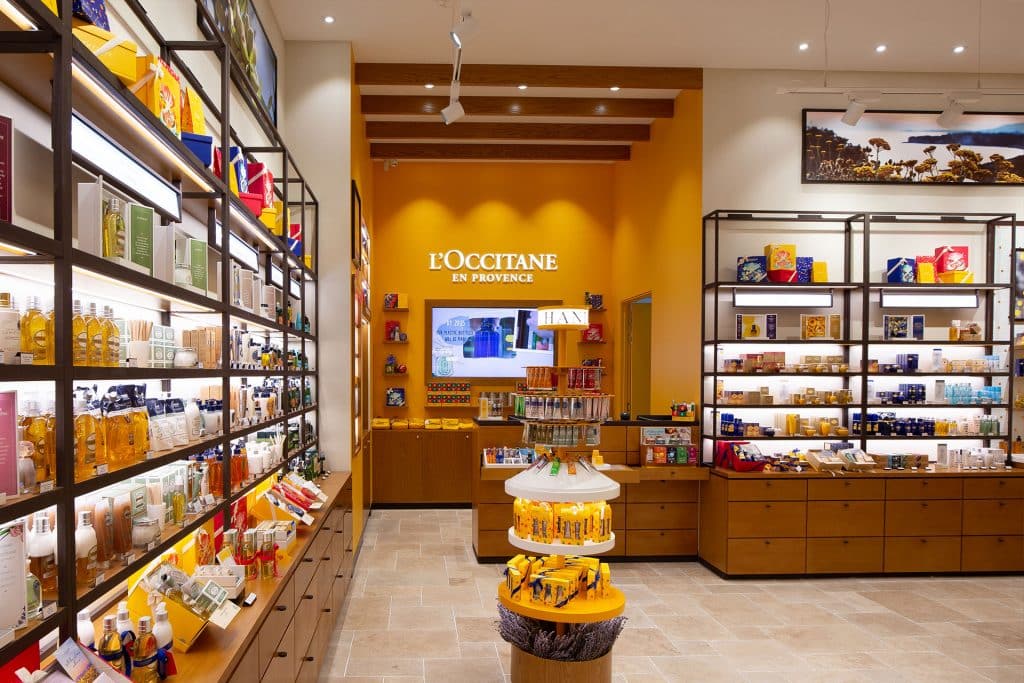

Malls benefit significantly from LED-lit display shelves, particularly in retail storefronts, cosmetics kiosks, jewelry stores, and electronic boutiques. These shelves help merchandise stand out in high-traffic areas, improving product visibility and encouraging impulse purchases. Cool white or daylight LEDs are often preferred in mall environments to create a bright, energetic retail atmosphere. Positioning shelves at eye level and using dynamic lighting effects such as color-changing or dimmable LEDs can further elevate the shopper’s experience.
In office settings, display shelves with LED lighting are typically used in executive reception areas, conference rooms, or corporate showrooms. They showcase company awards, branded products, or marketing materials, reinforcing brand identity and professionalism. Here, a minimalist design with neutral white LEDs ensures a clean, modern look that aligns with corporate aesthetics.
When installing display shelves with LED shop drawings, several tips ensure optimal performance and appearance. First, ensure the power supply is compatible with the LED specifications and is safely concealed to maintain a clean look. Use low-voltage LEDs for safety, especially in high-traffic or public areas. Mount shelves securely to walls or structures using appropriate anchors, and ensure cables are routed discreetly through channels or behind panels. Align the lighting to avoid glare and shadows, focusing illumination directly on displayed items. For adjustable LED systems, test different brightness levels and color temperatures during installation to match the ambient environment. Finally, consider integrating the shelves with the building’s lighting control system for energy efficiency and ease of operation.
Why Choose Beauty STC Lighting
Elevate your retail environment with precision-engineered display shelves featuring integrated LED lighting solutions designed to showcase products at their most compelling. Beauty STC specializes in creating custom shop drawings that ensure seamless integration, optimal light distribution, and compliance with your specific aesthetic and functional requirements. Our engineering team collaborates closely with retail designers and architects to deliver lighting systems that enhance visual appeal while meeting rigorous technical standards.
Partner with Beauty STC to transform your retail vision into reality through tailored lighting expertise and meticulous technical documentation. For immediate assistance with your display shelf LED shop drawing project, reach out directly to our dedicated management team at [email protected]. We are ready to support your timeline and deliver solutions that drive customer engagement and sales performance.
