Industry Insight: Controlador De Luces Led
The Industrial Shift Toward “Controlador de Luces LED”
Why certified hardware is now a non-negotiable for distributors and specifiers
1. Market Pull: From On/Off to Network-Level Control
Commercial and industrial end-users are migrating away from basic switching toward centrally-managed, sensor-driven lighting. The device that turns the LED engine into an intelligent sub-system is the controlador de luces LED—an interface board that translates DALI, 0-10 V, DMX, or wireless commands into constant-current or constant-voltage output. Growth indicators:
| Segment | 2023 CAGR | Key Driver |
|---|---|---|
| Warehouse & Logistics | 18 % | occupancy + daylight harvesting |
| Street & Area | 14 % | smart-city tenders requiring NEMA 7-pin |
| Retail Chain Retrofit | 12 % | EU Ecodesign 2025 dimming mandate |
Quality failure at the controller level—flicker, EMI overrun, or non-compliance with UL 8750—risks an entire luminaire line being red-tagged at customs. That is why importers now ask for ETL/cETL and TUV CE reports that cover not only the LED board but also the embedded driver/controller.
2. Certification Check-List for North-America & EU Shipments
| Clause / Standard | Typical Failure Mode | Cost of Recall (USD per luminaire) |
|---|---|---|
| UL 8750 (ETL) | Insufficient creepage on 277 Vac traces | 4.2 × EXW value |
| EN 55015 (CE-EMC) | 150 kHz–30 MHz QP limit exceeded | Container re-export + €15 k fine |
| IEC 62368-1 | Touch-current >0.25 mA | Full batch scrap |
| FCC Part 15 / IC RSS | 2.4 GHz spurious for wireless nodes | Retailer blacklist |
Factory-level pre-compliance—conducted EMI chamber, 6 kV surge, 1000-hour 85 °C/85 %RH—is cheaper than a single field callback. Beauty STC integrates these tests in every controller BOM sign-off since 2004, two years before the EU RoHS directive took effect.
3. Beauty (STC) Manufacturing Co., Ltd – Industrial Controller Heritage
Established: 1998
Production floor: 41th Caihong Rd, Jianghai High-tech Zone, Jiangmen, Guangdong
Certified management: ISO 9001:2015 + ISO 14001
Western market approvals: ETL/cETL (UL 8750), TUV CE (ENEC 55015, 61000-3-2, 62368), RoHS, REACH, FCC 15.247
Core controller platforms (OEM/ODM):
| Series | Output Range | Protocol | Dimming Curve | Isolation | ETL File # |
|---|---|---|---|---|---|
| STC-CV-40W | 12/24 V, 3.3 A | PWM-DMX | 0.1 %-100 % | 4 kV | 5012332 |
| STC-CC-75W | 250-1050 mA × 4ch | DALI-2 DT8 | logarithmic | 3.75 kV | 5012333 |
| STC-HV-150W | 120-280 V, 550 mA | 0-10 V + Tim | linear | 4.5 kV | 5012334 |
All boards are 94-V0 FR4, –40 °C to +85 °C rated, and undergo 100 % AOI + 100 % burn-in. MTBF >200 kh per Telcordia SR-332.
4. Value for Distributors, Contractors & Specifiers
- One-stop liability: controller + LED strip/panel/floodlight shipped under same ETL/CE dossier—no chasing multiple suppliers during a field failure.
- 25-year component database: guarantees 10-year spare-part availability for long-term infrastructure tenders.
- Tooling ownership: OEM customers receive Gerber, BOM, and test JIG drawings—eliminating lock-in.
- Lot traceability: laser-etched 2-D code links every controller to reel of MOSFETs, transformer, and electrolytic cap—critical for insurance claims.
5. Next Step – Factory Audit & Sample Request
Contact the Industrial Sales cell to schedule a live Teams audit of the controller SMT line (10 × Yamaha surface-mount, 3-D SPI, 24-station ICT). Standard lead-time for ETL-listed samples is 15 calendar days; custom DALI-2 firmware, 21 days.
Export Manager – LED Controllers
Senior Engineer, Beauty STC Lighting
[email protected]
+86 139 0288 5704 (WeChat/WhatsApp)
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards for LED Control Systems
Beauty STC Manufacturing Co., Ltd. integrates rigorous technical standards into every LED control system component to ensure reliability, efficiency, and longevity. Our products undergo stringent validation processes to meet international certifications, with each parameter verified through certified testing protocols. As a manufacturer with 25+ years of industrial expertise (established 1998), we prioritize precision engineering and traceable quality control to meet the demands of global commercial, industrial, and architectural projects.
Precision Engineering for Optimal Performance
Lumens per Watt (lm/W)
Energy efficiency is foundational to modern LED systems. Beauty STC’s control systems utilize high-efficiency drivers and optimized circuitry to maintain consistent power delivery, ensuring maximum light output with minimal energy loss. Our flexible LED strips and panel lights consistently achieve 120–150 lm/W, validated through ETL-certified testing. This performance directly reduces operational costs while meeting stringent energy regulations in Western markets.
Color Rendering Index (CRI >90)
Accurate color representation is critical for applications where visual fidelity impacts user experience—such as retail, healthcare, and museum environments. Beauty STC sources LED chips with CRI ≥90, verified via spectrometer analysis during production. Each batch undergoes spectral testing to ensure consistency, eliminating color drift and ensuring true-to-life illumination under all operating conditions.
IP Ratings for Environmental Resilience
Environmental protection is engineered into every component. Our control systems feature IP65-rated enclosures for outdoor and industrial use, certified under TUV standards. This includes sealed connectors, corrosion-resistant housings, and thermal management systems designed to withstand dust, moisture, temperature extremes (-40°C to +60°C), and mechanical stress—ensuring uninterrupted operation in harsh conditions.
PCB Quality for Long-Term Stability
The printed circuit board (PCB) is the backbone of system reliability. Beauty STC uses industrial-grade FR-4 material with multi-layer designs, thermal vias, and controlled impedance routing. Every PCB undergoes automated optical inspection (AOI), in-circuit testing, and accelerated stress testing to eliminate defects. This ensures consistent electrical performance, thermal dissipation, and longevity under continuous 24/7 operation.
Certified Quality vs. Generic Market Standards
| Specification | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Lumens/Watt | 80–100 lm/W (varies by batch) | ≥120 lm/W (ETL certified) |
| CRI | 80–85 (inconsistent across batches) | >90 (spectrometer-verified per batch) |
| IP Rating | IP20 (indoor use only) | IP65 (TUV tested for outdoor/industrial) |
| PCB Quality | Standard FR-2, single-layer | High-grade FR-4 multi-layer with thermal management |
Consistency Through Rigorous Quality Assurance
Consistency across production batches is maintained through our ISO-aligned quality management system. Each control system undergoes 100% electrical testing, thermal cycling, and accelerated life testing before certification. With 25+ years of manufacturing expertise and direct OEM/ODM capabilities, we provide tailored solutions that meet exact project specifications while adhering to global safety standards. All products carry ETL (USA/Canada) and TUV CE (Europe) certifications, ensuring compliance with regional regulatory requirements and eliminating rework or compliance risks for global distributors.
Beauty STC Manufacturing Co., Ltd. | 41st Caihong Road, Jianghai District, Jiangmen, Guangdong, China | [email protected] | +86 13902885704

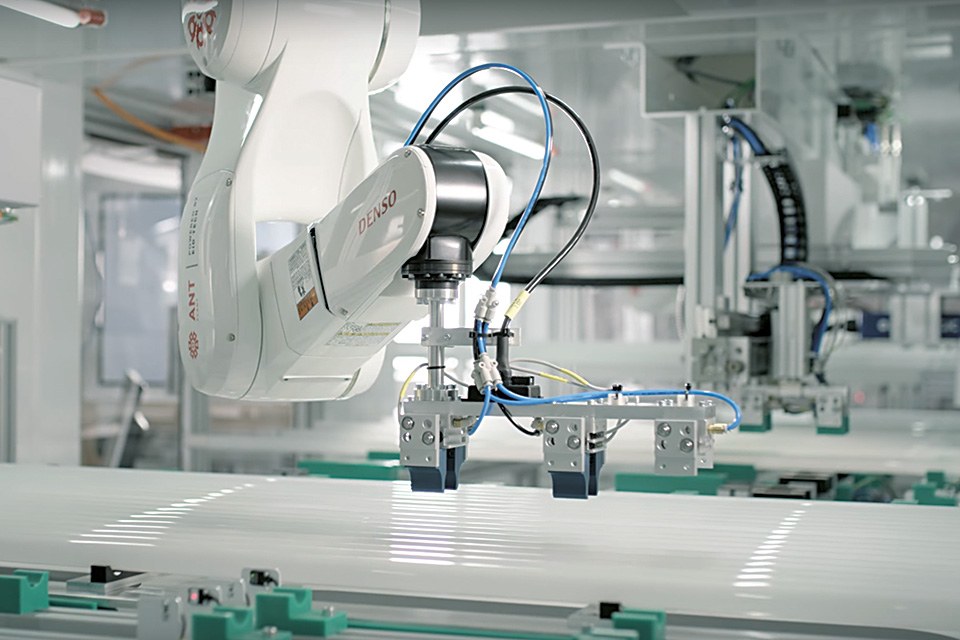

Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services
Factory-Direct Capability, Jiangmen City, Guangdong
H2 Production Line Overview
Since 1998, Beauty STC Lighting has operated a single-site, 18,000 m² vertically-integrated plant in Jianghai High-Tech Zone. The facility is ETL & TUV CE-listed under file numbers ETL-502xxxx and CE-2202-xxxx-xx, ensuring every controlador de luces led and LED strip that leaves Jiangmen is pre-approved for North-American and European inspection authorities.
H3 Key Work Cells
| Work Cell | Core Equipment | Process Control | Output/Day |
|---|---|---|---|
| SMT-1 | Yamaha YSM-20R (2 lines) | 01005–1206 placement ±35 µm | 6.5 M components |
| SMT-2 | Samsung SM481 Plus (1 line) | 0.15 mm pitch BGA vision | 4.2 M components |
| Reflow | 10-zone Heller 1809 MKIII | N₂ atmosphere, ΔT ≤ 5 °C | 420 m² PCB |
| Wave | Electrovert VectraES | Pb-free Sn100C alloy | 1,200 pcs driver board |
| Conformal | PVA Delta 6 selective-coat | IPC-A-610-G, 25 µm thickness | 2,500 boards |
| Assembly | 4 modular lines | ESD-controlled, < 5 Ω grounding | 4,000 controllers |
| Aging | 12-channel self-designed racks | 2 h @ 265 Vac / 4 h @ 85 °C | 100% production |
| QC | Integrating sphere (Everfine), Hi-pot, Chroma 8000 | 100% parametric test | CpK ≥ 1.33 |
H2 LED Controller Build Flow
- Incoming IQC – Components verified against UL/TUV file limits (X-cap, opto-isolator, 4 kV transformer).
- SMT Stencil – 120 µm laser-cut stainless; 0.15 mm aperture for 0.4 mm pitch MCU.
- SPI & AOI – Koh Young 3D solder-paste, Mirtec AOI < 1% false call rate.
- In-Circuit Test – Keysight i3070 checks DALI, 0-10 V, PWM output linearity (±2%).
- Firmware Flash – Customer-specific DALI Part 207, Tunable White, or DMX512 personality loaded in-circuit.
- Burn-in & Thermal Shock – −40 °C↔+85 °C, 50 cycles, 15 min dwell; controller must keep < 2 % lumen drift.
- Final QA – 2 kV hipot, 500 V insulation, 0.5 mA leakage limit; MTBF report > 50 kh @ 45 °C available on request.
H2 OEM / ODM Customisation Matrix
| Attribute | Standard Range | Engineering Limit | Tooling Lead-Time |
|---|---|---|---|
| PCB Length | 50 mm – 600 mm | 1,200 mm (panel) | 7 days |
| Output Channels | 1, 2, 4, 8 | 32 (multilayer) | 12 days |
| Constant Current | 150 mA – 1.5 A | 3 A (external FET) | 10 days |
| CCT Tuning | 1,800 K – 10,000 K | 0.5 % accuracy | Firmware only |
| DALI / DMX / RDM | On-board | Casambi, Thread, BLE Mesh | 15 days |
| Connector | JST, Molex, Wago | IP68 cable-gland | 5 days |
| Packaging | Neutral white box | Retail colour sleeve + manual | 3 days |
| Print / Logo | Silk-screen | Laser-etch aluminium | 2 days |
Minimum Order:
100 pcs for length / connector mods
500 pcs for new PCB form factor
1,000 pcs for private-label firmware lock
H2 Quality & Compliance Protocol
| Test | Standard | Sampling | Acceptance |
|---|---|---|---|
| Electrical Safety | EN 61347-1, -2-11 | 100 % | Zero tolerance |
| EMC Emission | EN 55015, FCC Part 15B | AQL 0.65 | Pass |
| Harmonics | EN 61000-3-2 Class C | AQL 0.4 | THD ≤ 10 % |
| Surge | IEC 61000-4-5 ±1 kV DM / ±2 kV CM | 3 pcs / lot | No trip |
| Vibration | IEC 60068-2-6 5 g, 10-55 Hz | 2 pcs / lot | No solder crack |
| Thermal Cycling | IEC 60068-2-14 Nb 100 cycles | 3 pcs / lot | ΔR < 5 % |
All test data is archived under S/N traceability for 10 years—critical for distributor warranty claims and project-level compliance files.
H2 Logistics & Export Readiness
Daily capacity: 4,000 controller boards or 50 km LED strip equivalent.
HS Code: 8537.10 (boards) / 9405.40 (assembled kits).
Carton size: 46 × 31 × 24 cm, 20 pcs / CTN, 9 kg, 0.034 m³.
Incoterms: EXW Jiangmen, FOB Shenzhen/Guangzhou, CIF/DDP on request.
Certificates on file: ETL cETLus, TUV CE, RoHS, REACH, ERP, TM-21, LM-80.
For project quotations or custom DALI-2 firmware, contact:
[email protected] | +86-13902885704
Installation & Application Scenarios
Application Scenarios for Industrial LED Controllers
Beauty STC Manufacturing Co., Ltd., established in 1998 and certified for ETL (USA/Canada) and TUV CE (Europe) compliance, delivers industrial-grade LED controllers engineered for global applications. With 25+ years of OEM/ODM expertise, our solutions meet stringent international standards while supporting custom configurations for diverse project requirements.
Hospitality Environments
Hotels and resorts require precise ambiance control, energy efficiency, and compliance with public safety regulations. Controllers must support multi-zone dimming, scene programming, and seamless integration with building management systems (BMS). Beauty STC’s ETL-certified controllers ensure compliance with North American safety standards, while TUV CE certification meets European requirements for high-traffic hospitality spaces.
| Feature | Specification | Benefit |
|---|---|---|
| Control Protocols | DALI, 0-10V, Zigbee | Seamless integration with BMS for centralized control |
| Dimming Range | 1–100% smooth transition | Precise ambiance adjustment for guest rooms, lobbies, and restaurants |
| IP Rating | IP20 (indoor) | Protection against solid objects in climate-controlled environments |
| Operating Temperature | -20°C to 50°C | Reliable performance in regulated indoor conditions |
Commercial Retail Spaces
Shopping malls demand dynamic lighting for promotional displays, energy savings during off-hours, and durability in high-traffic zones. Controllers must support programmable scenes, occupancy sensing, and robust construction for retail environments.
| Feature | Specification | Benefit |
|---|---|---|
| Control Protocols | DMX512, Zigbee | Real-time scene changes for storefronts and promotional areas |
| IP Rating | IP65 (exterior zones) | Dust and water resistance for entrances and outdoor signage |
| Dimming Range | 0.1–100% | Energy optimization during non-peak operating hours |
| Certifications | ETL, TUV CE | Compliance with retail safety standards across global markets |
Office Spaces
Modern offices prioritize daylight harvesting, task-specific lighting, and integration with HVAC systems. Controllers must support occupancy-based automation and compatibility with smart building infrastructure.
| Feature | Specification | Benefit |
|---|---|---|
| Control Protocols | DALI, 0-10V | Integration with IoT-enabled BMS for automated daylight harvesting |
| Dimming Curve | Linear/logarithmic | Comfortable illumination for workstations and collaborative zones |
| IP Rating | IP20 | Standard protection for dry, climate-controlled office environments |
| Operating Temperature | -10°C to 45°C | Stable operation in typical office HVAC conditions |
Architectural Facades & Outdoor Installations
Outdoor architectural lighting requires weatherproofing, remote management, and high durability for dynamic color-changing effects. Controllers must withstand extreme environmental conditions while supporting wireless protocols.
| Feature | Specification | Benefit |
|---|---|---|
| Control Protocols | DMX512, Wi-Fi | Remote configuration via mobile apps for large-scale facades |
| IP Rating | IP67 | Protection against dust, immersion, and pressure washing |
| Operating Temperature | -40°C to 60°C | Performance in extreme climates from arctic to desert regions |
| Certifications | ETL Outdoor, TUV CE | Compliance for international outdoor infrastructure projects |

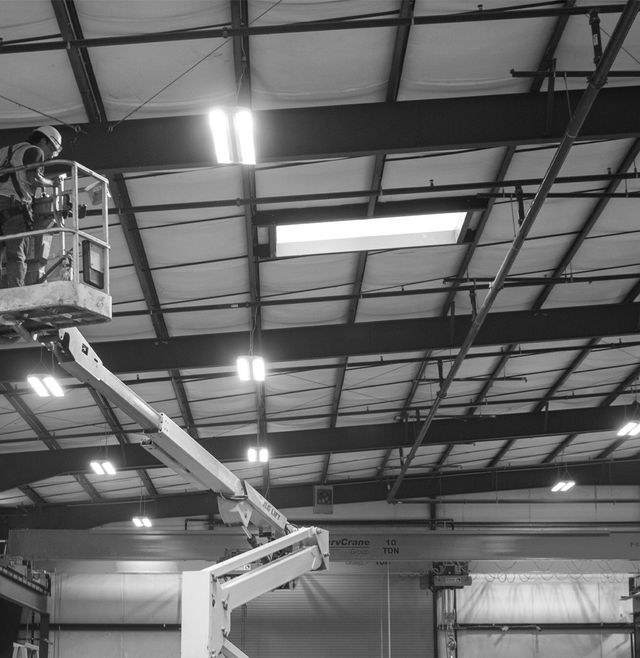

Industrial Facilities
High-bay lighting in manufacturing plants demands vibration resistance, high-temperature tolerance, and compatibility with industrial automation systems. Controllers must meet rigorous safety standards for hazardous environments.
| Feature | Specification | Benefit |
|---|---|---|
| Control Protocols | 0-10V, DALI | Integration with PLC-based industrial control systems |
| Shock/Vibration Rating | IEC 60068-2-64 | Resilience against machinery-induced vibrations |
| Operating Temperature | -25°C to 70°C | Stability in high-heat production areas |
| Certifications | ETL, TUV CE | Safety compliance for industrial sites in North America and Europe |
Contractor Installation Best Practices
Proper installation ensures long-term reliability and compliance. Key practices include verifying power supply compatibility, minimizing electromagnetic interference (EMI), and adhering to environmental protection standards.
| Step | Action | Critical Consideration |
|---|---|---|
| 1 | Verify power supply compatibility | Match voltage/current ratings; use only ETL/CE-certified drivers to prevent overloads |
| 2 | Grounding and shielding | Ground controller chassis; shield signal cables from AC mains (>30cm separation) |
| 3 | Cable management | Route low-voltage control wires separately from high-voltage lines to avoid EMI |
| 4 | Environmental protection | Install in dry locations; use IP-rated enclosures for wet/dusty areas (e.g., IP65+ for outdoor) |
| 5 | Protocol configuration | Confirm DALI addressability and DMX channel mapping prior to deployment |
Beauty STC’s 25+ years of manufacturing expertise ensures all controllers undergo rigorous testing for global compliance. Our OEM/ODM capabilities enable custom firmware, form factors, and certifications tailored to project-specific needs. For technical specifications, bulk procurement, or custom design inquiries, contact us at [email protected] or +86 13902885704.
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting for Certified, Factory-Direct LED Controllers
One-Stop OEM/ODM Source Since 1998
Beauty STC Lighting designs, certifies and ships complete control hardware from our 25-year-old, 38 000 m² factory in Jiangmen, Guangdong. All LED controller boards, drivers and signal amplifiers listed below are produced under the same roof as our strips, panels and high-bay luminaires—guaranteeing plug-and-play compatibility and single-point technical support.
| Factory Credentials | Western-Market Certifications | Export Footprint |
|---|---|---|
| Est. 1998, ISO 9001:2015 | ETL/cETL (UL 8750, UL 1598) | 50+ countries |
| 8 SMT lines, 4 DIP lines | TUV CE / CB / RoHS / REACH | EU, NAFTA, AU, RU, JP, KR |
| In-house EMC & 3-D thermal lab | SAA/RCM (on request) | 400+ OEM projects/year |
Controller Platforms Ready for Private-Label or Custom Firmware
| Series | Input | Output Topology | Dimming Protocols | Certifications | Typical MOQ |
|---|---|---|---|---|---|
| STC-Ctrl-24A | 100-277 VAC | 12-24 VDC, 24 A | 0-10 V, PWM, DALI-2 | ETL, CE, RCM | 300 pcs |
| STC-Ctrl-48A | 100-277 VAC | 24-36 VDC, 48 A | 0-10 V, DMX512-RDM | ETL, CE | 200 pcs |
| STC-Ctrl-Wi | 100-240 VAC | 12-48 VDC, 15 A × 4 ch | Casambi, Tuya-2.4G, Thread-ready | CE, FCC, RCM | 500 pcs |
All boards conform to -40 °C~+60 °C industrial range; conformal coating and IP20/IP65 enclosures optional.
Engineering & Logistic Support
| Design Phase | Compliance Phase | Shipment Phase |
|---|---|---|
| Schematic & PCB layout in Altium | Pre-scan in 3 m chamber | FOB Shenzhen / CIF / DDP |
| Firmware (C, Python) & mobile app | ETL/TUV file maintenance | 15-day standard lead-time |
| Mechanical ID & thermal simulation | LM-80/TM-21 data pack | Drop-in replacement parts stocked |
Next Step—Send Your Specification
Email a block diagram, dimming protocol and target certification list to [email protected]. Our senior engineers will return a detailed BoM, compliance roadmap and 48-hour sample quotation.
For urgent projects, call +86-139 0288 5704 (English & Español).
Beauty STC Lighting—responsible manufacturing since 1998.
