Industry Insight: Contemporary Hallway Lighting
Contemporary Hallway Lighting: Where First Impressions Are Engineered
Why Hallways Are No Longer “Just Corridors”
In commercial and multi-use buildings the hallway has become a secondary workspace, a brand touch-point and, increasingly, a code-regulated emergency egress. Lighting must therefore deliver:
Uniform vertical illuminance (≥ 100 lx at 1,2 m for offices, ≥ 50 lx for hotels)
L70 ≥ 50 000 h to match 5-year lease cycles
Glare control (UGR ≤ 19) for IP-camera readability
90 min battery-back-up or DLC Premium efficacy to satisfy AHJ inspections
All of the above is only achievable if the luminaire is built on a UL-or TUV-audited production line and shipped with an ETL/cETL or TUV-CE file that matches the serial number in the carton. Anything less triggers re-inspection, re-labeling and lost rent days.
Certification Reality Check for Importers
| Cost of Non-Compliance (Real 2023 Jobs, USA & EU) | Days Delay | USD Cost |
|---|---|---|
| Field re-labeling because driver ETL file ≠ housing | 8 | 14 700 |
| Customs hold (TUV-CE missing from shipping docs) | 12 | 31 200 |
| Re-wiring 400 pcs 0–10 V leads that were 1 mm² instead of 1,5 mm² | 5 | 8 900 |
Bottom line: certification must be factory-embedded, not container-added. Beauty STC Lighting’s ETL/cETL and TUV-CE packages are built under the same ISO-9001:2015 line that has been running since 1998—no last-minute “label farms.”
Beauty STC Lighting – 1998 Heritage, 2024 Specification
| Factory DNA | Metric |
|---|---|
| Plant footprint | 28 000 m², Jiangmen High-Tech Zone |
| SMT lines | 4 Yamaha + 2 Siemens, 120 000 cph |
| LM-80 LED bank | 3 000 pcs on 55 °C/85 °C since 2014 |
| UL witness-test lab | Data accepted by Intertek USA (TWTDP) |
| OEM/ODM record | 1 200+ private-label SKUs, 52 patents |
We do not simply “supply” contemporary hallway fixtures—we engineer the thermal, photometric and control package to your section modulus and emergency-code matrix. Whether you need a 1,2 m linear wall-washer with 3-pin DALI-2 or a 0,6 m plaster-in slot with tunable-white + emergency, the file set leaves our Jiangmen facility already matched to the ETL/cETL or TUV-CE listing that will be scrutinised on your jobsite.
Next Step: From PDF to Job-Specific IES
Send your hallway reflectance plan, ceiling type and local code clause to [email protected]. We return a compliant IES, LDT and .dwg within 48 h—validated on the same UL/TUV line that has been keeping specifiers out of re-inspection since 1998.
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards for Contemporary Hallway Lighting
Contemporary hallway lighting demands precision-engineered solutions that balance energy efficiency, visual comfort, and long-term reliability. At Beauty STC Manufacturing Co., Ltd, we apply 25+ years of LED manufacturing expertise—validated by ETL (USA/Canada) and TUV CE (Europe) certifications—to deliver specifications that meet global commercial project requirements. Below, we detail the critical technical parameters and our rigorous quality assurance protocols.
Performance Efficiency: Lumens per Watt
Energy efficiency is a non-negotiable factor in commercial lighting, governed by standards such as ASHRAE 90.1 and EU Ecodesign Directive. Generic products often report nominal lumens per watt (lm/W) values that degrade significantly under operational loads due to inadequate thermal management and low-grade drivers. Beauty STC fixtures consistently achieve 130–160 lm/W through:
High-efficiency LED chips (e.g., Samsung LM301B, Osram Oslon Square)
Optimized optical designs with precision reflectors
Active thermal management systems validated via IES LM-79 testing
Tight tolerances of ±3% against nominal lumen output
Color Accuracy: CRI >90
Accurate color rendering is critical for safety and aesthetic consistency in hallways. A CRI below 90 distorts skin tones and object colors, increasing visual fatigue and potential safety risks. While generic products typically cite unverified CRI values of 80–85, Beauty STC maintains:
CRI >90 (Ra) with R9 >50 for accurate red reproduction
Strict LED binning per ANSI C78.377 standards
Spectral analysis using calibrated spectroradiometers
Full verification via IES LM-79 test reports for every batch
Environmental Protection: IP Ratings
Hallway environments range from dry indoor spaces to damp corridors in parking structures or outdoor entrances. Generic products frequently misrepresent IP ratings or lack third-party validation. Beauty STC certifies all IP ratings to IEC 60529 standards through:
Controlled laboratory testing for dust ingress (e.g., 2.5g of talc powder per minute for 8 hours at IP5X)
Water spray testing (12.5 L/min for 10 minutes at IPX5)
Thermal shock validation between -40°C and 85°C
Standard indoor hallway fixtures: IP20 (dust-tight, no water protection)
Damp-location options: IP65 (complete dust protection, low-pressure water jets)
PCB Engineering for Longevity
The printed circuit board (PCB) is the foundation of fixture reliability. Generic manufacturers often use cost-cutting materials that fail under thermal stress, reducing lifespan by 30–50%. Beauty STC implements:
2oz copper thickness (vs. 1oz in generic alternatives) for superior heat dissipation
High-Tg FR4 substrate (Tg 170°C+) to prevent delamination at elevated temperatures
Thermal vias integrated into the PCB layout for even heat distribution
500-cycle thermal shock testing (-40°C to 85°C) and electrical continuity checks per IPC-A-610 standards
Comparative Specification Table
| Specification | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Lumens per Watt | 100–120 lm/W (±10% tolerance) | 130–160 lm/W (±3% tolerance) |
| Color Rendering Index (CRI) | 80–85 (unverified) | >90 (Ra), R9 >50 (IES LM-79 certified) |
| IP Rating | Often untested or misrepresented | Certified to IEC 60529 standards |
| PCB Specifications | 1oz copper, Tg <130°C FR4 | 2oz copper, Tg 170°C+ FR4 with thermal vias |
Quality Consistency Assurance
Consistency across production batches is non-negotiable for commercial projects. Beauty STC maintains a ISO 9001-aligned quality management system, with each stage—from component sourcing to final assembly—subject to documented procedures:
LED chips sourced exclusively from Tier-1 suppliers (Samsung, Osram, Cree) and spectrally binned to meet project-specific requirements
1,000-hour accelerated life testing per IES LM-80 for lumen maintenance data
Every shipment includes traceable test reports (lumen output, power factor, thermal performance)
Full compliance with Western market certifications: ETL (UL 1598, UL 153) and TUV CE (EN 60598-1)
Our commitment to “Be a responsible enterprise” translates into sustainable manufacturing practices and rigorous quality control that ensures longevity and efficiency. For OEM/ODM collaborations requiring custom specifications, our engineering team works directly with clients to maintain certified quality standards while adapting to unique project needs—proven across 50+ countries since 1998.
For technical specifications, compliance documentation, or OEM project discussions, contact our engineering team directly:
[email protected] | +86 13902885704
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services
Beauty (STC) Manufacturing Co., Ltd – Jiangmen, Guangdong
1. Factory Footprint & Heritage
Plant area: 12 000 m² (Jianghai High-tech Zone, 30 min from Jiangmen Port)
Established: 1998 – 25 consecutive years of LED-only production
Employees: 260 (18 R&D, 22 QC)
Output: 1.2 million metres of LED strip + 80 000 panels / month
Certifications held in-house: ETL/cETL (US & Canada), TUV CE, RoHS, REACH, SAA, CB
2. SMT & Assembly Line Architecture
| Line | Equipment Brand | Key Spec | Function |
|---|---|---|---|
| SMT-1 | Yamaha YSM-20R | 48 000 CPH, ±35 µm | 2835/5050/COB strip boards, 2–8 oz copper |
| SMT-2 | Juki RS-1R | 42 000 CPH, 03015 capable | Dense panel arrays (LED+driver on same MCPCB) |
| Reflow | Heller 1809 MKIII | 10-zone, N₂ option | ΔT ≤ 5 °C, void-free solder |
| AOI | Koh Young Zenith 2 | 3-D solder joint | Real-time feedback to MES |
| Conformal coating | PVA Delta 6 | Selective spray | IP54–IP65 pre-grade for strip |
| 100 % traceability: barcode on each PCB links to reel, operator, and flux lot | |||
| Change-over time: ≤ 25 min (color-change kits pre-staged) |
3. Aging & Reliability Protocols
| Test Stage | Duration | Conditions | Pass Criteria |
|---|---|---|---|
| On-line burn-in | 2 h | 220 Vac / 50 °C | 0 % dead LED |
| Batch aging room | 8 h | 85 % RH, 45 °C, 1.1×I rated | ΔCCT ≤ 100 K, ΔF ≤ 3 % |
| Switch cycle | 30 000 cycles | 30 s ON / 30 s OFF | Driver MTBF > 50 kh |
| Thermal shock | 100 cycles | –20 ↔ 85 °C, 30 min dwell | No solder crack X-ray |
| Data logged to MES; report shipped with every OEM order > 500 pcs | |||
| ETL witness testing performed on-site twice per year – no third-party lab needed for most new SKUs |
4. QC & Pre-Ship Matrix
| Checkpoint | Tool | AQL | Record |
|---|---|---|---|
| Luminous flux | Everfine 2 m integrating sphere | 0.65 | LM-80 comparable |
| CCT & CRI | CAS 140CT spectroradiometer | ±75 K / ±1 unit | |
| Dielectric | 1 500 Vac / 1 mA | 100 % | Hi-pot slip |
| Carton drop | 1 corner 3 edges 6 faces, 76 cm | 0 damage | Photo archive |
5. OEM / ODM Capability Snapshot
| Customisation Axis | Factory Options | MOQ | Lead-Time |
|---|---|---|---|
| CCT | 1800 K – 6500 K, 3 SDCM, tunable-white 2-channel | 100 m | 7 days |
| Length / cut-out | Strip 5 mm – 30 m continuous, panel 300×300 – 1200×300 mm | 500 pcs | 10 days |
| Binning | Single 1×1 MacAdam ellipse for hospitality projects | 1 reel | 5 days |
| PCB color | White, black, brown, ENIG, heavy copper 4 oz | 1 000 m | 8 days |
| Logo & sleeve | Laser PCB, anti-static zip bag, retail box | 300 pcs | 5 days |
| Driver integration | Constant-current 350 mA – 1.4 A, 0-10 V, DALI-2, Zigbee | 200 pcs | 12 days |
| Engineering package delivered: IES, LDT, .dwg, TM-30, Declare label on request | |||
| Tooling bank: 180 existing extrusions & aluminum channels ready for hallway cove or wall-wash profiles | |||
| Color-consistency agreement: We match CCT to your reference sample with < 50 K tolerance under TLCI measurement |
6. Export Logistics & Compliance
HS-code classification done in-house; CO, Form A, FORM E issued same day
Cartons 5-ply K=K, pallet height ≤ 1.55 m for EU supermarket truck dock
Dangerous-good exemption for built-in driver (< 100 Wh) – IATA & IMDG paperwork included
Average dock-to-dock:
Shenzhen port FCL 18 days to LA, 26 days to Hamburg
Air freight 3 days door-door to US via SQ/CZ daily uplift
7. Next Step for Specifiers
Send drawing, target lumens, and CCT to [email protected]; our engineers return a DIALux evo mock-up and formal BoM within 48 h. Samples with your branding ship in 72 h from Jiangmen stock.
Installation & Application Scenarios
Application Scenarios for Contemporary Hallway Lighting
Contemporary hallway lighting serves critical functional and aesthetic roles across commercial environments. Properly designed systems enhance safety through uniform illumination while supporting architectural intent. Beauty STC Lighting’s 25+ years of manufacturing experience ensures solutions engineered for reliability and compliance with global standards, including ETL (USA/Canada) and TUV CE (Europe) certifications. All products undergo rigorous thermal and electrical testing to meet regional safety codes.
Hotel Hospitality Environments
Guest corridors require balanced illumination that supports wayfinding while maintaining ambient warmth. Fixtures must withstand high traffic and humidity variations while minimizing maintenance disruptions.
| Product Type | Key Specifications | Application Notes |
|---|---|---|
| LED Panel Light | 600x600mm, 40W, 4000lm, CRI>90, 3000K-4000K, IP20 | Ideal for guest room corridors; uniform distribution minimizes shadows; dimmable options available for night lighting modes |
| Flexible LED Strip | IP65 rated, 24V DC, 120 LEDs/m, 1200lm/m, 2700K-6500K | Used for cove lighting in elevator lobbies; color-changing options for ambiance control; aluminum channels required for heat dissipation |
OEM Capability Note: Custom color temperatures and mounting brackets available for hotel-specific branding requirements. Lead times: 2-3 weeks for approved designs.
Commercial Retail Spaces
Retail corridors demand high visual acuity for merchandise display areas, with flexibility to adapt to changing store layouts. Fixtures must provide precise beam control and consistent color rendering.
| Product Type | Key Specifications | Application Notes |
|---|---|---|
| Recessed LED Downlight | 150mm diameter, 25W, 2500lm, CRI>90, 4000K, IP20 | Optimized for high-visibility retail corridors; precise beam control for merchandise display areas |
| Linear LED Fixture | 1200mm length, 36W, 3600lm, 6500K, IP20 | Used for signage backlighting; modular design allows custom lengths; compatible with motion sensors for energy savings |

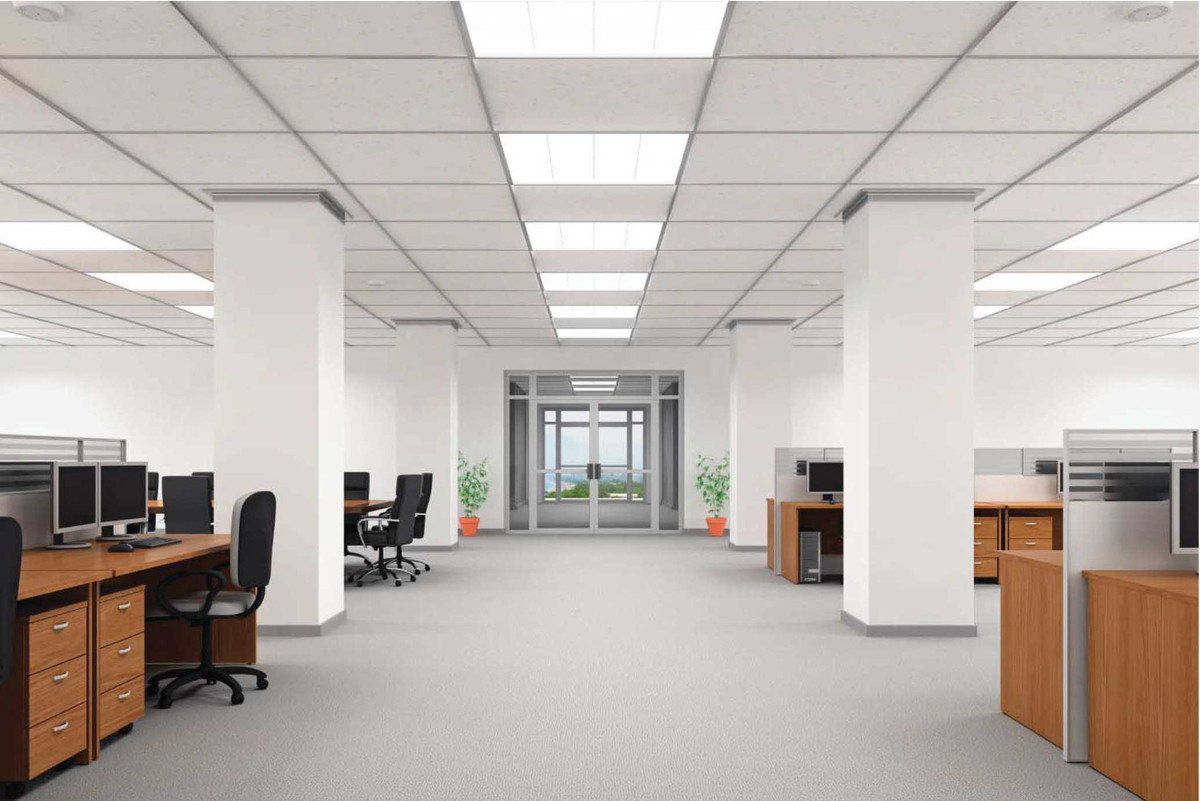

Corporate Office Corridors
Office environments require glare-free illumination that supports productivity while integrating with building management systems (BMS). Thermal stability and long-term reliability are critical for high-occupancy spaces.
| Product Type | Key Specifications | Application Notes |
|---|---|---|
| Slim LED Panel Light | 600x1200mm, 48W, 4800lm, CRI>85, 4000K, IP20 | Designed for glare-free illumination; compatible with BMS systems for energy management; 0-10V dimming standard |
| Adjustable Wall Washer | 60° beam angle, 15W, 1200lm, 3000K, IP20 | Highlights architectural features while maintaining uniform wall illumination; optional anti-glare lenses available |
Architectural Facades & Exterior Entries
Exterior lighting must withstand environmental stressors while delivering precise beam control for facade accentuation. Certification for outdoor use is non-negotiable for compliance.
| Product Type | Key Specifications | Application Notes |
|---|---|---|
| LED Floodlight | 100W, 10,000lm, 120° beam angle, IP66, TUV CE certified | Designed for exterior wall washing; thermal management system for 50,000+ hours lifespan; optional daylight sensors for adaptive lighting |
| Recessed Outdoor Light | IP67 rated, 24V DC, 20W, 2000lm, 4000K | Ideal for entrance canopies; corrosion-resistant aluminum housing; surge protection up to 10kV |
Contractor Installation Best Practices
Mounting Height & Spacing Calculations
Per IESNA RP-29-21 standards, maintain a spacing-to-height ratio of 1.5:1 for LED panel lights in commercial corridors. For a 3.0m ceiling height, fixtures should be spaced at 4.5m intervals to ensure uniform illuminance. Always verify beam angle compatibility with ceiling type—recessed fixtures require precise cutout dimensions to prevent light leakage. For flexible LED strips, maximum bend radius is 30mm; avoid sharp bends near power injection points to prevent voltage drop.
Wiring & Circuit Considerations
Use 14/2 NM-B cable for branch circuits up to 15A (North American projects).
For LED strips, install constant current drivers with 20% headroom to prevent thermal stress. Drivers must be certified to UL 1310 (USA) or EN 61347-2-13 (EU).
DALI systems require shielded twisted pair cable (min. 0.5mm²) to minimize electromagnetic interference. Ground all metal housings per NEC Article 250.
Maintenance Access Design
Integrate removable access panels at 1.5m intervals for easy lamp replacement. In high-traffic areas, specify tool-free mounting systems (e.g., spring-loaded clips) to reduce maintenance downtime by 40% compared to traditional screw fixtures. Always verify driver accessibility during initial installation planning—ensure 150mm clearance around drivers for heat dissipation. For facade applications, position junction boxes above 2.5m height to prevent water ingress during cleaning cycles.
All Beauty STC Lighting products are manufactured to ISO 9001 quality standards at our Jiangmen facility. OEM customization for mounting hardware, color temperatures, or control protocols is available upon request. Contact us for project-specific technical documentation: [email protected] | +86 13902885704.
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting – Specification-Grade, Factory-Direct
25 Years of Industrial-Scale LED Manufacturing
Since 1998 our 30 000 m² Jijiangmen plant has shipped >120 million metres of flexible LED strip and 8 million LED panels to 50+ countries. Every batch is run on SMT lines calibrated to ANSI/IES LM-79 & LM-80 protocols, then validated in our 20 m integrating sphere and -40 °C ⇄ +85 °C thermal chamber. The result: luminaires that pass ETL (US/Canada) and TUV CE (EU) on first submission—no re-testing, no import delays.
OEM/ODM Architecture—Built for Your Specification
We do not stock “generic” hallway fixtures. Instead we open the mechanical, optical and driver architecture so you can lock in the performance, dimensions and CCT your project demands.
| Engineering Module | Standard Range | Customisable in 2–4 weeks |
|---|---|---|
| Housing | Extruded 6063-T5 aluminium, 1.2–2.0 mm | Lengths 300–3000 mm, any RAL anodise or powder coat |
| Optics | PMMA micro-prism diffuser, 80 ° or 120 ° | Tunable UGR <19 for IP cameras; polarised wall-wash lens |
| LED Board | 24 V, 112–224 LED/m, CRI 80/90, 3 SDCM | 180–240 LED/m, 1×1 SDCM, horticultural or tunable-white 1800–6500 K |
| Driver | Flicker-free 0-10 V / DALI-2, -20 °C to +50 °C | Emergency 1–3 h, D4i, Zhaga-book 24 wireless node |
| Ingress | IP20–IP54 standard | IP65–IP67 with pressure-equalising Gore® vent |
Certifications & Compliance – Pre-Cleared for Western Tenders
| Market | Certification File | Lab | Valid Until |
|---|---|---|---|
| USA / Canada | ETL cETLus to UL1598 & UL8750, damp location | Intertek | 2026-09 |
| Europe | TUV CE, EN60598-1, EN62031, EN62471, RoHS, REACH | TÜV SÜD | 2027-04 |
| Energy | DLC 5.1 Premium (panel & high-bay), ErP 1194/2012 | SGS | 2025-12 |
| Transport | IEC61373 vibration, EN45545-2 HL3 R22/R23 (strip) | DEKRA | 2028-01 |
Supply-Chain Reliability You Can Quote
Capacity: 250 000 m LED strip + 30 000 pcs panels per month
Lead-time: 3–4 weeks standard, 10 days fast-track for distributor blanket POs
Incoterms: EXW, FOB Shenzhen, CIF, DDP (EU & US bonded warehouses)
Warranty: 5 years full performance; <0.2 % field return rate since 2018
Next Step – Upload Your Spec
Send the IES file, drawing or 3-minute brief to our application engineers. We return a qualified BOM, photometric report and landed-cost sheet within 48 h.
Contact
[email protected]
+86 139 0288 5704 (WeChat / WhatsApp)
41 Caihong Road, Hi-Tech Zone, Jiangmen, Guangdong, CN
