Industry Insight: Best Led Light Color
H2 | Why “Best LED Light Color” Starts with Certified Engineering, Not Marketing Claims
H3 | Market Reality: 80 % of Commercial RFQs Now Specify CCT & CRI Before Lumen Output
Global distributors, ESCOs, and lighting consultants are no longer asking “How bright?” first—they are asking “What color?” and “Can you prove it won’t drift in Year 5?”
Driver ICs, phosphor mixing, and binning discipline determine whether a 4000 K linear fixture still reads 3980–4020 K at 50 000 h.
Beauty (STC) Manufacturing Co., Ltd has been shipping color-stable boards since 1998; our ETL-listed strips and panels are today spec’d into cold-chain warehouses in Calgary, art galleries in Berlin, and 24-h logistics hubs in Busan.
H3 | Certification ≠ Red Tape—It Is Your Insurance Against Re-Import Costs
A single color-shift complaint can trigger a full-container recall. ETL (cULus) and TUV CE files are accepted by U.S. Customs & EU Market Surveillance as “presumption of conformity”, cutting border inspection time from weeks to hours.
Beauty STC keeps ETL & CE active on every OEM SKU—no “family” shortcuts—so the label on the carton matches the one in the CB Scheme database.
H3 | 25 Years of Binning Data: What “Best Color” Actually Looks Like on Our Floor
Below is the default MacAdam 3-step ellipse we hold for neutral-white commercial orders. Tighter 2-step or ANSI quadrangles are available on request.
| Parameter | Target | OEM Tolerance | Test Protocol | Certification |
|---|---|---|---|---|
| CCT | 3000 K, 3500 K, 4000 K, 5000 K, 5700 K | ±100 K (3-step) | Integrating sphere, 25 °C, I = Irated | IES LM-79, LM-80 |
| CRI | 80, 90, 97 options | –2 / +0 points | CIE 13.3-1995 | TUV CE, RoHS |
| R9 | ≥ 50 (CRI 80) / ≥ 80 (CRI 90+) | –5 / +0 | Same as above | ETL |
| Lumen Maintenance | L70 ≥ 50 000 h | ≤ 6 % drift | TM-21 @ 55 °C Ts | ETL, CB |
H3 | Factory-Direct Advantages When Color Consistency Is Non-Negotiable
- Same-day binning verification—every 5 m reel is scanned on a calibrated Everfine HAAS-2000 before vacuum sealing.
- Phosphor lot traceability—each 100 g blend receives an internal “color DNA” barcode; if a downstream shift is detected, we can isolate within 30 min.
- OEM firmware locking—CCT selectable panels ship with EEPROM that locks output once the installer confirms the setting, eliminating field tampering that voids CE/ETL.
H3 | Bottom Line for Importers
Choosing the “best LED light color” is not a aesthetic gamble—it is a supply-chain risk decision. With 25 years of continuous ETL & CE compliance, Beauty STC delivers the binning discipline, test documentation, and customs-ready certification that keeps your projects on schedule and your balance sheet free of surprise re-export costs.
Next section preview: How to match CCT to vertical: warehousing, retail, food processing, healthcare.
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards
In commercial lighting applications, color accuracy, efficiency, and durability are non-negotiable. Beauty STC Lighting’s 25+ years of engineering expertise ensures every product meets stringent technical benchmarks for global markets. Below, we detail the critical specifications that define “best led light color” performance—validated through rigorous testing and certification protocols.
Color Rendering Index (CRI): The Foundation of Accurate Color
CRI quantifies how faithfully a light source reproduces colors compared to natural daylight. For commercial, retail, and architectural applications, CRI >90 is the industry standard for premium quality. Lower CRI values (typically 80–85 in generic products) cause color distortion, leading to misjudged product appearances in retail environments or inaccurate architectural detailing.
Beauty STC Lighting’s LED products consistently achieve CRI ≥95 (R9 >90 for saturated reds) across all color temperatures (2700K–6500K). This is achieved through:
Precision phosphor blending: Custom-engineered phosphor coatings for uniform spectral distribution.
Bin sorting: LED chips sorted into tight chromaticity bins (Δuv <0.003) to eliminate color variance.
Lumen Efficacy: Efficiency as Performance Metric
Lumens per watt (lm/W) measures optical output relative to energy consumption. While generic market products often prioritize low cost over efficiency (typically 100–120 lm/W), high-performance commercial lighting requires 130+ lm/W to reduce operational costs and meet sustainability regulations (e.g., DOE Title 24, EU Ecodesign).
Beauty STC Lighting’s engineering team optimizes efficacy through:
High-efficiency LED chips: Samsung, Osram, or Epistar-bin-selected dies with >180 lm/W raw efficacy.
Thermal management integration: PCB design and heat sink engineering to maintain lumen output at 95%+ after 50,000 hours (L90).
IP Ratings: Environmental Protection for Real-World Reliability
IP ratings define protection against solids and liquids. Generic products often exaggerate ratings (e.g., “IP65” for indoor use only), while certified products undergo independent verification. Key standards:
IP65: Dust-tight + water jets (6.3mm nozzle) – suitable for covered outdoor areas.
IP67: Immersion up to 1m for 30 minutes – critical for wet environments (e.g., car washes, industrial kitchens).
IP68: Continuous submersion – for underwater or submerged applications.
Beauty STC Lighting’s floodlights, panel lights, and strip lights undergo TUV-certified IP testing per IEC 60529. Every batch is validated using calibrated pressure and water jet equipment, with results documented in test reports.
PCB Quality: The Unsung Hero of Longevity
Printed Circuit Board (PCB) quality directly impacts thermal performance and lifespan. Generic products commonly use:
1oz copper thickness
FR-4 substrate with inconsistent resin content
Poor solder mask adhesion
Beauty STC Lighting’s PCBs feature:
2oz copper cladding: 100% thicker than industry-standard boards for superior heat dissipation.
High-Tg FR-4 substrate (Tg ≥170°C): Resists delamination at elevated temperatures.
Automated optical inspection (AOI): 100% PCB validation for solder joint integrity and trace continuity.
Consistency Assurance Protocol
Beauty STC Lighting maintains batch-to-batch consistency through:
ISO 9001-aligned quality control: Every production run undergoes 3-stage testing (raw materials, in-process, final).
Spectroradiometer validation: Lumen output, color temperature, and CRI verified per LM-79 standards.
Accelerated life testing: 1,000-hour stress tests at 60°C ambient temperature to predict 50,000+ hour performance.
Technical Benchmark Comparison: Generic Market vs. Beauty STC Certified Quality
| Parameter | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| CRI (R9) | 80–85 (R9 <50) | ≥95 (R9 ≥90) |
| Lumen Efficacy | 100–120 lm/W | 130–155 lm/W |
| PCB Copper Thickness | 1oz (typical) | 2oz (standard) |
| IP Rating Validation | Self-declared; no third-party test | TUV/ETL certified per IEC 60529 |
| Color Consistency | Δuv >0.006 (visible variance) | Δuv <0.003 (industry-leading) |
| Thermal Resistance | >10°C/W (poor heat dissipation) | <5°C/W (optimized thermal path) |
Note: All specifications comply with ETL (USA/Canada) and TUV CE (Europe) certification requirements. Full test reports available upon request.
Beauty STC Lighting’s commitment to technical rigor—backed by 25+ years of manufacturing excellence—ensures distributors and project managers receive lighting solutions that perform consistently across demanding global environments. For detailed technical documentation or custom OEM specifications, contact our engineering team directly.
Beauty (STC) Manufacturing Co., Ltd
41st, Caihong Road, High-tech Industrial Zone, Jianghai District, Jiangmen City, Guangdong, China
[email protected] | +86 13902885704
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services – Jiangmen Headquarters
1. Factory Footprint & Certifications
| Item | Data | Notes |
|---|---|---|
| Established | 1998 | 25+ years continuous LED production |
| Plant Area | 18 000 m² | Jianghai High-tech zone, 41 Caihong Road |
| Certificates | ETL/cETL (US/Canada), TUV-CE, RoHS, REACH, SAA | Full dossier on file for customs clearance |
| Annual Capacity | 3.5 million m of strip / 450 k panels / 120 k high-bays | 3-shift operation, 48 weeks/year |
2. SMT & Automated Assembly Line
All PCBs are fabricated in-house to guarantee CCT consistency and copper weight ≥2 oz for high-power strips.
| Process Step | Equipment | Tolerance | QC Gate |
|---|---|---|---|
| Solder-paste printing | GKG G-Titan ±12.5 µm | ±15 µm | SPI (Koh Young) |
| Pick-and-place | Juki FX-3R (4 modules) | 0201–74 mm QFP, 0.03 s/chip | First-article AOI |
| Reflow | Heller 1913 MK7 (10-zone) | ΔT < 5 °C on LED junction | AOI + X-ray (BGA) |
| PCB separation | RTR laser router | ±0.05 mm | 100 % dimension check |
| conformal coating | PVA selective jet | 25–50 µm layer | Salt-mist 48 h |
3. Binning & Color Consistency Protocol
LEDs are purchased in 3-SDCM MacAdam bins; final assembly is mixed only within 2-step for 80-CRI and 90-CRI products.
On-line integrating-sphere (Everfine HAAS-2000) records luminous flux, x-y, CCT, and Ra for every 30 cm segment.
Data matrix is laser-etched on strip tail for full traceability (box-build ID, operator, date code).
4. Aging & Reliability Tests
| Test | Parameters | Acceptance |
|---|---|---|
| Continuous burn-in | 45 °C ambient, 100 % I-rated, 24 h | < 3 % lumen loss, 0 dead LED |
| On-off cycling | 30 s ON / 30 s OFF, 1 000 cycles | No solder crack |
| Thermal shock | –40 ↔ +85 °C, 200 cycles | ΔRa ≤ 2, ΔCCT ≤ 200 K |
| Damp heat | 85 °C / 85 % RH, 1 000 h | Pass 4 kV hipot |
5. QC Documentation & Data Pack
Each OEM shipment includes:
IES/LDT files per CCT
TM-30, LM-80 snapshot report
ISTMT for Tj = 85 °C condition
RoHS/REACH declaration with SCIP ID when applicable
6. OEM / ODM Capability Matrix
| Customisable Feature | Options | Min. Order | Tooling Lead-Time |
|---|---|---|---|
| Strip length | 5 mm – 50 m, cut-mark every 25 mm | 500 m | 3 days |
| CCT range | 1 800 K – 6 500 K, any point on BBL | 1 000 m | 5 days |
| CRI | 80, 90, 95, Thrive 98 | 1 000 m | Existing bin |
| PCB width | 4 mm – 50 mm, 1 oz – 4 oz Cu | 300 m | 7 days |
| Voltage | 5 V, 12 V, 24 V, 36 V, 48 V, HV (110/230) | 500 m | 3 days |
| Package | anti-static reel, blister, retail box, color sleeve | 1 reel | 5 days |
| Logo & label | silk-screen, laser, adhesive, QR | 1 reel | 2 days |
Engineering support:
Optical design (Lens, PMMA profile, UGR<19 panel)
Mechanical design (IP67/IP68 extrusion, IK10 tempered glass)
Driver integration (DALI-2, 0-10 V, Casambi, Zigbee)
7. Logistics & Export Readiness
In-house 6 000 m² warehouse with ETD/ETA dashboard.
HTS codes pre-registered for US, CA, EU, UK, AU, RU; COO & Form A available.
Average container loading: 40 ft HC = 220 000 m 10 mm strip on 8-inch reel.
For project quotations or custom spectra files, contact:
[email protected] | +86-13902885704
Installation & Application Scenarios
Strategic Color Temperature Selection for Commercial Applications
Color temperature (CCT) is a critical factor in commercial lighting design, directly influencing ambiance, functionality, and occupant well-being. Selecting the appropriate CCT ensures alignment with application-specific requirements while meeting international safety and performance standards. As a manufacturer with over 25 years of experience since 1998, Beauty STC Lighting delivers OEM/ODM solutions certified to ETL (USA/Canada) and TUV CE (Europe) standards, ensuring consistent color output and compliance for global projects. Our rigorous binning processes guarantee ±50K CCT tolerance across batches, critical for large-scale installations where visual uniformity is non-negotiable.
Hotel Applications
Ideal CCT ranges vary by zone:
Lobbies, restaurants, and guest rooms: 2700K–3000K creates a welcoming, intimate atmosphere.
Spas, gyms, and functional zones: 3000K–3500K balances warmth with clarity for task-oriented spaces.
High CRI (≥90) is essential for accurate color rendering in dining areas and retail spaces within hotels.
Installation Tips:
For flexible LED strips in cove or corridor lighting, use aluminum channels with thermal management to prevent color shift from overheating.
Specify dimmable drivers compatible with DALI or 0–10V systems for flexible ambiance control.
Conduct pre-installation CCT checks across all batches to ensure uniformity. Beauty STC’s OEM services enable precise tuning to hotel brand guidelines, with all products validated to ETL and TUV CE standards for international compliance.
Shopping Malls
Zonal requirements:
Entrances and food courts: 2700K–3000K for a warm, inviting first impression.
Retail displays: 3500K–4000K enhances product colors and textures (critical for fashion, cosmetics, or electronics).
Corridors and service areas: 4000K for task-oriented clarity without visual fatigue.
CRI ≥90 is mandatory for retail zones to ensure merchandise appears true-to-life.
Installation Tips:
Use diffused optics or frosted lenses to eliminate glare on high-value merchandise.
Maintain consistent fixture spacing (typically 1.5–2m for ceiling-mounted panels) to prevent hotspots.
Verify all luminaires originate from the same production batch for color consistency. Beauty STC’s OEM capabilities allow custom CCT calibration to match mall branding, with TUV CE-certified components ensuring safety in high-traffic environments.
Office Workspaces
Optimal CCT ranges:
General ambient lighting: 4000K–4500K optimizes concentration and reduces eye strain during extended work hours.
Task-specific areas (e.g., drafting rooms): Adjustable CCT (3500K–5000K) accommodates varying user preferences.
CRI ≥85 ensures accurate document and screen color perception.
Installation Tips:
Install indirect lighting or fixtures with wide beam angles (≥120°) to minimize screen glare.
For T8/T5 LED tubes, use direct-wire configurations to eliminate ballast-related color inconsistencies.
Beauty STC’s office lighting solutions undergo strict binning for ±50K CCT tolerance, with ETL certification guaranteeing compliance with North American electrical codes.

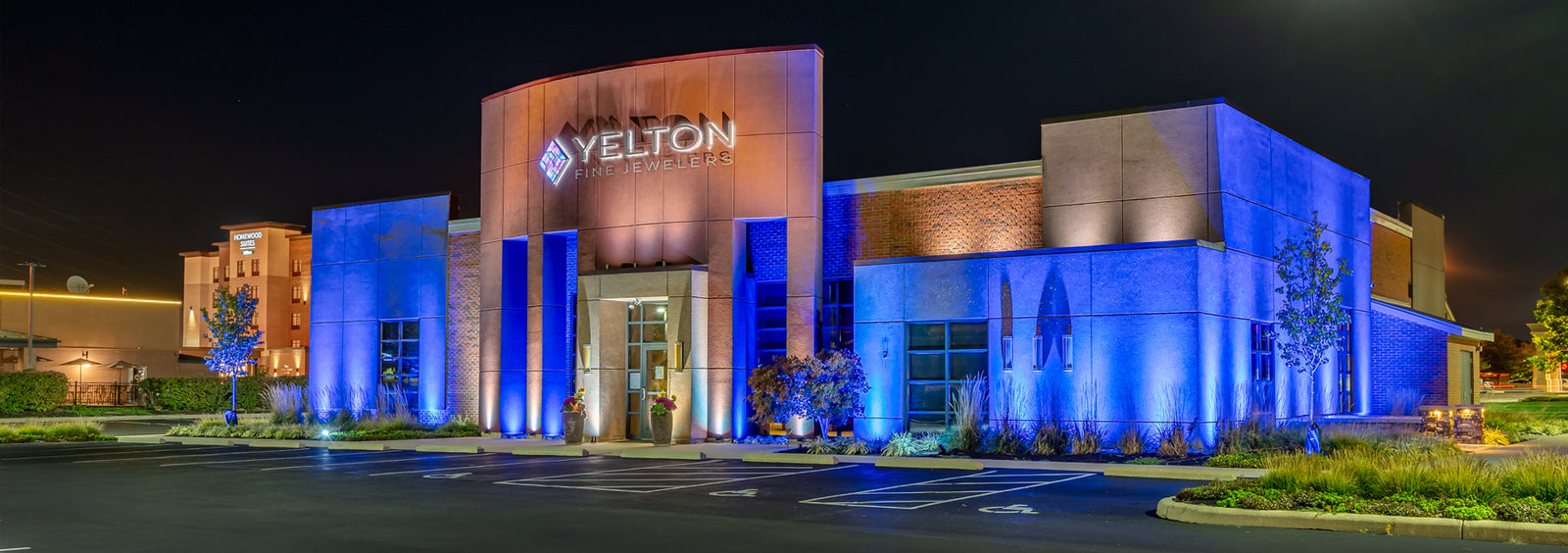

Exterior Facades
Application-specific guidance:
Modern buildings: 4000K–5000K delivers crisp, high-contrast illumination for architectural details.
Historic structures: 2700K–3000K preserves traditional aesthetics while maintaining visual warmth.
CRI ≥80 is sufficient for most exterior applications; ≥85 recommended for heritage sites where material color accuracy matters.
Installation Tips:
Specify IP65+ rated floodlights or linear fixtures for weatherproofing against rain, dust, and UV exposure.
Use precision aiming tools (e.g., laser pointers) to direct light exclusively onto façade surfaces, minimizing light trespass.
For large-scale installations, source all drivers and fixtures from the same production run to ensure color uniformity. Beauty STC’s facade lighting products are TUV CE-certified for European climate resilience and ETL-listed for North American safety standards.
Color Temperature Selection Reference Table
| Application Area | Recommended CCT | CRI (Ra) | Key Installation Notes |
|---|---|---|---|
| Hotel Lobbies & Dining | 2700K–3000K | ≥90 | Aluminum channel mounting; dimmable drivers; batch consistency checks |
| Retail Display Zones | 3500K–4000K | ≥90 | Diffused optics; precise spacing; brand-specific CCT customization |
| Office Workspaces | 4000K–4500K | ≥85 | Indirect mounting; adjustable CCT task lighting; glare control |
| Modern Facades | 4000K–5000K | ≥80 | IP65+ rated fixtures; precise aiming; weatherproof connectors |
| Historic Facades | 2700K–3000K | ≥85 | Warm white consistency; heritage-compliant fixtures |
Beauty STC Lighting’s 25+ years of manufacturing expertise, coupled with ETL and TUV CE certifications, ensures that every project receives color-accurate, reliable LED solutions tailored to global standards. Our OEM/ODM capabilities allow for precise customization of CCT, CRI, and form factors to meet unique architectural and functional requirements. For technical specifications or project-specific support, contact our engineering team at [email protected] or +86 13902885704.
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting – Engineered for Global Compliance, Delivered Factory-Direct
Since 1998 we have been the quiet backbone behind many of the world’s best-known lighting brands. Today our ETL- and TUV CE-certified portfolio ships to 50+ countries from our 41,000 m² plant in Jiangmen, giving distributors, contractors and specifiers a single, audited source for volume-grade LED strip, panel, flood, high-bay and linear solutions.
Why Technical Buyers Shorten Their Supply Chain with Beauty STC
| Metric | Beauty STC Record | Typical Benefit to You |
|---|---|---|
| Plant Operation | 1998 → present | 25-year component database; no “start-up” surprises |
| Western Certifications | ETL/cETL (US & Canada), TUV CE / CB, RoHS, REACH, ERP | One SKU sells across NA, EU, AU & GCC—no dual inventory |
| Export Reach | 50+ countries, 600+ sea shipments/year | Freight consolidation, local voltage/driver presets already proven |
| OEM/ODM Cycle | Concept → Tooling → 1st article in 21 days | Private-label launches keep pace with your tender deadlines |
| Production Lines | SMT 16 × Yamaha, 4 × Reflow, 2 × DIP, 8 × Integrating-sphere | 0.3 % failure rate, full LM-80 data supplied on request |
Core Volume Platform—Ready for Your Label
| Family | Wattage Range | Efficacy | CCT Options | Standard Cert. | Notes |
|---|---|---|---|---|---|
| Flexible LED Strip | 4–28 W/m | up to 220 lm/W | 1800–6500 K + CCT-switch | ETL, CE, RoHS | 3-oz rolled copper, CRI 90+ on request |
| LED Panel (Edge-Lit) | 24–72 W | 130 lm/W | 3000–6000 K | ETL, CE, ERP | 1 × 4, 2 × 2, 2 × 4 ft; 0-10 V, DALI, microwave sensor |
| UFO High-Bay | 100–300 W | 160 lm/W | 4000–5700 K | ETL, CE, CB | Hook & bracket included, 5-year driver, <10 % depreciation @ 50 kh |
| Floodlight | 30–600 W | 140 lm/W | 3000–6500 K | ETL, CE, RoHS | ADC12 housing, 10 kV surge, –40 °C start |
| T8/T5 Linear | 8–40 W | 150 lm/W | 3000–6500 K | ETL, CE, ERP | Rotatable end-cap, single/double-ended, NSF tube option |
Engineering & Compliance Services Included
Photometric reports (.IES, .LDT) within 24 h
TM-21 & ISTMT for every new SKU—no extra charge
UL 1598/UL 8750 & EN 60598 test files kept on retainer for your inspection
Custom driver tuning: 120–277 V, 347 V, 480 V; DALI-2, D4i, Zhaga Book 24
Laser-etched part numbers & 2D bar-codes for site-wide asset tracking
Next Step—Get a Project-Driven Quotation
Email the specification and annual forecast to [email protected] (attn: Export Engineering). We will return a landed-cost breakdown, compliance matrix and production slot within 48 hours. For urgent RFQs call +86-1390-288-5704 (English & Español).
Beauty (STC) Manufacturing Co., Ltd
41th Caihong Road, Hi-tech Zone, Jiangmen, Guangdong, China
“Be responsible. Be caring. Passionate about innovation.”
⚡ LED Power Supply Calculator
Calculate the required power supply for your LED strip project (includes 20% safety margin).
