Industry Insight: 6 Foot Led Strip Lights
Commercial-Grade 6-Foot LED Strip Lights: Market Demand & the Supplier Choice That Protects Your Margin
Why the 6-ft Format Dominates Industrial & Commercial Projects
The 72-inch (1.83 m) length has become the modular “building block” for continuous-run lighting in warehouses, cold-storage, retail gondolas, parking garages and cleanrooms. A single 6-ft section aligns with:
2 × 1.2 m European T-grid spacing
4-ft US ceiling joists when overlapped 24-in on center
Standard 5-ft and 10-ft racking aisles without dark spots
Because one luminaire covers 28–32 ft² at 500 lx, contractors reduce SKU count, wiring drops and labour by 18–30 % versus 4-ft units.
Certification Risk: Why ETL & TUV CE Matter More Than Price
Imported strip fixtures that fail on-site void not only the luminaire warranty but the entire project’s CO (Certificate of Occupancy). Penalties routinely exceed US $15,000 per container. Third-party listed drivers and boards are therefore non-negotiable for:
| Market | Mandatory Listing | Typical Field Failure Cost |
|---|---|---|
| USA / Canada | ETL/cETL to UL 8750 & UL 1598C retrofit | Re-inspection + lift rental: US $3,000–5,000 per store |
| EU / UK | TUV CE, EN 62031, EN 61347-2-13 | Customs detention: €500–1,000/day; possible re-export |
| Australia | RCM (based on TUV CB) | $200 per fitting non-compliance fine |
Beauty (STC) Manufacturing Co., Ltd has shipped ETL- and TUV CE-listed strips since 2006; every 6-ft PCB batch is traced to LM-80 report lots and every driver bears the corresponding ETL control number. Your logistics team can clear customs in <48 h instead of weeks.

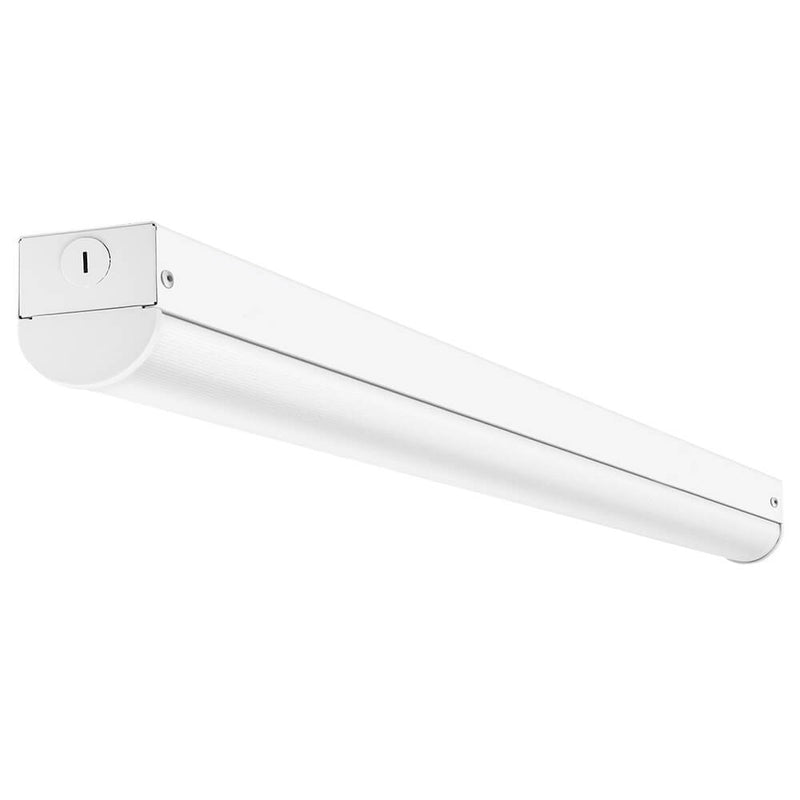

Specification Benchmark: 6-Foot Industrial Strip (Beauty STC LSL-72 Series)
| Parameter (Ta = 25 °C) | Standard | High-Lumen | High-CRI |
|---|---|---|---|
| Nominal Power | 40 W | 60 W | 50 W |
| Delivered Flux | 5,200 lm | 7,800 lm | 6,000 lm |
| Efficacy | 130 lm/W | 130 lm/W | 120 lm/W |
| CCT | 4000 K / 5000 K selectable on same PCB | ||
| CRI | Ra 80 | Ra 80 | Ra 90 (typ), R9 > 50 |
| Input Voltage | 120–277 VAC 50/60 Hz (driver UL Class P) | ||
| Operating Temp. | –30 °C to +55 °C, 10–90 % RH non-condensing | ||
| Lifetime (L70) | 50,000 h per TM-21 @ 45 °C Ts | ||
| Housing | 0.6 mm cold-rolled steel, 2-in width, white powder coat | ||
| Mounting | Surface chain / pendant / V-hook / magnet kit | ||
| Certifications | ETL/cETL (UL 8750 & 1598C), TUV CE, RoHS, REACH, ENEC | ||
| Warranty | 5-year full parts & labour (retrofit kits 10-year pro-rata) |
Factory Pedigree: 25 Years of OEM/ODM for Tier-One Brands
Established 1998 in Jiangmen, Guangdong, Beauty STC Lighting operates a 28,000 m² vertically integrated plant: SMT → conformal coating → reflow → ageing → spectro-radiometer sampling every 30 min. We currently run 32 SMT lines (Juki & Yamaha) capable of 1.2 million metres of 10 mm PCB per month. ISO 9001:2015 and ISO 14001:2015 audits are conducted by TUV annually.
Our engineering group (42 staff, 11 optical/electronics patents) executes full ODM cycles in 21 days:
- Photometric .ies file & Dialux report within 48 h
- Custom CCT/CRI binning to 2-step MacAdam ellipse
- Laser-etched private label & serialised QR for project tracking
- Packaging drop-test to ISTA-2A for big-box retail compliance
Next Step: Secure Your Container Before Q3 Allocation Fills
Global lead-times on 2835 mid-power LEDs have extended to 8–10 weeks. Beauty STC holds bonded inventory of 1.5 million LEDs in 4000 K, 80 CRI to guarantee 4-week FOB Shenzhen delivery for 40-ft HQ quantities.
For datasheet pack, IES files and landed-cost matrix, email: [email protected] or WhatsApp +86-13902885704.
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards
For industrial and commercial applications, technical specifications directly impact performance, longevity, and regulatory compliance. Beauty STC Manufacturing Co., Ltd. (est. 1998) leverages 25+ years of expertise and OEM/ODM capabilities to deliver LED strip lights meeting stringent Western market requirements. All products undergo rigorous testing to ensure consistency, safety, and efficiency.
Core Technical Parameters
| Parameter | Generic Market Quality | Beauty STC Certified Quality |
|---|---|---|
| Lumens per Watt (lm/W) | 80–100 | 110–130 |
| CRI (Ra) / R9 | Ra 80–85, R9 <50 | Ra >90, R9 >85 |
| Certified IP Rating | IP20 (indoor only) | IP65 (dust-tight, water jet resistant) |
| PCB Construction | Single-layer FR-4, 1oz copper | Double-layer FR-4, 2oz copper, high-Tg substrate |
| Rated Lifespan (L70) | 25,000–30,000 hours | 50,000+ hours |
| Thermal Management | Basic aluminum profiles | Precision-engineered heat sinks with thermal pads |
Consistency Assurance Through Rigorous Protocols
Beauty STC implements a multi-stage quality control process to ensure every unit meets specifications. Each batch undergoes thermal cycling tests at -20°C to +60°C, lumen maintenance verification at 6,000 hours (L70), and color consistency checks using Minolta spectrophotometers. All components are sourced from certified suppliers and tracked via our ERP system. Our production lines adhere to ISO 9001 procedures, with ETL (USA/Canada) and TUV CE (Europe) certifications validating compliance for North American and European markets. Custom specifications for OEM/ODM projects are supported through dedicated engineering teams, ensuring seamless integration into global lighting systems.
Note: All technical data reflects validated testing under IEC 62471 and IEC 62612 standards. Full test reports available upon request.
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services – 6 ft LED Strip Light Platform
Beauty STC Lighting – Jiangmen High-Tech Production Base
41th Caihong Road, Jianghai District, Jiangmen, Guangdong, China
Established 1998 • ETL/cETL & TUV CE certified since 2006 • ISO 9001:2015
1. Production Line Layout (26 000 m²)
| Zone | Equipment | Key Process Parameter |
|---|---|---|
| SMT-1 (lead-free) | JUKI FX-3R ×6 | 0.08 s/chip, 0201–50 mm pitch |
| SMT-2 (high-speed) | Yamaha Z:LEX YSM20 ×4 | 90 000 CPH, ±30 µm placement |
| Reflow | Heller 1912 Mk5 ×3 | 8-zone, ΔT ≤5 °C, N₂ option |
| Auto-Optical | Koh Young Zenith 2 ×4 | 3D SPI + AOI, 8 µm resolution |
| Soldering | ERSA selective wave ×2 | 260 °C, nitrogen blanket |
| IP65/IP67 sealing | PU 2-K robot ×2 | 0.2 mm bead, 3 bar pressure |
| Aging tunnel | 120 m continuous | 0–60 °C cyclic, 4 h on / 0.5 h off |
| Integrating sphere | Everfine 2 m | IES LM-79-19, ±2 % accuracy |
| Hi-Pot & Ground | Chroma 19056 | 3 kVAC, 100 mA leakage limit |
2. 6 ft Strip Light – Critical-to-Quality (CTQ) Checkpoints
| CTQ Item | In-line Method | Spec | Cpk Target |
|---|---|---|---|
| LED binning | SMT pick-and-place | 3 SDCM MacAdam | ≥1.67 |
| CCT drift | 100 % 1 h aging | Δuv ≤0.003 | ≥1.33 |
| Lumen maintenance | 4 h aging @45 °C | ≥98 % @1 kh | ≥1.50 |
| Solder void | 3D X-ray (off-line) | ≤15 % | ≥1.33 |
| IP rating seal | Air-leak | ≤0.2 bar drop/30 s | ≥1.67 |
Every 6 ft (1.83 m) section is 100 % aged before final pack; full photometric report is stored under the laser-etched QR code for traceability.
3. OEM / ODM Capability Matrix
| Customisation Axis | Available Range | Engineering Lead-Time | Tooling Cost |
|---|---|---|---|
| Length | 300 mm – 6 m continuous (no visible dark spot) | 3 days | None |
| CCT | 2200 K – 6500 K, single or CCT-switchable | 5 days | None |
| CRI | Std 80, 90, 95, 98 (typ. R9 >90) | 5 days | None |
| Luminous flux | 120 – 1 300 lm/ft (1 300 – 4 300 lm/m) | 7 days | Optional Al-profile |
| Voltage | 12 V, 24 V, 36 V, 48 V, 110–277 V integrated driver | 7 days | New PCB |
| PCB width | 5 mm – 20 mm, 1 – 4 oz Cu | 3 days | None |
| Encapsulation | PU, silicone, epoxy; IP20 – IP68 | 5 days | Low-pressure mould |
| Packaging | Retail box, contractor spool, anti-static bag, FSC carton | 3 days | Print plate |
| Label & manual | 12-language insert, barcode, QR traceability | 2 days | Digital print |
All custom SKUs are submitted to ETL/TUV for amendment filing at no surcharge to client.
4. Certification & Compliance File (downloadable on request)
ETL/cETL – UL 2108 / CSA C22.2 No. 9.0-18 (LED strip luminaires)
TUV CE – EN 60598-2-20, EN 62031, EN 62471, EN 55015, EN 61000-3-2
RoHS/REACH, LM-80 (LED), TM-21 (L70 >50 000 h @45 °C), IEC 62493 (EMF)
ISO 9001:2015 & ISO 14001:2015 management system certificates

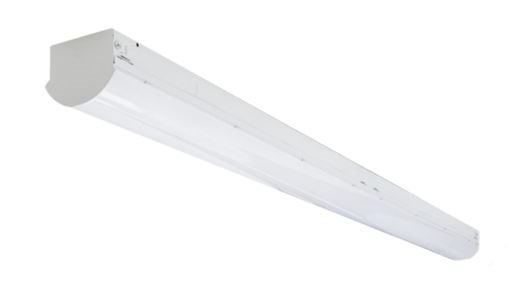

5. Typical 6 ft OEM Spec Sheet (example)
| Parameter | Value |
|---|---|
| Part No. | STC-SL6F-60W-xxK |
| Length | 6 ft (1 829 mm) |
| Power | 60 W (10 W/ft) |
| Lumen output | 7 800 lm ±5 % |
| Efficacy | 130 lm/W @25 °C Ta |
| CCT options | 3000 K / 4000 K / 5000 K |
| CRI | Ra >90 (R9 >60) |
| Input | 120–277 VAC, 50/60 Hz, on-board driver |
| Power factor | ≥0.95 |
| THD | ≤10 % |
| Operating temp | –30 °C to +55 °C |
| Lifetime | L70 50 000 h, B10 |
| Warranty | 5 years (driver included) |
| IP rating | IP44 std, IP65 available |
| Mounting | Surface clip / suspension / magnetic |
| Certifications | ETL, CE, RoHS, REACH |
Need a 6 ft LED strip platform tailored to your next national specification?
Send the bill-of-materials or target spec to [email protected]; our NPI team will return a DFM report within 24 h.
Installation & Application Scenarios
Application Scenarios for 6-Foot LED Strip Lights
6-foot LED strip lights offer modular, energy-efficient illumination for diverse commercial and industrial applications. Their precise optical control, durability, and adaptability make them ideal for both functional and aesthetic lighting needs. With over 25 years of manufacturing expertise since 1998, Beauty STC Lighting provides globally certified solutions compliant with ETL (US/Canada) and TUV CE (Europe) standards. Our OEM capabilities enable tailored specifications for project-specific requirements across 50+ international markets.
Commercial Retail & Display Lighting
Retail environments demand accurate color rendering and uniform illumination to showcase merchandise. High CRI (>90) and adjustable CCT are critical for product visibility and brand consistency.
| Parameter | Specification | Industry Standard | Beauty STC Compliance |
|---|---|---|---|
| CRI | >90 | >80 | CRI90+ standard |
| Lumens per Foot | 1,000–1,200 | 800+ | Up to 1,019 lm/ft |
| CCT Range | 2,700K–6,500K | Adjustable | 3,500K/4,000K/5,000K |
| IP Rating | IP20 | Indoor use | IP20 (standard) |
Beauty STC’s retail-grade strips feature ETL-certified safety compliance for North American stores, with seamless dimming compatibility for dynamic display scenarios. Aluminum channel mounting ensures even light distribution across shelving and signage.

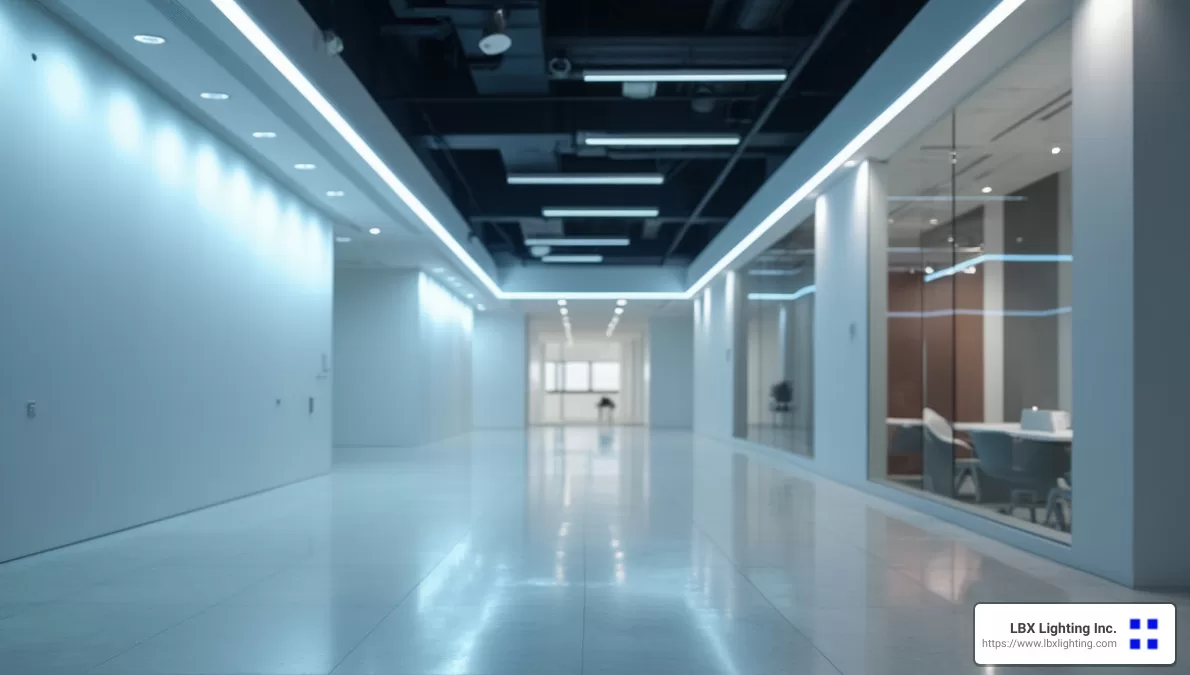

Office & Workspace Illumination
Modern workspaces require glare-free, uniform illumination that supports productivity and well-being. Under-cabinet task lighting, cove accents, and perimeter lighting demand precise color consistency and low flicker.
Key Requirements:
CRI >90 for accurate skin tones and document readability
3,500K–4,000K CCT for balanced task lighting
0–10V or DALI dimming integration for circadian rhythm support
Technical Implementation:
Aluminum channels with diffusers minimize glare while maintaining 90%+ lumen retention over 50,000 hours. Beauty STC’s strips meet IEC 62471 photobiological safety standards for office environments.

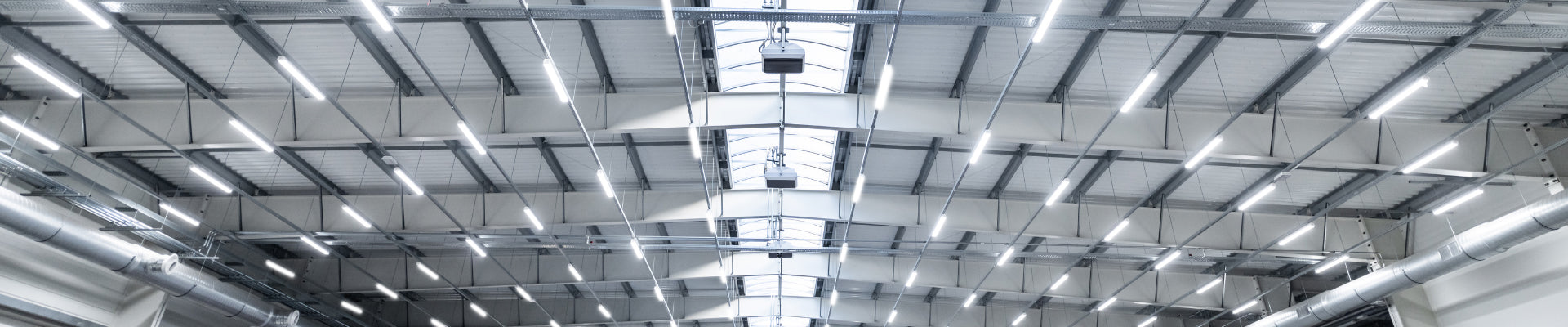

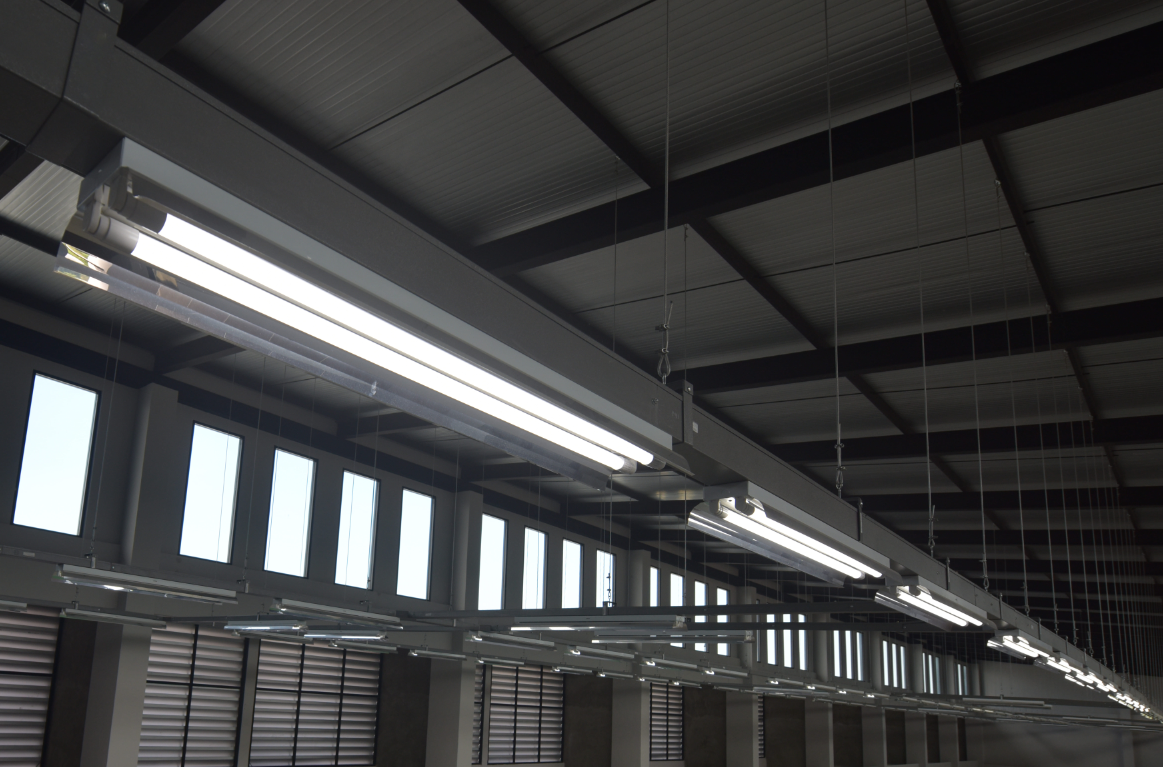

Industrial & Warehouse Applications
High-bay warehouses and manufacturing facilities require robust, high-output lighting for safety and operational efficiency. Dust, moisture, and vibration resistance are critical for longevity.
| Parameter | Specification | Industry Standard | Beauty STC Compliance |
|---|---|---|---|
| Lumen Output | 1,000+ lm/ft | 800+ lm/ft | 1,019 lm/ft (Industrial Series) |
| IP Rating | IP65 | IP54+ | IP65 (dust/waterproof) |
| Thermal Management | 70°C max operating | 65°C max | 60°C with aluminum channel |
| Lifespan | 50,000 hours | 30,000 hours | 50,000+ hours (L70) |
Beauty STC’s industrial-grade strips feature TUV CE-certified thermal design for continuous operation in harsh environments. Voltage drop mitigation via 24V DC systems ensures consistent brightness across 10-meter runs without power injection.
Architectural & Facade Integration
Building exteriors and structural accents require weatherproofing, precise color matching, and flexible mounting for complex geometries.
Critical Considerations:
IP67 rating for sustained exposure to rain, UV, and temperature extremes
Customizable lengths (6ft modular segments) for seamless contouring
2700K–3000K CCT for warm architectural accents
Installation Protocol:
Stainless steel mounting clips and silicone sealants prevent moisture ingress. Beauty STC’s facade-ready strips undergo 1,000-hour salt spray testing per ISO 9227, ensuring corrosion resistance in coastal climates.
Hospitality & Hotel Design
Lobbies, corridors, and guest areas demand ambient, dimmable lighting that enhances guest experience while meeting fire safety codes.
Key Specifications:
CRI >90 for natural skin tone rendering in hospitality spaces
0–10V dimming for mood-based lighting control
UL 1598 compliance for damp-location installations
Technical Advantage:
Beauty STC’s tunable white strips maintain ±100K CCT consistency across dimming ranges, eliminating color shift in hotel environments. ETL certification ensures compliance with NFPA 70 electrical codes for public assembly spaces.
Installation Best Practices for Contractors
Surface Preparation & Mounting
Proper surface preparation prevents premature adhesive failure and ensures thermal stability.
| Surface Type | Adhesive Type | Thermal Management | Notes |
|---|---|---|---|
| Smooth Metal | High-temp 3M VHB tape | Aluminum channel | Max 12W/m power density |
| Plasterboard | Silicone-based adhesive | Surface mount with gap | Minimum 5mm clearance for airflow |
| Concrete | Epoxy resin + mechanical fixings | Aluminum channel + thermal paste | Must be cured and dust-free |
Always clean surfaces with isopropyl alcohol before mounting. For high-power strips (>15W/m), aluminum channels reduce operating temperature by 15–20°C, extending lifespan by 30%.
Electrical System Design
Voltage drop and power supply sizing are critical for uniform brightness and system reliability.
| Voltage | Max Continuous Run | Power Injection Points | Wire Gauge | Power Supply Sizing |
|---|---|---|---|---|
| 12V DC | 5m | Every 3m | 18 AWG | 1.2x total strip wattage |
| 24V DC | 10m | Every 6m | 16 AWG | 1.1x total strip wattage |
For runs exceeding 10m, use 24V DC systems with constant-current drivers. Beauty STC’s strips comply with IEC 62368-1 for electrical safety in commercial installations.
Thermal Management
Excessive heat accelerates lumen depreciation and reduces lifespan.
Best Practices:
Mount strips on aluminum channels with thermal conductivity >1.5 W/m·K
Avoid enclosed spaces without ventilation; maintain 10mm clearance above channels
For high-density strips (>20W/m), use forced-air cooling in industrial settings
Beauty STC’s thermal testing confirms 50,000-hour L70 lifespan when operating at ≤60°C. Always verify junction temperatures with infrared thermography during commissioning.
Dimming & Control Integration
Compatibility with building management systems ensures operational flexibility.
| Dimming Protocol | Compatibility | Control System Example | Notes |
|---|---|---|---|
| 0–10V | Universal | Lutron, Leviton | Requires separate control wiring |
| DALI | Networked lighting | Tridonic, Schneider | Single cable for power and control |
| PWM | Smart home systems | Philips Hue, Lutron Caséta | Limited to low-power strips (<10W/m) |
Beauty STC’s strips support all major protocols. For DALI systems, ensure drivers comply with IEC 62386-102 standards. Always test dimming range with the end-user’s control system prior to full deployment.
For project-specific technical validation or OEM customization, contact our engineering team directly at [email protected] or +86-13902885704. All solutions comply with ETL, TUV CE, and local electrical codes for global deployments.
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting – 25 Years of Factory-Direct Reliability
One-Stop OEM/ODM Source for 6 ft LED Strip Lights
Since 1998 we have engineered, tooled, and shipped linear LED solutions from our 41 000 m² campus in Jiangmen, Guangdong. Today our strips illuminate 50+ countries across five continents, all bearing the ETL/cETL and TUV-CE marks required for immediate entry into North-American and European projects.
Why Global Distributors & Contractors Specify Beauty STC
| Competency | Proof-Point |
|---|---|
| Regulatory Coverage | ETL/cETL (UL 1598 / UL 8750) + TUV CE (EN 60598-2-20) – no extra testing cost |
| Design Flexibility | 24 h in-house photometric lab, 12 SMT lines, private-tool extrusion – CCT, CRI, length, lumen package customised without MOQ penalty |
| Lead-Time | Standard 6 ft (1.8 m) 60 W strip < 14 days; 40 ft container < 21 days |
| Warranty | 5 yrs full performance; 50 000 h L70 @ 25 °C |
| Export Experience | 26 FCL per month to USA, 18 to EU, 9 to Japan—dock-door logistics to LA, Rotterdam, Yokohama |
Typical 6 ft Industrial Strip – Factory Specification
| Parameter | Value |
|---|---|
| Length | 6 ft (1 829 mm) ± 2 mm |
| Wattage | 60 W (±5 %) |
| Delivered Flux | 7 800 lm @ 4000 K (130 lm W⁻¹) |
| CCT Options | 3000 K / 3500 K / 4000 K / 5000 K / 5700 K |
| CRI | Ra ≥ 80 (≥ 90, ≥ 95 available) |
| Input | 120-277 VAC 50 60 Hz, 0.9 PF, <20 % THD |
| Operating Temp | –30 °C to +55 °C |
| IP Rating | IP20 (IP54, IP65, IP67 on request) |
| Mounting | Surface chain, pendant, or 3/4″ conduit knock-outs |
| Dimming | 0-10 V, DALI-2, Bluetooth Casambi, or non-dim |
| Lifetime | 50 000 h L70 per IES LM-80/TM-21 |
| Certification File | ETL #5012608, TUV CE #R50455615 |
Next Step – Engineering Sample or Project Quote
Send your schedule, specification, or competitor model to our export team. We will return a detailed BOM, photometric report, and landed-cost sheet within 24 hours.
Contact:
[email protected]
+86 139 0288 5704 (WhatsApp/WeChat)
Beauty (STC) Manufacturing Co., Ltd.
41 Caihong Road, Jianghai High-tech Zone, Jiangmen, Guangdong, China
Be a responsible enterprise, be a caring partner—since 1998.
⚡ LED Power Supply Calculator
Calculate the required power supply for your LED strip project (includes 20% safety margin).
