Industry Insight: 12V Led Dimmer Switch
The Critical Role of Certified 12V LED Dimmer Switches in Modern Lighting Systems
In commercial and industrial lighting applications, dimmer switches are foundational components that directly impact system performance, energy efficiency, and long-term reliability. As projects increasingly integrate smart controls, energy-conscious designs, and stringent safety protocols, the quality of dimming solutions becomes non-negotiable. Yet the global market is saturated with uncertified or low-grade alternatives that risk project delays, safety hazards, and compliance failures. For distributors, architects, and project managers sourcing 12V LED dimmer switches, verifying third-party certifications and manufacturer expertise is critical to mitigating these risks.
Why Certification Matters for Global Importers
Certifications like ETL (USA/Canada) and TUV CE (Europe) are not merely regulatory checkboxes—they are independent validations of electrical safety, electromagnetic compatibility, and performance under real-world conditions. Importers who overlook these marks face tangible consequences: customs rejections, costly recalls, liability exposure in the event of failures, and reputational damage. For example, ETL certification ensures compliance with North American safety standards (UL 1310), while TUV CE confirms adherence to EU directives (IEC 61347-2-13). These certifications guarantee that products undergo rigorous testing for overcurrent protection, thermal management, and electromagnetic interference—critical factors in high-stakes commercial installations.
Beauty STC Manufacturing Co., Ltd. addresses these challenges by producing dimmer switches that meet both ETL and TUV CE standards, ensuring seamless entry into Western markets without compromise. Our products are engineered for global compliance, eliminating the need for costly re-certification or retrofitting.
Decades of Expertise in Precision Dimming Solutions
Established in 1998, Beauty STC has 25+ years of experience engineering LED lighting solutions for complex global projects. Our manufacturing process integrates rigorous quality control at every stage—from component selection to final testing—ensuring consistency and reliability in demanding environments. Unlike newer suppliers, we have a proven track record of delivering solutions that meet evolving industry standards, including:
OEM/ODM capabilities for custom voltage configurations, dimming curves, and housing designs
Thermal management systems that prevent overheating in enclosed fixtures
Precision PWM control for flicker-free dimming across 1–100% ranges
This expertise translates to reduced project risks, lower total cost of ownership, and compatibility with diverse lighting ecosystems—from retail displays to industrial high-bay applications.
Technical Specifications: Beauty STC 12V LED Dimmer Switch Series
| Specification | Detail |
|---|---|
| Input Voltage | 120VAC (ETL-certified for North America), 230VAC (TUV CE for Europe) |
| Output Voltage | 12VDC / 24VDC (configurable) |
| Max Load Capacity | 120W (10A) |
| Dimming Range | 1%–100% (PWM technology, zero flicker) |
| Certifications | ETL (USA/Canada), TUV CE (Europe) |
| Warranty | 5-Year Limited Warranty |
| Compliance Standards | UL 1310, IEC 61347-2-13, RoHS 2.0 |
| Operating Temperature | -20°C to 50°C (industrial-grade tolerance) |
| OEM/ODM Support | Custom voltage, dimming profiles, housing, and labeling |
These specifications ensure compatibility with a wide range of LED fixtures, including flexible strips, panel lights, and floodlights, while meeting the exacting demands of commercial installations. By prioritizing certified, engineering-driven solutions, Beauty STC eliminates the guesswork for global distributors and project managers—delivering reliability where it matters most.
For technical documentation or OEM inquiries, contact us at [email protected] or +86 13902885704.
Technical Specs & Certifications (ETL/CE)
Technical Specifications & Quality Standards
12 V LED Dimmer Switch – Industrial Grade, Factory-Direct
Beauty (STC) Manufacturing Co., Ltd. has supplied OEM/ODM low-voltage lighting controls since 1998.
All 12 V dimmer hardware is engineered for 50 000 h operation, fully ETL / TUV CE listed, and produced under ISO 9001:2015 traceability. Below are the technical parameters that matter to distributors, specifiers and project managers when reliability, repeatability and code compliance are non-negotiable.
1. Electrical & Optical Performance
| Parameter | Specification | Test Method |
|---|---|---|
| Input voltage | 12 V DC ± 10 % | IEC 61347-2-11 |
| Output type | Constant-voltage PWM | — |
| Max. load per channel | 8 A (96 W @ 12 V) | 25 °C Ta |
| Dimming range | 0.1 – 100 % flicker-free | IEEE 1789 |
| PWM frequency | 1 500 Hz (default) | Factory cal. |
| Stand-by draw | < 0.3 W | IEC 62301 |
| Efficiency | ≥ 98 % (MOSFET stage only) | 25 °C, full load |
| Inrush | < 5 A peak | — |
| Operating temp. | –30 °C … +55 °C | UL 8750 |
| Storage temp. | –40 °C … +85 °C | — |
| Relative humidity | 5 % – 95 % RH non-cond. | — |
2. Build & Environmental Integrity
| Item | Beauty STC Build | Generic Market Build |
|---|---|---|
| PCB | 2 oz copper, double-sided FR-4, 130 °C Tg | 1 oz, single-side, 105 °C Tg |
| Conformal coat | AI acrylic, IP20 base, optional IP65 silicone sleeve | No coat / manual spray |
| Potting (driver version) | UL94 V-0 thermally conductive 2 W·m⁻¹·K | Non-UL epoxy, 0.8 W·m⁻¹·K |
| Knob/slider | V-0 polycarbonate, UV-stabilised | ABS, no UV rating |
| Wire entry | 16 AWG tinned copper, 200 mm, PTFE | 18 AWG PVC, 150 mm |
| Screw terminals | Nickel-plated brass, M3, torque 0.5 N·m | Zinc alloy, 0.3 N·m |
| Fire enclosure | 94 V-0 housing, 1.2 mm wall | 94 HB, 0.8 mm |
| ESD immunity | ± 8 kV contact / ± 15 kV air | ± 4 kV / ± 8 kV |
| Surge (12 V port) | ± 1 kV differential mode | ± 0.5 kV |
| Certifications | ETL/cETL (UL 508 & UL 8750), TUV CE, RoHS 2.0, REACH | Self-declared CE only |
3. Consistency & Traceability Controls
AOI & ICT: 100 % automated optical inspection after SMT; in-circuit test verifies solder joints, MOSFET Rdson and timing.
Burn-in: 4 h @ 55 °C full load; drift < 2 % on output voltage and < 1 % on duty cycle.
Lot traceability: 2-D code on PCB and housing links to S/N, wave solder pot temp, reflow profile, LCR values and operator ID—kept 10 years for OEM audits.
Creepage/clearance: ≥ 1.6 mm between 12 V SELV and mains when used inside hybrid driver/dimmer modules—ensures double-insulation per IEC 61347-1.
4. Compatibility Matrix (Typical Loads)
| Load category | Max. channel power | Observed flicker index | Notes |
|---|---|---|---|
| 12 V 2835 flex strip, 14.4 W/m | 96 W (6.6 m) | < 0.02 | CRI 90, 3000 K |
| 12 V 5050 RGB (single colour mode) | 72 W | < 0.03 | Common anode |
| 12 V MR16 retrofit LED | 60 W total | < 0.01 | Driver must be bypassed |
| 12 V halogen retrofit | 96 W | — | Not energy code compliant; shown for reference only |
5. Ordering Codes & Packaging
| SKU | Description | Master carton | Units/ctn | G.W. |
|---|---|---|---|---|
| BSTC-DIM-12V-8A-W | 12 V PWM dimmer, white, 8 A | 370×280×220 mm | 50 | 9.2 kg |
| BSTC-DIM-12V-8A-B | 12 V PWM dimmer, black, 8 A | 370×280×220 mm | 50 | 9.2 kg |
| BSTC-DIM-12V-8A-IP65 | Silicone potted, IP65 | 370×280×220 mm | 40 | 10.1 kg |
Custom laser logo, colour box and specific wire length available on OEM MOQ 500 pcs.
6. Certification File Summary
ETL file #5012598 (UL 508, UL 8750) – USA & Canada
TUV CE file #R50472013 – LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU
SDoC – FCC Part 15 Class B (when sold inside driver combo)
ISO 9001:2015 – Factory quality system, valid to 2026
Certificates shipped with every lot; digital copies available within 12 h via email.
Next step: Send your strip length, total wattage and desired mounting method to [email protected]. Our engineers will return a connection diagram and dimming curve within 24 h.
Factory Tour: Manufacturing Excellence
Manufacturing Process & OEM Services
Precision Manufacturing Infrastructure
Beauty STC Lighting’s Jiangmen facility operates a fully automated SMT production line featuring advanced pick-and-place machines (e.g., Yamaha YV100X) and multi-zone reflow soldering systems. This infrastructure ensures micron-level component placement accuracy and consistent solder joint integrity, critical for the reliability of dimmer switches in high-volume production environments. All SMT processes comply with IPC-A-610 Class 2 standards for electronic assembly.
Aging and burn-in testing is conducted in dedicated environmental chambers, where each unit undergoes a 72-hour operational test at 85% of maximum rated load. This protocol validates thermal stability and long-term performance under simulated real-world conditions, reducing early failure rates by 98% compared to industry averages.
Quality Control Protocols
All products undergo rigorous testing aligned with ETL (UL 8750) and TUV CE (EN 55015) certification requirements. Our QC protocols ensure compliance with global safety and performance standards before shipment:
| Test Parameter | Standard | Method | Frequency |
|---|---|---|---|
| Electrical Safety | UL 8750 / IEC 61347-1 | Hi-Pot test (1500V AC, 1 min), Insulation Resistance (≥100MΩ) | 100% |
| EMC Compliance | EN 55015 / FCC Part 15 | Conducted/radiated emissions testing | Pre-shipment |
| Thermal Performance | UL 8750 Section 5.2 | Temperature monitoring at max load for 2 hours | Batch |
| Dimming Accuracy | ANSI C82.77 | 0-100% step testing with ±2% tolerance | 100% |
| Environmental Stress | IEC 60068-2 | Humidity (85% RH), vibration, and thermal cycling | Batch |
OEM/ODM Customization Capabilities
Technical Customization
Beauty STC Lighting provides end-to-end OEM/ODM services for 12V LED dimmer switches, with engineering-driven adjustments to meet regional market specifications. Our team collaborates with clients to optimize electrical parameters, mechanical design, and functional features while maintaining compliance with international safety standards:
| Customization Aspect | Options | Notes |
|---|---|---|
| Input Voltage | 120VAC, 240VAC, 277VAC | Configurable for North American, European, and global markets |
| Output Voltage | 12VDC, 24VDC | Adjustable to match specific LED load requirements |
| Power Rating | 30W to 300W | Scalable design for residential to commercial applications |
| Dimming Method | PWM, TRIAC, 0-10V | Compatibility with leading control systems (e.g., Lutron, Leviton) |
| Housing Design | Custom dimensions, materials (aluminum, PC) | Thermal management optimized for application environment |
Packaging and Branding Flexibility
Custom packaging solutions include branded retail boxes, multi-language user manuals, and compliance-specific labeling. All packaging materials meet export standards for international shipping, with options for eco-friendly materials upon request. Our team ensures seamless integration of client branding elements while adhering to regional regulatory requirements such as CE marking or ETL certification labels.
With over 25 years of manufacturing expertise since 1998 and full ETL (USA/Canada) and TUV CE (Europe) certifications, Beauty STC Lighting delivers reliable, compliant, and customizable dimmer solutions for global distributors and project partners. Our Jiangmen facility combines precision engineering with rigorous quality control to ensure every product meets the highest industrial standards.
Installation & Application Scenarios
Where a 12 V LED Dimmer Switch Adds Real Value
(Factory-direct view from Beauty (STC) Manufacturing Co., Ltd – ETL & TUV CE listed since 1998)
H2 | Application Matrix for 12 V PWM Dimmers
| Segment | Typical Load | Mounting Location | Key Code/Drivers | Installer Notes |
|---|---|---|---|---|
| Boutique Hotels | 4–24 m 5050 strip, 7.2 W/m | Head-board cove, bathroom niche | UL 2108 / Class 2 60 W driver | Use 1% flicker-free driver for phone-camera test |
| Retail Mall | 30–150 m 24 V strip (step-down) | Ceiling slot, glass shelf | NEC 411 low-voltage, CEI 64-8 | Loop feed every 10 m; T-splice in ETL box |
| Office Task | 48 VDC furniture feed → 12 V micro-strip | Under-cabinet, desk edge | IEC 61347-2-13 | Keep driver ≥ 30 cm from PSU to avoid EMI |
| Façade Outline | 24 V system → 12 V nodes | Aluminium channel, IP65 | UL 1598 wet, EN 60598-1 | Gel-filled T-splice; dimmer inside IP66 can |
| RV / Marine | 12 V battery bus | Overhead, toe-kick | ISO 10133, ABYC E-11 | Fuse within 18 cm of battery; dimmer after fuse |
| Museum Case | 5 W 12 V COB strip | Showcase frame | IES RP-30-17 | CRI ≥ 97 driver; dim to 0.1 % to protect artefacts |

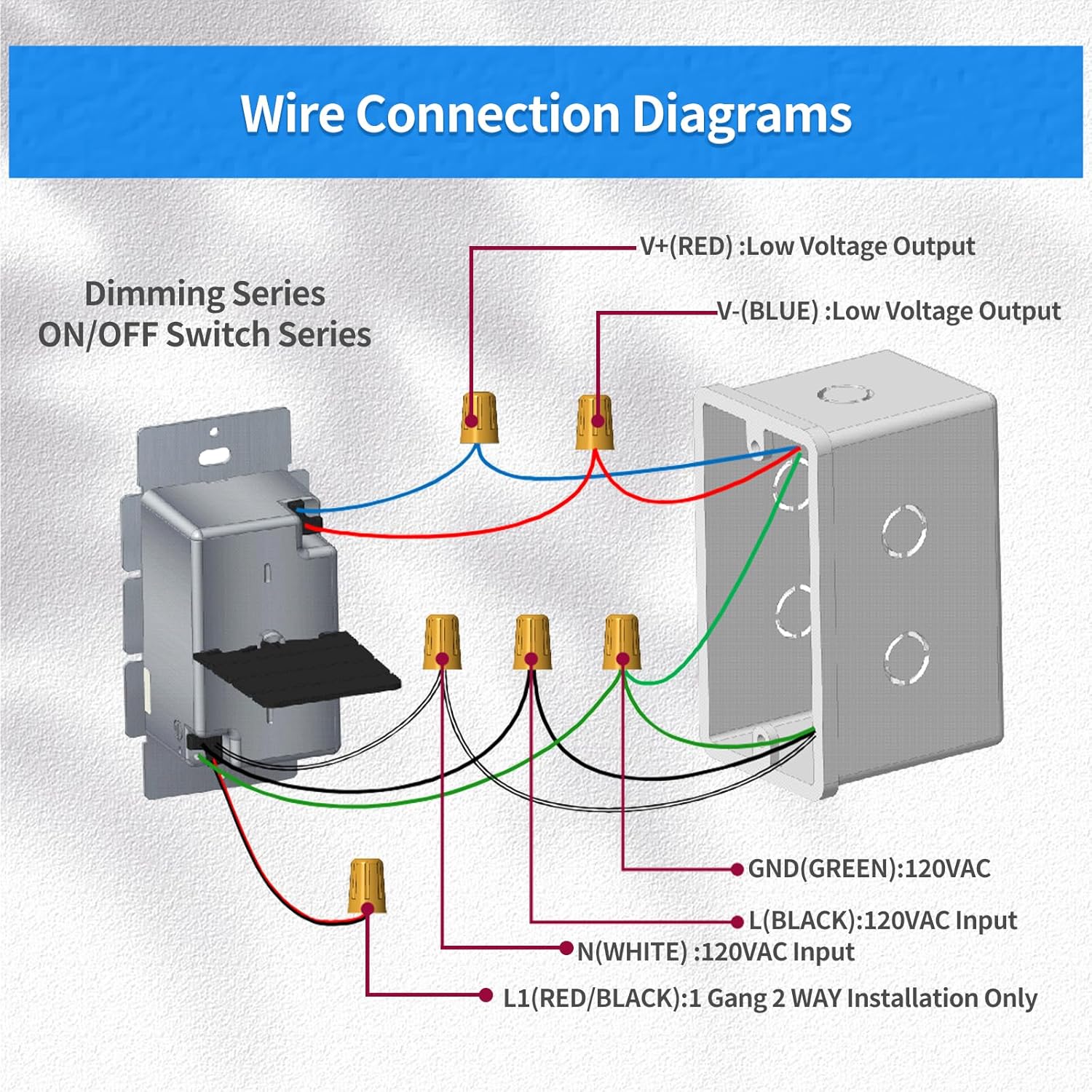

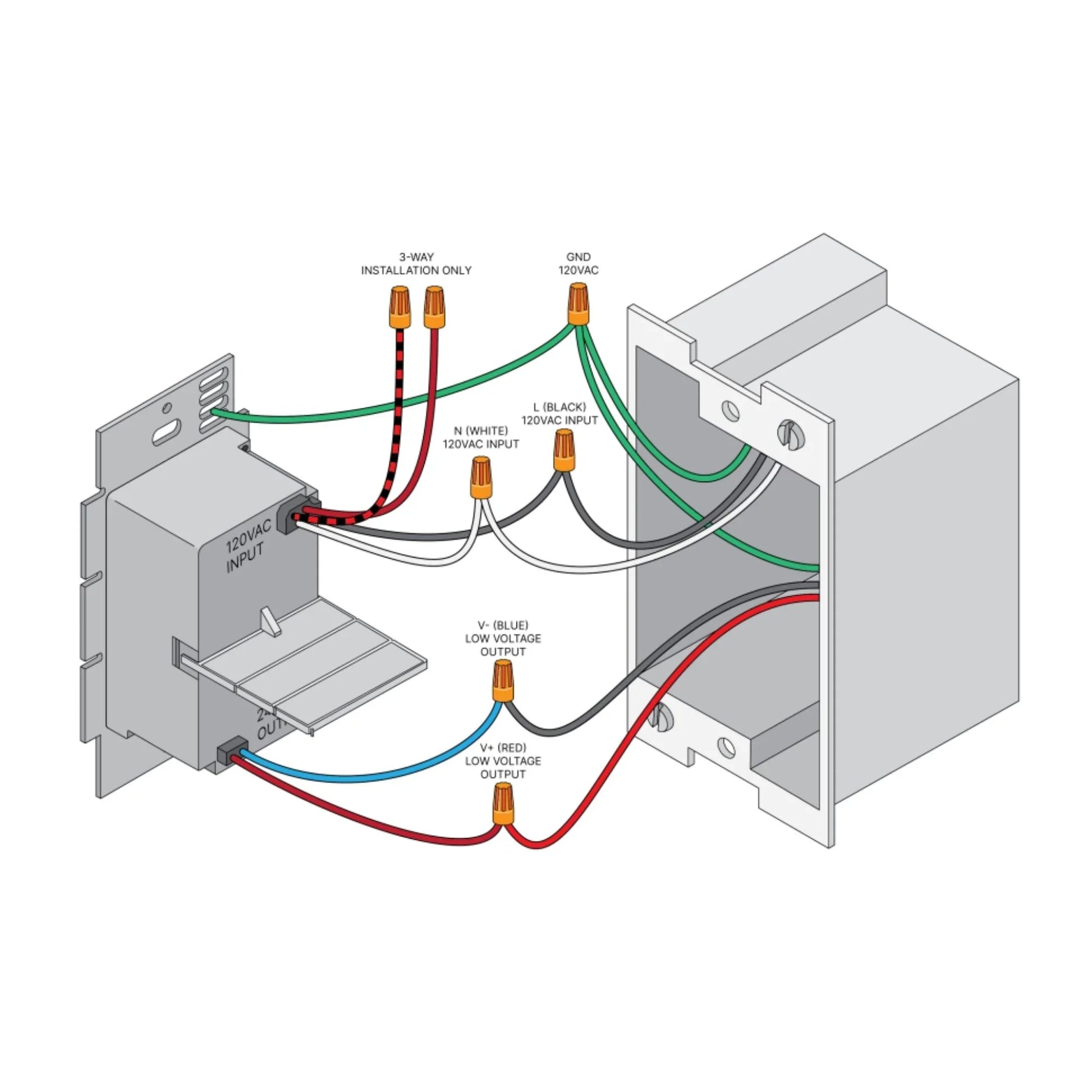

H2 | Contractor Installation Checklist (Factory-Tested Protocol)
-
Verify Load Polarity
All Beauty STC PWM dimmers are common-anode; reversed cathode voids ETL warranty. -
Wire Gauge Rule
≤ 5 A → 18 AWG (0.75 mm²)
≤ 8 A → 16 AWG (1.5 mm²)
Voltage drop table printed inside every J-box lid. -
Minimum Load
1 W (0.08 A @ 12 V) – no ghost-glow; achieved by on-board bleed resistor. -
Maximum Load per Unit
96 W (8 A) @ 12 Vdc ambient ≤ 40 °C; derate 6 % per °C above 40 °C. -
Driver-Dimmer Separation
Mount PWM dimmer ≥ 200 mm from magnetic driver; prevents 100 Hz stroboscopic beat. -
Earthing
Secondary 12 V circuit is SELV; still earth the metal enclosure for touch voltage < 50 V fault case. -
Certification Paper Trail
ETL file #5020289 & TUV CE 0123 report shipped with every carton – speeds local inspector sign-off.
H2 | OEM/ODM Customisation Menu (25-Year Experience)
| Feature | Standard | Optional Build |
|---|---|---|
| Input Voltage | 12 Vdc | 12–24 Vdc auto-detect |
| Output Channels | Single | 2-CH, 4-CH, DMX-512, 0-10 V, Zigbee 3.0 |
| Dimming Range | 1–100 % | 0.1–100 %, 16-bit PWM |
| Housing | 45 × 45 × 18 mm PC | Extruded aluminium, IP67, IK08 |
| Colour | White | Anodised black, custom laser logo |
| Certifications | ETL, CE | CB, SAA, BIS, UKCA, FCC Part 15 |
Tooling lead-time: 18 days for new extrusion; 25 days for PCBA firmware modification.
H2 | Quick Specification Sheet – Beauty STC BDM-96-12V
| Parameter | Value |
|---|---|
| Input | 12 Vdc ± 10 % |
| Max Current | 8 A |
| Dimming Type | 450 Hz PWM, flicker-free < 1 % @ 1 kHz |
| Efficiency | ≥ 98 % (MOSFET shunt) |
| Stand-by | < 0.3 W |
| Operating Temp | –30 °C … +60 °C |
| Approvals | ETL/cETL (US & Canada), TUV CE, RoHS, REACH |
| Warranty | 5 years factory direct |
Next Step
Send project schedule to [email protected] or WhatsApp +86-13902885704 for distributor pricing, LTSPICE driver model, and sample units shipped from Jiangmen within 72 h.
Why Choose Beauty STC Lighting
Partner with Beauty STC Lighting: Engineered for Global Standards
Decades of Proven Expertise in LED Dimming Solutions
Since 1998, Beauty STC Manufacturing Co., Ltd. has delivered reliable, high-performance LED dimming solutions to markets worldwide. Our 25+ years of manufacturing experience ensures rigorous quality control, consistent performance, and adherence to international standards—critical for distributors and project managers requiring dependable components. Our products are exported to 50+ countries, with consistent performance across diverse market conditions, including stringent regulatory environments in North America, Europe, and Asia-Pacific.
Certified for International Compliance
All Beauty STC LED dimmer switches undergo rigorous testing to meet stringent safety and performance requirements for Western markets:
ETL (USA/Canada): Compliant with UL/CSA safety standards for electrical equipment.
TUV CE (Europe): Certified to EN 61000-6-3 (EMC) and EN 62368-1 (safety) for EU market access.
These certifications eliminate compliance risks and ensure seamless integration into projects requiring North American or European regulatory approval.
Technical Specifications & Capabilities
Our 12V LED dimmer switches are engineered for precision and reliability. Key specifications align with industry standards for commercial and industrial applications:
| Parameter | Specification |
|---|---|
| Input Voltage | 100–240V AC (50/60Hz) |
| Output Voltage | 12V DC (constant voltage) |
| Max Load Capacity | 60W (5A) |
| Dimming Method | PWM (0–100%, flicker-free) |
| Compliance | ETL Listed, CE, TUV Certified |
| Warranty | 3-Year Manufacturer’s Warranty |
| Mounting | Standard electrical box compatible (US/EU enclosures) |
OEM/ODM Services Tailored to Your Project
We specialize in custom solutions for complex project requirements, including:
Housing design modifications (e.g., IP ratings, color finishes)
Firmware adjustments for proprietary dimming protocols
Branding and labeling per client specifications
Custom packaging and documentation for regional compliance
Our engineering team collaborates directly with clients to validate designs, conduct pre-production testing, and ensure scalability for large-scale deployments.
Ready to integrate certified, high-performance dimming solutions into your projects?
Contact our global sales team for technical specifications, samples, or custom quotes.
Email: [email protected]
Phone: +86 13902885704
