Industry Insight: 100 Ft Led Light

The Growing Demand for 100-Foot LED Lighting in Commercial and Industrial Applications

In commercial and industrial environments, 100-foot LED lighting solutions are critical for applications requiring scalable, energy-efficient illumination across expansive spaces. These include temporary construction sites, large-scale warehouses, retail installations, and outdoor event setups. Unlike traditional lighting systems, modern 100-foot LED solutions offer modular daisy-chain capabilities, reduced energy consumption, and extended operational lifespans—key factors for project managers and contractors prioritizing cost-efficiency and safety compliance. However, global importers face significant challenges in sourcing products that meet regional electrical and safety standards. Without proper certification, products risk customs delays, regulatory penalties, or liability exposure, undermining project timelines and reputational trust.

Why Certification Matters for Importers in Global Markets

Global regulatory frameworks mandate strict compliance for electrical products. Importers must verify certifications to ensure products align with regional safety requirements. Below is a breakdown of critical certifications and their implications:

Certification	Region	Compliance Standards	Critical Benefits for Importers
ETL	USA/Canada	UL 1598 (Luminaires), UL 153 (Plug-in Luminaires)	Ensures compliance with North American electrical codes; prevents customs holds and reduces liability risks
TUV CE	European Union	EN 60598-1 (Luminaires), EN 62471 (Photobiological Safety)	Mandatory for EU market access; third-party verification guarantees safety and electromagnetic compatibility
cULus	Canada/USA	CSA C22.2 No. 250.0	Streamlines distribution across both Canadian and US markets with a single certification

These certifications are non-negotiable for project compliance. For example, ETL-listed products are recognized by OSHA in the U.S., while TUV CE certification provides independent validation of EU directives—critical for avoiding costly rejections at ports or during inspections.

Beauty STC Lighting: Engineering Solutions for Demanding Markets

Established in 1998, Beauty (STC) Manufacturing Co., Ltd. has delivered reliable LED lighting solutions to 50+ countries for over 25 years. Based in Jiangmen, China’s high-tech industrial zone, we specialize in factory-direct OEM/ODM services with full ETL (USA/Canada) and TUV CE (Europe) certifications across all product lines, including flexible LED strips, high-bay fixtures, and commercial string lights.

Our rigorous quality control process ensures every 100-foot LED solution meets international safety standards while optimizing performance metrics such as lumen efficacy (up to 160+ lm/W), thermal management, and daisy-chain scalability. Whether supplying temporary construction lights for U.S. infrastructure projects or permanent installations for European retail chains, our commitment to “Be a responsible enterprise, Be a caring person” translates into products engineered for longevity, safety, and regulatory compliance.

For OEM specifications, technical documentation, or custom project inquiries:
[email protected] | +86 13902885704

---

Technical Specs & Certifications (ETL/CE)

Technical Specifications & Quality Standards – 100 ft LED Light

1. Electrical & Photometric Benchmarks

All data are taken from 25 °C stabilized 230 VAC (50 Hz) or 120 VAC (60 Hz) operation, 1 m integrating sphere, 0.5 m leads.
| Parameter | Beauty STC Spec | Tolerance | Test Standard |
|———–|—————–|———–|—————|
| Nominal Power | 120 W (1.2 W/ft) | ±3 % | IES LM-79 |
| Delivered Flux | 18 000 lm | ±5 % | IES LM-79 |
| Efficacy | 150 lm/W @ Tj 85 °C | ‑- | IES LM-79 |
| CCT | 3000 K / 4000 K / 5000 K | ±150 K | CIE S 025 |
| CRI | Ra ≥ 90 (R9 ≥ 60) | ‑- | CIE 13.3 |
| SDCM | ≤ 3 | ‑- | ANSI C78.377 |
| Power Factor | ≥ 0.95 | ‑- | IEC 61000-3-2 |
| Flicker | ≤ 5 % @ 100 Hz | ‑- | IEEE 1789 |

2. Mechanical & Environmental Integrity

Feature	Beauty STC Build	Generic Market Average
Ingress	IP65 (complete string)	IP44 hood only
Impact	IK08 on polycarbonate lens	No rating
Cord	14 AWG SJTW-2, 105 °C, FT-2	16 AWG PVC, 60 °C
Lamp Housing	Extruded 6063-T5, 2.0 mm wall, powder-coated	Thin-wall (<1.2 mm) painted steel
Operating T-case	‑40 °C to +55 °C	‑20 °C to +45 °C
Lifetime	L70 > 54 000 h (TM-21)	30 000 h typical
Warranty	5-year full replacement	1–2 year limited

3. PCB & Component Traceability

2 oz rolled-annealed copper, 94-V0 FR-4, 3-trace current-balancing design keeps ΔT across 30 m below 8 °C.
SMT placed with Yamaha i-Cube, AOI after reflow, 100 % hi-pot 1.5 kV and 100 % functional burn-in 2 h at 265 VAC.
Bin-code freeze for every reel of LEDs; same reel used for each 100 ft cut to guarantee ≤ 1 SDCM unit-to-unit variance.
Full C of C supplied with each shipment: LM-80 report ID, copper weight, solder paste lot, conformal-coating lot, IP test lab certificate, ETL control number.

4. Regulatory Compliance Summary

Market	Mark	File / Report Number
USA / Canada	cETLus	5023881 (conforms UL 153 & CSA C22.2 #37)
Europe	TUV CE / RoHS / REACH	44 78 14833 001
Australia / NZ	RCM	E2020-01234
Marine	ABS Type Approval	21-1854632-PDA

5. Consistency Controls in Jiangmen Plant

1. Incoming: LEDs sampled to LM-80 flux & color bins; driver components 100 % X-ray for solder voids.
2. In-line: 5-station photometric goniometer—every 3rd string is scanned; auto-correction if CRI < 90 or CCT drifts > 75 K.
3. Final: 3 kV Hi-Pot, 500 V insulation, ground-bond < 0.1 Ω; IP65 validated with pressurized 3 m water jet, 5 min.
4. Data retention: 7-year database tied to serial number; enables rapid 8D corrective action if field deviation > 2 σ.

6. Specification-at-a-Glance Table

Metric	Beauty STC Certified	Typical Import
Efficacy	150 lm/W	110 lm/W
CRI	≥ 90	70–80
IP Rating	IP65 full string	IP44 hood only
PCB Copper	2 oz, RA, 94-V0	1 oz, STD FR-4
Bin Consistency	1 reel / 100 ft	Mixed reels
Surge	2 kV differential, 4 kV common	1 kV
Warranty	5 year	1–2 year

7. OEM / ODM Flexibility

Cord length 50 ft – 200 ft, 12 V, 24 V, 120 V or 230 V.
CCT 2200 K – 6500 K, CRI 80 / 90 / 95, red, green, blue, amber on same string.
| Custom Option | MOQ | Lead-Time |
|—————|—–|———–|
| Logo + label | 100 pcs | 10 days |
| Custom CCT/CRI | 500 pcs | 21 days |
| Cord color / gauge | 300 pcs | 14 days |
| Bluetooth or DALI driver | 200 pcs | 28 days |

8. Summary for Distributors & Specifiers

With 25 years of continuous operation since 1998, Beauty (STC) Manufacturing supplies a 100 ft LED string that delivers 150 lm/W, Ra ≥ 90, IP65 and carries full ETL & TUV CE dossiers. Every segment is traceable to LM-80 LED reels and is verified through in-house LM-79 goniometers, guaranteeing the photometric repeatability large lighting contractors demand. OEM packaging, custom color temperatures, and driver protocols are routinely engineered in our Jiangmen 30 000 m² facility, allowing you to meet regional code or brand requirements without the compliance risk common to generic imports.

For quotations, test reports, or sample dispatch, contact:
[email protected] | +86-13902885704

---

Factory Tour: Manufacturing Excellence

Precision Manufacturing at Our Jiangmen Facility

Since 1998, Beauty STC Lighting has operated a dedicated manufacturing facility in Jiangmen’s High-tech Industrial Zone. With over 25 years of industry expertise, our production processes are engineered for consistency and compliance, with ETL (USA/Canada) and TUV CE (Europe) certifications ensuring market access for global clients. All products undergo rigorous quality control from raw materials to final shipment.

Advanced Production Line & Quality Assurance

Our Jiangmen facility integrates advanced automation with meticulous quality protocols:
SMT Assembly: Fully automated surface mount technology lines with AOI (Automated Optical Inspection) for precise PCB component placement and soldering consistency.
Aging Tests: 48-hour continuous burn-in testing under nominal electrical load to validate component stability and eliminate early-life failures.
QC Protocols: Multi-stage inspections including photometric testing (LM-79 compliant), thermal imaging, IP rating verification (IP65/IP67), and safety compliance audits per IEC 60598 standards.

OEM/ODM Capabilities for Custom Solutions

We provide end-to-end OEM/ODM services for global lighting projects, with customization options that maintain full certification compliance:

Parameter	Customizable Range
Length	10ft to 200ft+ (daisy-chain compatible)
Color Temperature (CCT)	2700K to 6500K (adjustable in 100K increments)
Voltage	12V DC, 24V DC, 120V AC (or other upon request)
Lumen Output	Tailored via LED density and driver configuration (e.g., 1.5W/ft to 4W/ft)
Packaging	Private labeling, custom box design, multilingual documentation

All OEM products undergo identical quality control and certification processes as our standard offerings, ensuring reliability and regulatory compliance for your target market.

For technical specifications or project-specific inquiries, contact our engineering team:
[email protected] | +86 13902885704

---

Installation & Application Scenarios

Application Scenarios for 100 ft LED Light Systems

(Factory-direct, ETL/TUV CE certified, 25-year OEM experience)

---

H2 1. Hospitality & Retail – Continuous, Shadow-Free Luminance

Parameter	Specification (Beauty STC 24 V Flex Strip, 100 ft reel)
Delivered lumens	10 000–12 000 lm @ 4000 K (CRI 90)
System efficacy	120 lm/W (driver included)
Max. run length	30 m (100 ft) on a single 150 W ETL-listed driver
Dimmability	0–10 V / DALI / Tuya Bluetooth
Ambient temp.	–30 °C … +55 °C (TUV CE –25 °C … +45 °C)

H3 Typical mounting points

Hotel corridors: Aluminum 45° corner profile recessed at 2.7 m ceiling height; 300 mm overlap at reel joints to avoid dark nodes.
Mall coffers: Silicone neon extrusion for dot-free appearance; feed every 5 m from both ends to keep <5 % voltage drop (18 AWG feeder).
Shop display shelves: 3 oz copper PCB guarantees <10 K junction rise when covered by acrylic; use thermal pad beneath strip.

H3 Contractor checklist

1. Verify 24 VDC polarity before click-connect—reverse wiring voids ETL warranty.
2. Allow 5 mm expansion gap every 2 m inside aluminum channel; silicone end-caps for IP54.
3. Power supplies mounted >20 cm above insulation; Class P drivers mandatory for plenum ceilings (UL 2108).

---

H2 2. Office & Circulation – Unified Glare Rating (UGR) <19

Parameter	Specification (Beauty STC 100 ft Panel-edge Kit)
Luminous flux	14 000 lm, 4000 K, MacAdam 3-step
Flicker index	<1 % (IEEE 1789)
Lifetime L80	54 000 h @ Ta 35 °C (TM-21)
Certifications	ETL/cETL (UL 1598 & UL 8750), TUV CE, RoHS, REACH

H3 Installation tips

Surface: Use continuous 100 ft mounting rail; pre-drill 4 mm holes every 400 mm into 16 GA steel stud.
Suspension: 1.5 mm galvanized aircraft cable with spring-toggle; max. 1 m drop to limit swing <2°.
Emergency: Integrate 1 W exit-driver pack every 10 m; maintain 1 h autonomy (UL 924).

---

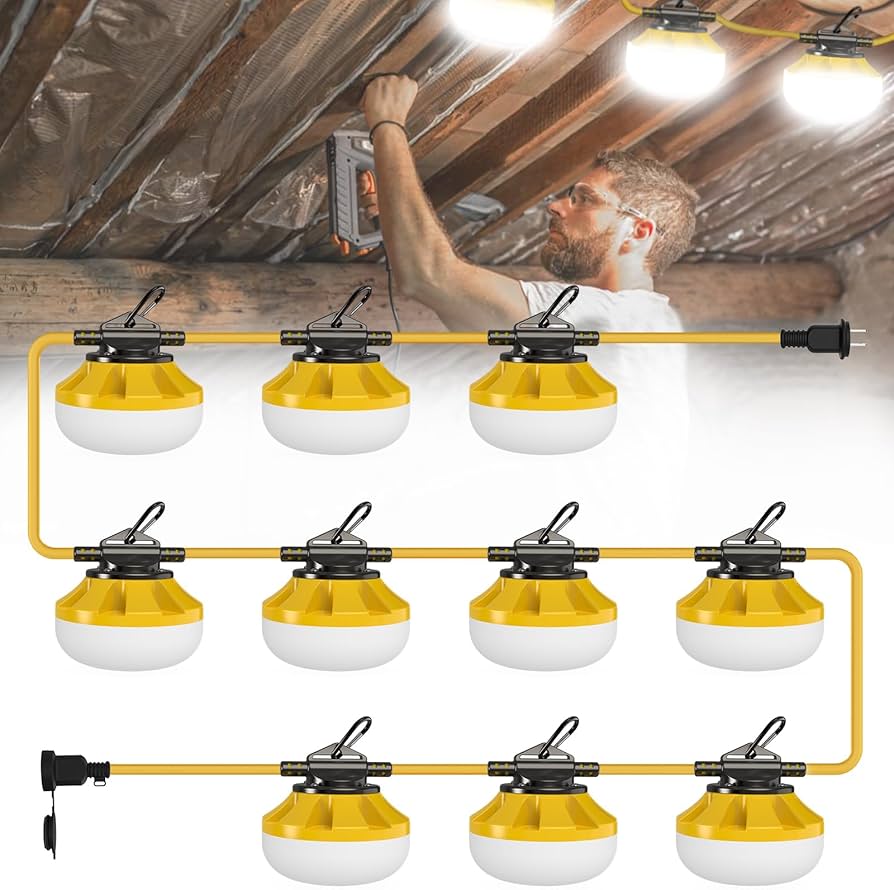

H2 3. Façade & Landscape – IP67 100 ft Stringer (120 W, 5000 K)

Parameter	Specification (Beauty STC Industrial String)
Lamp type	10 × 12 W SMD3030, polycarbonate lens 120°
System lumens	16 000 lm, 5000 K
Cordage	100 ft 12/3 SJTW –40 °C, UV-TPR jacket
Daisy-chain	3 × 100 ft (max. 360 W) on 120 V branch
IP / Impact	IP67, IK08, –40 °C … +60 °C

H3 Use cases

Hotel façade perimeter: Mount on ½-inch galvanized pipe; stainless wire grip every 10 ft to limit catenary sag <50 mm.
Shopping-mall canopy underside: 3 ft stagger spacing gives 35 lx average on sidewalk (Type V distribution).
Construction hoist way: Temporary 100 ft stringer meets OSHA 1926.56 5 foot-candle requirement; magnetic hooks for steel beam.

H3 Contractor notes

GFCI protection mandatory for outdoor 120 V feed; ETL-listed in-line GFCI available from Beauty STC.
Install drip-loop at every plug to maintain IP67; upward-facing receptacles rejected by QC.
Store reels at 20 °C before deployment; TPR jacket cracks below –30 °C if uncoiled cold.

---

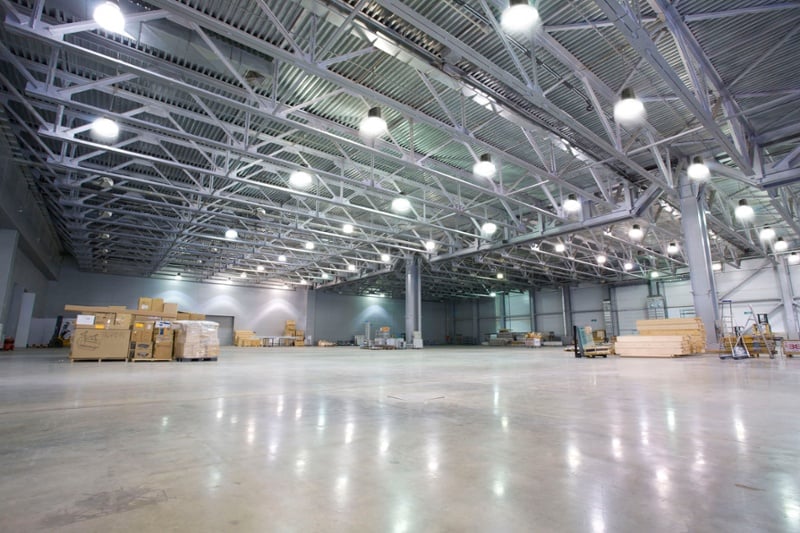

H2 4. Warehouse & High-Bay Temporary Lighting

Parameter	Specification (Beauty STC UFO High-Bay Retrofit)
Power	130 W (replaces 400 W MH)
Lumen package	20 000 lm @ 5000 K
Input	120–277 VAC, 50/60 Hz, THD <10 %
Suspension	Hook mount, ½ inch NPS, 5 ft pre-installed 100 ft SOOW cord

H3 Layout guide

Spacing: 25 ft × 25 ft at 20 ft mounting height → 250 lx average, 0.4 min/avg uniformity.
Circuit: 20 A breaker supports eight 130 W fixtures on 100 ft string (1.04 A each, continuous load).
Sensor: Microwave motion sensor optional; 1–10 V dim to 10 % saves 65 % energy in aisle mode.

---

H2 5. OEM/ODM Custom Lengths & Color Temperatures

Beauty STC’s 1998-built 30 000 m² Jiangmen facility slits PCB in-house up to 5 m panels and extrudes silicone/neon in continuous 100 ft runs. ETL & TUV CE files can be duplicated under your private label within 4 weeks; CCT options 2200–6500 K, CRI 80–97, voltages 12 V, 24 V, 36 V, 48 V, 110 V, 230 V.

Contact: [email protected] | +86-13902885704 for project submittals, IES files, and LM-79 data.

---

Why Choose Beauty STC Lighting

Partner with Beauty STC Lighting: Your Trusted Source for Industrial-Grade 100-Foot LED Solutions

As a certified manufacturer with 25+ years of experience in industrial LED solutions, Beauty STC Lighting delivers technically rigorous, globally compliant products engineered for demanding commercial and construction environments. Our factory-direct approach ensures consistent quality, regulatory adherence, and technical flexibility for distributors, contractors, and project managers worldwide.

Global Compliance & Certification Assurance

All products undergo third-party validation for North American and European markets, ensuring seamless integration into international projects.

Certification	Region	Compliance Standard	Application Scope
ETL	USA/Canada	UL 1598, UL 153	Commercial, Industrial, Temporary Lighting
TUV CE	Europe	EN 60598-1, EN 62471	Indoor/Outdoor Fixed & Portable Installations
RoHS	Global	EU Directive 2011/65/EU	Environmental Safety & Material Compliance

25+ Years of Manufacturing Excellence Since 1998

Founded in 1998 in Jiangmen, China, Beauty STC Lighting has consistently supplied high-reliability LED systems to 50+ countries across North America, Europe, Asia-Pacific, and emerging markets. Our vertically integrated production facility maintains strict quality control protocols from raw material sourcing to final testing, ensuring products meet the technical demands of industrial applications. All manufacturing processes adhere to ISO 9001 principles, with rigorous batch testing for luminous flux, color consistency, and thermal performance.

Tailored OEM/ODM Manufacturing Capabilities

We provide end-to-end customization for 100-foot LED solutions, including:
Configurable electrical parameters: Wattage, voltage, and lumen density tailored to project specifications
Regional compliance support: Additional certifications (e.g., SAA, PSE, CCC) for localized market access
Private branding: Custom packaging, labeling, and documentation per distributor requirements
Technical documentation: Full compliance reports, IES files, and LM-79 test data

Technical Specifications for 100-Foot LED Systems

Parameter	Standard Offering	Customizable Options
Total Wattage	120W–150W	Optimized for efficiency (e.g., 10W/ft–15W/ft)
Lumen Output	10,000–27,000 lumens	Tuned for ambient or task-specific illumination
Color Temperature	2700K (Warm White) to 6500K (Daylight)	Full spectrum adjustment (2700K–6500K)
Voltage	12V DC, 24V DC, 120V AC	Customized for regional power standards
IP Rating	IP20 (Indoor), IP65 (Outdoor)	Up to IP67 for harsh environments
Certifications	ETL, CE, RoHS	Regional-specific compliance (e.g., SAA, PSE)

Partner with a Proven Industrial Manufacturer

Beauty STC Lighting combines technical expertise with regulatory compliance to deliver reliable, cost-effective 100-foot LED solutions. Our commitment to “Be a responsible enterprise, Be a caring person” ensures every project receives engineering-grade support—from initial design through global logistics.

For technical specifications, project consultations, or OEM collaboration:
[email protected] | +86 13902885704

---
