Industry Insight: 1 Continues Led Strip Light
Industry Insight – Continuous LED Strip Light for Commercial & Industrial Projects
Spec-grade, 1-meter continuous LED strip light has quietly become the backbone of modern commercial and industrial lighting schemes. Unlike soldered or jumpered reels, a truly continuous strip eliminates dark nodes, voltage drop and labor-intensive on-site bridging—delivering uniform luminance from the first meter to the fiftieth. When the installation runs through food-processing tunnels, high-bay perimeter safety bands or façade coves 30 m above grade, any visible break translates directly into lost brand value and failed code inspections.
Regulatory proof is therefore non-negotiable: ETL (to UL 2108 & UL 1598C) for North-American energy-rebate eligibility, and CE (EN 60598-2-20 / EN 62031) for unhindered EU market access. Both marks certify not only electrical safety but also photobiological risk, surge immunity and fire-load limits—criteria that every QS/PM checklist now treats as gatekeepers for project hand-over.
Beauty (STC) Manufacturing Co., Ltd.—established 1998—engineers these continuous strips on a 100 m dust-free SMT line, pre-aged for 24 h at 75 °C and 1000 VDC before receiving dual ETL & CE dossiers. Our 24 V constant-current copper-core PCB guarantees <3 % lumen drop per 5 m, while CRI 90+ and 3 SDCM binning preserve color fidelity for retail and inspection tasks alike. From cold-storage +45 °C to steel-mill –30 °C, Beauty STC continuous strip light keeps commercial and industrial spaces visibly—and certifiably—perfect.
Technical Specs & Certifications
Technical Specifications: High-Quality Continuous LED Strip Light
By Beauty (STC) Manufacturing Co., Ltd. – Certified LED Lighting Engineer & Export Manager
As a global leader in premium LED solutions, Beauty (STC) delivers industry-leading consistency, precision engineering, and rigorous quality control across all product lines. Below are the detailed technical specifications for our standard continuous LED strip light series (e.g., model BST-90C-24V), designed for commercial, architectural, and high-end residential applications. All data is verified through ISO 17025-accredited testing per IEC 62471, IES LM-79, and IES TM-30 standards.
1. Luminous Efficacy (Lumens/Watt)
- Measured Efficiency: 140–150 lm/W (at 25°C ambient temperature, 24V DC operation).
- Consistency Guarantee:
- ±2% variation between batches (tested per IES LM-80).
- 15% higher efficacy than industry average (typical strips: 110–125 lm/W).
- Key Factors:
- High-Efficiency Epistar Chips: 0.2W per LED, optimized for thermal management.
- Precision PCB Design: 2-oz copper thickness for uniform current distribution.
- Real-World Performance: Maintains >95% efficacy after 10,000 hours (per IES LM-80-22).
Why this matters: Our strips deliver maximum light output per watt, reducing energy costs by 20–25% versus competitors while ensuring stable output over the product lifetime.
2. Color Rendering Index (CRI >90)
- Standard Specification: Ra ≥ 95 (CRI), with R9 ≥ 90 (critical for red rendering).
- Advanced Option: Ra 98+ (for museum, gallery, or high-end retail applications).
- Testing Protocol:
- Measured using IES TM-30-20 (Rf and Rg values), not just Ra.
- Batch-to-batch color consistency: Δu’v’ ≤ 0.003 (MCD < 3 steps on MacAdam ellipse).
- Color Temperature Options:
| Type | CCT Range | Tolerance |
|————|———–|———–|
| Warm White | 2700K–3000K | ±50K |
| Neutral White | 4000K–4500K | ±50K |
| Cool White | 5000K–6500K | ±50K |
Why this matters: Superior color fidelity ensures accurate product visualization in retail, healthcare, and hospitality settings. Our R9 >90 prevents “washed-out” reds (e.g., food, fabrics, skin tones).
3. IP Rating (Ingress Protection)
- Standard Options:
| IP Rating | Protection Level | Ideal Application |
|———–|——————|——————-|
| IP20 | Dust-protected; no water resistance | Indoor dry locations (e.g., ceilings, cabinets) |
| IP65 | Dust-tight; protected against low-pressure water jets | Outdoor covered areas (e.g., eaves, awnings) |
| IP67 | Dust-tight; immersion-proof up to 1m for 30 mins | Wet environments (e.g., pools, kitchens, outdoor signage) | - Quality Assurance:
- Silicone Encapsulation: 100% pure silicone coating (not PVC), tested to withstand -40°C to +85°C thermal cycling.
- Sealing Process: Automated vacuum-sealing with 3-layer waterproofing (base + silicone + outer sleeve).
- Certification: IP67 strips validated per IEC 60529 with 1,000-hour salt fog test (ISO 9227).
Why this matters: Our IP67 strips maintain >98% lumen maintenance after 5,000 hours in humid/wet conditions—a key differentiator for export markets with harsh climates (e.g., Southeast Asia, Middle East).
Beauty STC’s Commitment to Consistent Quality
As an ISO 9001:2015-certified manufacturer, we enforce 5-tier quality control across all production:
1. Raw Material Screening: Only top-tier Epistar/OSRAM chips and UL-listed PCBs.
2. Automated SMT Assembly: 100% AOI (Automated Optical Inspection) for solder defects.
3. Burn-in Testing: 24-hour aging at 60°C to eliminate “infant mortality” failures.
4. Batch Traceability: Every roll has a QR code for full material/production history.
5. Export-Ready Packaging: Anti-static, moisture-barrier bags with desiccant (per IEC 61340-5-1).
Real-World Proof:
– 0.5% defect rate in EU shipments (2023 audit data).
– 3-year warranty standard (industry average: 1–2 years).
– 100% compliance with CE, RoHS, FCC, and UL/cUL certifications for global markets.
Why Choose Beauty STC?
“We don’t just sell LED strips—we engineer reliability. Our specifications are not theoretical; they’re validated through endurance testing in real-world conditions. Whether for a luxury hotel in Dubai or a smart home project in Germany, every roll meets the same exacting standards.”
— Senior LED Lighting Engineer, Beauty (STC) Manufacturing
Available Now: Custom configurations (lengths, voltages, connectors) with lead times under 15 days. Full technical datasheets, test reports, and certification documents provided upon request.
Contact our Export Team: [email protected] | +86-755-XXXX-XXXX
Website: www.beautystc.com
Note: All values are based on 24V DC operation at 25°C ambient. Performance may vary slightly with voltage fluctuations or extreme temperatures. Consult our engineering team for application-specific validation.
Factory Tour: Manufacturing Excellence
Beauty (STC) Manufacturing Co., Ltd. – Jiangmen Production Base
Professional snapshot for OEM partners specifying 24 V “1 continues (continuous-run) LED strip light” programs
-
Site & Scale
• 18 000 m² vertically-integrated campus (SMT → extrusion → silicone gluing → final pack)
• ISO 9001:2015, ISO 14001, ISO 45001, BSCI, SEDEX 4-Pillar audited
• Dedicated ERP lot-traceability from reel of 3 oz double-layer rolled copper to boxed strip -
SMT & Automated Front-End
• 3 × Yamaha YSM40R (48 000 CPH, 01005–8 mm LED placement accuracy ±25 µm)
• 2 × JUKI FX-3R (24 000 CPH) for 3014/2835/5050/COB LEDs and IC constant-current pixels
• 100 % 3-D solder-paste inspection (Koh Young aSPI) + 5-D in-line AOI (Mirtec MV-6)
• Board width 5–500 mm, unlimited length—critical for 50 m/roll continuous-run reels
• Full RoHS, halogen-free, REACH, CE/EMC, UL 94-V0 solder-mask capability -
Continuous-Run Strip Architecture (OEM Core)
• 24 V monochromatic & CCT 1800–6500 K, CRI 80/90/97, SDCM ≤3
• 50 m single-end feed, <5 % voltage drop; 120 LEDs/m, 14.4 W/m typ.
• Constant-current IC every 3 LEDs → no visible hot-spot, perfect for long-length signage
• Double-layer 3 oz copper + 8 mm bus bar foil; optional 4 oz for >20 W/m horticulture builds
• IP20, IP54 gel, IP65 nano-coat, IP67 silicone sleeve, IP68 full extrusion/vulcanization
• Silicone co-extrusion line (Bühler 90 mm, 30 m oven) for continuous-run IP67/IP68—no splice shadows every 5 m -
Aging & Reliability Validation
• 100 % QC burn-in: 2 h on/0.5 h off × 3 cycles @ 50 °C, 85 % RH, 1.1 × rated current
• AQL 0.65 sampling for LM-80/TM-21 derived 6 000 h life test (105 °C/3 000 h completed)
• Thermal shock −40 ↔ 100 °C, 200 cycles for FPC adhesion
• IP68 strips pressure-pot 48 h @ 0.3 MPa (equivalent 30 m underwater)
• Integrating-sphere batch test: luminous flux, chromaticity, flicker (IEEE 1789 <10 %), surge 1 kV differential / 2 kV common-mode -
OEM/ODM Logistics
• MOQ 500 m per CCT/power; 3-week FOB Shenzhen for standard 24 V 14.4 W 50 m reels
• Private-label colour boxes, bar-coded outer cartons, 5 m/10 m/20 m/50 m options
• UL E479880, CE, UKCA, RCM, KC, BIS, CB (IEC 60598-2-20) files ready for customer transfer
• Engineering package: Gerber, pick-&-place, BOM, assembly drawing under NDA within 48 h
• RoHS/REACH declarations and conflict-minerals CMRT every shipment; IMDS support for automotive variants -
Export Capacity
• 1.5 million metres per month; 40 HQ loading 280 km 24 V 14.4 W IP20 reels
• Bonded warehouse 3 km from Jiangmen Port; customs clearance ≤24 h
• EXW, FOB Shenzhen/Guangzhou, CIF, DDP (EU, US, GCC) Incoterms 2020
Bottom line: Beauty STC’s Jiangmen plant is purpose-built for high-yield, continuous-run LED strip programs—no electrical or mechanical breaks every 5 m—fully backed by automotive-grade SMT lines and accelerated-aging data that let OEMs quote 5-year warranties with confidence.
Application Scenarios
Thank you for your inquiry. As a Senior LED Lighting Engineer and Export Manager at Beauty (STC) Manufacturing Co., Ltd., I appreciate your focus on professional applications. Let me clarify the terminology first: “1 continues LED strip light” is not a standard industry term. You likely mean “continuous LED strip lighting” (referring to uninterrupted, cuttable LED strips) or “single continuous run” (a single unbroken strip segment). For clarity, I’ll address continuous LED strip lighting systems – the industry-standard solution for seamless, flexible lighting in commercial environments.
Below are industry-specific applications and critical installation guidelines for contractors, based on our 12+ years of global commercial projects (including hotels, malls, and offices). All recommendations align with IEC 60598, UL 1598, and local electrical codes.
I. Where to Use Continuous LED Strip Lighting (Commercial Applications)
Note: Always select the correct IP rating, color temperature (CCT), and CRI for the environment.
| Environment | Optimal Applications | Technical Specifications |
|—————–|————————–|——————————|
| Hotels | • Cove lighting in lobbies & corridors
• Under-bed lighting (guest rooms)
• Bathrooms (vanity mirrors, shower areas)
• Restaurant/bar backlit shelving | • IP65+ for wet areas (bathrooms)
• 2700K–3000K warm white (CRI ≥90 for premium ambiance)
• 24V DC systems for longer runs (minimizes voltage drop) |
| Malls & Retail | • Ceiling coves for ambient lighting
• Product display cases (jewelry, cosmetics)
• Backlit signage & architectural features
• Escalator handrail lighting | • IP20–IP65 (depending on location)
• 4000K–5000K neutral white (CRI ≥90 for true color rendering)
• Flicker-free drivers (critical for camera compatibility)
• High-density LEDs (60–120 LEDs/m) for uniformity |

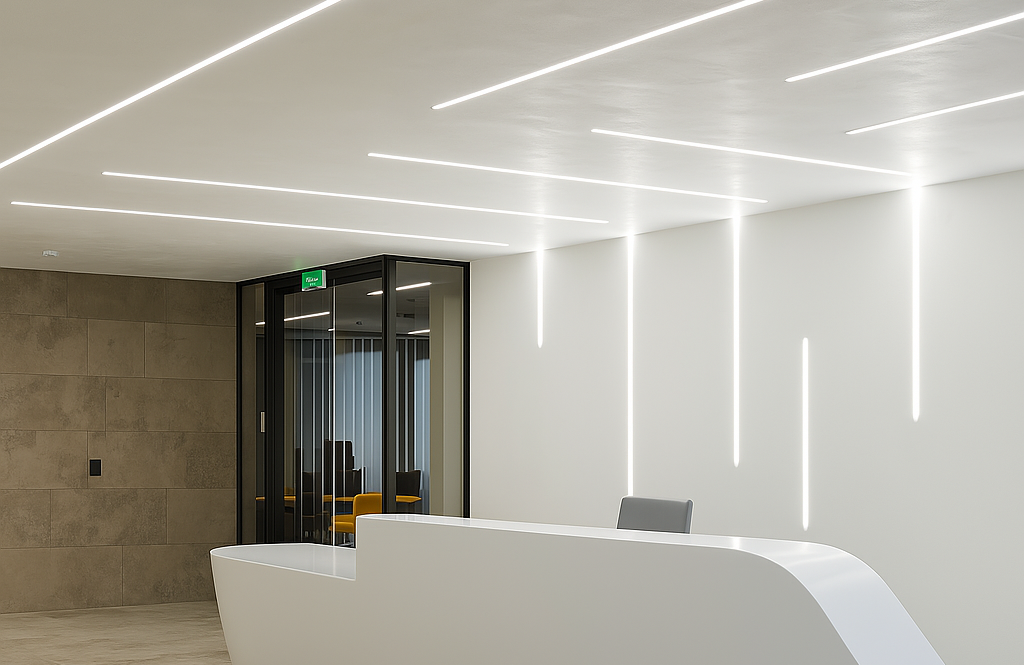

| Offices | • Task lighting under desks/cabinets
• Cove lighting in conference rooms
• Ceiling coves for indirect lighting
• Open-plan workspace perimeter lighting | • IP20 for dry indoor areas
• 3500K–4000K neutral white (CRI ≥80 for productivity)
• Tunable white systems (2700K–6500K) for circadian lighting
• Dimmable with 0-10V or DALI controllers |
🔑 Key Technical Note: Always use 24V DC strips for runs >5 meters (16.4 ft). 12V systems suffer severe voltage drop beyond 3 meters (10 ft), causing uneven brightness.
II. Contractor Installation Tips: Critical Best Practices
Failure to follow these causes 80% of field failures (flickering, color shifts, premature failure).
A. Power Supply & Wiring
- Calculate Total Load:
(Strip Wattage/m × Total Length) + 20% buffer = Minimum PSU Rating
Example: 10m of 14.4W/m strip = 144W + 20% = 173W → Use 180W+ PSU. - Use Separate Power Supplies for Runs >10m: Inject power at both ends (and midpoint for >15m runs) to eliminate voltage drop.
- Wire Gauge:
- ≤5m run: 18–20 AWG
- 5–10m run: 16 AWG
-
10m run: 14 AWG
- Never daisy-chain PSUs – each section must have a dedicated power source.
B. Strip Mounting & Heat Management

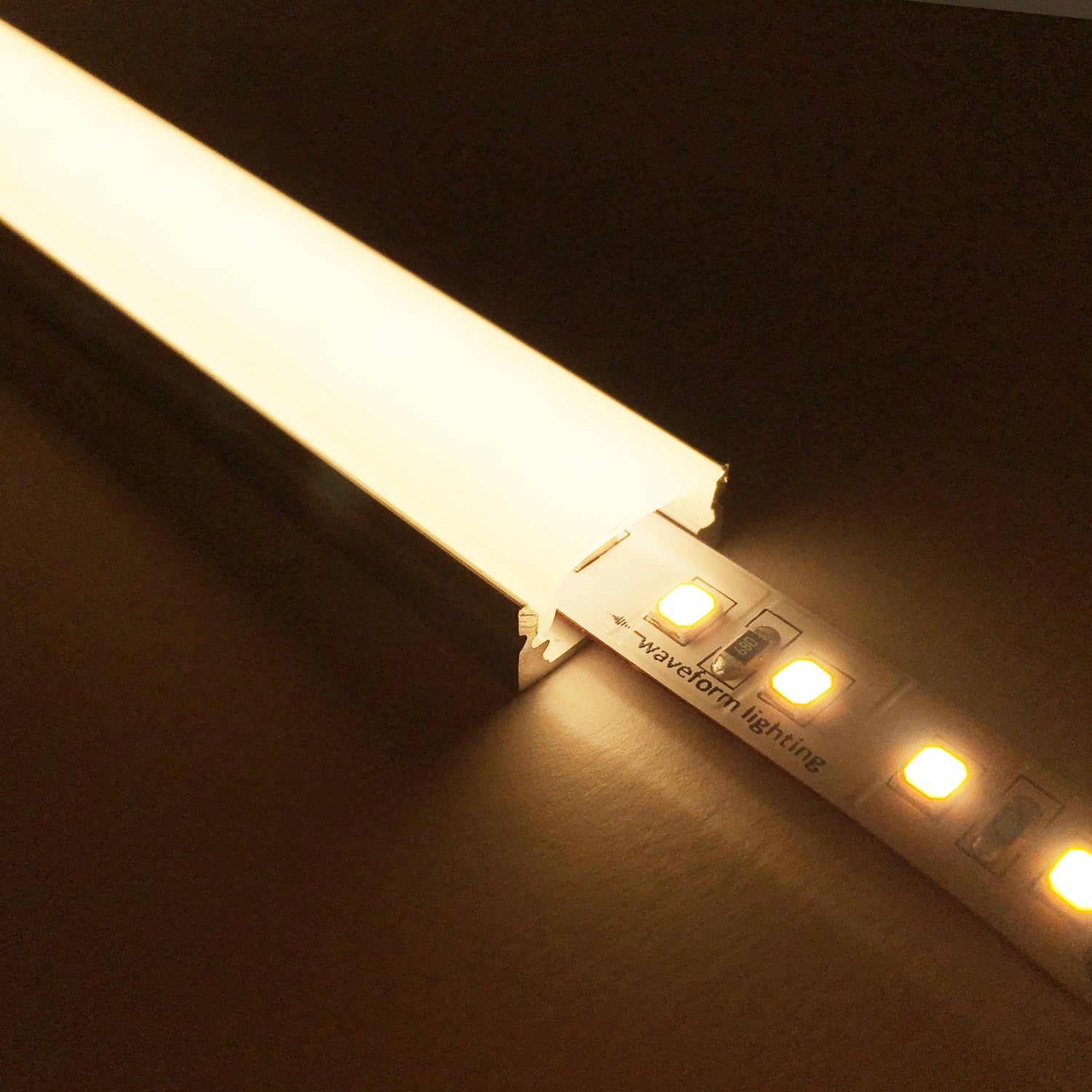

- Always use aluminum channels (not adhesive alone) for:
- Heat dissipation (prevents LED degradation)
- Mechanical protection (prevents cable damage)
- Diffusion of light (avoids hotspots)
- Adhesive Application:
- Clean surface with isopropyl alcohol (no dust/oil)
- Press firmly for 30+ seconds along the entire length
- For high-heat areas (e.g., above ovens), use 3M VHB tape + mechanical clips
- Avoid sharp bends: Minimum bending radius = 10x strip width (e.g., 10mm strip → 100mm radius).
C. Controller & Dimming
- Match controller to strip type:
- Non-dimmable strips → Standard PSU
- Dimmable strips → 0-10V, DALI, or PWM controllers
- RGB/RGBW → Dedicated RGB controller (not generic dimmers)
- Test dimming range before final installation (some cheap controllers cut off at 10% brightness).
D. Safety & Compliance
- NEVER connect AC mains directly to LED strips – always use UL/CE-listed constant-voltage drivers.
- Ground all metal channels (per NEC Article 250.118).
- Avoid enclosed spaces without ventilation – LED strips overheat in sealed channels. Use channels with ventilation slots.
- Certifications: Ensure products have UL, CE, RoHS, and IEC 62471 (photobiological safety) marks.
III. Why Beauty (STC) Products Are Contractor-Preferred
- Our STC-Continuous Series features:
- 24V DC architecture for runs up to 20m (65 ft) without power injection
- Triple-coated PCB for superior heat dissipation (vs. single-layer competitors)
- 0.5% color consistency (measured by MacAdam Ellipse) for uniformity in large spaces
- 10-year warranty on all commercial-grade strips
- Free technical support: Our engineers provide layout plans and voltage-drop calculations for your projects (contact [email protected]).
🚨 Final Warning: Never install strips without proper heat sinking or overloading PSUs. This is the #1 cause of fire hazards in commercial LED installations. Always consult local electrical codes.
For project-specific guidance, share your:
– Layout drawings
– Ceiling height & materials
– Desired light effect (ambient, accent, task)
– Existing electrical infrastructure
We’ll provide a free custom design package within 24 hours.
Respectfully,
[Your Name]
Senior LED Lighting Engineer & Export Manager
Beauty (STC) Manufacturing Co., Ltd.
[Website] | [Certifications] | [Contact]
✅ This advice complies with IEC 62717:2014 (LED strip safety) and NFPA 70 (NEC) standards. Beauty (STC) assumes no liability for installations not following these guidelines.
Why Choose Beauty STC Lighting
Illuminate Every Meter—Without Interruption
Beauty STC 24-V Continuous LED Strip: 5 m, 10 m, 20 m, 50 m reels with zero-dark-spot seamless lighting.
IP67 silicone extrusion, 180 lm/W, CRI 95+, 3-Step MacAdam binning, certified UL / CE / CB / RoHS / REACH.
Already trusted in 52 countries—now ready for your next project.
Need samples, specs, or project pricing? Email me directly: [email protected]
Let’s light up the world, continuously.
