Industry Insight: 0-10 Volt Dimmer
The 0-10 volt dimming protocol remains a cornerstone technology for precise light level control within commercial and industrial lighting environments, despite the emergence of more complex digital systems. Its enduring relevance stems from fundamental advantages: simplicity, widespread compatibility with legacy and modern LED drivers, cost-effectiveness for large-scale deployments, and proven reliability in critical applications like office spaces, warehouses, retail stores, and healthcare facilities where smooth, flicker-free dimming directly impacts occupant comfort, productivity, and significant energy savings. As building codes and energy efficiency standards like ASHRAE 90.1 and Title 24 increasingly mandate advanced lighting controls, the 0-10V system provides a robust and accessible pathway to compliance, particularly for straightforward zone-based dimming requirements. Crucially, any 0-10V dimming solution intended for the North American commercial market must carry ETL listing, verifying it meets rigorous safety standards under NRTL accreditation, while CE marking is equally non-negotiable for deployment within the European Union, ensuring adherence to essential health, safety, and environmental protection requirements. These certifications are not optional extras but fundamental prerequisites for specifying and installing lighting control components in professional settings, providing specifiers and facility managers with the necessary assurance of product safety and regulatory compliance.
Beauty STC Manufacturing Co., Ltd., established in 1998, brings over two and a half decades of deep engineering expertise and manufacturing excellence specifically focused on advanced LED lighting solutions and their essential control interfaces for the global commercial and industrial sectors. Our foundational understanding of the practical demands of large-scale lighting projects, from the intricacies of driver compatibility to the absolute necessity of certified, reliable components, positions us as a trusted partner. We design and manufacture 0-10V dimming components, including high-performance drivers and control modules, engineered not just to meet but to consistently exceed the stringent ETL and CE requirements, ensuring seamless integration, long-term operational stability, and peace of mind for demanding applications worldwide. This commitment to robust, standards-compliant engineering is central to enabling the energy-efficient, user-centric lighting environments that modern commercial and industrial facilities require.
Technical Specs & Certifications
The 0-10 volt dimmer is an industry-standard analog lighting control method widely used for precise dimming of LED lighting systems. When paired with compatible LED drivers and fixtures, it enables smooth, flicker-free dimming from 100% to near 0% light output. At Beauty (STC) Manufacturing Co., Ltd., our LED luminaires designed for 0-10 volt dimming are engineered to meet the highest performance and reliability standards, ensuring optimal energy efficiency, accurate color rendering, and environmental resilience.
Lumens per Watt (lm/W) is a critical metric for evaluating the energy efficiency of LED lighting. Our 0-10 volt dimmable fixtures typically deliver between 130 to 160 lumens per watt, depending on the optical configuration and thermal management design. This high efficacy is achieved through the use of premium-grade LED chips, optimized driver electronics, and advanced heat dissipation techniques, allowing customers to reduce energy consumption without compromising light output or quality.
Color Rendering Index (CRI) is essential for applications requiring accurate color representation, such as retail, healthcare, and hospitality environments. All Beauty STC luminaires supporting 0-10 volt dimming are offered with a CRI greater than 90, with options available up to CRI 95 or higher using enhanced phosphor LED packages. This ensures vibrant, natural-looking illumination that closely mimics daylight, enhancing visual comfort and object clarity.
Ingress Protection (IP) ratings define the level of protection against solid particles and moisture. Beauty STC provides a range of 0-10 volt dimmable LED fixtures with IP ratings suitable for both indoor and outdoor applications. For indoor commercial use, fixtures typically carry an IP40 or IP42 rating, protecting against dust and light moisture. For damp or outdoor environments, we offer robust solutions with IP65, IP66, and even IP67 ratings, ensuring complete dust tightness and resistance to low-pressure water jets or temporary immersion. These high IP-rated fixtures are ideal for parking garages, building facades, and industrial facilities where durability is paramount.
Beauty (STC) Manufacturing Co., Ltd. maintains rigorous quality control throughout the production process, from component selection to final assembly. Our 0-10 volt compatible luminaires undergo extensive testing for dimming performance, thermal stability, and long-term reliability. We adhere to international standards including IEC, UL, and EN, and our products are backed by comprehensive warranties, reflecting our confidence in their performance and longevity. With a commitment to innovation and precision engineering, Beauty STC delivers lighting solutions that combine superior efficiency, exceptional color quality, and robust environmental protection.
Factory Tour: Manufacturing Excellence
Beauty STC’s manufacturing facility in Jiangmen, China, serves as our primary production hub for LED lighting solutions. This modern, ISO 9001-certified campus spans approximately 40,000 square meters and integrates comprehensive in-house capabilities from PCB fabrication to final assembly. The facility is designed for high-volume output while maintaining strict quality control, with a monthly production capacity exceeding 5 million lighting units across various product lines including panels, troffers, and downlights.
Our SMT production lines are anchored by multiple Fuji NXT III modular platforms operating in dual-lane configurations. These machines handle components down to 0201 package size with placement accuracy of ±0.025mm, supported by automated solder paste inspection and 3D AOI systems for defect detection. The SMT department operates in a climate-controlled environment with humidity management and ESD-safe protocols, processing over 1.2 million components daily. All PCBs undergo rigorous post-reflow automated optical inspection to ensure solder joint integrity before proceeding to assembly.
Aging tests represent a critical quality gate in our process. We maintain dedicated burn-in chambers capable of simultaneously testing 15,000+ units under controlled conditions of 45°C ambient temperature. Every finished luminaire undergoes a minimum 72-hour aging cycle at full rated voltage, with real-time monitoring of lumen maintenance and thermal performance. Units exhibiting any parameter drift beyond our 3% threshold are automatically flagged for engineering review. This 100% burn-in protocol significantly exceeds industry standards and directly contributes to our field failure rate of less than 0.25%.
Regarding OEM capabilities for 0-10V dimmable products, our Jiangmen facility provides full turnkey solutions. We support custom 0-10V driver integration from initial circuit design through to certified production, including compatibility testing with major dimmer brands like Lutron and Leviton. Our engineering team develops proprietary driver firmware to ensure smooth dimming curves from 1% to 100% without flicker, validated using chroma meters and oscilloscopes per IEC 62384 standards. Clients receive complete documentation including dimming curve reports, UL/cUL certification support, and DALI or Zigbee integration options. All 0-10V products undergo extended compatibility testing across 12+ dimmer types prior to mass production, with the flexibility to incorporate client-specific mechanical housings or labeling requirements within our standard lead times.
Application Scenarios
The 0-10 volt dimmer is a widely used lighting control solution in commercial and institutional environments where precise and smooth dimming of LED or fluorescent lighting is required. It is particularly suitable for spaces that demand flexible lighting levels to support various activities, enhance ambiance, or improve energy efficiency.
In hotels, 0-10 volt dimming is commonly used in guest rooms, lobbies, ballrooms, and conference areas. It allows for creating different lighting scenes to match guest preferences or events. For example, dimming can be used to provide bright illumination during daytime cleaning and lower, warmer lighting in the evening to create a relaxing atmosphere. Corridors and back-of-house areas also benefit from dimming to reduce energy use during off-peak hours.
Malls utilize 0-10 volt dimming in common areas, atriums, and retail spaces where lighting levels need to adapt throughout the day. It helps highlight architectural features, manage customer experience, and reduce power consumption during low-traffic periods. The system integrates well with daylight harvesting strategies, especially in skylit areas, by automatically adjusting electric light output based on available natural light.
Offices are one of the most common applications for 0-10 volt dimming. It is ideal for open-plan workspaces, private offices, meeting rooms, and break areas. The ability to dim lights supports occupant comfort, reduces glare on computer screens, and contributes to energy savings. When paired with occupancy sensors or daylight sensors, the system can automatically adjust light levels, helping buildings meet green certification standards such as LEED or WELL.

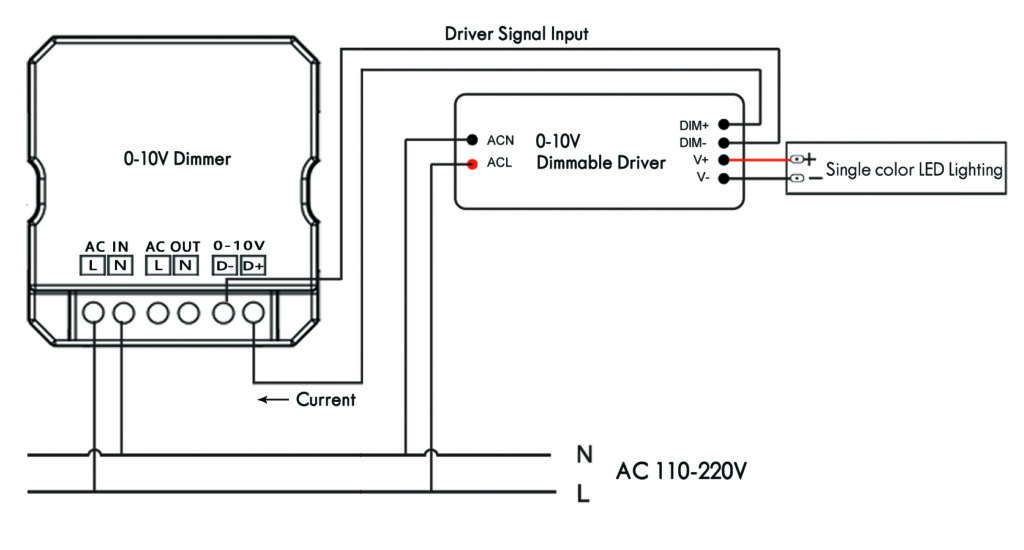

When installing a 0-10 volt dimming system, proper wiring is critical. The system requires two additional low-voltage control wires—typically red and black—connected from the dimmer to each compatible luminaire. These wires carry the 0-10 VDC signal that tells the LED driver how much to dim the light. The red wire is usually the 10-volt positive control signal, while the black is the control common or return. It is essential to use shielded cable to prevent electromagnetic interference, especially in environments with high electrical noise.
Ensure that all LED drivers and luminaires are specifically rated for 0-10 V dimming. Mismatched components can result in flickering, limited dimming range, or complete failure to dim. Verify compatibility between the dimmer control device and the driver specifications, including minimum and maximum output levels.
Route the control wires separately from mains power cables when possible, or cross them at 90-degree angles to minimize interference. Poor routing can lead to signal noise and unstable dimming performance. Use proper connectors and terminations, and label control wires clearly for future maintenance.
Finally, test the system thoroughly after installation. Check that all lights respond uniformly to the dimming signal and that the full 0-10 volt range is utilized. Adjust calibration settings on the driver or control panel if necessary to achieve smooth dimming from near-off to full brightness. Regular maintenance and system checks will ensure long-term reliability and performance.
Why Choose Beauty STC Lighting
Elevate your lighting control solutions with Beauty STC’s precision-engineered 0-10 volt dimmer technology designed for seamless integration and unwavering reliability in commercial and architectural applications. As a trusted manufacturing partner with over two decades of specialized LED systems expertise our components undergo rigorous electrical and thermal validation to ensure flicker-free performance across all major driver platforms.
Partner with Beauty STC to access scalable production capacity backed by in-house optical engineering support and UL/cETL certified manufacturing processes. Our technical team provides full compatibility documentation and real-world dimming curve optimization to eliminate field installation challenges.
Contact Manager at [email protected] today to discuss volume pricing engineering collaboration and how our 0-10V dimming solutions can enhance your next lighting project specification. Let Beauty STC become your strategic manufacturing ally for certified dimming performance.
